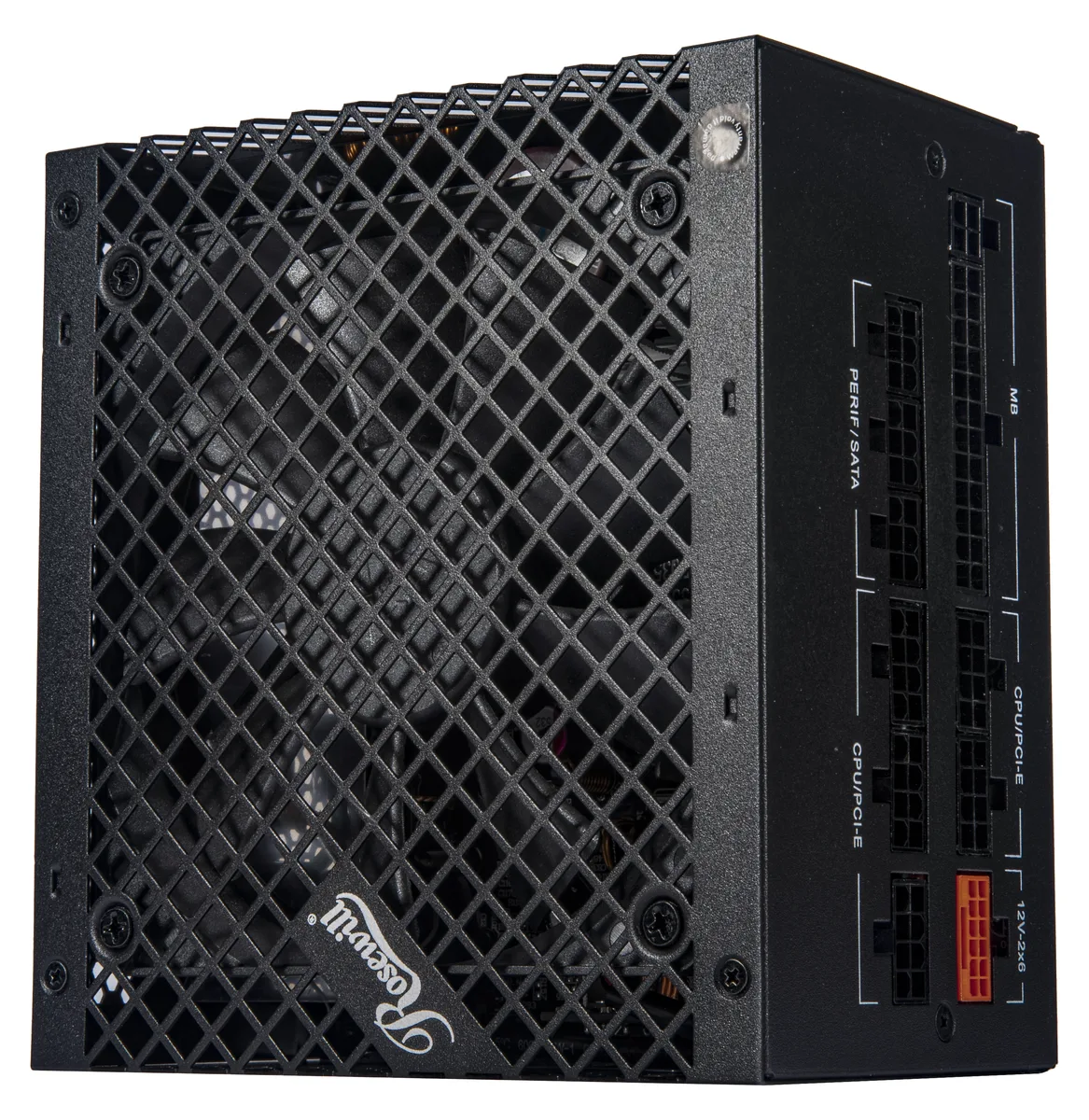

Rectangular steel unit with large vents and a 120mm fan, matte black finish

Rosewill

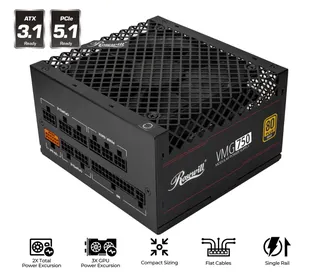

Rosewill VMG750 750W ATX 3.1 power supply

SKU CH-881S-EXFT5 MPN VMG750

A 750W ATX 3.1 power supply with full modular cabling, 80 PLUS Gold efficiency and a native 12V-2x6 connector for PCIe 5.1 graphics cards

  • TypeATX 3.1 Compatible
  • Maximum Power750 W
  • Fans1 x 120mm FDBfan
  • PFCActive
  • Main Connector20+4Pin
  • +12V RailsSingle

Options ATX 3.1 80+ Gold (750W)

Struck-through versions exist but are not stocked here.

  • Ready for modern builds with ATX 3.1 compatibility
  • Clean cable management via full modular design
  • Efficient 80 PLUS Gold certification reduces waste heat

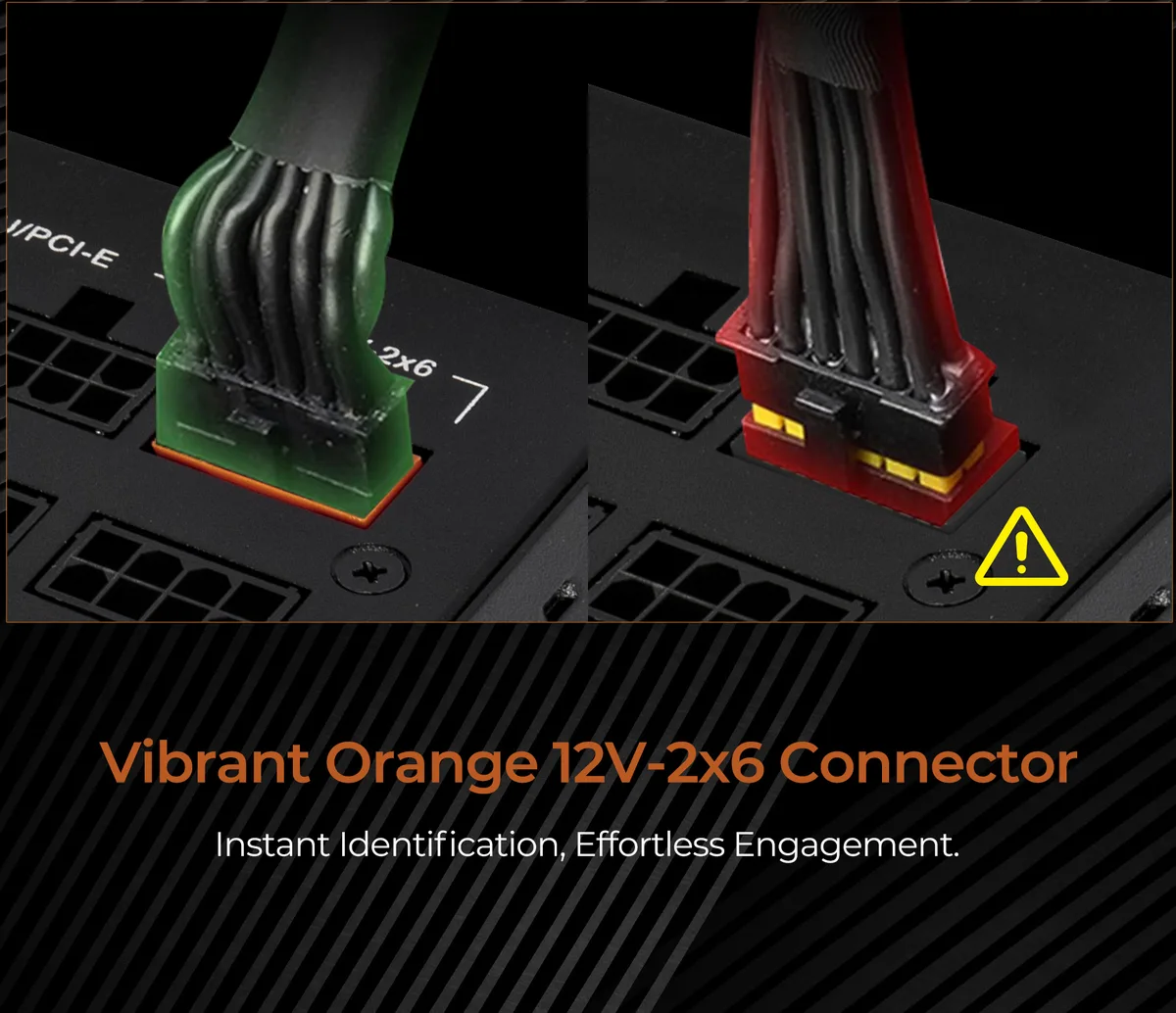

  • Native 12V-2x6 connector powers new GPUs directly
  • Compact 140mm depth fits small-form-factor cases

ATX 3.1 750 W platform

The Rosewill VMG750 is a fully modular power supply rated at 750 W and certified to the ATX 3.1 standard with 80 PLUS Gold efficiency. It targets builders who need a compact, high-efficiency unit for modern GPU architectures.

Compact 140 mm depth frees cable space

A 140 mm chassis depth reduces the footprint by roughly 35 percent compared with traditional units, leaving more room for cable routing in small-form-factor cases. Full modularity lets you connect only the 20+4-pin main, two 4+4-pin EPS, three 6+2-pin PCIe, one 12+4-pin 12V-2x6, eight SATA and four peripheral cables your build actually requires.

Single 12 V rail handles sustained excursion

The single +12 V rail is specified for up to 235 percent power excursion and 300 percent GPU excursion, allowing the 12 V-2x6 connector to deliver 600 W continuously to a Gen 5 graphics card. A 120 mm FDB fan and large steel vents maintain airflow during extended loads while the six-protection suite guards against over-current, over-power, over-temperature, over-voltage, short-circuit and under-voltage events.

Highlights

  • Ready for modern builds with ATX 3.1 compatibility
  • Clean cable management via full modular design
  • Efficient 80 PLUS Gold certification reduces waste heat
  • Native 12V-2x6 connector powers new GPUs directly
  • Compact 140mm depth fits small-form-factor cases

Specifications

BrandRosewill
ModelVMG750
TypeATX 3.1 Compatible
Maximum Power750 W
Fans1 x 120mm FDBfan
PFCActive
Main Connector20+4Pin
+12V RailsSingle
SATA Power Connector6
CrossFireCrossFire Ready
Max PSU Length140 mm
ModularFull Modular
Hold-up Time16ms min.
EfficiencyUp to 85%
Energy-Efficient80 PLUS GOLD Certified
Over Voltage ProtectionYes
Overload ProtectionYes
Output+3.3V@18A, +5V@18A, [email protected] , [email protected] , +5VSB@3A

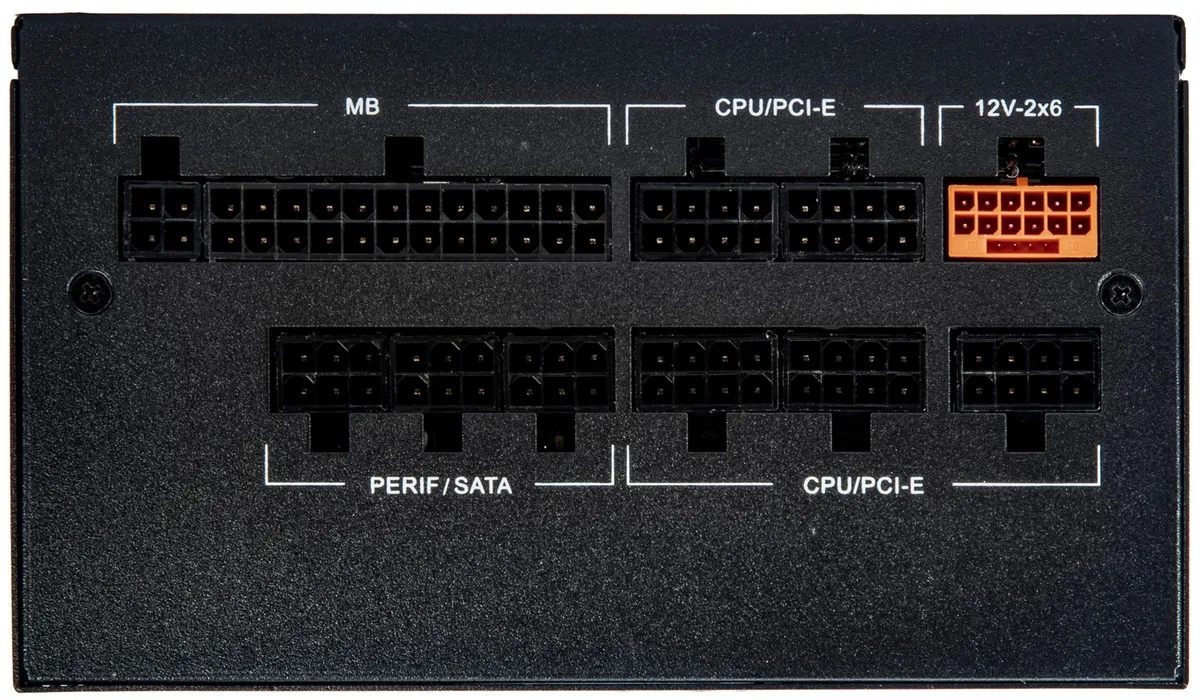

Connectors1 x 20+4-Pin Main Connector
2 x 4+4-Pin ATX12V / EPS12V Connector
3 x 6+2-Pin PCI-E Connector
1 x 12+4-Pin 12V-2x6 Connector
8 x 15-Pin SATA Connector
4 x 4-Pin Peripheral Connector
Shipping weight2.36 kg
Package size273 × 203 × 114 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How long can the 750 W output be sustained before the 16 ms hold-up time limit is reached?

The 16 ms hold-up time is the minimum duration the PSU maintains regulation after AC loss, not a sustained-load limit; the unit is rated for continuous 750 W delivery.

What noise and heat levels should I expect from the 120 mm FDB fan during all-day operation?

The 120 mm FDB fan runs silently under typical loads; the steel shell with large vents and optimized thermal control keeps temperatures low during extended use.

Which cables must I already own to connect the 12+4-pin 12V-2x6 and 6+2-pin PCIe connectors?

All required cables — including the native 12+4-pin 12V-2x6 and three 6+2-pin PCIe cables — are included in the full-modular package.
