SAMA
SAMA HAT-650yzB1G 650 W power supply
Delivers 650 W through an ATX 3.1 compatible, fully modular design with 80 PLUS Gold efficiency, a 140 mm fluid-dynamic-bearing fan.
- ColorBlack
- TypeATX 3.1 Compatible
- Maximum Power650 W
- Fans1 x 140 mm
- PFCActive
- Main Connector24Pin

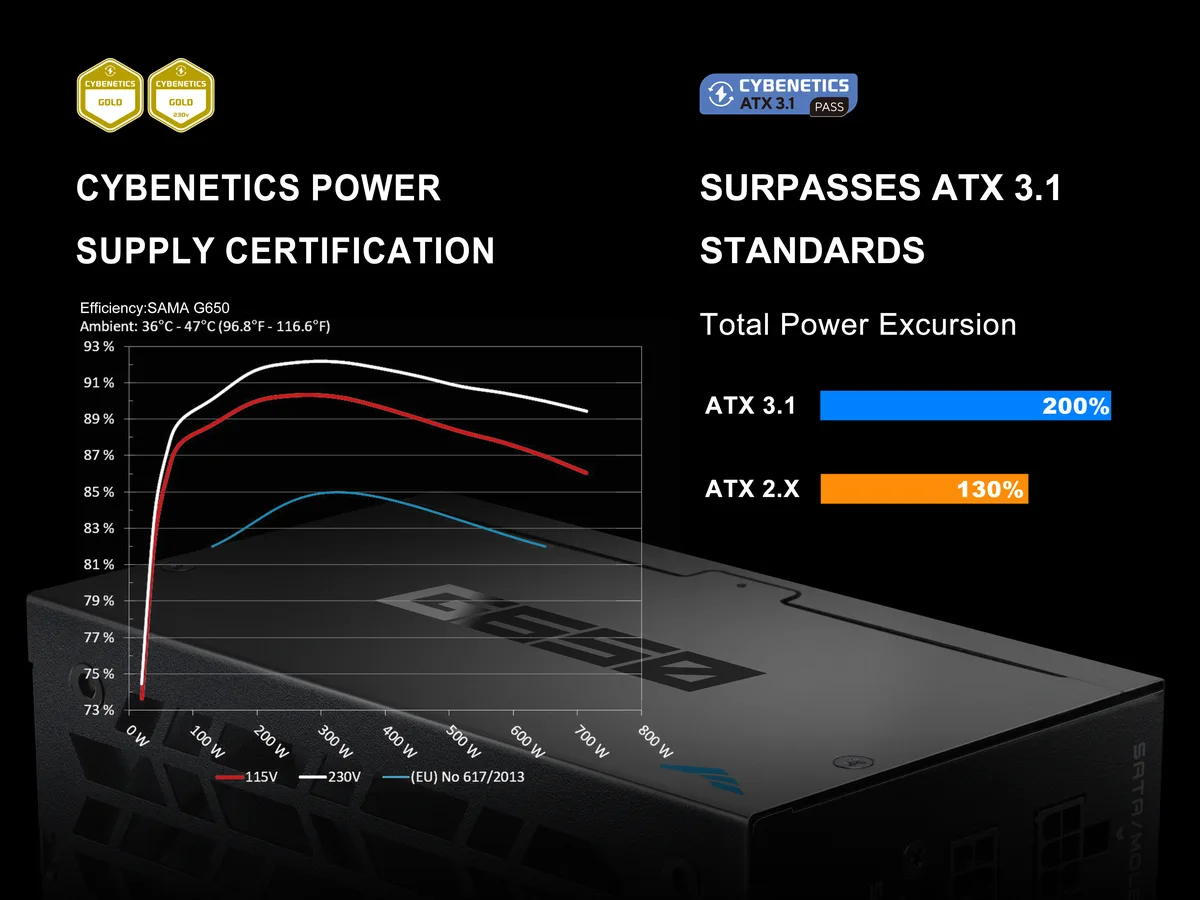

- 80 PLUS Gold certified for > 90 % efficiency
- ATX 3.1 with 12V-2x6 connector supports RTX 40 and 50 series
- Fully modular cabling keeps builds clean and flexible
- 100 % Japanese capacitors deliver stable power and long life

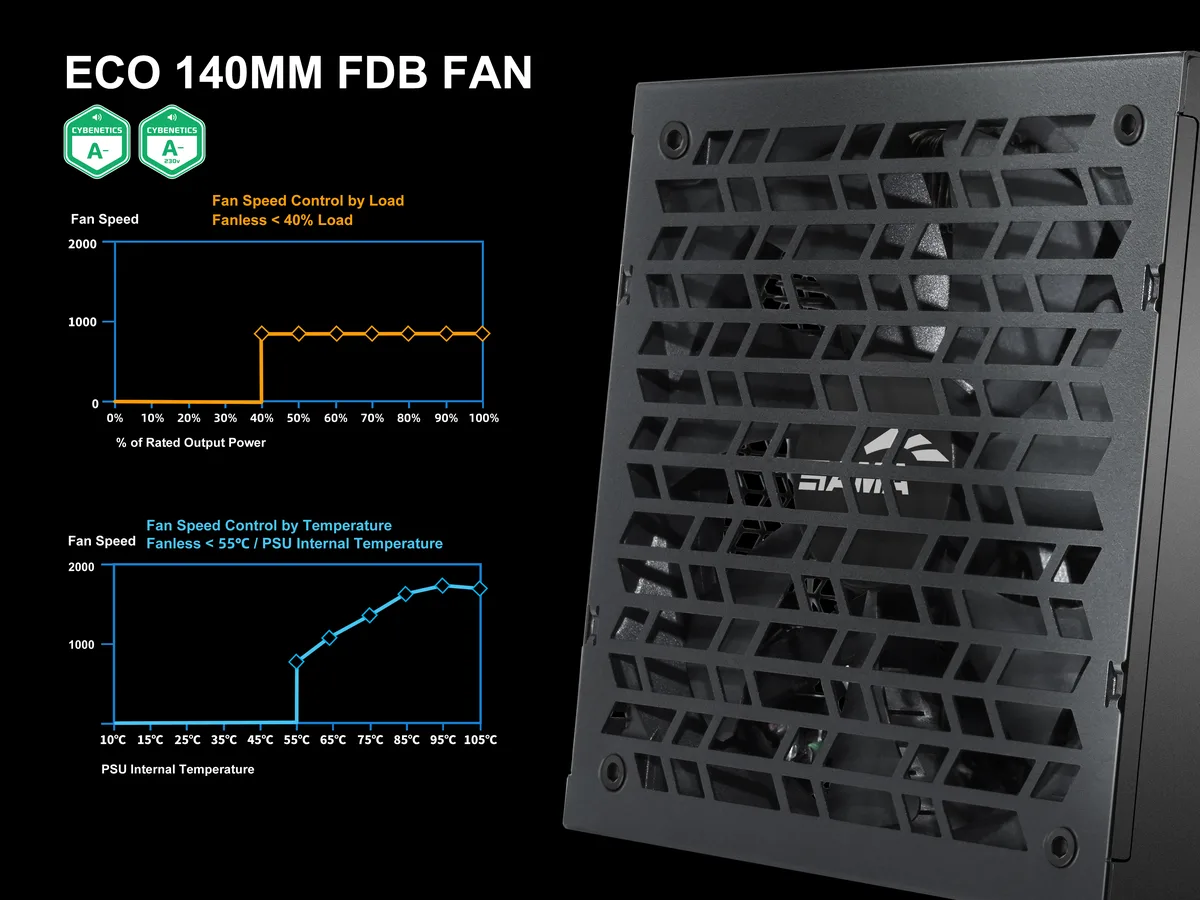

- 140 mm fluid-dynamic-bearing fan runs quietly with > 100000 hour MTBF
ATX 3.1 650 W unit
This 650 W power supply follows the ATX 3.1 specification and targets builders assembling a single-GPU desktop. Fully modular cabling keeps the interior tidy, while 80 PLUS Gold certification confirms high efficiency across typical loads. A 140 mm fluid-dynamic-bearing fan handles cooling with low noise. The compact 150 mm depth fits most mid-tower cases.

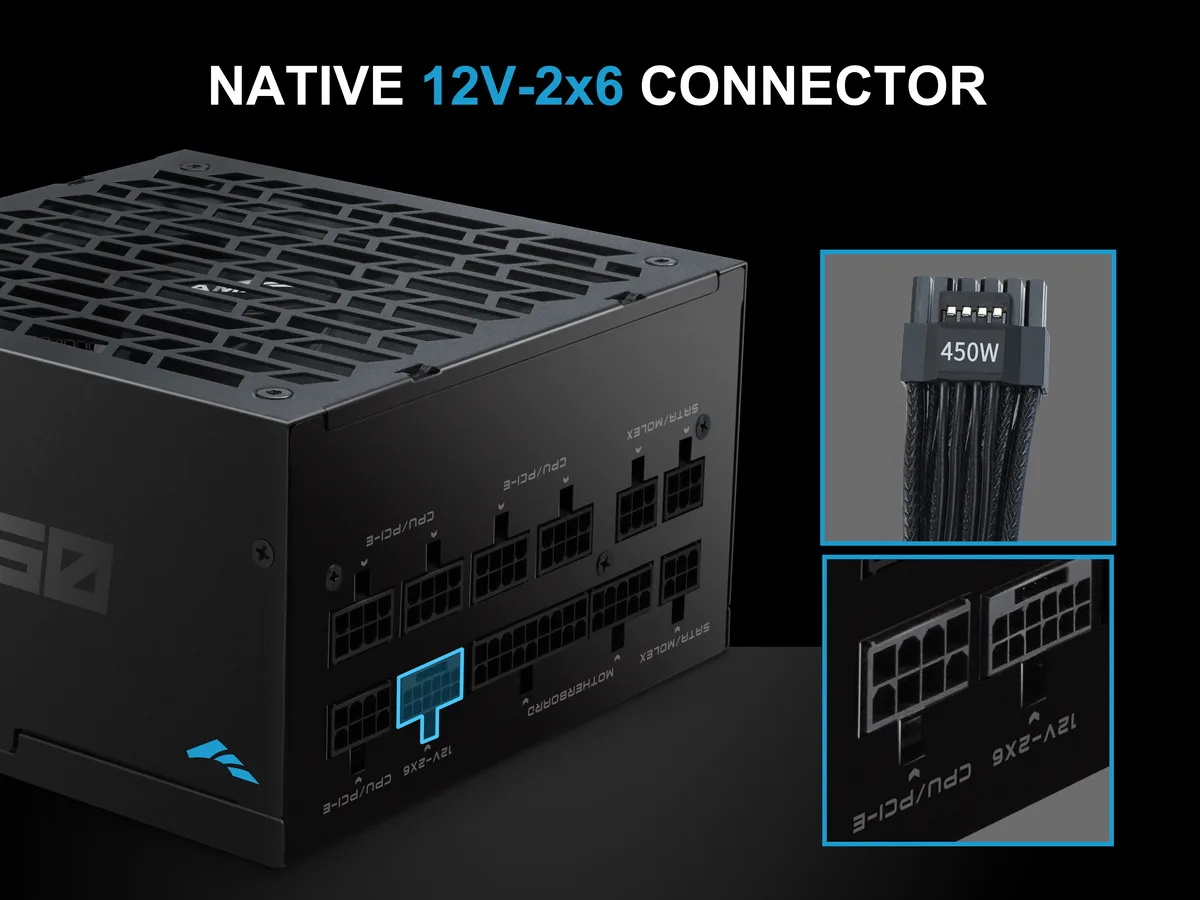

Single +12 V rail with 12V-2x6
The single +12 V rail delivers the full 650 W to modern graphics cards through a native 12V-2x6 connector rated for 600 W. One 6+2-pin PCIe cable is also included for secondary power needs. Two SATA power strings support multiple drives. Hold-up time exceeds 12 ms at full load, giving the system a brief ride-through during power dips.
100 % Japanese capacitors and protection suite
All electrolytic capacitors are Japanese-sourced, improving long-term voltage stability and lifespan. The protection suite covers over-voltage, over-current, over-power, short-circuit, under-voltage, surge and no-load conditions. A five-year manufacturer warranty backs the design. No software utilities or RGB controllers are bundled.
Highlights
- 80 PLUS Gold certified for > 90 % efficiency
- ATX 3.1 with 12V-2x6 connector supports RTX 40 and 50 series
- Fully modular cabling keeps builds clean and flexible
- 100 % Japanese capacitors deliver stable power and long life
- 140 mm fluid-dynamic-bearing fan runs quietly with > 100000 hour MTBF
Specifications
| Brand | SAMA |
|---|---|
| Series | G-Series |
| Model | HAT-650yzB1G |
| Part Number | G0650-BKGFF001-US |
| Color | Black |
| Type | ATX 3.1 Compatible |
| Maximum Power | 650 W |
| Fans | 1 x 140 mm |
| PFC | Active |
| Main Connector | 24Pin |
| +12V Rails | Single |
| PCI-Express Connector | 1 x 6+2-Pin |
| SATA Power Connector | 2 |
| Max PSU Length | 150 mm |
| Modular | Yes |
| Hold-up Time | > 12 ms @ 100% load |
| Efficiency | > 90% |
| Energy-Efficient | 80 PLUS GOLD Certified |
| Over Voltage Protection | Yes |
| Overload Protection | Yes |
| Input Voltage | 100 - 240 V |
| Output | 650W |
| MTBF | >100,000 Hours |
| Connectors | 1 x 24 pin ATX |

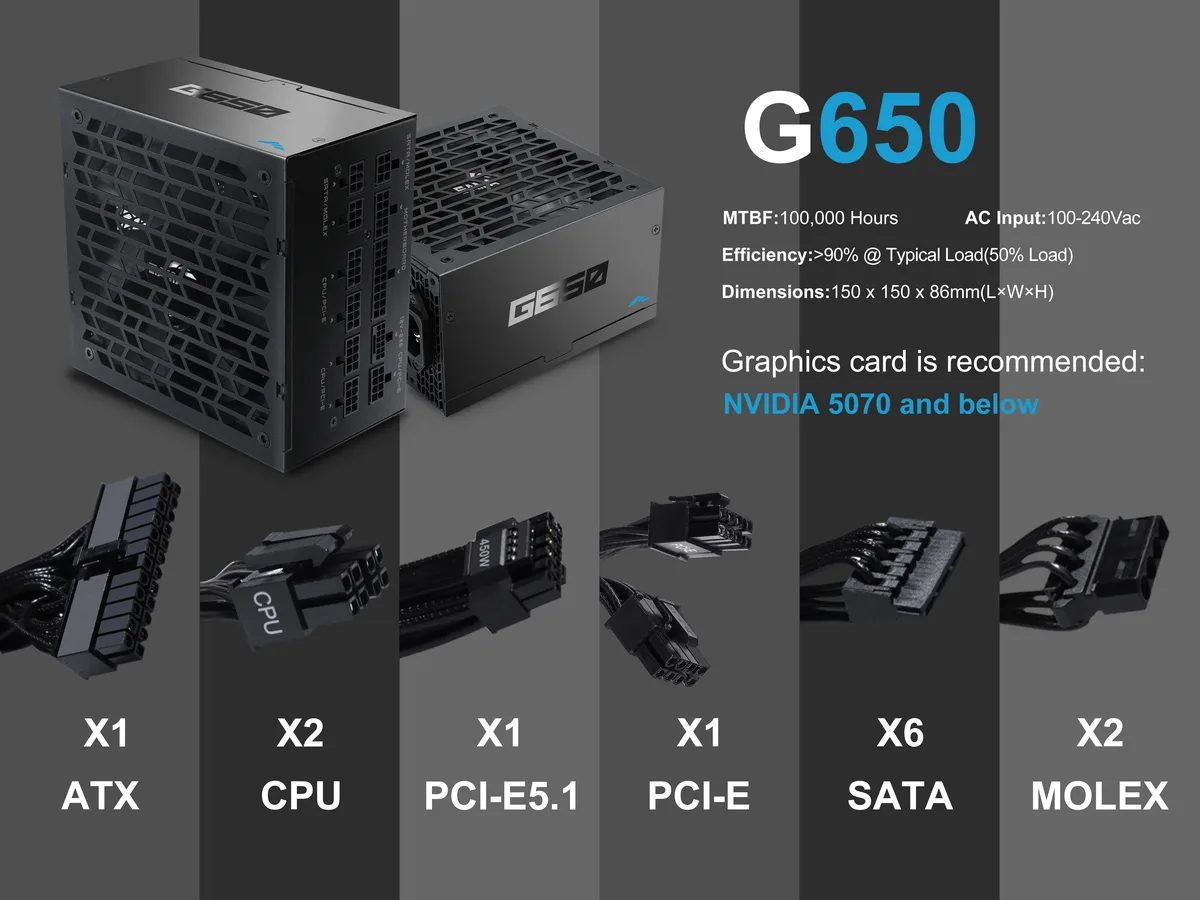

| Cable Spec | 1x MB ATX 24Pin 550mm 1x CPU (4+4)Pin+(4+4)Pin 600+150mm 1x PCI-E (6+2)Pin+(6+2)Pin 550+150mm 1x 12V-2x6 (12+4)Pin 600mm 2x (SATA+SATA+SATA+Molex) 450+150+150+150mm |
| Top Fans Size | 140mm |
| Top Fans Bearing Type | Fluid Dynamic Bearing |
| Shipping weight | 2.11 kg |
| Package size | 267 × 203 × 114 mm |
Questions about this item
Will the 12V-2x6 cable reach a rear-mounted GPU in a full-tower case?
The 12V-2x6 cable is 600 mm long, which is typically sufficient for rear-mounted graphics cards in full-tower chassis.
Does the unit include enough SATA power plugs for three drives?
The two included peripheral cables each carry four SATA connectors, giving eight SATA plugs in total.
Can this PSU deliver 650 W continuously at 40 °C ambient?
The 80 PLUS Gold rating and >100,000 hour MTBF indicate stable 650 W output at typical operating temperatures.
