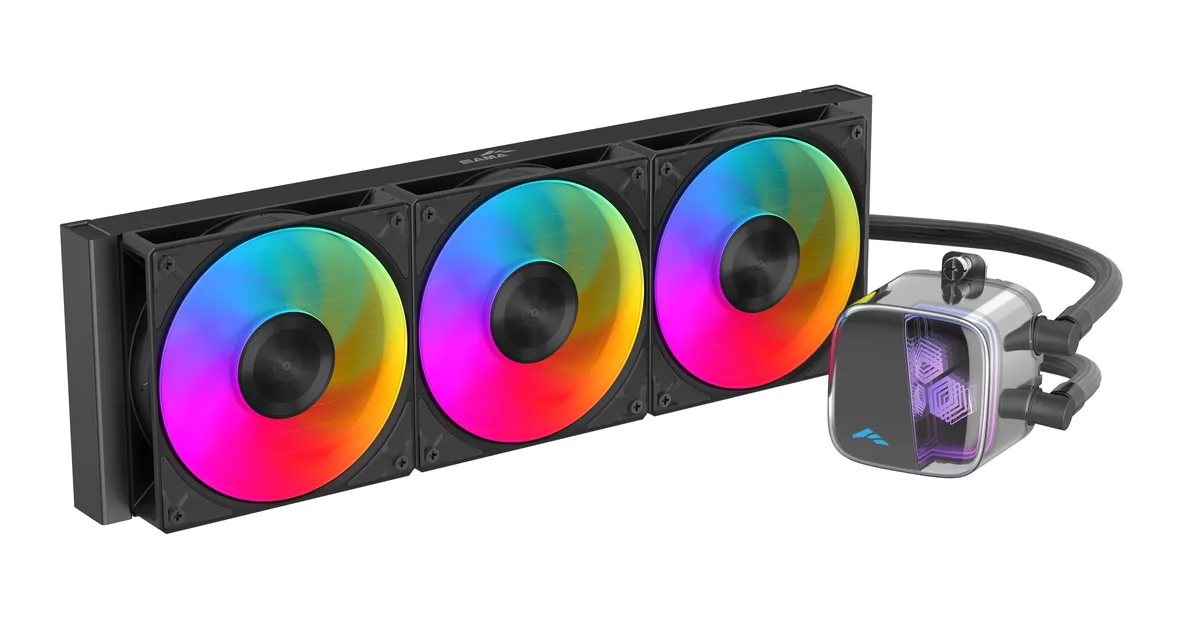

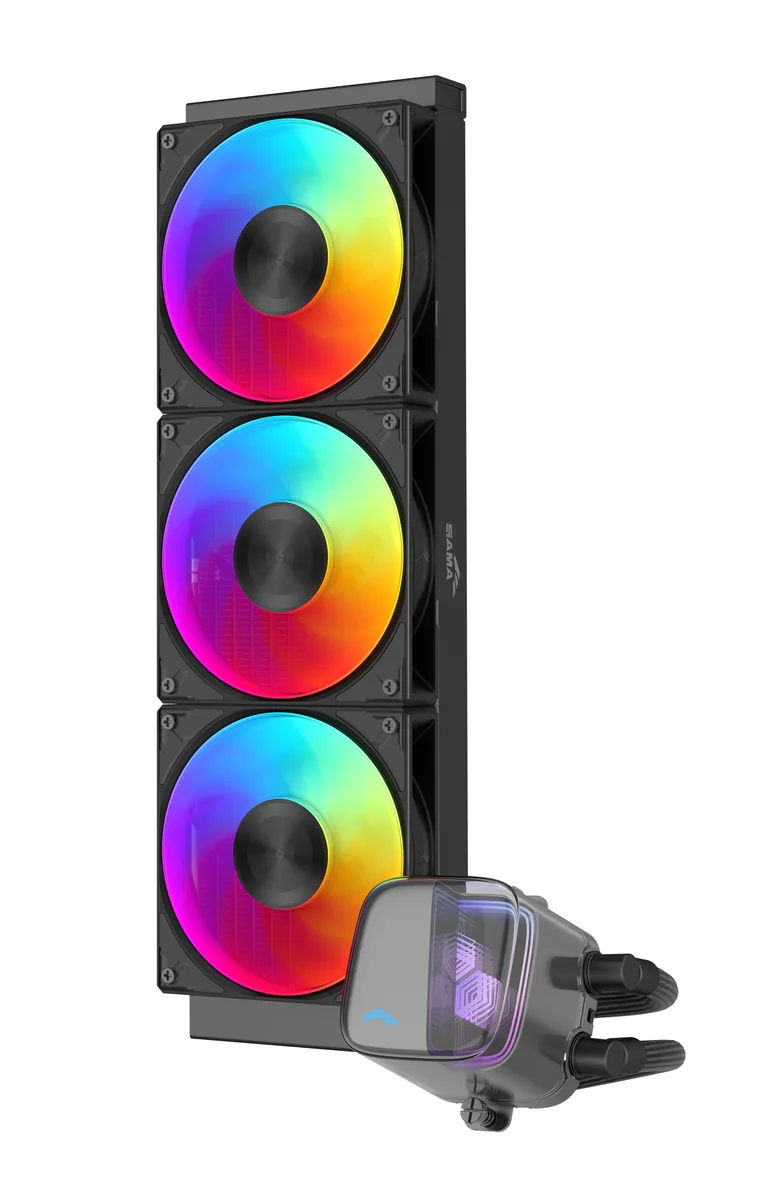

Black 360 mm AIO with three 120 mm fans, square pump block showing infinity mirror ARGB, braided tubes

SAMA

SAMA L70 Black (360 mm) liquid cooler

SKU CH-F9YK-AQA89 MPN L70 Black (360 mm)

A 360 mm liquid CPU cooler with a ceramic pump, 28 mm hydraulic-bearing fans and ARGB infinity-mirror water block for Intel and AMD sockets

  • TypeLiquid Cooling System
  • Block CompatibilityAMD Socket AM4 / AMD Socket AM5 / Intel LGA 1150 / Intel LGA
  • Pump Speed2000~3000RPM+/-10% PWM
  • Pump Dim.73 x 73 x 66mm
  • Radiator Size397 x 120 x 27mm
  • Radiator MaterialAluminum

Class Black

  • Black
  • White

Struck-through versions exist but are not stocked here.

Size 360 mm

  • Pump runs at 2000-3000 RPM for rapid heat transfer
  • Three 28 mm thick fans deliver up to 72.3 CFM airflow

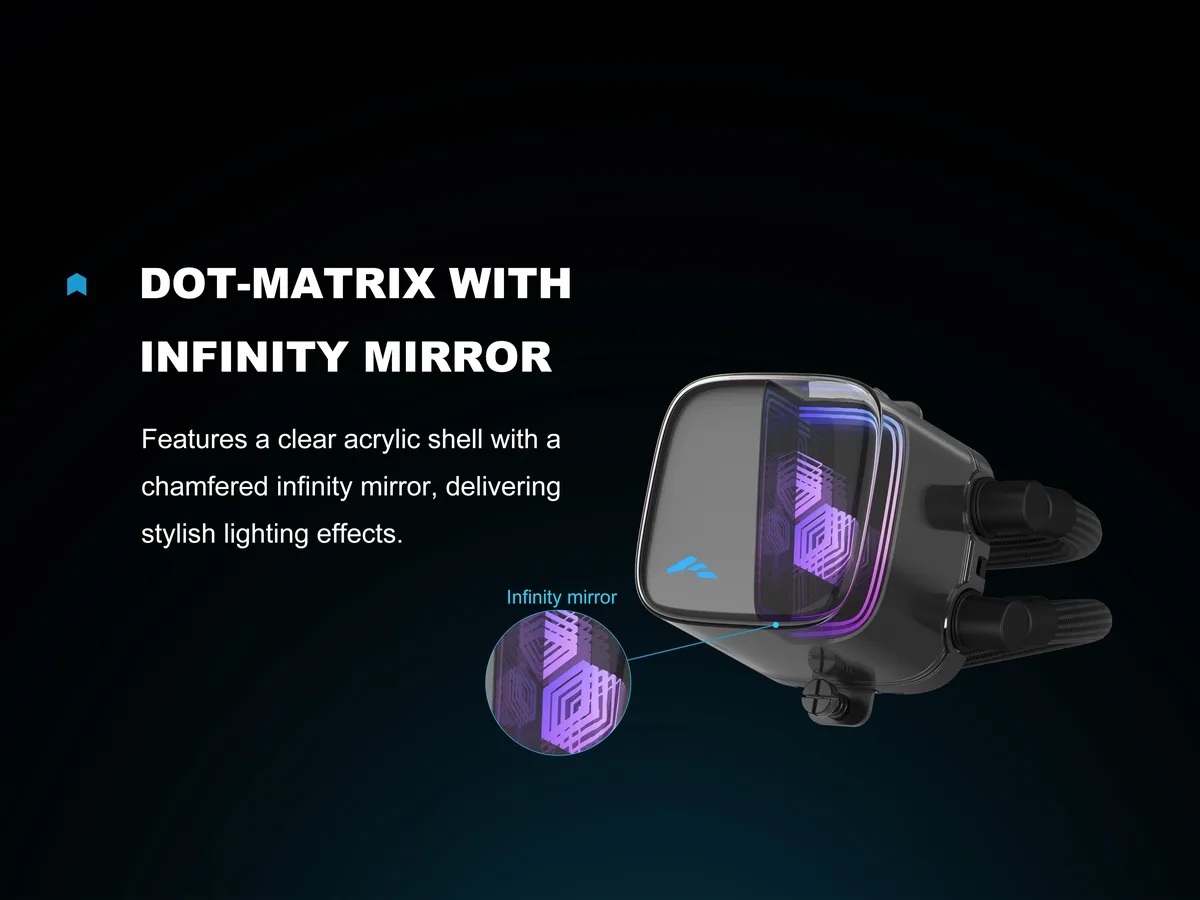

  • Infinity mirror ARGB block syncs with motherboard lighting software
  • Hydraulic bearing fans operate at 28 dBA or less
  • Universal mounting kit fits Intel LGA 1700/1851 and AMD AM4/AM5 sockets

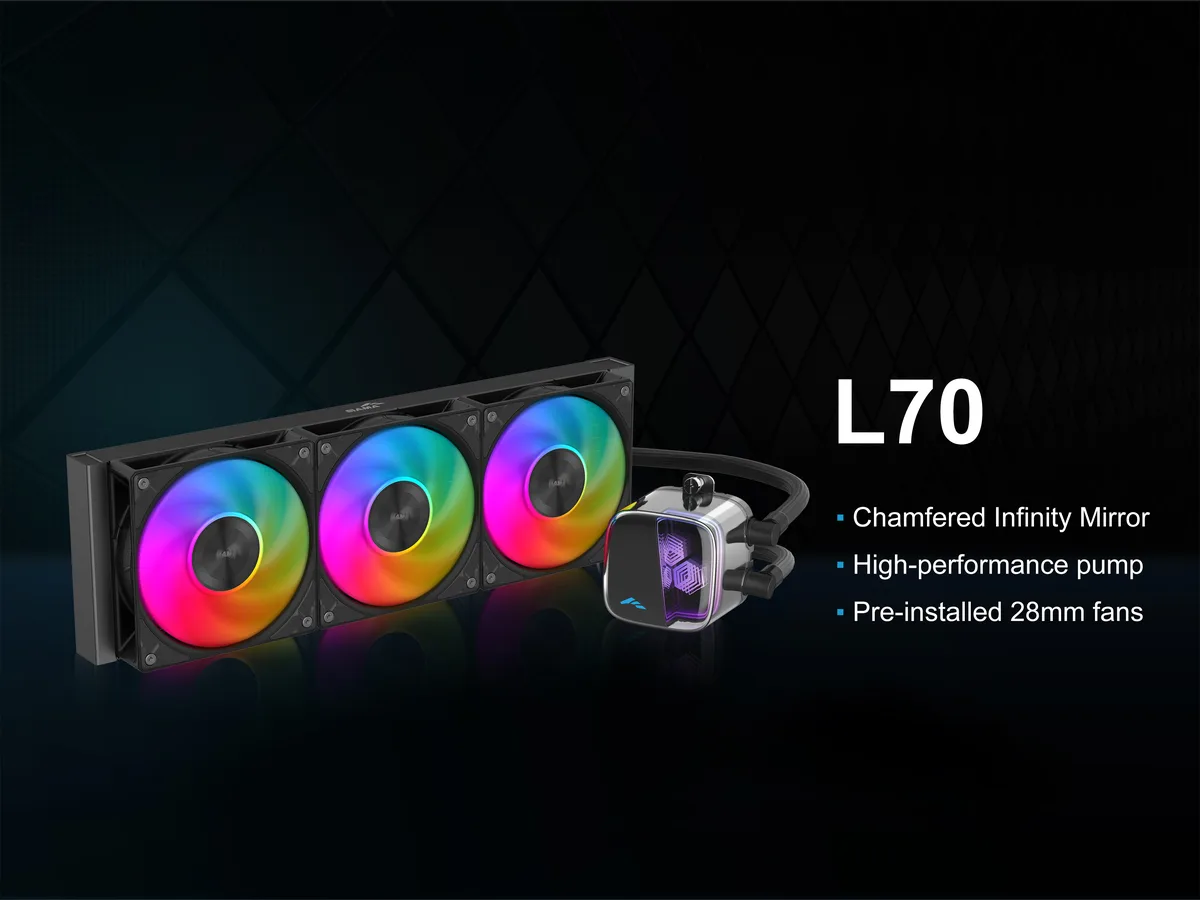

360 mm AIO for mainstream sockets

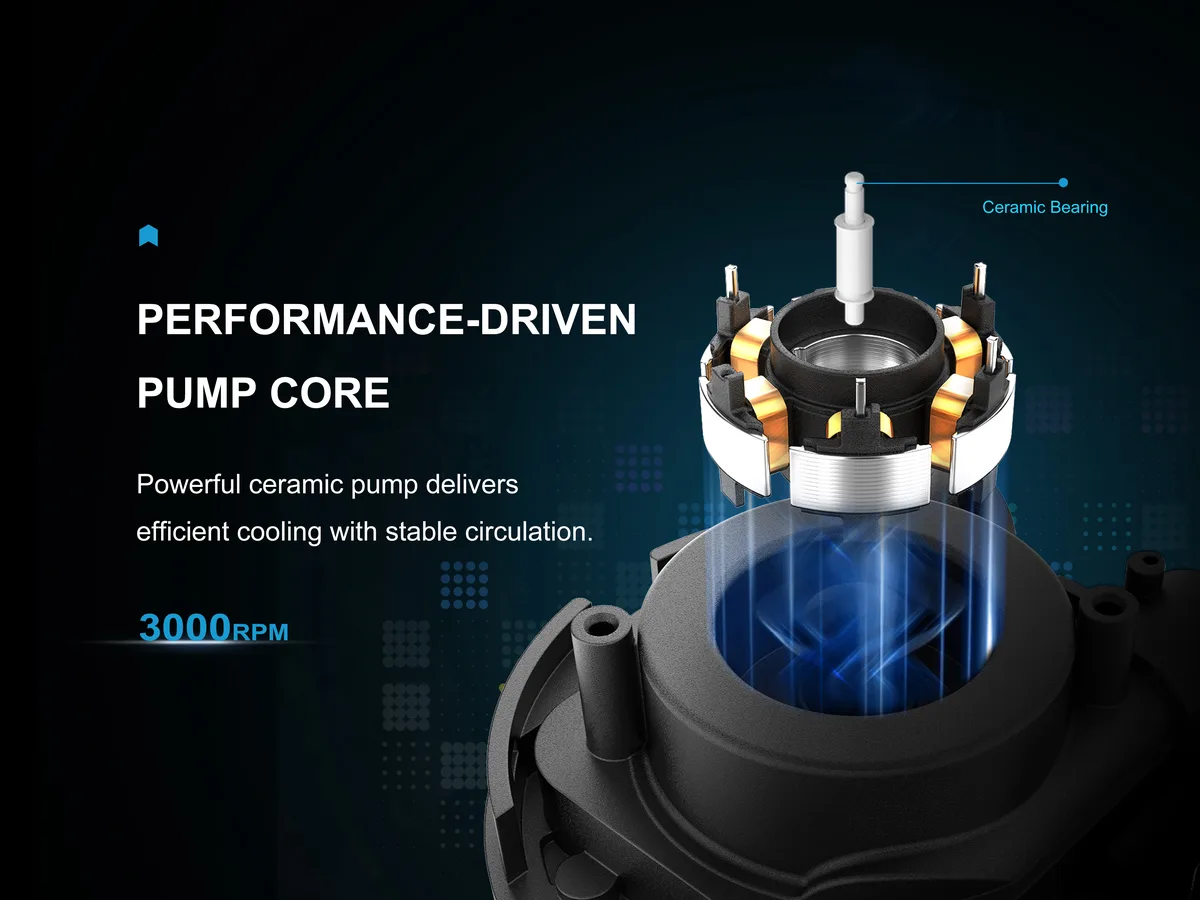

The SAMA L70 Black is a 360 mm all-in-one liquid cooler built for AMD AM4, AM5 and Intel LGA 1150 through LGA 1851 platforms. A self-developed ceramic pump runs at 2000-3000 RPM with PWM control and a 20 mm thick copper base to move heat quickly into the loop. It targets builders who want a single 360 mm radiator for high-wattage CPUs without custom plumbing.

Aluminum radiator, 28 mm fans, 400 mm tubes

The 397 x 120 x 27 mm aluminum radiator holds three pre-installed 120 x 120 x 28 mm hydraulic-bearing fans spinning at 800-2200 RPM and rated at 72.3 CFM maximum airflow with noise at or below 28 dBA. Each fan uses a 4-pin PWM connector for motherboard speed control. FEP tubing with braided sleeves runs 400 mm and terminates in reinforced clamps for a secure fit. The pump block measures 73 x 73 x 66 mm and carries an ARGB infinity-mirror top that syncs with motherboard lighting software.

Upgrade from 240 mm AIOs or tower air coolers

The 360 mm radiator adds surface area over 240 mm units, making the jump worthwhile when overclocking or running sustained multi-core loads that push smaller loops past their limits. Included Freezee thermal paste rated at 14.8 W/m·K conductivity ensures proper contact out of the box. Builders limited to 240 mm radiator clearance or who prefer air-cooling simplicity will not benefit from the larger footprint.

Highlights

  • Pump runs at 2000-3000 RPM for rapid heat transfer
  • Three 28 mm thick fans deliver up to 72.3 CFM airflow
  • Infinity mirror ARGB block syncs with motherboard lighting software
  • Hydraulic bearing fans operate at 28 dBA or less
  • Universal mounting kit fits Intel LGA 1700/1851 and AMD AM4/AM5 sockets

Specifications

BrandSAMA
ModelL70 Black (360 mm)
TypeLiquid Cooling System
Block CompatibilityAMD Socket AM4 / AMD Socket AM5 / Intel LGA 1150 / Intel LGA 1151 / Intel LGA 1155 / Intel LGA 1156 / Intel LGA 1200 / Intel LGA 1700 / Intel LGA 1851
Pump Speed2000~3000RPM+/-10% PWM
Pump Dim.73 x 73 x 66mm
Radiator Size397 x 120 x 27mm
Radiator MaterialAluminum
Fan Size3 Fan Slots (120 mm)
Fan Dim.120 x 120 x 28mm
Bearing TypeHydraulic bearing
Fan RPM800-2200+/-10% RPM
Fan Air Flow72.3CFM (Max)
Fan Noise<= 28dBA
Fan Connector4PIN PWM
ColorBlack
LED ColorARGB
Pressure2.85 mmH2O
Tube Dim.400mm
Shipping weight2.22 kg
Package size437 × 203 × 140 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What fan connector standard do the three 120 mm fans use, and what speed range does PWM control allow?

Each fan uses a 4-pin PWM connector and runs between 800 and 2200 RPM with a tolerance of 10 percent.

What case clearance is required for the 360 mm radiator and its 28 mm thick fans?

The radiator measures 397 by 120 by 27 mm and the fans are 28 mm thick, so plan for at least 55 mm of depth plus tubing bend radius.

How is the pump mounted on Intel LGA 1700 or AMD AM5, and which step is often missed?

Attach the supplied universal back-plate, secure the Intel or AMD bracket, apply the included 14.8 W/m·K paste, then seat the 73 x 73 x 66 mm pump — many forget to remove the protective film from the copper base before tightening.
