Black fully modular ATX power supply with 140mm FDB fan and native 12V-2x6 connector

SAMA

SAMA XPH1000-AP power supply 1000W ATX 3.1 Cybenetics Platinum

SKU CH-2XRK-VCEMM MPN XPH1000-AP

Fully modular 1000 W ATX 3.1 unit with Cybenetics Platinum efficiency, native 12V-2x6 PCIe 5.1 connector for 600 W GPU power, 140 mm FDB fan with fanless mode below 60 % load.

  • TypeATX 3.1 Compatible
  • Maximum Power1000 W
  • ModularYes
  • Fans1 x 140 mm
  • PFCActive
  • Main Connector24Pin

Option P1000W Black

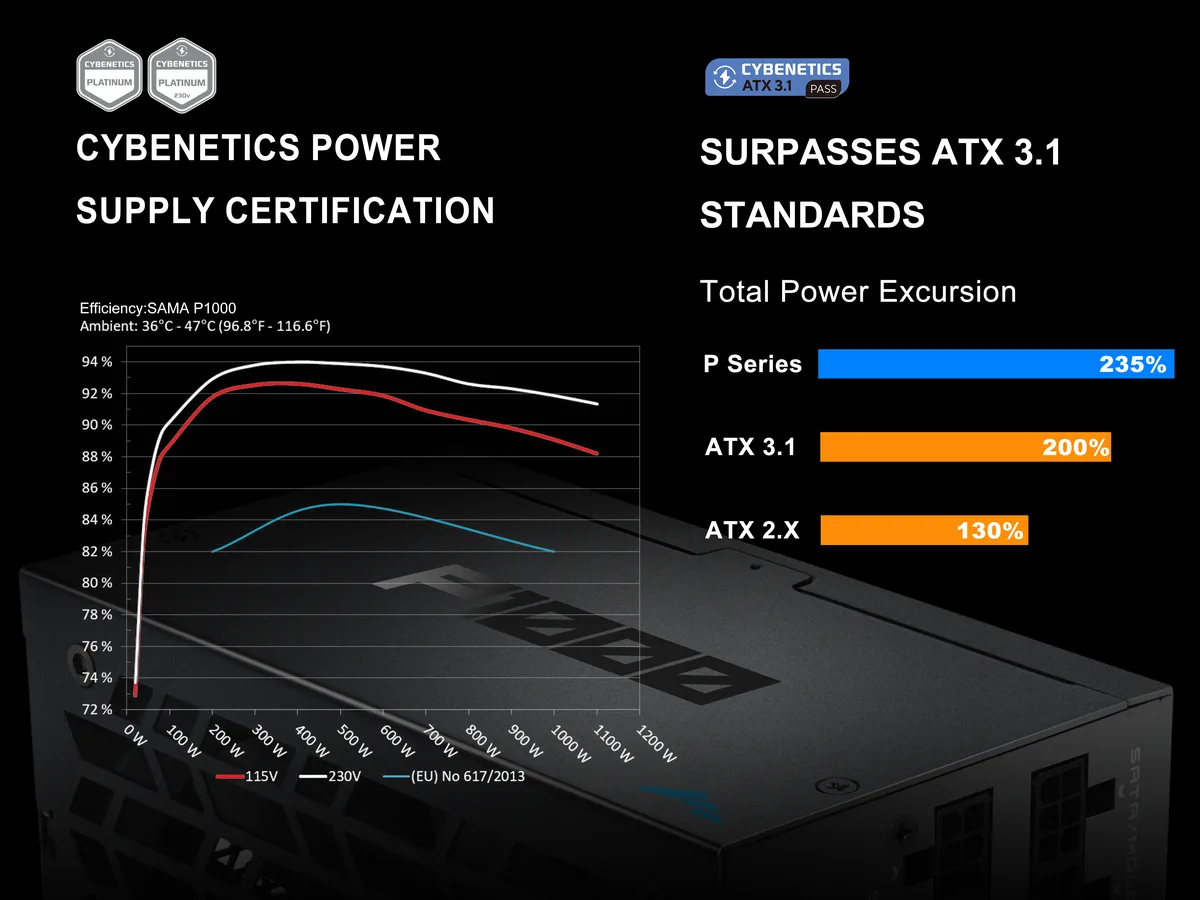

  • Cybenetics Platinum certified at 92% typical efficiency
  • Native 12V-2x6 PCIe 5.1 connector delivers 600W to RTX cards
  • Fully modular cabling with 100% Japanese capacitors for stable power

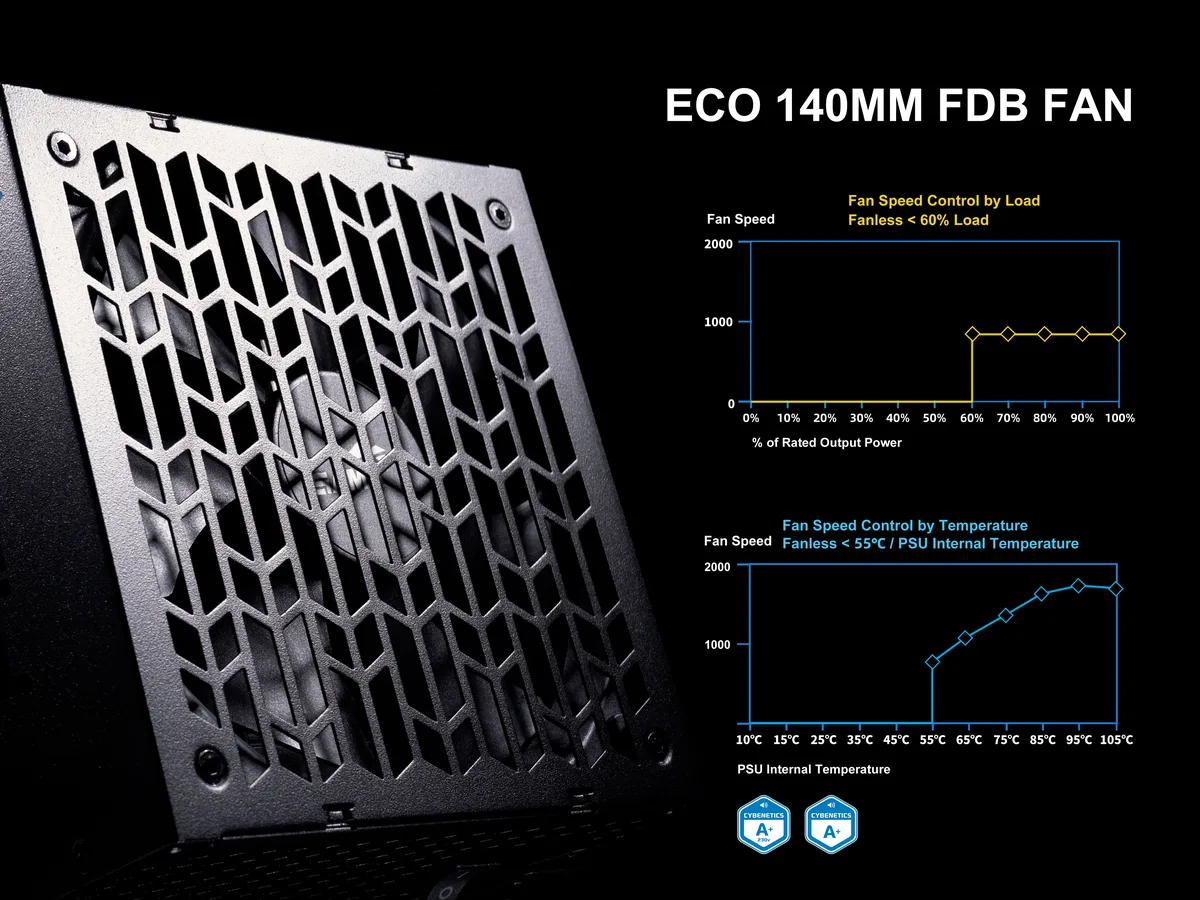

  • 140mm FDB fan runs silent below 60% load or 55°C
  • Compact 150mm depth fits small cases while handling 235% power spikes

Power Delivery for High-End Builds

This SAMA XPH1000-AP unit delivers 1000W through an ATX 3.1 design with a single +12V rail. Cybenetics Platinum certification confirms 92% or higher efficiency at typical loads. The fully modular cabling uses 100% Japanese capacitors for stable output. A 140mm FDB fan provides cooling with a semi-passive mode below 60% load or 55°C.

Upgrade Path from Older Standards

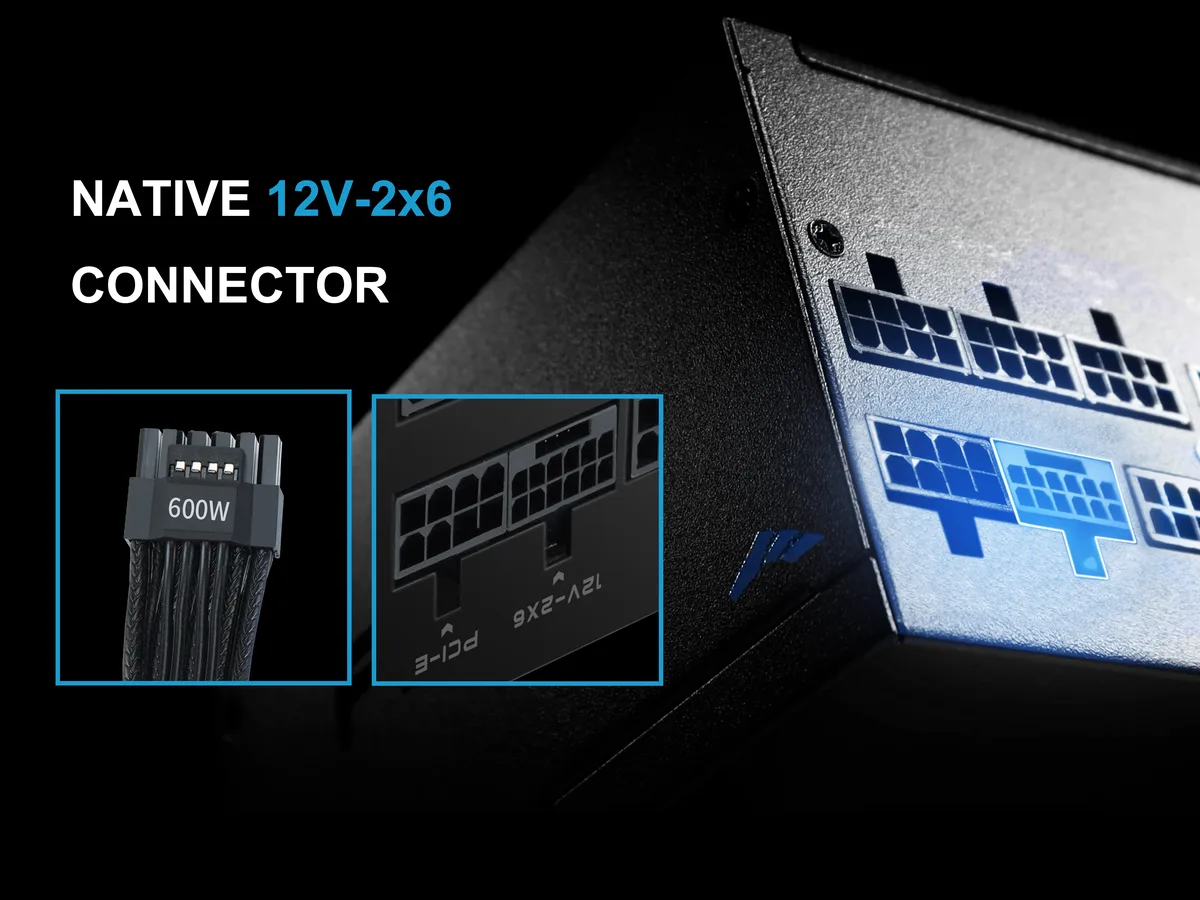

The native 12V-2x6 connector supplies up to 600W to PCIe 5.1 graphics cards without adapters, replacing units that rely on 6+2-pin bundles. ATX 3.1 compatibility handles transient spikes up to 235% of rated power, a margin older ATX 3.0 or 2.x designs cannot guarantee. Hold-up time exceeds 16ms at full load for cleaner power-loss transitions.

Suited for Compact High-Performance Systems

The 150mm depth fits small-form-factor cases while still powering RTX 40 and 50 series GPUs directly. Builders needing only SATA drives and legacy peripherals will find two SATA connectors and three 6+2-pin PCIe leads included. Systems requiring more than two SATA devices or additional EPS cables should verify cable kit availability before purchase.

Highlights

  • Cybenetics Platinum certified at 92% typical efficiency
  • Native 12V-2x6 PCIe 5.1 connector delivers 600W to RTX cards
  • Fully modular cabling with 100% Japanese capacitors for stable power
  • 140mm FDB fan runs silent below 60% load or 55°C
  • Compact 150mm depth fits small cases while handling 235% power spikes

Specifications

BrandSAMA
ModelXPH1000-AP
SeriesP-Series
Part NumberP1000-BKPFF001-US
TypeATX 3.1 Compatible
Maximum Power1000 W
ModularYes
Fans1 x 140 mm
PFCActive
Main Connector24Pin
+12V RailsSingle
PCI-Express Connector3 x 6+2-Pin
SATA Power Connector2
Hold-up Time> 16 ms @ 100% load
Efficiency> 90%
Energy-EfficientCybenetics Certified
Over Voltage ProtectionYes
Overload ProtectionYes
Input Voltage100 - 240 V
Output1000W
MTBF>100,000 Hours
Connectors1 x 24 pin ATX
ColorBlack
Max PSU Length150 mm

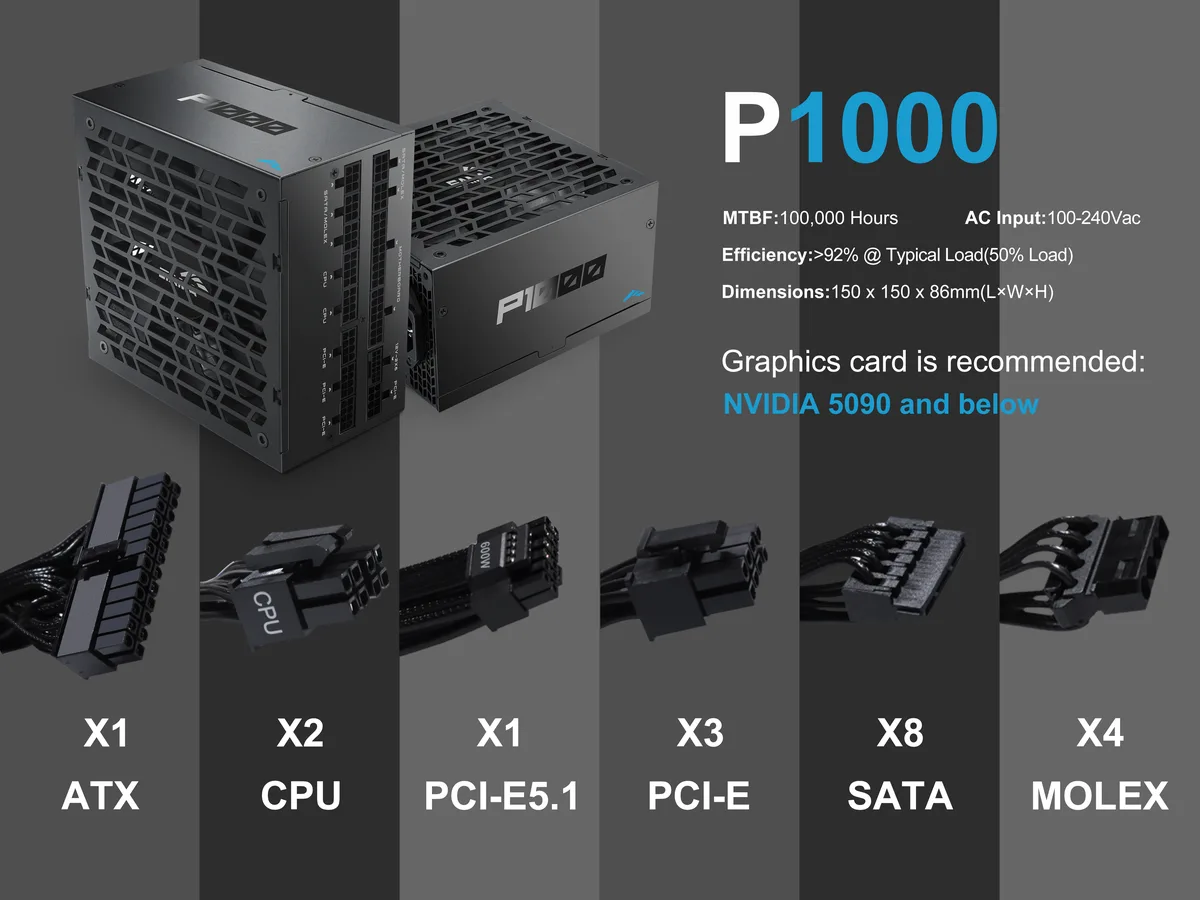

Cable Spec1x MB ATX 24Pin 600mm
2x CPU (4+4)Pin 700mm
3x PCI-E (6+2)Pin 600mm
1x 12V-2x6 (12+4)Pin 600mm
2x (SATA+SATA+SATA+SATA) 450+150+150+150mm
1x (Molex+Molex+Molex+Molex) 450+150+150+150mm
Top Fans Size140mm
Top Fans Bearing TypeFluid Dynamic Bearing
Shipping weight3.04 kg
Package size318 × 198 × 127 mm

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What case depth is required for the 150 mm long PSU?

The unit measures 150 mm deep, so the case must provide at least that much clearance behind the mounting bracket.

How is the native 12V-2x6 connector attached, and what mistake do builders make?

Plug the supplied 12V-2x6 cable directly into the PSU and GPU; the common error is leaving the 600 W cable unseated or using an adapter instead.

When does the 140 mm FDB fan need cleaning or replacement?

Dust the fan blades once a year; the fluid-dynamic bearing is rated for long life, so replacement is only needed if noise or vibration appears.
