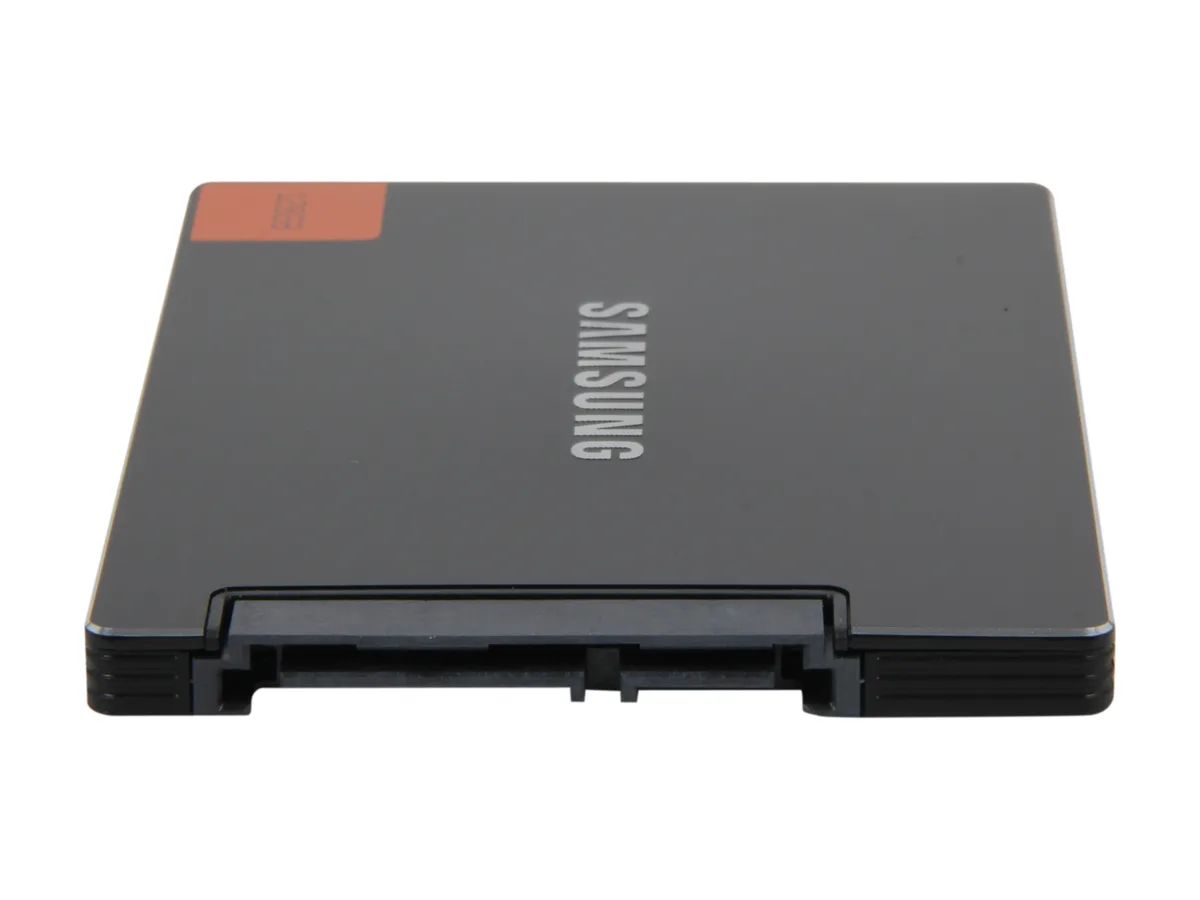

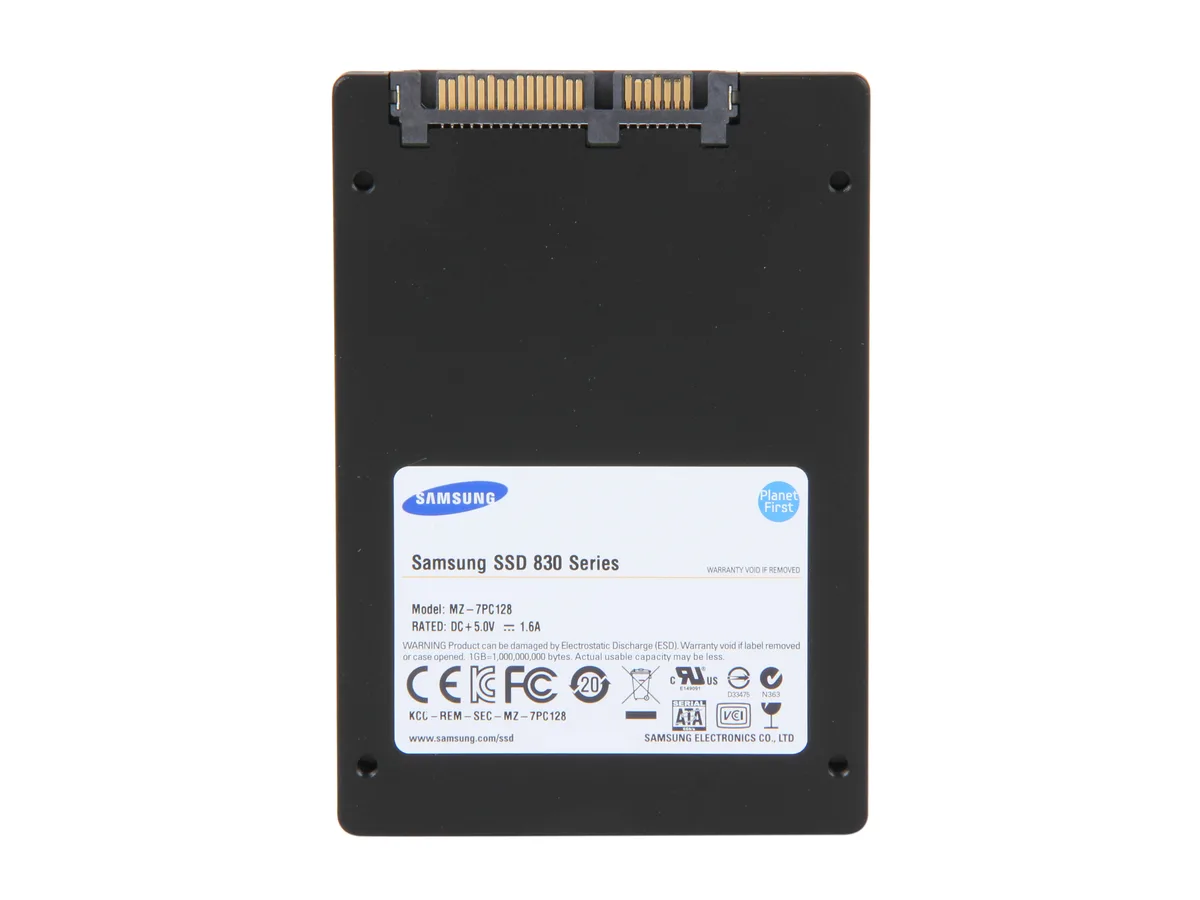

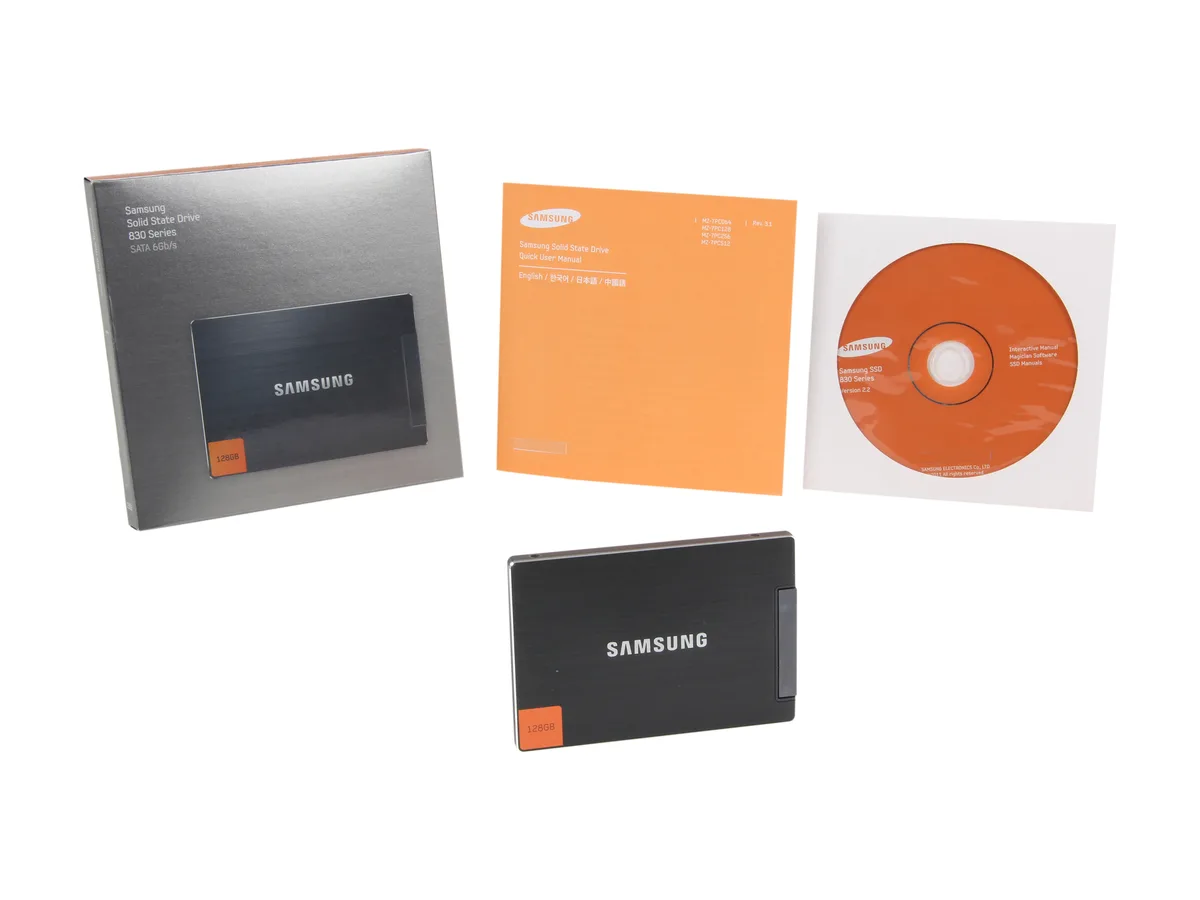

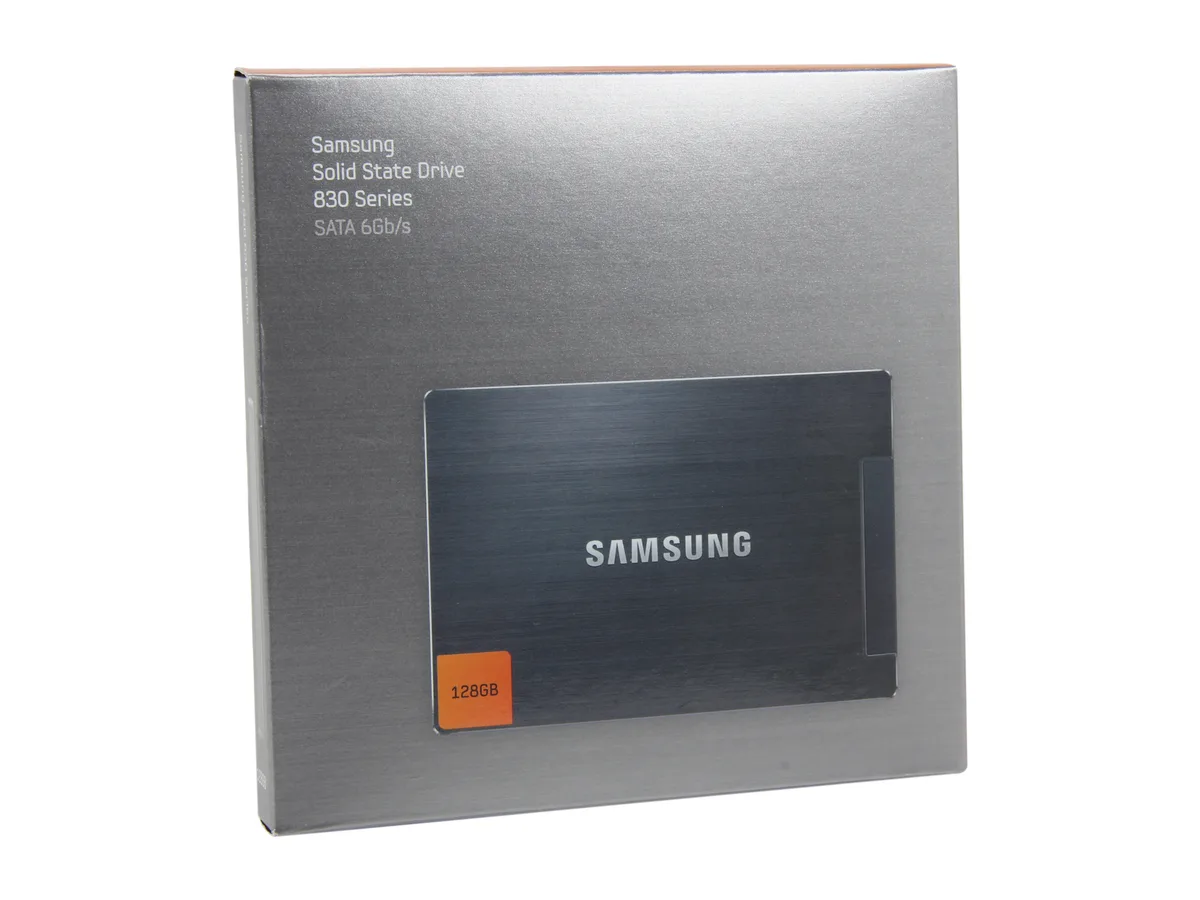

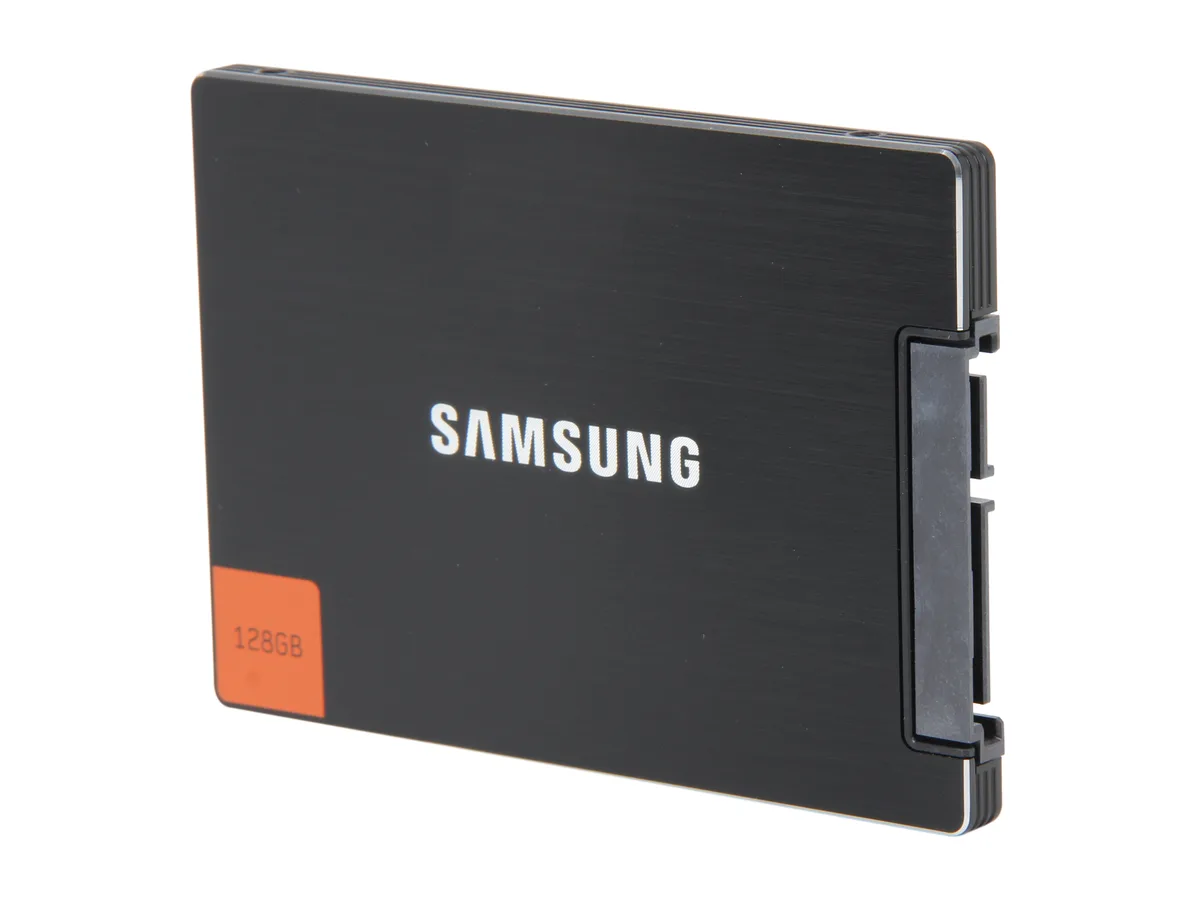

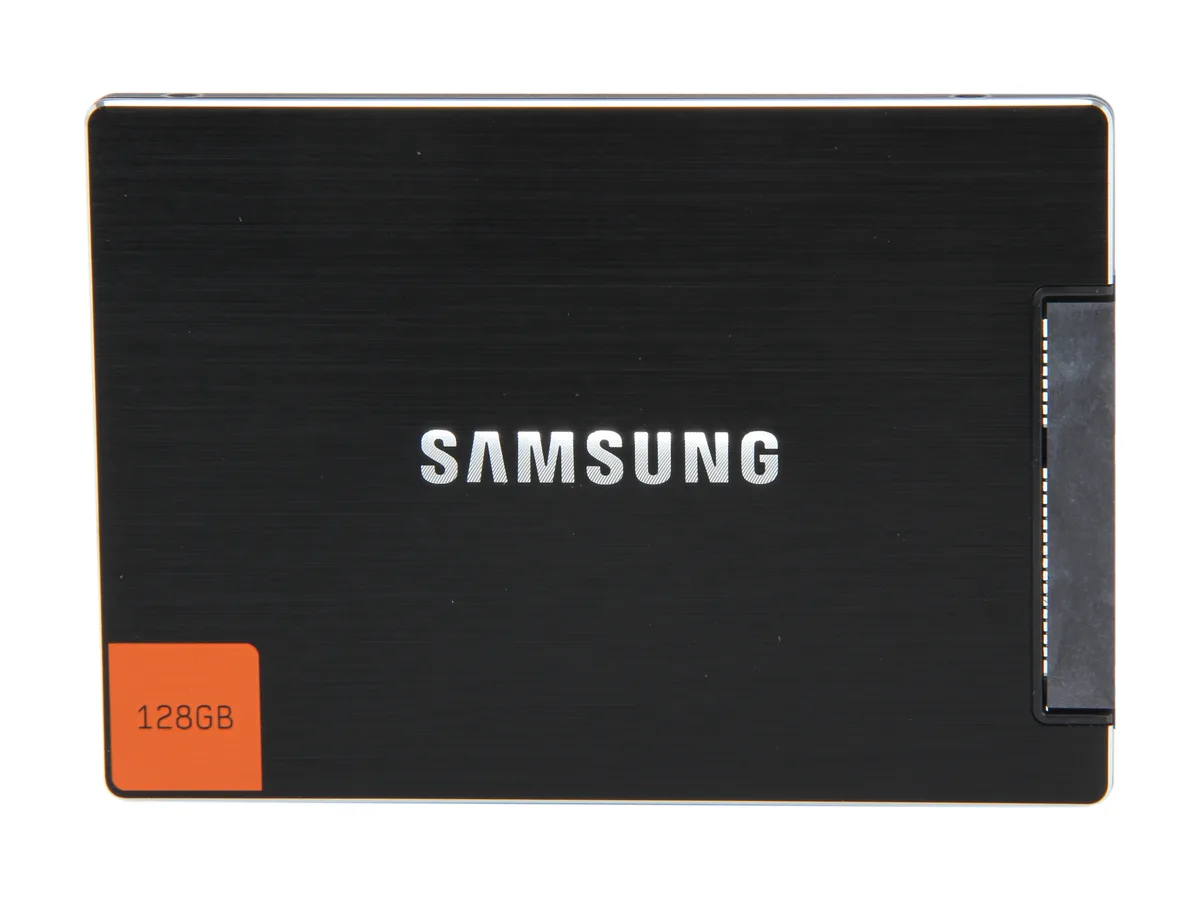

Rectangular 2.5 inch silver metal internal SSD

SAMSUNG

SAMSUNG 830 Series 2.5" 128GB SATA internal SSD MZ-7PC128B/WW

SKU CH-AJW6-WG6YK MPN MZ-7PC128B/WW

A 2.5-inch internal SSD with 128GB MLC storage, SATA interface, 520 MB/s read and 320 MB/s write speeds

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form Factor2.5"
  • Capacity128GB
  • Memory ComponentsMLC
  • InterfaceSATA III
  • Fast boot and load times with up to 520 MB/s sequential read
  • Responsive multitasking from up to 80,000 IOPS random read
  • Reliable long-term storage backed by 1,500,000 hours MTBF
  • Low power draw at 0.08 W idle and 0.15 W active
  • Broad OS support across Windows, macOS and Linux

Samsung 830 Series 128GB SATA SSD

The Samsung 830 Series is a 2.5 inch internal solid state drive with 128GB of MLC flash memory. It connects through a SATA interface and is built for consumer desktops and laptops that need faster boot and load times than a mechanical disk can provide. The drive uses a Samsung controller and is rated for 1.5 million hours MTBF.

Fits 2.5 inch SATA drive bays

The drive fits any 2.5 inch bay that accepts a 0.28 inch high SATA drive. A single SATA data cable and a SATA power connector are all that is required for installation. No additional drivers are needed for Windows 7, Vista, XP, macOS or Linux. The compact form factor frees up space in small chassis and leaves room for extra storage or airflow.

Low power silent operation

With no moving parts the SSD runs completely silent during everyday use. Idle power draw is 0.08W and active power draw is 0.15W, so it adds minimal heat to the system. Operating humidity range is 5 to 95 percent RH. The low thermal output helps keep overall case temperatures down in tight builds.

Highlights

  • Fast boot and load times with up to 520 MB/s sequential read
  • Responsive multitasking from up to 80,000 IOPS random read
  • Reliable long-term storage backed by 1,500,000 hours MTBF
  • Low power draw at 0.08 W idle and 0.15 W active
  • Broad OS support across Windows, macOS and Linux

Specifications

BrandSAMSUNG
Series830 Series
ModelMZ-7PC128B/WW
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form Factor2.5"
Capacity128GB
Memory ComponentsMLC
InterfaceSATA III
ControllerSamsung
Max Sequential ReadUp to 520 MB/s
Max Sequential WriteUp to 320 MB/s
4KB Random ReadUp to 80,000 IOPS
4KB Random WriteUp to 30,000 IOPS
MTBF1,500,000 hours
FeaturesHardware Compatibility with Windows 7 (32-bit and 64-bit), Vista, XP, MAC OSX, Linux
Software Compatibility with Windows 7 (32-bit and 64-bit), Vista (SP1 and above), XP (SP2 and above), Windows Server 2008 (32-bit and 64-bit), Windows Server 2003 (32-bit and 64-bit with SP2 and above)
Power Consumption (Idle)0.08W
Power Consumption (Active)0.15W
Operating Humidity5% to 95% RH
Height0.28"
Width2.75"
Depth3.94"
Weight0.13 lbs.
Shipping weight0.61 kg
Package size146 × 140 × 18 mm

Questions about this item

What is the 4KB random write IOPS limit that appears first under sustained heavy writes?

The 4KB random write rating is up to 30000 IOPS; sustained workloads will hit this ceiling before sequential throughput.

What are the idle and active power figures when the drive runs all day?

Idle power is .08W and active power is .15W, so heat and fan noise stay minimal during continuous operation.

Which SATA host interface must the system already provide for this 2.5" drive to work?

The drive requires a SATA III port and a standard 2.5" drive bay or adapter in the host system.
