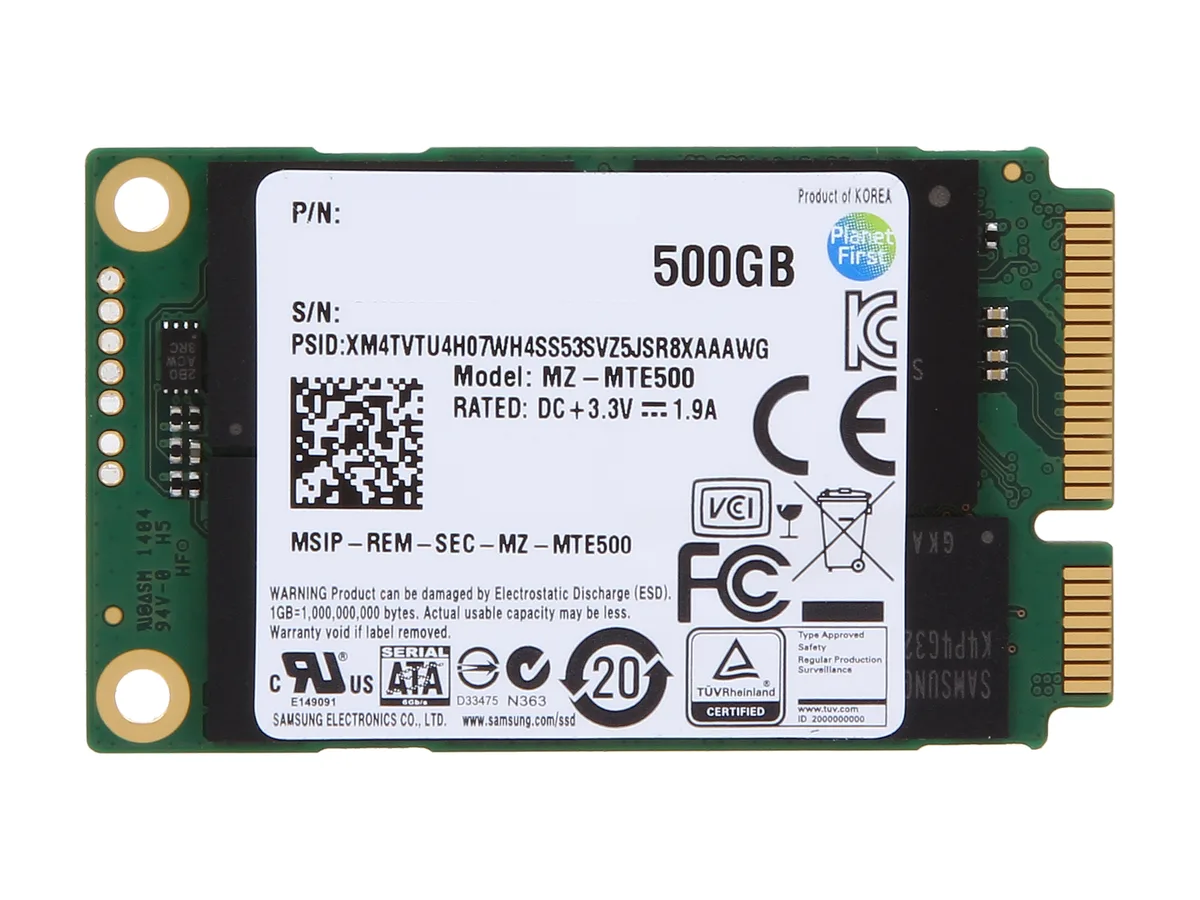

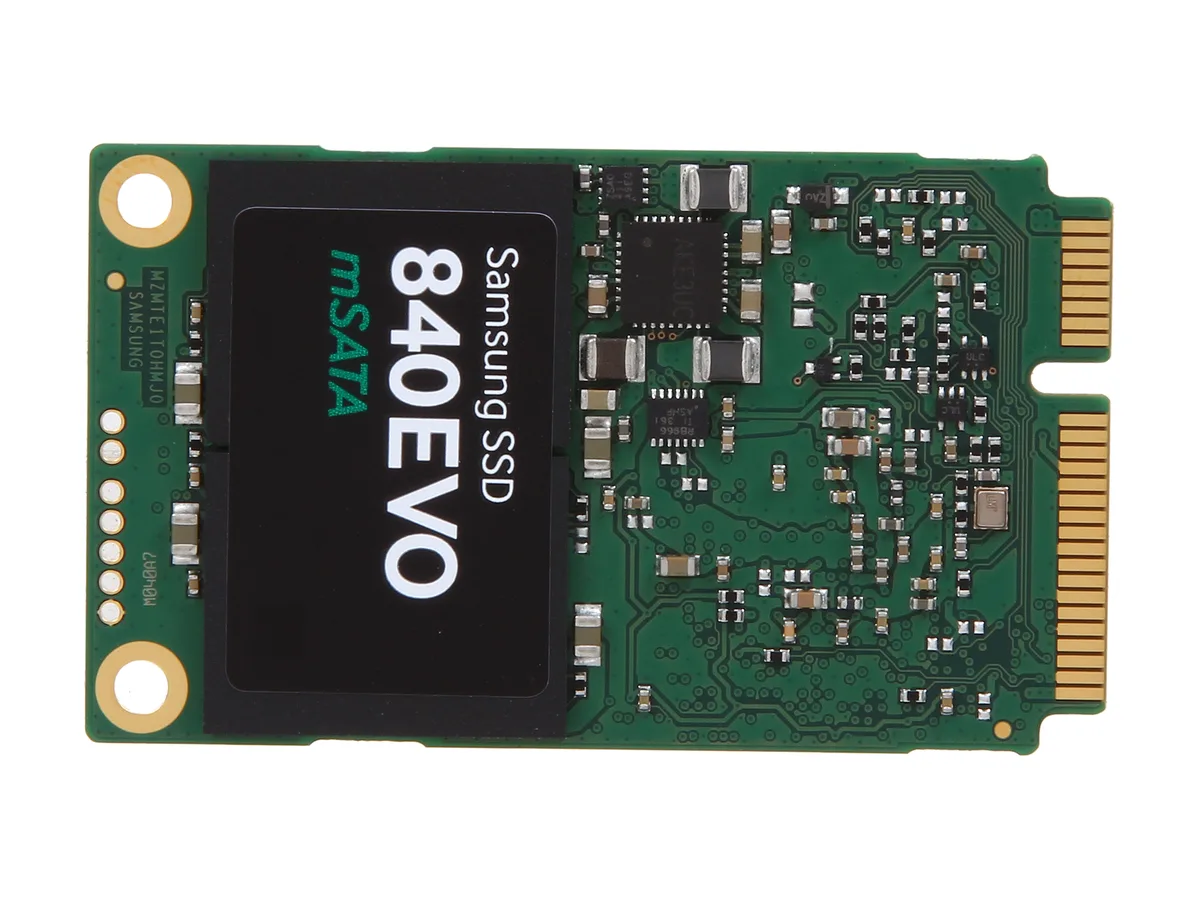

Thin green circuit board with gold edge connector and black chips

SAMSUNG

SAMSUNG 840 EVO mSATA 500GB internal SSD MZ-MTE500BW

SKU CH-P8RK-Z9M7S MPN MZ-MTE500BW

A 500GB mSATA internal SSD delivering up to 540MB/s read and 520MB/s write speeds for consumer SATA systems

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactormSATA
  • Capacity500GB
  • Memory ComponentsTLC
  • InterfaceSATA III

Options 500GB

  • Fast boot and load times with up to 540MB/s sequential read
  • Responsive multitasking from up to 98,000 IOPS random read
  • Fits thin ultrabooks using 3.8mm mSATA form factor
  • Low power draw extends battery life at 0.055W idle
  • Long-term reliability rated at 1,500,000 hours MTBF

mSATA 500GB drive for compact upgrades

This 500GB internal SSD uses the mSATA form factor and a SATA III interface. It targets laptops and small-form-factor PCs that lack 2.5-inch bays but have an mSATA slot. The Samsung MEX controller manages TLC memory for consumer workloads.

3.8mm height fits tight slots

At 3.8mm tall the board slides into standard mSATA connectors without forcing adjacent components. The SATA III link delivers up to 540MB/s sequential read and 520MB/s sequential write. Random performance reaches 98,000 IOPS read and 90,000 IOPS write at 4KB.

Replaces mechanical drives in mSATA systems

Moving from a spinning disk to this drive cuts boot and load times while drawing 0.055W idle and 0.145W active. The 1,500,000-hour MTBF and 0°C to 70°C operating range suit daily mobile use. The jump is worth it when the platform only accepts mSATA.

Highlights

  • Fast boot and load times with up to 540MB/s sequential read
  • Responsive multitasking from up to 98,000 IOPS random read
  • Fits thin ultrabooks using 3.8mm mSATA form factor
  • Low power draw extends battery life at 0.055W idle
  • Long-term reliability rated at 1,500,000 hours MTBF

Specifications

BrandSAMSUNG
Series840 EVO
ModelMZ-MTE500BW
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactormSATA
Capacity500GB
Memory ComponentsTLC
InterfaceSATA III
ControllerSamsung MEX Controller
Max Sequential ReadUp to 540MB/s
Max Sequential WriteUp to 520MB/s
4KB Random ReadUp to 98,000 IOPS
4KB Random WriteUp to 90,000 IOPS
MTBF1,500,000 hours
Power Consumption (Idle)0.055W
Power Consumption (Active)0.145W
Operating Temperature0°C ~ +70°C
Operating Humidity5% to 95%
Height3.8mm
Width30.0mm
Depth50.8mm
Weight9g
Shipping weight0.06 kg
Package size144 × 98 × 23 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does the SATA III interface cap the Samsung 840 EVO mSATA at in practice?

The SATA III link limits the MZ-MTE500BW to 540MB/s sequential read and 520MB/s sequential write, with 98000 IOPS random read and 90000 IOPS random write.

What physical space does the 3.8mm tall mSATA module need to fit?

The drive measures 30.0mm wide, 50.8mm deep and 3.8mm high, weighing 9g, so it fits any standard mSATA slot with that clearance.

How is the Samsung MZ-MTE500BW installed, and which step catches people out?

Slide the mSATA card into the slot at an angle, press it flat, and secure it with the single screw; the step often missed is fastening that screw so the drive stays seated.
