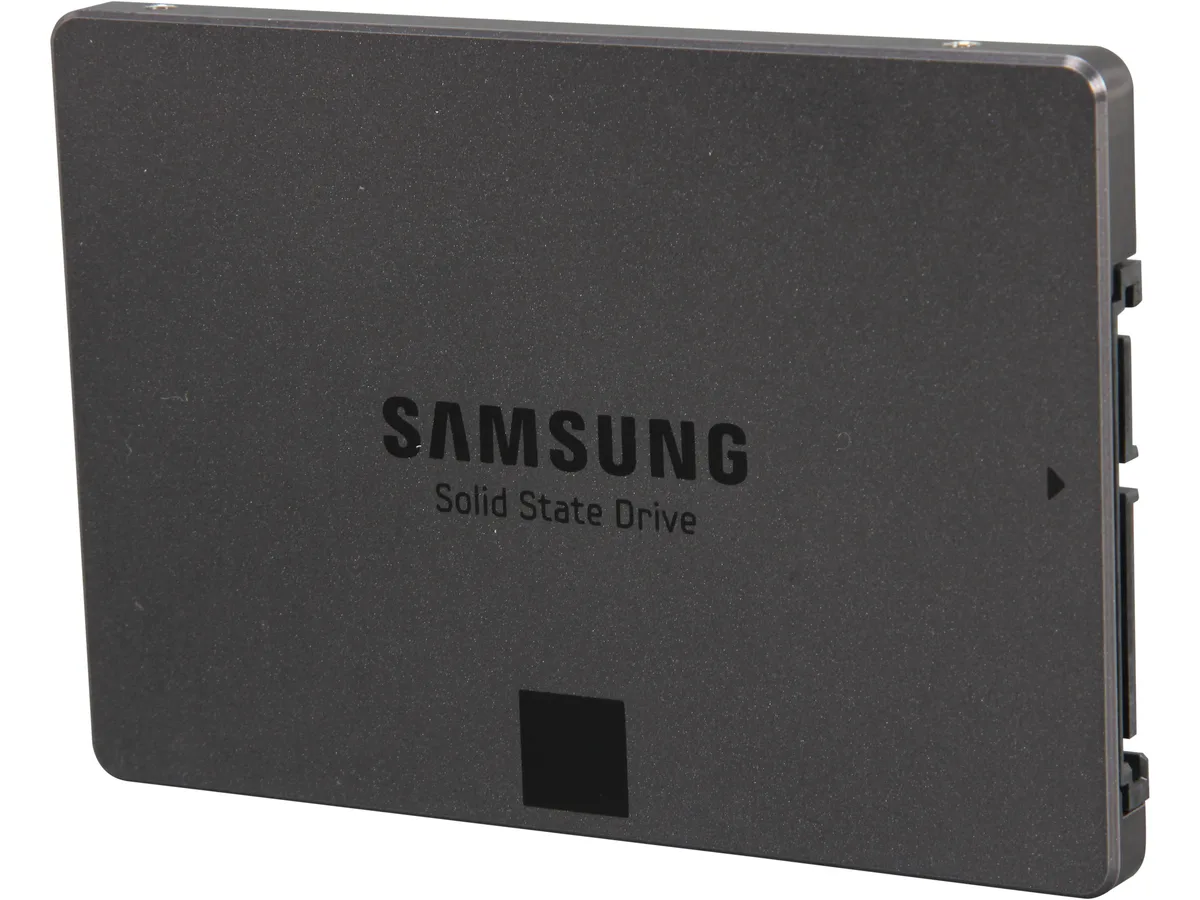

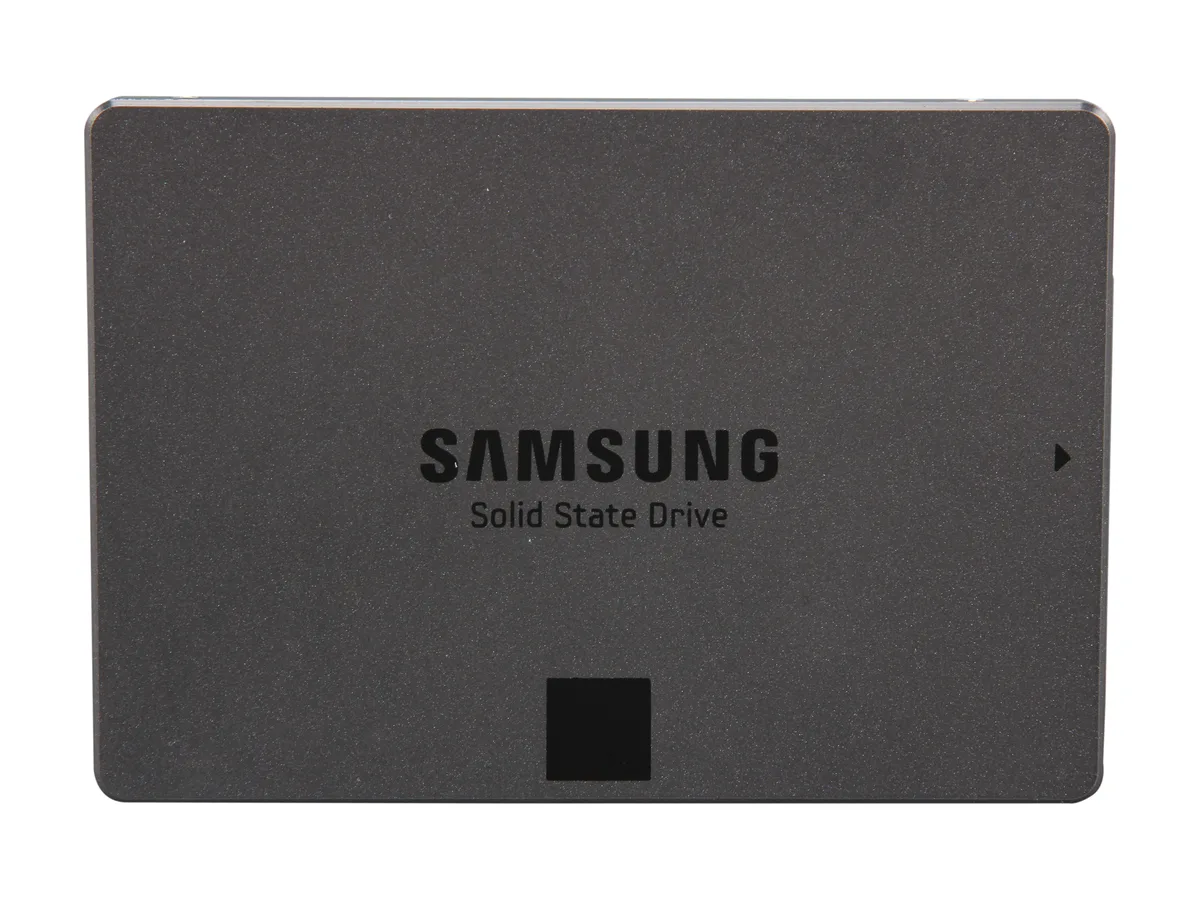

Rectangular 2.5 inch SSD with black label and silver metal casing

SAMSUNG

SAMSUNG 840 EVO MZ-7TE500BW 500GB internal SSD

SKU CH-1KCT-8RHRF MPN MZ-7TE500BW

A 2.5" 500GB SATA solid-state drive delivering up to 540 MBps sequential read and 520 MBps write speeds with a 1.5 million-hour MTBF

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form Factor2.5"
  • Capacity500GB
  • Memory ComponentsTLC
  • InterfaceSATA III

Options 500GB

  • Sequential reads up to 540 MBps for fast boot times
  • Sequential writes up to 520 MBps for quick file saves
  • Random reads up to 98000 IOPS for responsive applications
  • Random writes up to 90000 IOPS for smooth multitasking
  • Low idle power draw of .14W extends laptop battery life

500GB SATA III consumer SSD

The Samsung 840 EVO MZ-7TE500BW is a 2.5 inch internal solid state drive built for everyday consumer workloads. It offers 500GB of TLC flash memory managed by a Samsung 3-core MEX controller. The drive connects through a standard SATA III interface for broad system compatibility.

Low power draw and wide temperature range

Idle power consumption is rated at 0.14W and active use at 0.24W, keeping heat output minimal in normal operation. The drive is specified to operate from 0°C to 70°C with humidity tolerance from 5% to 95% RH. No moving parts mean silent running under any load.

6.8mm z-height fits standard 2.5 inch bays

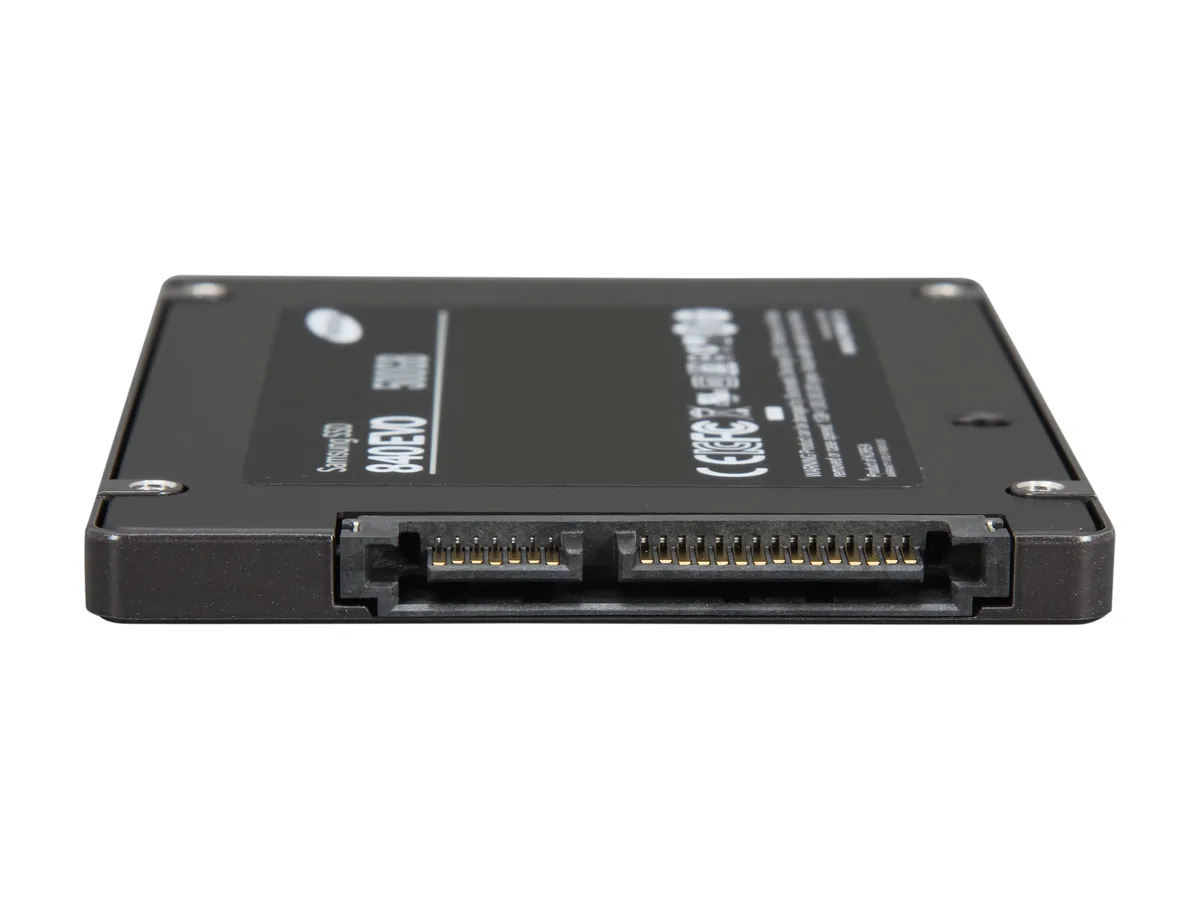

The drive measures 6.8mm high, 69.85mm wide and 100.08mm deep, weighing 0.12 lbs, matching the typical 2.5 inch form factor for laptop or desktop installation. Standard SATA data and power connectors allow direct connection to existing cables. MTBF is rated at 1,500,000 hours for long-term reliability.

Highlights

  • Sequential reads up to 540 MBps for fast boot times
  • Sequential writes up to 520 MBps for quick file saves
  • Random reads up to 98000 IOPS for responsive applications
  • Random writes up to 90000 IOPS for smooth multitasking
  • Low idle power draw of .14W extends laptop battery life

Specifications

BrandSAMSUNG
Series840 EVO
ModelMZ-7TE500BW
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form Factor2.5"
Capacity500GB
Memory ComponentsTLC
InterfaceSATA III
ControllerSamsung 3-core MEX
Max Sequential ReadUp to 540 MBps
Max Sequential WriteUp to 520 MBps
4KB Random ReadUp to 98,000 IOPS
4KB Random WriteUp to 90,000 IOPS
MTBF1,500,000 hours
FeaturesFaster Performance for Everyday Use
Always be in High Acceleration with TurboWrite
Unmatched Reliability for Consistently Superior Performance
Integrated Solution Utilizing Highest-Quality Components
Power Consumption (Idle)0.14W
Power Consumption (Active)0.24W
Operating Temperature0°C ~ +70°C
Operating Humidity5% to 95% RH
Height6.8mm
Width69.85mm
Depth100.08mm
Weight0.12 lbs.
Shipping weight0.13 kg
Package size145 × 141 × 20 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How is the 2.5" SATA III drive installed, and what step is often missed?

Connect the SATA data cable to the motherboard and the SATA power connector from the PSU, then secure the drive in a 2.5" bay or bracket. The step often missed is enabling AHCI mode in the BIOS before installing the operating system.

What maintenance or replacement will the TLC NAND flash need later?

The TLC memory has a finite write endurance. Under heavy workloads the drive will eventually reach its program/erase cycle limit and require replacement. Samsung Magician software can monitor remaining life and trigger a secure erase if performance degrades.

What limit appears first during sustained writes on the 500GB model?

The TurboWrite SLC buffer fills after a few dozen gigabytes of continuous writes, after which sequential write speed drops from the peak 520 MBps toward the native TLC rate. Thermal throttling may also engage if the drive exceeds 70°C.
