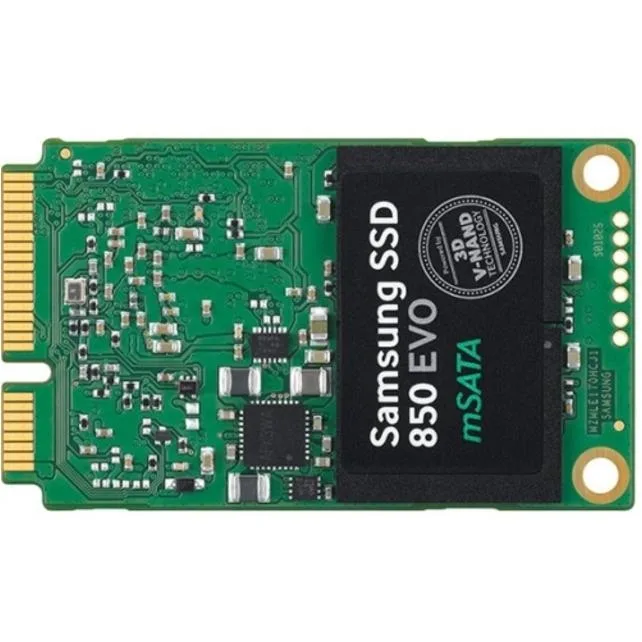

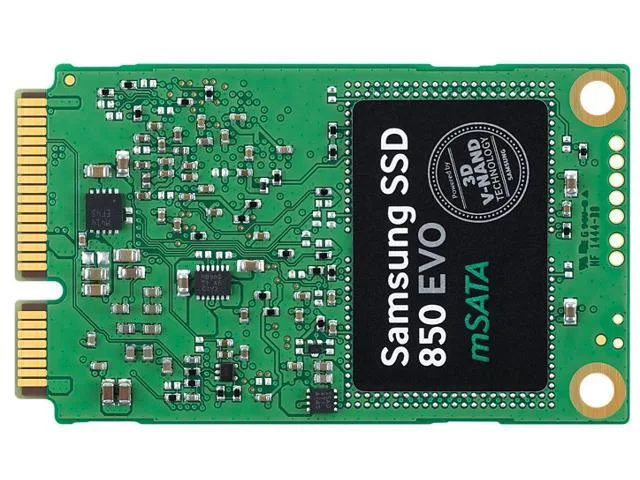

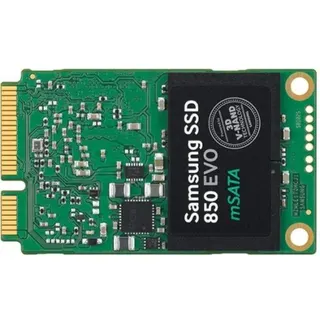

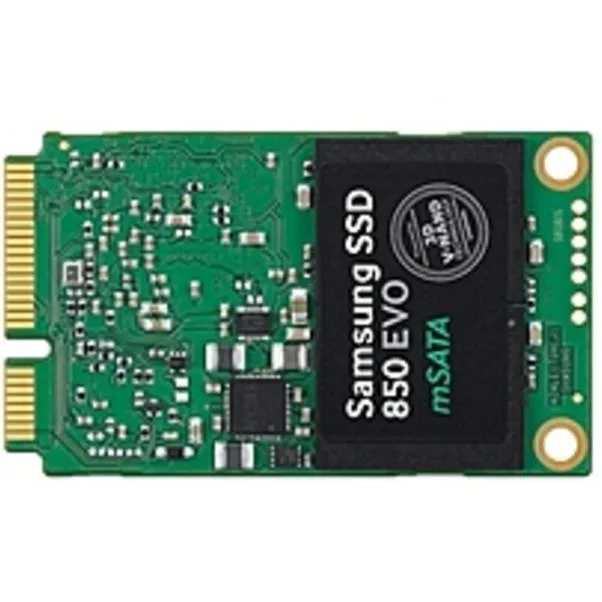

Small rectangular mSATA SSD with black circuit board and gold edge connector

SAMSUNG

SAMSUNG 850 EVO mSATA 250GB internal SSD

SKU CH-8GBV-7Q2P5

A 250 GB mSATA internal SSD with SATA III interface delivering up to 540 MB/s read and 520 MB/s write speeds

  • Device TypeInternal SSD Single Unit Version
  • Form FactormSATA
  • Capacity250GB
  • InterfaceSATA III
  • ControllerMGX
  • Max Sequential ReadUp to 540 MBps
  • Fast boot and load times from up to 540 MB/s sequential read
  • Responsive multitasking with up to 97,000 IOPS random read
  • Quick file saves and installs via up to 520 MB/s sequential write
  • Low power draw extends laptop battery life at 50 mW idle
  • Slim mSATA form factor fits ultra-thin notebooks at 4.90 mm height

Samsung 850 EVO mSATA 250GB

The Samsung 850 EVO is an internal solid-state drive built in the mSATA form factor with a 250GB capacity. It connects through a SATA III interface and uses the MGX controller. The drive includes data migration software to simplify moving existing files and operating systems onto the new storage.

Upgraders with mSATA slots

This drive suits owners of laptops or compact desktops that have a dedicated mSATA slot and need a capacity boost without changing the motherboard. Systems that only accept 2.5-inch SATA drives or M.2 modules cannot use this mSATA module.

SATA III interface

The SATA III interface determines whether this SSD is compatible with the host system. The drive delivers sequential reads up to 540 MBps and writes up to 520 MBps with random performance of 97,000 IOPS read and 88,000 IOPS write. Active power draw reaches 3.5W for reads and 4.3W for writes.

Highlights

  • Fast boot and load times from up to 540 MB/s sequential read
  • Responsive multitasking with up to 97,000 IOPS random read
  • Quick file saves and installs via up to 520 MB/s sequential write
  • Low power draw extends laptop battery life at 50 mW idle
  • Slim mSATA form factor fits ultra-thin notebooks at 4.90 mm height

Specifications

BrandSAMSUNG
Series850 EVO
ModelMZ-M5E250BW
Device TypeInternal SSD Single Unit Version
Form FactormSATA
Capacity250GB
InterfaceSATA III
ControllerMGX
Max Sequential ReadUp to 540 MBps
Max Sequential WriteUp to 520 MBps
4KB Random ReadUp to 97,000 IOPS
4KB Random WriteUp to 88,000 IOPS
FeaturesDara Migration Software: Yes
Power Consumption (Idle)50mW
Power Consumption (Active)Read: 3.5W
Write: 4.3W
Height4.90mm
Width29.90mm
Depth50.80mm
Weight0.02 lb.

Questions about this item

Does my laptop need an mSATA slot to install this MZ-M5E250BW?

Yes, the drive uses the mSATA form factor and a SATA III interface, so the host must provide a compatible mSATA connector.

Will this 850 EVO work in a system that only supports SATA II speeds?

The drive is backward compatible with SATA II ports, though sequential reads will be limited to the older bus maximum instead of the rated 540 MBps.

How can I confirm the SSD is delivering its rated 540 MBps read performance after installation?

Run a sequential-read benchmark such as CrystalDiskMark and verify results approach the 540 MBps specification on a SATA III link.
