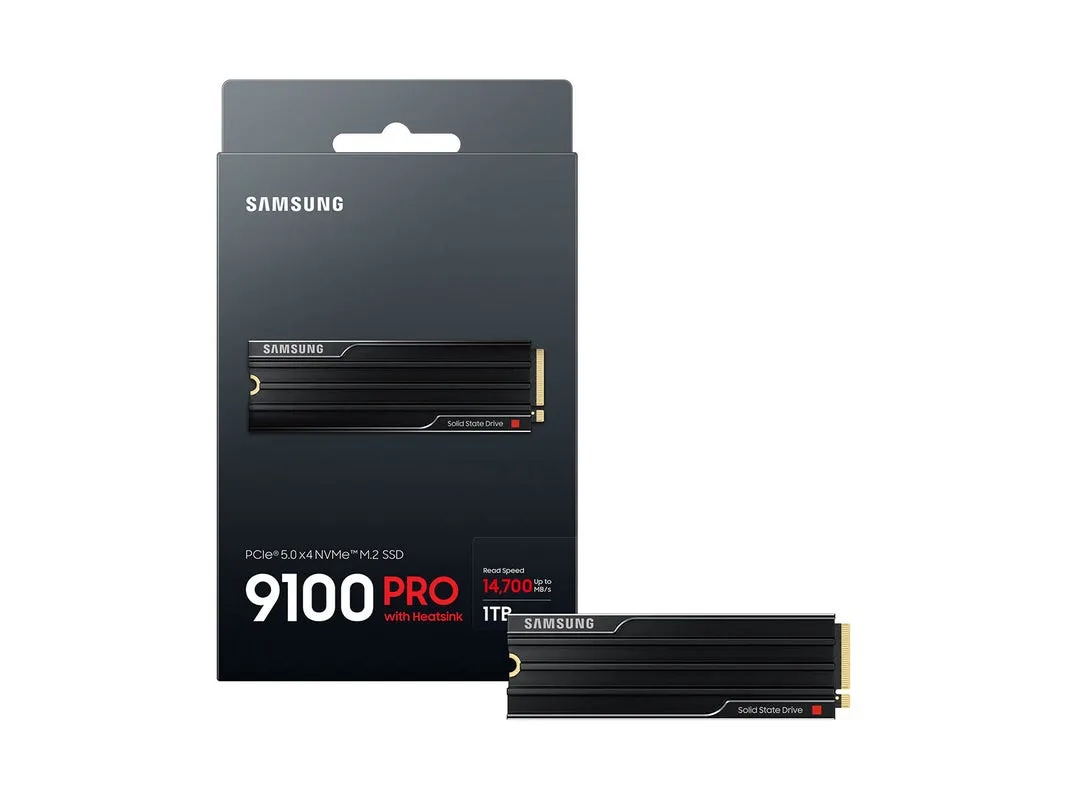

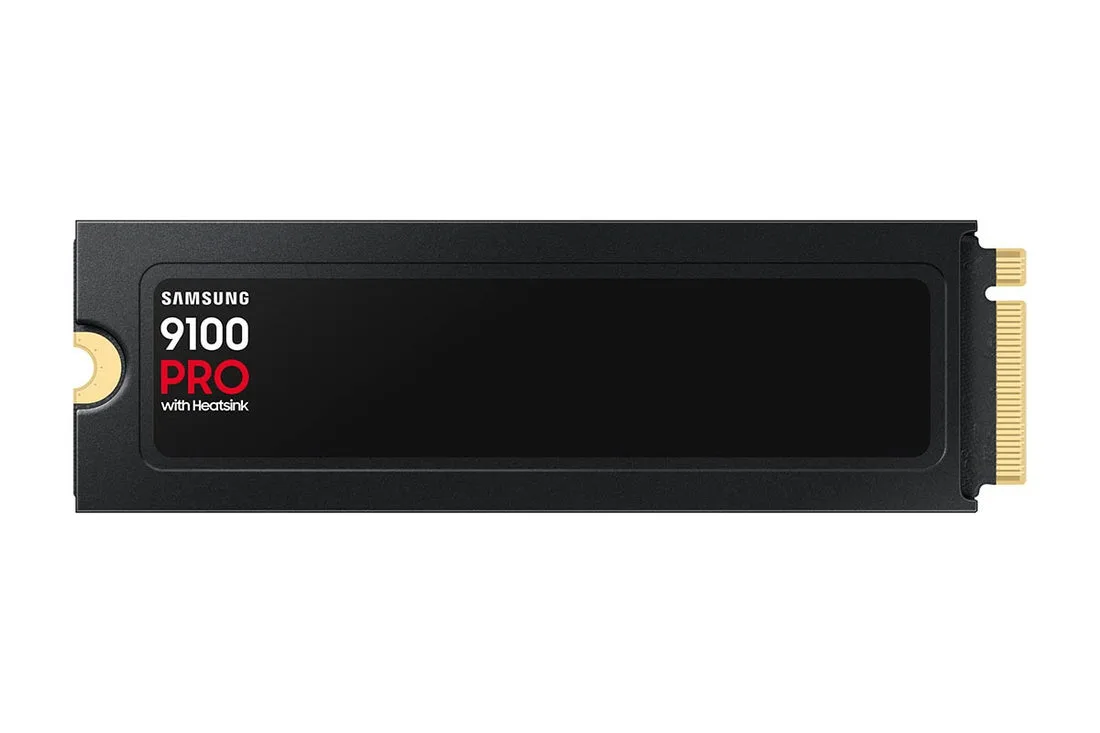

Black M.2 2280 SSD with integrated heatsink, 80mm long, 25mm wide

SAMSUNG

SAMSUNG 9100 PRO MZ-VAP1T0CW 1TB internal SSD

SKU CH-EPPB-FP0YS MPN MZ-VAP1T0CW

PCIe 5.0 NVMe 2.0 drive with heatsink delivers 14,700 MB/s reads and 13,300 MB/s writes for AI workloads and gaming

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity1TB
  • Memory ComponentsSamsung V NAND TLC (V8)
  • InterfacePCI-Express 5.0 x4

Style With Heatsink

Options 1TB w/ Heatsink

  • PCIe 5.0 x4 interface delivers sequential reads up to 14,700 MB/s
  • NVMe 2.0 protocol enables random reads up to 1,850,000 IOPS
  • 1 GB LPDDR4X cache plus 242 GB Intelligent TurboWrite 2.0 buffer sustains write bursts
  • Built-in heatsink manages thermals for consistent performance in demanding workloads
  • AES 256 encryption with TCG/Opal v2.0 and MS eDrive protects data at rest

Capacity and audience

This 1TB internal SSD uses the M.2 2280 form factor and a PCI-Express 5.0 x4 interface with NVMe 2.0. It is built for consumer desktops, laptops and PlayStation 5 systems that need high throughput for AI workloads, gaming and heavy workstation tasks. The drive includes an integrated heatsink and a 1GB LPDDR4X cache.

Sequential throughput ceiling

Maximum sequential read reaches 14700 MBps and maximum sequential write reaches 13300 MBps. Intelligent TurboWrite 2.0 provides a 242GB write buffer to sustain those rates during large transfers. The controller and Samsung V-NAND TLC (V8) memory are tuned for the PCIe 5.0 x4 lane width.

Sustained load behaviour

Random read reaches 1850000 IOPS and random write reaches 2600000 IOPS under continuous demand. The heatsink and power management keep active consumption at 7.6W read and 7.2W write while idle drops to 3.3mW in device sleep. Endurance is rated at 600TB written with Class 0 AES 256 encryption and TCG Opal 2.0 support.

Highlights

  • PCIe 5.0 x4 interface delivers sequential reads up to 14,700 MB/s
  • NVMe 2.0 protocol enables random reads up to 1,850,000 IOPS
  • 1 GB LPDDR4X cache plus 242 GB Intelligent TurboWrite 2.0 buffer sustains write bursts
  • Built-in heatsink manages thermals for consistent performance in demanding workloads
  • AES 256 encryption with TCG/Opal v2.0 and MS eDrive protects data at rest

Specifications

BrandSAMSUNG
Series9100 PRO
ModelMZ-VAP1T0CW
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity1TB
Memory ComponentsSamsung V NAND TLC (V8)
InterfacePCI-Express 5.0 x4
ProtocolNVMe 2.0
ControllerIn-House Controller
Cache1GB LPDDR4X
Intelligent TurboWrite 2.0: 242GB
EncryptionClass 0 (AES 256), TCG/Opal v2.0, MS eDrive (IEEE1667)
Max Sequential ReadUp to 14700 MBps
Max Sequential WriteUp to 13300 MBps
4KB Random ReadUp to 1,850,000 IOPS
4KB Random WriteUp to 2,600,000 IOPS
Terabytes Written (TBW)600TB
HeatSinkwith HeatSink
Power Consumption (Idle)3.3mW Device Sleep (L1.2)
Power Consumption (Active)7.6W / 7.2W (Read/Write)
Height8.88mm
Width25mm
Depth80.15mm
Weight28g
Shipping weight0.09 kg
Package size144 × 99 × 23 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does the 14,700 MB/s sequential read figure mean once the drive is installed in a real system?

The 14,700 MB/s sequential read is the peak spec on a PCIe 5.0 x4 link with NVMe 2.0. Real-world throughput depends on motherboard lane allocation, CPU PCIe generation support, workload queue depth and thermal limits. With the included heatsink the drive sustains higher speeds longer before throttling.

How does the PCIe 5.0 x4 interface cap performance in practice?

PCIe 5.0 x4 provides the electrical ceiling of roughly 16 GB/s raw bandwidth. The 9100 PRO reaches 14,700 MB/s read and 13,300 MB/s write, so the interface is not the bottleneck. If the slot negotiates at PCIe 4.0 or 3.0, maximum sequential speeds drop proportionally to that generation's lane rate.

What clearance does the 8.88 mm heatsink height require for installation?

The drive measures 8.88 mm tall with the heatsink, 25 mm wide and 80.15 mm long. Verify the motherboard M.2 slot has at least 9 mm vertical clearance above the PCB and no VRM heatsink or backplate interference. The single-sided 28 g design fits most laptop and desktop M.2 2280 sockets.
