Green rectangular M.2 2280 circuit board with black controller and silver label

SAMSUNG

SAMSUNG 950 PRO MZ-V5P512BW 512GB internal SSD

SKU CH-XZHB-CTRNE MPN MZ-V5P512BW

A 512GB M.2 2280 PCIe 3.0 x4 NVMe SSD delivering up to 2500 MBps read and 1500 MBps write with 512MB DRAM cache

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity512GB
  • InterfacePCI-Express 3.0 x4
  • ControllerSamsung UBX controller

Options 512GB

  • Sequential reads up to 2500 MBps accelerate large-file workflows
  • Sequential writes up to 1500 MBps sustain heavy project saves
  • Random reads up to 300000 IOPS at QD32 speed up database queries
  • 512MB DRAM cache maintains consistent performance under load
  • MTBF of 1500000 hours supports long-term reliability

Professional PCIe 3.0 x4 SSD

The Samsung 950 PRO MZ-V5P512BW is a 512GB internal solid state drive built for professionals who need consistent NVMe speed. It uses a Samsung UBX controller with 512MB DRAM cache to deliver up to 2500 MBps sequential read and 1500 MBps sequential write. Random read reaches 300000 IOPS at QD32 and 12000 IOPS at QD1, while random write hits 110000 IOPS at QD32 and 43000 IOPS at QD1. The drive is rated for 1500000 hours MTBF.

M.2 2280 form factor with efficient power

The M.2 2280 module measures 2.38mm in height and fits standard desktop or laptop slots keyed for PCIe 3.0 x4. Active power averages 5.7W with a 7.0W burst maximum, and the operating range spans 0°C to 70°C. Shock resistance is rated at 1500G for 0.5ms across three axes. Samsung V-NAND technology underpins the endurance and efficiency. Samsung Data Migration and Magician software are available for setup and monitoring.

Upgrade from SATA SSD when throughput matters

Moving from a SATA SSD to this PCIe 3.0 x4 NVMe drive removes the legacy interface bottleneck for large-file workflows, heavy multitasking and demanding applications. The jump is worth it when sustained sequential bandwidth and high-queue-depth random performance translate to shorter load times and smoother project scrubbing. For lighter workloads the difference may be less noticeable.

Highlights

  • Sequential reads up to 2500 MBps accelerate large-file workflows
  • Sequential writes up to 1500 MBps sustain heavy project saves
  • Random reads up to 300000 IOPS at QD32 speed up database queries
  • 512MB DRAM cache maintains consistent performance under load
  • MTBF of 1500000 hours supports long-term reliability

Specifications

BrandSAMSUNG
Series950 PRO
ModelMZ-V5P512BW
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity512GB
InterfacePCI-Express 3.0 x4
ControllerSamsung UBX controller
Cache512MB DRAM
Max Sequential ReadUp to 2500 MBps
Max Sequential WriteUp to 1500 MBps
4KB Random ReadUp to 300,000 IOPS (4KB, QD32)
Up to 12,000 IOPS (4KB, QD1)
4KB Random WriteUp to 110,000 IOPS (4KB, QD32)
Up to 43,000 IOPS (4KB, QD1)
MTBF1,500,000 hours
FeaturesLevel up to unmatched performance, power efficiency and endurance
If you're a heavy workload professional searching for an SSD with uncompromising power and performance, look no further. The next-generation Samsung 950 PRO delivers exceptional performance for professionals.
This cutting-edge V-NAND-based NVMe SSD supports PCI Express Gen 3 x4 lanes, providing a higher bandwidth and lower latency to process a massive amount more data than SATA SSDs. Presented in a compact M.2 form factor, the future-oriented 950 PRO is ideal for professionals using high-end PCs and workstations.
Exper
Power Consumption (Active)Average: 5.7W
Maximum: 7.0W (Burst mode)
Operating Temperature0°C ~ +70°C
Max Shock Resistance1500G, duration 0.5m sec, 3 axis
Height2.38mm
Width22.15mm
Depth80.15mm
Weight10.00g
Shipping weight0.07 kg
Package size145 × 102 × 28 mm

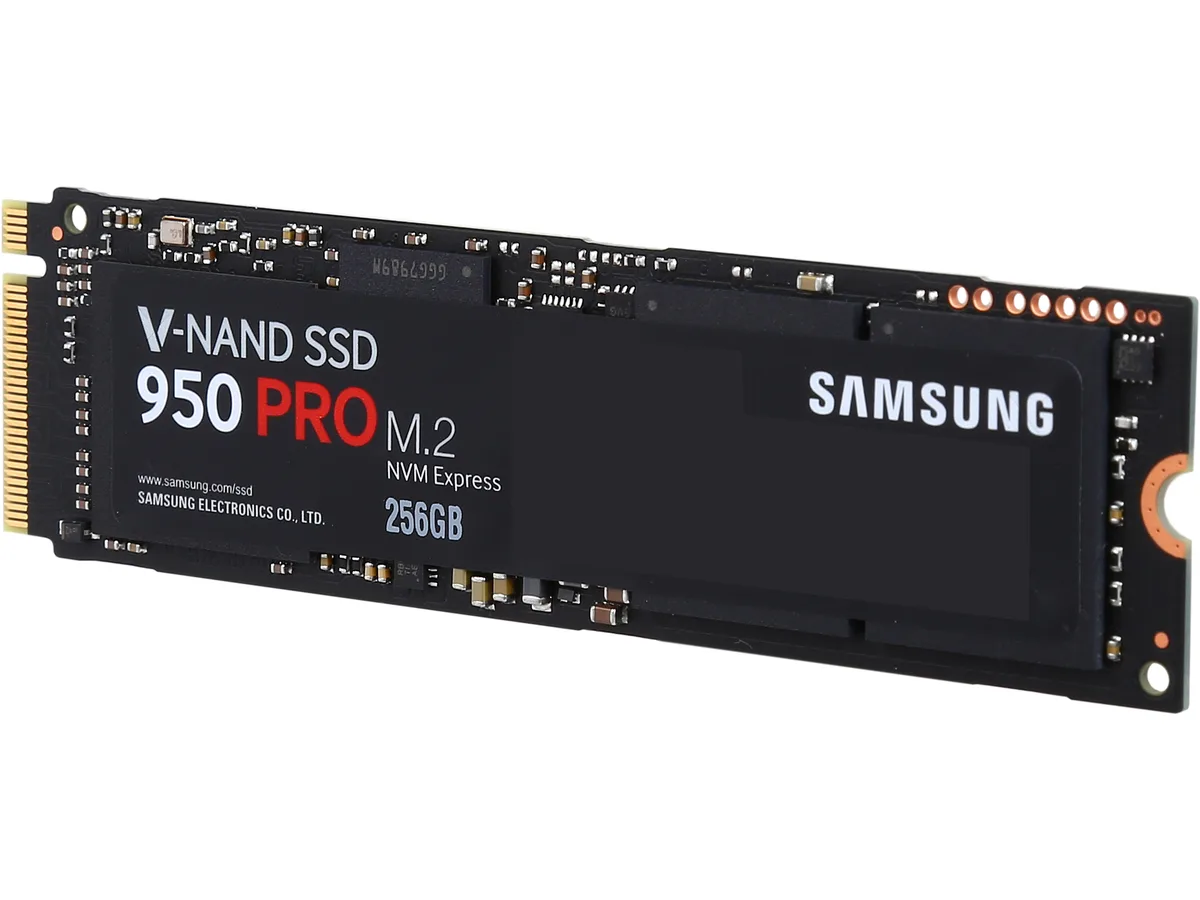

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What bandwidth does the PCI-Express 3.0 x4 interface deliver in practice?

The drive uses a PCI-Express 3.0 x4 link to reach up to 2500 MBps sequential read and 1500 MBps sequential write.

What slot and clearance does the M.2 2280 form factor require?

It fits an M.2 2280 slot and measures 2.38 mm in height, so the motherboard must allow that thickness above the connector.

How is the drive installed and which step is often missed?

Insert the M.2 2280 module at an angle, secure it with the retaining screw, then initialise it in the OS; many users forget to enable the NVMe controller in BIOS before Windows setup.
