Green rectangular M.2 2280 circuit board with black controller and silver label

SAMSUNG

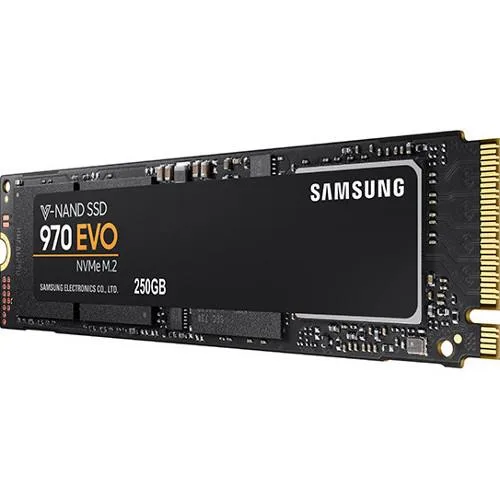

SAMSUNG 970 EVO M.2 2280 250GB NVMe internal SSD MZ-V7E250E

SKU CH-V1RW-NMYN7 MPN MZ-V7E250E

M.2 2280 NVMe SSD with 250GB capacity, PCIe Gen 3.0 x4 interface, sequential read up to 3400 MBps and write up to 1500 MBps

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity250GB
  • Memory ComponentsV-NAND 3-bit MLC
  • InterfacePCIe Gen 3.0 x4, NVMe 1.3
  • Up to 3400 MB/s sequential read speeds
  • Up to 1500 MB/s sequential write speeds
  • 512 MB DDR4 cache improves burst performance
  • 350,000 IOPS random write at queue depth 32
  • 1,500,000 hours MTBF for long-term reliability

250GB NVMe drive for everyday computing

The Samsung 970 EVO 250GB is an M.2 2280 internal SSD built for consumer workloads. It connects through a PCIe Gen 3.0 x4 interface using NVMe 1.3 protocol. A Samsung Phoenix controller and 512MB Low Power DDR4 SDRAM cache manage the V-NAND 3-bit MLC memory.

Capacity and headroom for OS and active projects

The 250GB capacity holds an operating system, core applications and a working set of current files comfortably. Sequential reads reach up to 3400 MBps and writes up to 1500 MBps, while 4KB random performance scales to 200,000 read IOPS and 350,000 write IOPS at QD32. Heavy sustained writes or large media libraries will exhaust the space before the endurance rating of 1,500,000 hours MTBF becomes a concern.

Fits a standard M.2 slot with modest power needs

The single-sided M.2 2280 form factor seats directly into any compatible motherboard or laptop slot without cables. Idle power draw is 30 mW maximum and active consumption averages 5.4W with a 9W burst ceiling. Operating temperature ranges from 0°C to 70°C, so standard case airflow is sufficient for typical desktop or notebook installations.

Highlights

  • Up to 3400 MB/s sequential read speeds
  • Up to 1500 MB/s sequential write speeds
  • 512 MB DDR4 cache improves burst performance
  • 350,000 IOPS random write at queue depth 32
  • 1,500,000 hours MTBF for long-term reliability

Specifications

BrandSAMSUNG
Series970 EVO
ModelMZ-V7E250E
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity250GB
Memory ComponentsV-NAND 3-bit MLC
InterfacePCIe Gen 3.0 x4, NVMe 1.3
ControllerSamsung Phoenix
Cache512MB Low Power DDR4 SDRAM
Max Sequential ReadUp to 3400 MBps
Max Sequential WriteUp to 1500 MBps
4KB Random ReadQD32: Up to 200,000 IOPS
QD1: Up to 15,000 IOPS
4KB Random WriteQD32: Up to 350,000 IOPS
QD1: Up to 50,000 IOPS
MTBF1,500,000 hours
FeaturesNon-Volatile Memory Express (NVMe)
970 EVO 250GB NVMe SSDs with a newly enhanced Phoenix controller outperform our previous 960 EVO 250GB model with exceptionally fast sequential read/write speeds up to 3,400/1,500 MB/s. They also support PCI Express (PCIe) Gen 3 x4 lanes to provide high bandwidth and low latency, making them perfect for business professionals who need cutting edge-performance for high-end computing.
TurboWrite Technology
Samsung's intelligent TurboWrite technology helps to maximize your computing ability, accelerating write speeds above and beyond the already except
Power Consumption (Idle)30 mW (max)
Power Consumption (Active)Average: 5.4W / Maximum: 9W (Burst mode)
Operating Temperature0°C ~ +70°C
Max Shock Resistance1,500G & 0.5 ms (Half sine)
Height2.38mm
Width22.15mm
Depth80.15mm
Weight8.00g
Package ContentSSD ONLY => NOTHING ELSE! SSD COMES IN PLAIN NON-RETAIL BROWN BOX PACKAGE!
Shipping weight0.08 kg
Package size141 × 98 × 24 mm

Questions about this item

Will the M.2 2280 970 EVO fit and run at PCIe Gen 3.0 x4 on a motherboard that only has an M.2 slot wired for PCIe Gen 2.0 x4?

The drive is backward compatible and will operate at PCIe Gen 2.0 x4 speeds, halving the theoretical bandwidth ceiling from the native 3400 MBps sequential read.

How can I confirm the Phoenix controller and NVMe 1.3 firmware are active after installation?

Open Device Manager or a tool such as Samsung Magician; the model should appear as MZ-V7E250E with NVMe 1.3 support shown and sequential-read benchmarks approaching 3400 MBps.

Does the 250 GB 970 EVO package include a heatsink, mounting screw or cloning software, or must I source them separately?

The retail box contains only the M.2 2280 drive; a motherboard standoff screw, optional heatsink and data-migration software are separate purchases.
