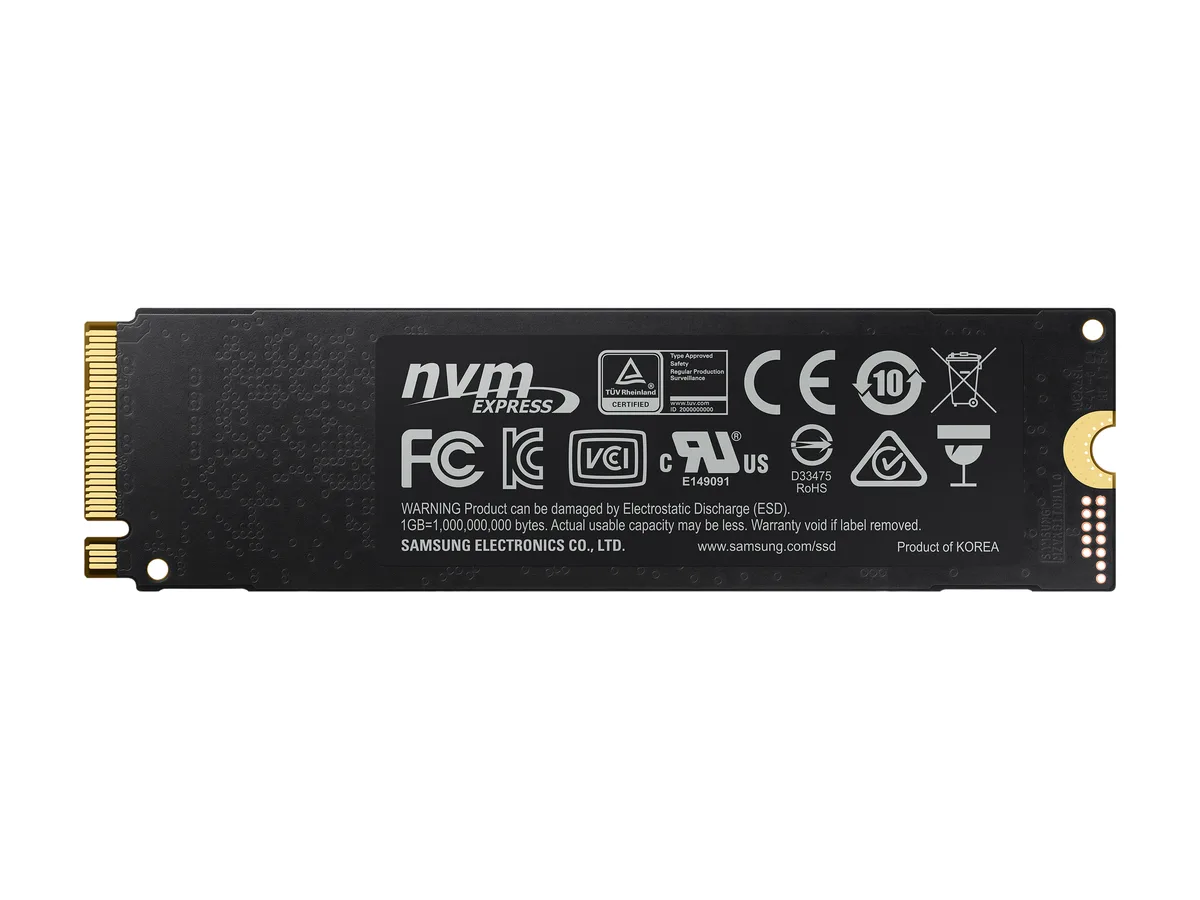

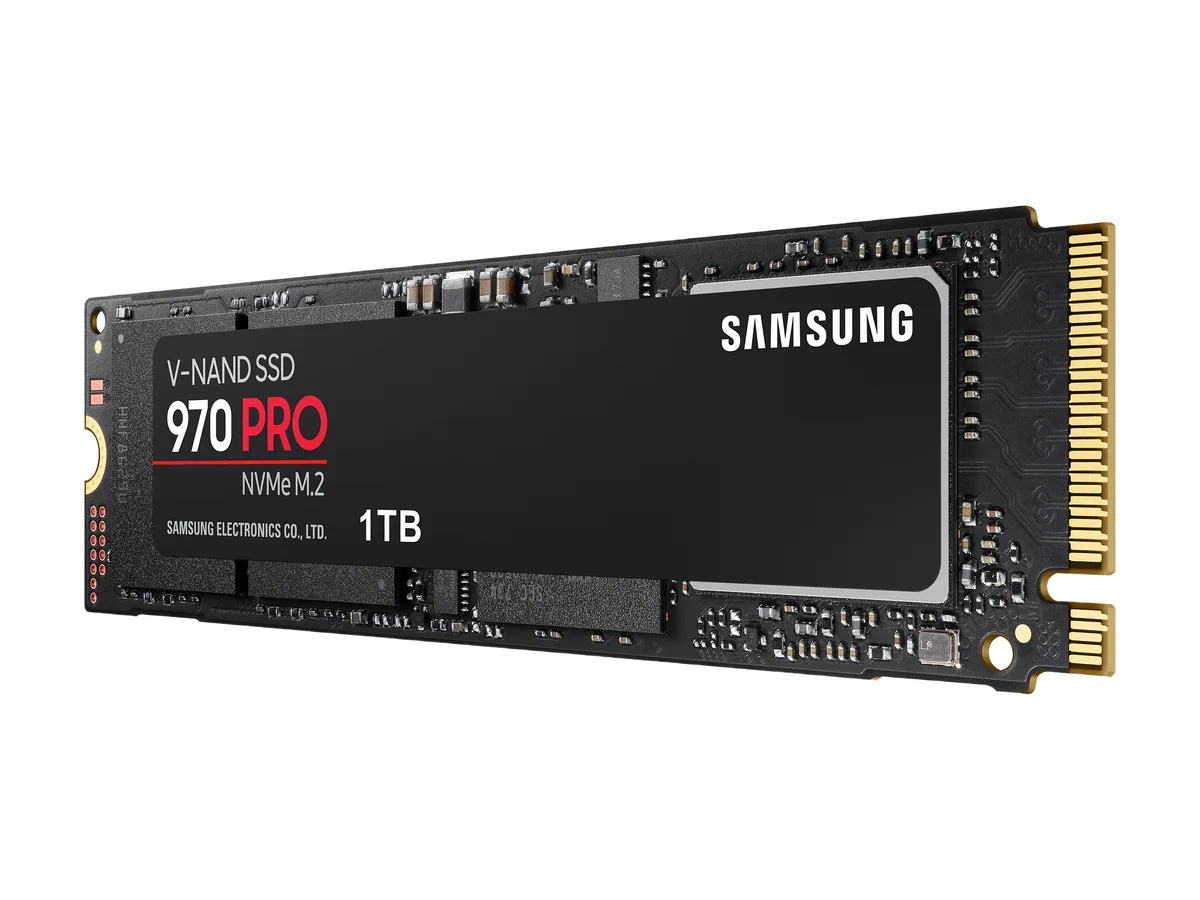

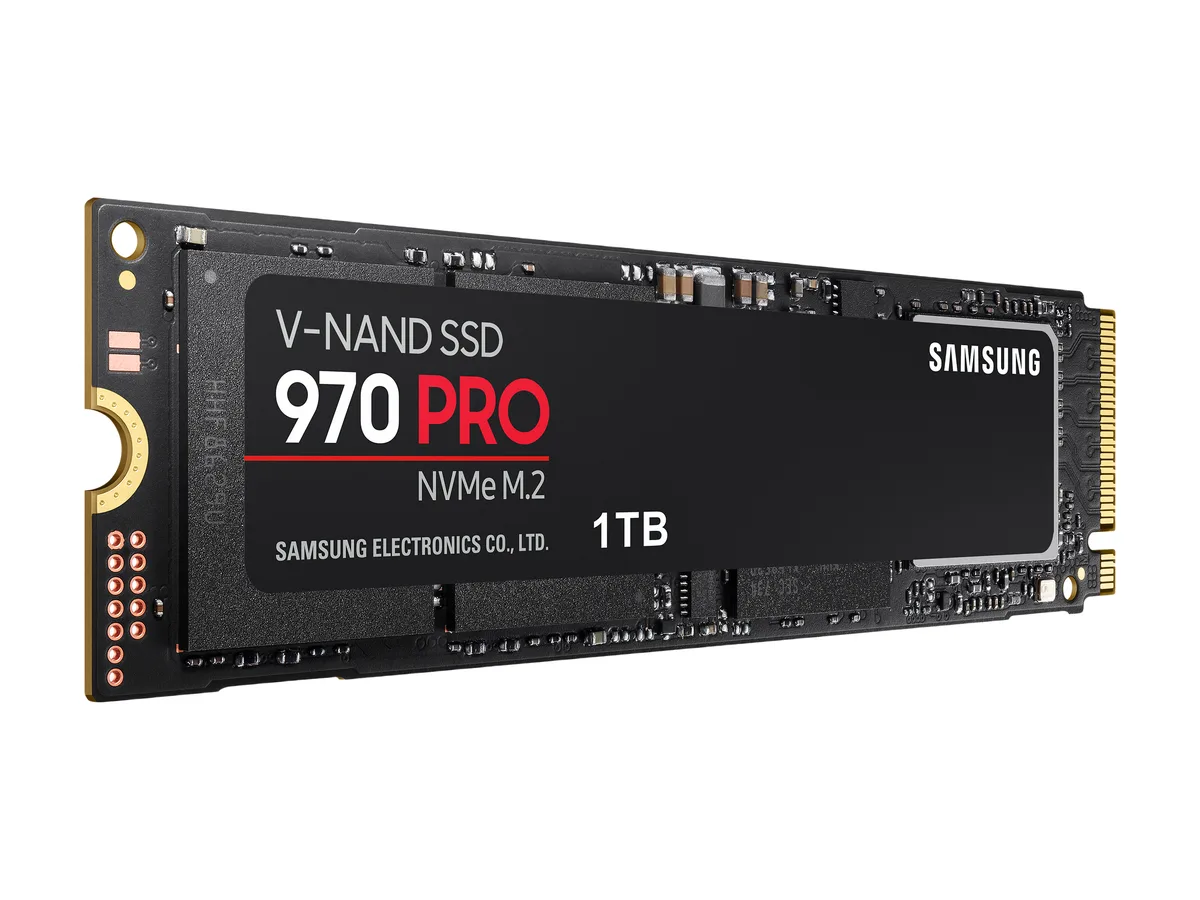

Samsung 970 PRO M.2 2280 internal SSD, black circuit board with silver label

SAMSUNG

SAMSUNG 970 PRO M.2 2280 1TB internal SSD MZ-V7P1T0BW

SKU CH-V1NV-4SNFE MPN MZ-V7P1T0BW

M.2 2280 NVMe drive with 1TB capacity, 3500 MBps read, 2700 MBps write and 1200 TBW endurance

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity1TB
  • Memory ComponentsV-NAND 2-bit MLC
  • InterfacePCIe Gen 3.0 X4, NVMe 1.3

Options 1TB

  • Sequential read up to 3500 MBps for fast boot and load times
  • Sequential write up to 2700 MBps to handle large file transfers quickly
  • Random read up to 500000 IOPS at QD32 for responsive multitasking
  • 1200 TBW endurance rating for long-term reliability
  • Dynamic Thermal Guard maintains optimal temperatures to minimise performance drops

Samsung 970 PRO 1TB M.2 2280 NVMe

The Samsung 970 PRO is a 1TB internal SSD built on V-NAND 2-bit MLC with a PCIe Gen 3.0 x4 NVMe 1.3 interface and a Samsung Phoenix controller backed by 1GB LPDDR4 DRAM cache. It targets tech enthusiasts, high-end gamers and 4K or 3D content designers who need sustained throughput and low latency.

Suited for write-intensive workloads

The 1200 TBW endurance rating and 1,500,000-hour MTBF support heavy write workloads such as video editing, 3D rendering and large dataset processing. Idle power draws a maximum of 30 mW while active power averages 5.7W with an 8.5W burst ceiling, making it a fit for compact desktops and workstations with tight thermal budgets. Builds that require PCIe Gen 4.0 bandwidth or higher sequential speeds should evaluate newer controller platforms.

Deciding spec: V-NAND 2-bit MLC endurance

The 2-bit MLC V-NAND architecture delivers the 1200 TBW figure that separates this drive from TLC alternatives; if your workload demands that write endurance the 970 PRO matches the requirement.

Highlights

  • Sequential read up to 3500 MBps for fast boot and load times
  • Sequential write up to 2700 MBps to handle large file transfers quickly
  • Random read up to 500000 IOPS at QD32 for responsive multitasking
  • 1200 TBW endurance rating for long-term reliability
  • Dynamic Thermal Guard maintains optimal temperatures to minimise performance drops

Specifications

BrandSAMSUNG
Series970 PRO
ModelMZ-V7P1T0BW
Part NumberMZ-V7P1T0BW
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity1TB
Memory ComponentsV-NAND 2-bit MLC
InterfacePCIe Gen 3.0 X4, NVMe 1.3
ControllerSamsung Phoenix Controller
Cache1GB LPDDR4 DRAM
Max Sequential ReadUp to 3500 MBps
Max Sequential WriteUp to 2700 MBps
4KB Random ReadQD32: Up to 500,000 IOPS
QD1: Up to 15,000 IOPS
4KB Random WriteQD32: Up to 500,000 IOPS
QD1: Up to 55,000 IOPS
Terabytes Written (TBW)1200TB
MTBF1,500,000 hours
Power Consumption (Idle)Max. 30 mW
Power Consumption (Active)Average: 5.7W
Maximum: 8.5W (Burst mode)
Operating Temperature0°C ~ +70°C
Max Shock Resistance1,500G & 0.5 ms (Half sine)
Height2.30mm
Width22.10mm
Depth80.26mm
Weight7.94g
Shipping weight0.08 kg
Package size142 × 97 × 23 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What M.2 slot length and keying does the 970 PRO 1TB require?

The drive uses the M.2 2280 form factor and connects through a PCIe Gen 3.0 x4 NVMe 1.3 interface, so the motherboard slot must support that length and protocol.

Which step do builders often miss when installing this NVMe drive?

After seating the M.2 2280 card and securing it with the motherboard screw, the NVMe 1.3 drive must be enabled in the BIOS and the Samsung Magician software run to apply any firmware updates before use.

When will the 1TB 970 PRO need replacement based on its endurance rating?

The drive is rated for 1200 TBW and an MTBF of 1,500,000 hours; typical consumer workloads reach the write limit long before the hour rating, so plan replacement once cumulative writes approach 1200 TB.
