A small green circuit board with gold edge connector and black controller chip

SAMSUNG

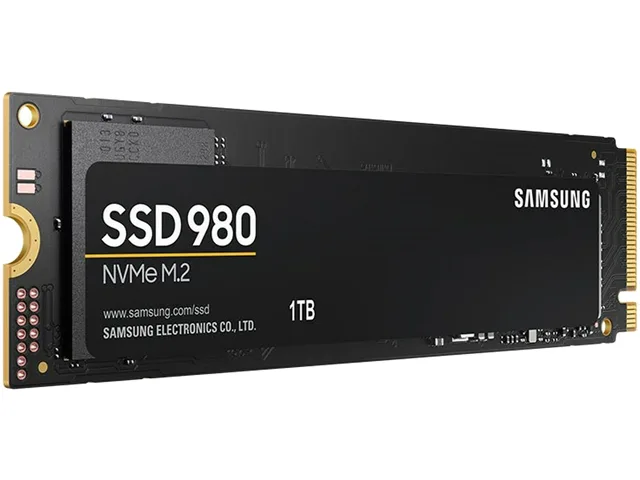

SAMSUNG 980 MZ-V8V1T0BW 1TB M.2 2280 internal SSD

SKU CH-B75N-AKD1F

A 1TB M.2 2280 internal SSD reaching 3500 MBps read and 3000 MBps write with 600 TBW endurance

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity1TB
  • Memory ComponentsV-NAND 3-bit MLC
  • InterfacePCI-Express 3.0 x4, NVMe 1.4
  • Sequential reads up to 3500 MBps for fast boot and load times
  • Sequential writes up to 3000 MBps to move large files quickly
  • Random read IOPS up to 500000 at QD32 for responsive multitasking
  • AES 256-bit encryption with TCG Opal support protects stored data
  • Low 45 mW idle draw extends laptop battery life

Samsung 980 1TB NVMe SSD

The Samsung 980 1TB drive uses the M.2 2280 form factor and a PCIe 3.0 x4 link with NVMe 1.4. It is built for consumer desktops and laptops that need fast solid-state storage without a DRAM cache.

PCIe 3.0 x4 interface limits

The PCIe 3.0 x4 connection caps sequential throughput at the drive's rated 3500 MBps read and 3000 MBps write. Random performance reaches 500,000 IOPS read and 480,000 IOPS write at QD32, while idle power sits at 45 mW and active power averages 4.6W.

1TB capacity with 600 TBW endurance

The 1TB V-NAND 3-bit MLC array is rated for 600 TBW and a 1.5 million hour MTBF. AES 256-bit encryption, TRIM, S.M.A.R.T. and auto garbage collection protect data integrity. The controller operates from 0°C to 70°C and withstands 1500G shock.

Highlights

  • Sequential reads up to 3500 MBps for fast boot and load times
  • Sequential writes up to 3000 MBps to move large files quickly
  • Random read IOPS up to 500000 at QD32 for responsive multitasking
  • AES 256-bit encryption with TCG Opal support protects stored data
  • Low 45 mW idle draw extends laptop battery life

Specifications

BrandSAMSUNG
Series980
ModelMZ-V8V1T0BW
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity1TB
Memory ComponentsV-NAND 3-bit MLC
InterfacePCI-Express 3.0 x4, NVMe 1.4
ControllerPablo
Max Sequential ReadUp to 3500 MBps
Max Sequential WriteUp to 3000 MBps
4KB Random ReadQD1: 17,000 IOPS
QD32: 500,000 IOPS
4KB Random WriteQD1: 54,000 IOPS
QD32: 480,000 IOPS
MTBF1,500,000 hours
Features600 TBW
TRIM Support: Supported
S.M.A.R.T Support: Supported
GC (Garbage Collection): Auto Garbage Collection Algorithm
Encryption Support: AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
Device Sleep Mode Support: Yes
Power Consumption (Idle)45 mW
Power Consumption (Active)Average: 4.6W
Maximum: 5.3W (Burst mode)
Operating Temperature0°C ~ +70°C
Max Shock Resistance1,500G & 0.5 ms (Half sine)
Height2.38mm
Width22.15mm
Depth80.15mm
Weight8.00g

Questions about this item

Should I choose the 1TB 980 or a different capacity?

The 1TB model delivers up to 3500 MBps read and 3000 MBps write with 600 TBW endurance, making it a balanced choice for most consumer workloads.

What does the 3500 MBps sequential read mean once the drive is installed?

In a PCIe 3.0 x4 slot the drive can sustain up to 3500 MBps on large-file transfers, though real-world speeds depend on system cooling and workload.

How does the PCIe 3.0 x4 NVMe 1.4 interface limit performance?

The four-lane Gen 3 link caps theoretical throughput near 3500 MBps, so the 980 reaches the interface ceiling on sequential reads.
