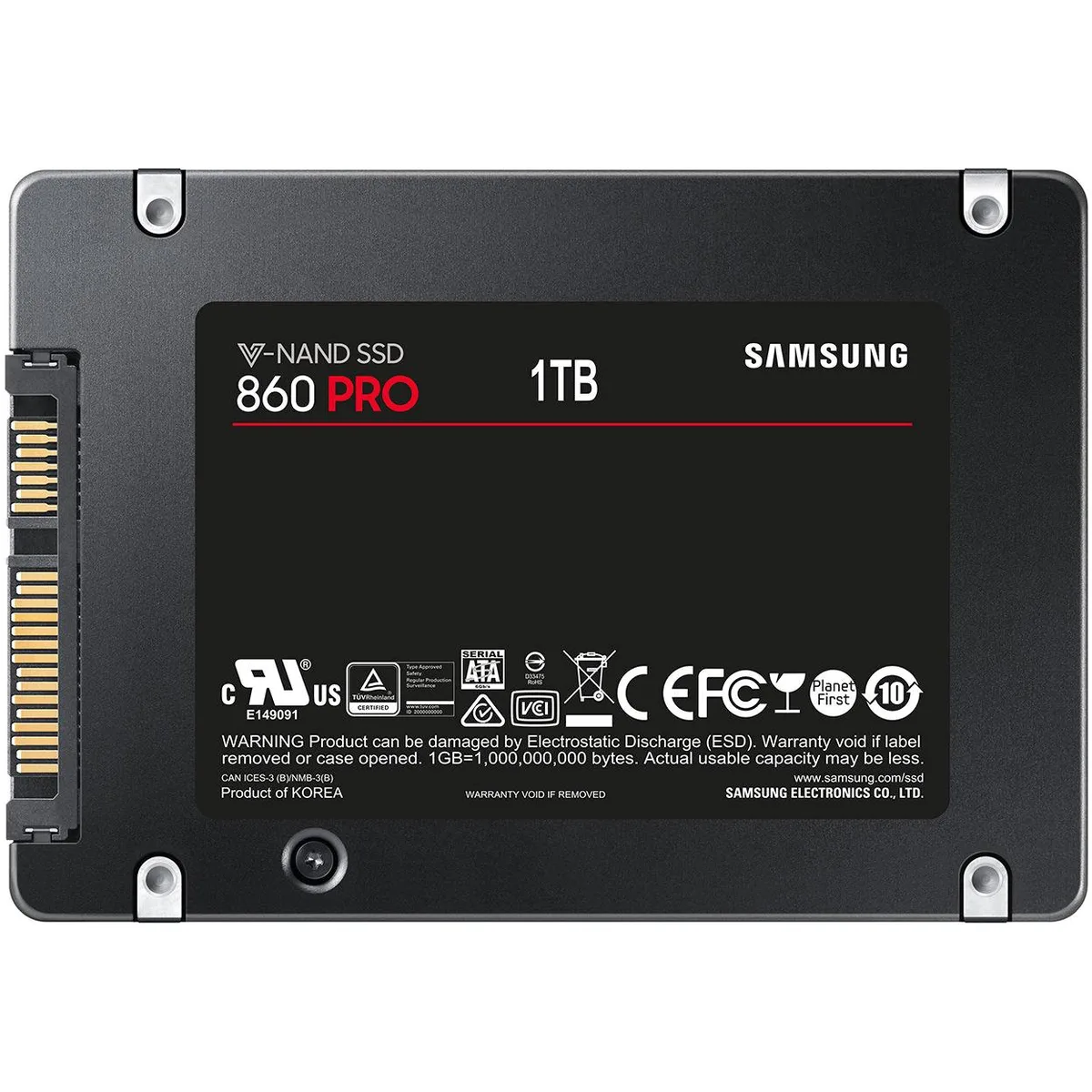

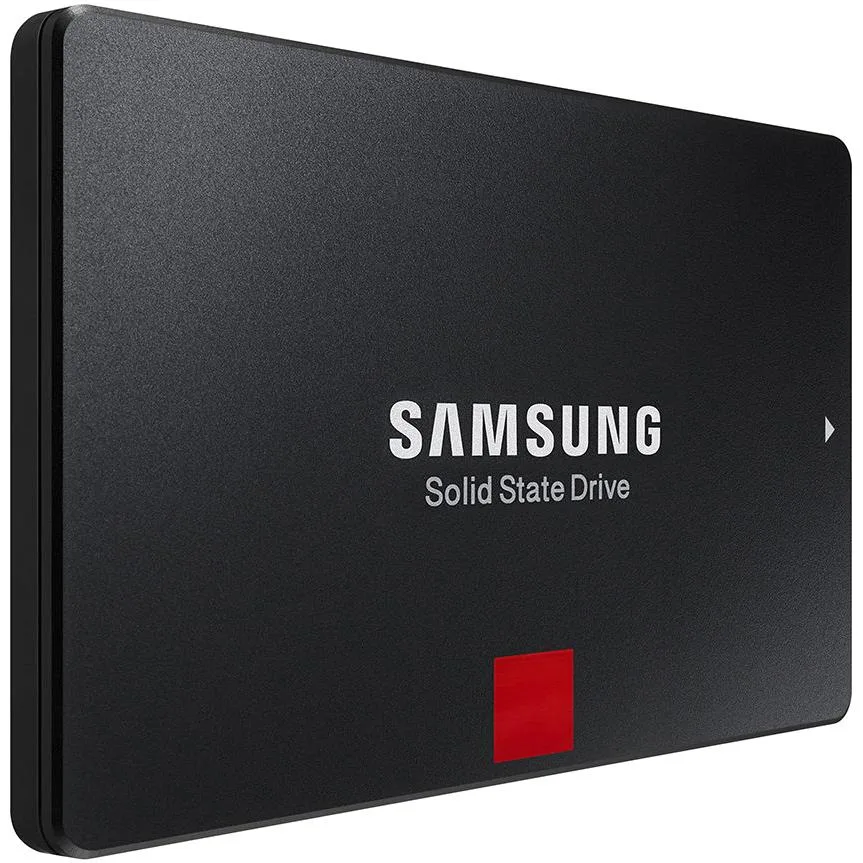

Rectangular 2.5 inch internal SSD with matte metal casing and label

SAMSUNG

SAMSUNG MZ-76P1T0E 860 PRO 1TB SATA 2.5 internal SSD

SKU CH-FZ3B-3QTZC MPN MZ-76P1T0E

A 1 TB SATA 2.5-inch internal SSD with 560 MB/s read, 530 MB/s write and 256-bit AES encryption

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form Factor2.5"
  • Capacity1TB
  • Memory ComponentsV-NAND 2-bit MLC
  • InterfaceSATA III

Options 1TB

Struck-through versions exist but are not stocked here.

  • Up to 560 MB/s sequential read for fast data access
  • Up to 530 MB/s sequential write for quick file saves
  • 100,000 random read IOPS at QD32 for responsive multitasking
  • Hardware AES 256-bit encryption with TCG Opal 2.0 secures stored data
  • 5 million hour MTBF rating indicates long-term reliability

1TB SATA 2.5 SSD for workstations and NAS

The Samsung 860 Pro is an internal solid state drive built for high-end client PCs, workstations and network attached storage. It uses a 2.5 inch form factor and the SATA III interface. The drive targets users who need sustained throughput for 4K video and 3D data workloads.

1TB capacity with 1GB LPDDR4 cache

The drive provides 1TB of storage backed by Samsung V-NAND 2-bit MLC flash and a 1GB LPDDR4 cache. Sequential reads reach up to 560 MBps and sequential writes up to 530 MBps. Random read performance hits up to 100,000 IOPS at QD32 and 11,000 IOPS at QD1, while random write reaches up to 90,000 IOPS at QD32 and 43,000 IOPS at QD1.

SATA III interface limits and endurance

The SATA III interface caps maximum throughput near 560 MBps read and 530 MBps write, so the drive saturates the bus in sequential workloads. Endurance is rated at 1,500,000 hours MTBF with 256-bit AES hardware encryption and TCG Opal 2.0 support. Operating temperature range is 0°C to 70°C and shock resistance is 1,500G for 0.5 ms half sine.

Highlights

  • Up to 560 MB/s sequential read for fast data access
  • Up to 530 MB/s sequential write for quick file saves
  • 100,000 random read IOPS at QD32 for responsive multitasking
  • Hardware AES 256-bit encryption with TCG Opal 2.0 secures stored data
  • 5 million hour MTBF rating indicates long-term reliability

Specifications

BrandSAMSUNG
Series860 Pro Series
ModelMZ-76P1T0E
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form Factor2.5"
Capacity1TB
Memory ComponentsV-NAND 2-bit MLC
InterfaceSATA III
ControllerSamsung MJX
Cache1GB LPDDR4
Max Sequential ReadUp to 560 MBps
Max Sequential WriteUp to 530 MBps
4KB Random Read4KB, QD32: Up to 100,000 IOPS
4KB, QD1: Up to 11,000 IOPS
4KB Random Write4KB, QD32: Up to 90,000 IOPS
4KB, QD1: Up to 43,000 IOPS
MTBF1,500,000 hours
FeaturesSamsung V-NAND Technology
Samsung's V-NAND flash memory helps to overcome the limitations of conventional planar NAND architecture. It stacks 64 cell layers vertically over one another rather than trying to fit itself onto a fixed horizontal space, in order to provide high density and performance with a small footprint.
Fast Read/Write Performance
The 860 PRO performs at sequential write speeds up to 530 MB/s and sequential read speeds up to 560 MB/s with a robust a robust algorithm-based Samsung MJX controller (up to 1 GHz).
Relentless Endurance
With an industry warranty offering up
Operating Temperature0°C ~ +70°C
Max Shock Resistance1,500G & 0.5 ms (Half sine)
Height7.00mm
Width69.85mm
Depth100.00mm
Weight95.25g
Shipping weight0.27 kg
Package size140 × 100 × 20 mm

Other versions of this model

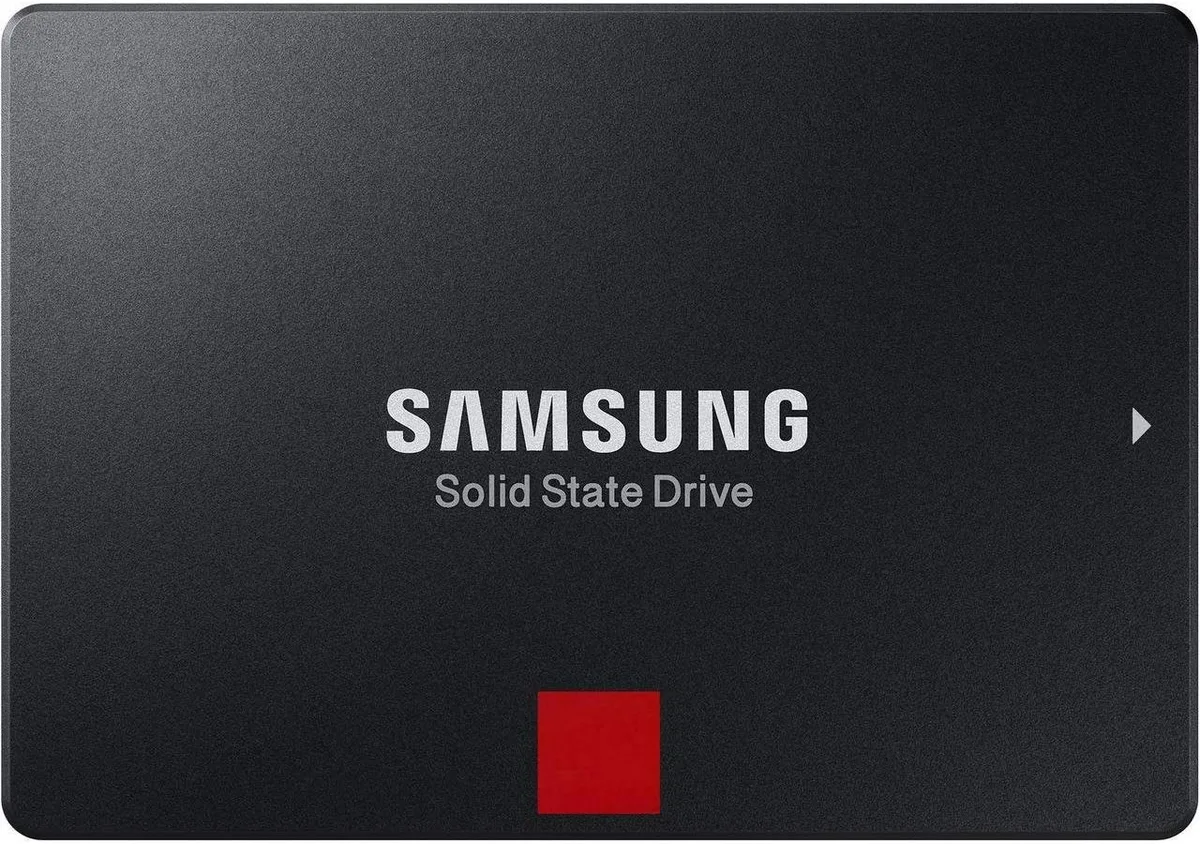

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 860 PRO 1TB 2.5-inch SATA drive fit the same bay and cable as my current 7mm mechanical laptop drive?

Yes. The drive is 7.00mm tall and uses the standard SATA III interface, so it slides into any 2.5-inch bay that accepts a 7mm drive and connects with the same SATA data and power cables.

How can I verify the 860 PRO is delivering its rated 560 MB/s read and 530 MB/s write speeds after installation?

Run Samsung Magician or a benchmark tool such as CrystalDiskMark; sequential results at queue depth 32 should approach 560 MB/s read and 530 MB/s write, while 4KB random read should reach about 100,000 IOPS and random write about 90,000 IOPS.

Does the retail box include a SATA data cable, a 2.5-to-3.5-inch bracket or cloning software, or must I buy them separately?

The drive ships alone in an anti-static sleeve; no SATA cable, mounting bracket or software disc is included, so you will need to source a SATA III cable and any required bracket separately.
