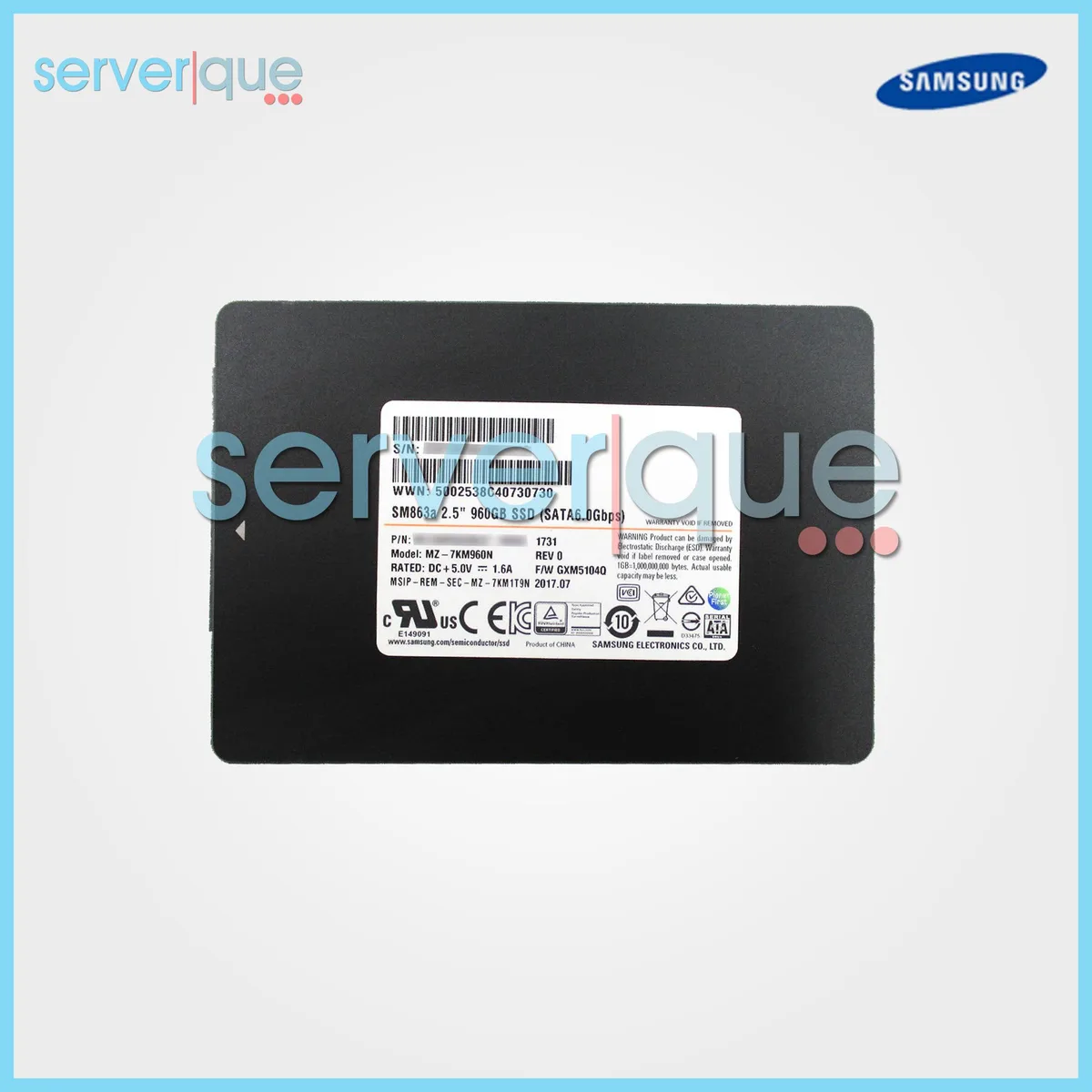

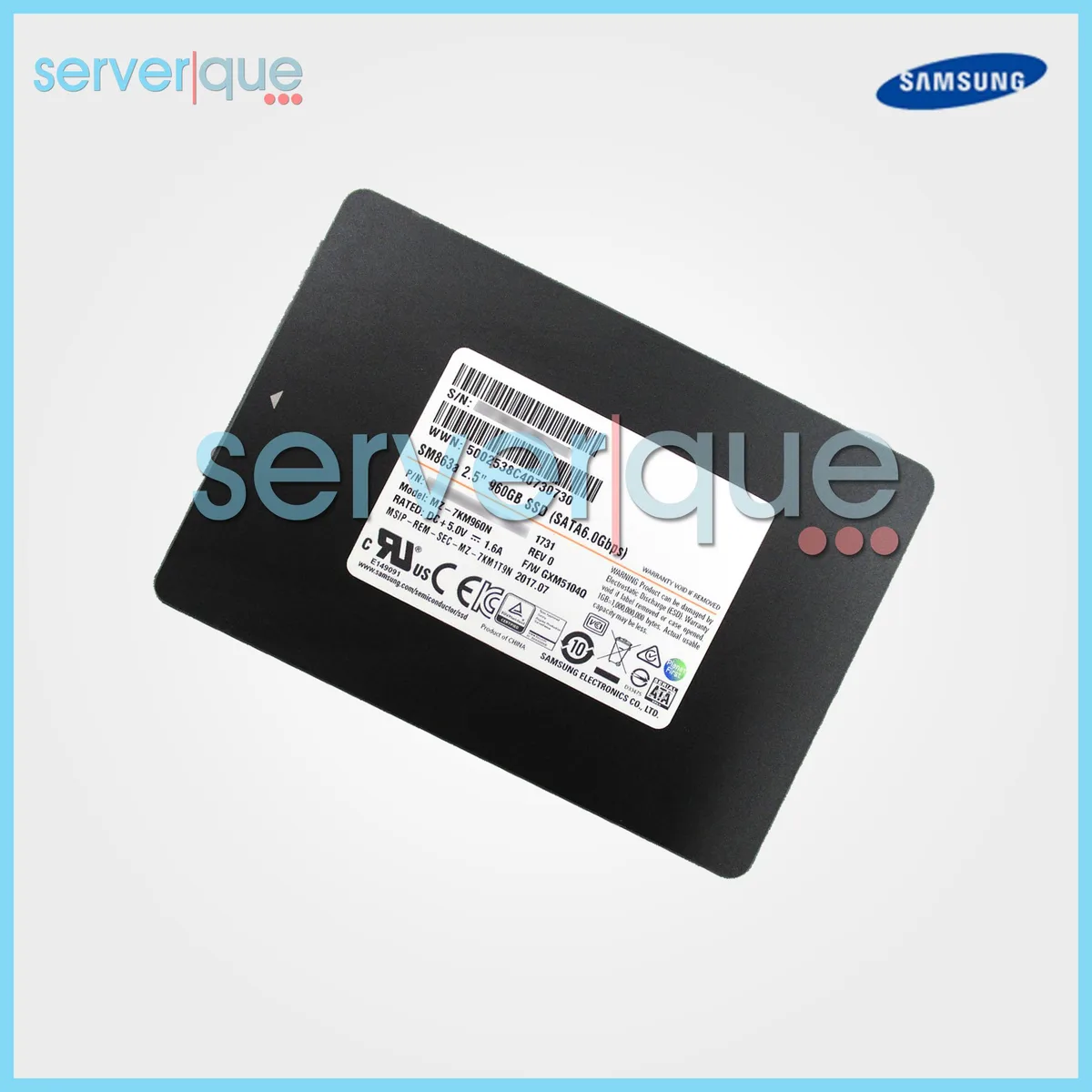

Samsung SM863a 960GB 2.5 inch SATA SSD with black metal casing

SAMSUNG

SAMSUNG SM863a 960GB SATA 2.5" internal SSD

SKU CH-C3KG-MDADX

A 960 GB 2.5-inch SATA internal SSD delivering up to 510 MBps read and 485 MBps write speeds with 95,000 IOPS random read performance

  • Device TypeInternal Solid State Drive (SSD)
  • Max Sequential ReadUp to 510 MBps
  • Max Sequential WriteUp to 485 MBps
  • 4KB Random ReadUp to 95,000 IOPS
  • 4KB Random WriteUp to 25,000 IOPS
  • MTBF2,000,000 hours
  • Fast boot and load times with up to 510 MBps sequential read
  • Responsive multitasking from 95,000 IOPS random read
  • Quick file saves at up to 485 MBps sequential write
  • Low 3.45W active draw keeps systems cool
  • Long 2,000,000-hour MTBF for dependable operation

Enterprise SATA SSD for Servers

The Samsung SM863a is a 960GB 2.5-inch internal solid-state drive built for read-intensive enterprise workloads. It connects through a standard SATA 6Gbps interface and fits any desktop, laptop or server bay that accepts a 2.5-inch SATA drive.

SATA 6Gbps Interface Limits

Sequential throughput reaches up to 510 MBps read and 485 MBps write, while random performance delivers up to 95,000 IOPS read and 25,000 IOPS write. The SATA bus caps maximum bandwidth, so sustained transfers cannot exceed the interface ceiling.

Metal Case and Low Power Draw

A metal enclosure protects the NAND and controller in vibration-prone chassis, and the drive draws 3.45W active power for cooler operation in dense arrays. The 2,000,000-hour MTBF rating reflects the endurance target for continuous server deployment.

Highlights

  • Fast boot and load times with up to 510 MBps sequential read
  • Responsive multitasking from 95,000 IOPS random read
  • Quick file saves at up to 485 MBps sequential write
  • Low 3.45W active draw keeps systems cool
  • Long 2,000,000-hour MTBF for dependable operation

Specifications

BrandSAMSUNG
SeriesSM863a
Part NumberMZ-7KM960N
Device TypeInternal Solid State Drive (SSD)
Max Sequential ReadUp to 510 MBps
Max Sequential WriteUp to 485 MBps
4KB Random ReadUp to 95,000 IOPS
4KB Random WriteUp to 25,000 IOPS
MTBF2,000,000 hours
Power Consumption (Active)3.45W

Questions about this item

Which capacity of the SM863a should I pick?

The drive is supplied in a 960 GB capacity; choose it when you need near-terabyte storage in a 2.5 inch SATA form factor.

What do the 510 MBps read and 485 MBps write figures mean once the drive is installed?

They are the maximum sequential speeds the controller can deliver, so large file copies and boot sequences will run at up to those rates.

What does the SATA 6 Gbps interface cap in practice?

The SATA link sets the upper bandwidth boundary, and the SM863a reaches 510 MBps read and 485 MBps write within that limit.
