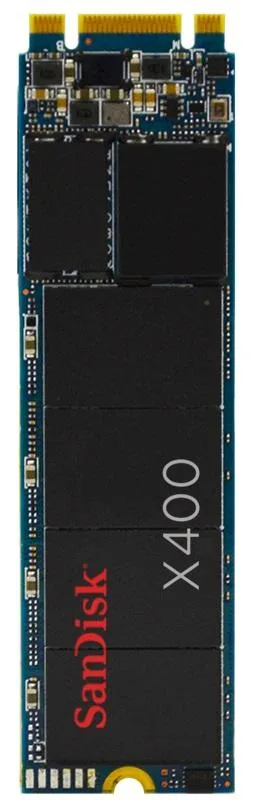

Green rectangular M.2 2280 SSD with black label and gold connectors

SanDisk

SanDisk SD8SN8U-512G-1122 X400 512GB M.2 2280 SATA internal SSD

SKU CH-PN6Y-6PF00 MPN SD8SN8U-512G-1122

512 GB M.2 2280 SATA SSD with 540 MB/s reads, 520 MB/s writes and 1.75 million-hour MTTF for enterprise workloads

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForEnterprise
  • Form FactorM.2 2280
  • Capacity512GB
  • Memory ComponentsTLC
  • InterfaceSATA III

Options 512GB M.2

  • Up to 540 MB/s sequential read for fast boot and load times
  • Up to 520 MB/s sequential write for quick file saves and transfers
  • 93,500 random read IOPS and 75,000 random write IOPS for responsive multitasking
  • 5 mm single-sided M.2 2280 fits ultra-thin laptops and compact desktops
  • 75 million hours MTTF and 320 TBW endurance for long-term reliability

SATA III M.2 2280 512GB SSD

The SanDisk X400 SD8SN8U-512G-1122 is a 512GB internal solid state drive built for enterprise workloads. It uses a M.2 2280 form factor with a SATA III interface and sixth-generation TLC flash memory. Sequential reads reach up to 540 MBps and writes up to 520 MBps. The drive measures 1.5mm in height for slim system compatibility.

Enterprise workloads and thin systems

This drive suits users running heavy workloads such as photo and video editing, multitasking or office productivity in ultrathin designs. It offers endurance up to 320 TBW with nCache 2.0, DataGuard client and LDPC error correction for data integrity. Buyers needing a 2.5 inch 7mm drive should select that form factor instead.

SATA III interface

The single specification that decides fit is the SATA III interface, which limits throughput to the SATA bus rather than PCIe lanes. Verify the host system provides a SATA-wired M.2 slot before purchase. Operating temperature ranges from 0°C to 70°C with shock resistance rated at 1500G.

Highlights

  • Up to 540 MB/s sequential read for fast boot and load times
  • Up to 520 MB/s sequential write for quick file saves and transfers
  • 93,500 random read IOPS and 75,000 random write IOPS for responsive multitasking
  • 5 mm single-sided M.2 2280 fits ultra-thin laptops and compact desktops
  • 75 million hours MTTF and 320 TBW endurance for long-term reliability

Specifications

BrandSanDisk
SeriesX400
ModelSD8SN8U-512G-1122
Device TypeInternal Solid State Drive (SSD)
Used ForEnterprise
Form FactorM.2 2280
Capacity512GB
Memory ComponentsTLC
InterfaceSATA III
Max Sequential ReadUp to 540 MBps
Max Sequential WriteUp to 520 MBps
4KB Random ReadUp to 93,500 IOPS
4KB Random WriteUp to 75,000 IOPS
MTTFUp to 1.75M hours
FeaturesUp to 1TB in A Single-sided M.2 2280 and 2.5" 7mm Form Factors
Ncache 2.0 Maximizes Read/write Operations and Improves Responsiveness
Greater Reliability With Dataguard Client and The New Ldpc Error Correction Mechanism
Available In 128GB, 256GB, 512GB, and 1TB Capacities in Both 2.5" 7mm and M.2 2280 Form Factor
Better Slumber Mode For Greater Low Power Efficiency
TCG Opal 2.0 Support
Operating Temperature0°C ~ +70°C
Storage Temperature-55°C ~ +85°C
Max Shock Resistance1500G
Max Vibration ResistanceOperating: 5.0 gRMS, 10 - 2000 Hz
Non-operating: 4.9 gRMS, 7 - 800 Hz
Height1.50mm
Width22.00mm
Depth80.00mm
Weight7.00g
Shipping weight0.03 kg
Package size109 × 64 × 8 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 1.5mm single-sided M.2 2280 module fit my laptop's M.2 slot?

Yes, the drive uses the standard M.2 2280 form factor with a 1.5mm single-sided profile, so it fits any M.2 2280 slot that accepts SATA signalling.

What is the correct way to secure the drive after inserting it into the M.2 slot?

Insert the drive at an angle, press it flat, and fasten the single retention screw; the step often missed is fully tightening that screw so the drive stays seated under vibration.

How many terabytes can be written before the TLC NAND reaches its rated endurance?

The drive is rated for up to 320 TBW, which represents the total host writes the TLC memory is warranted to sustain.
