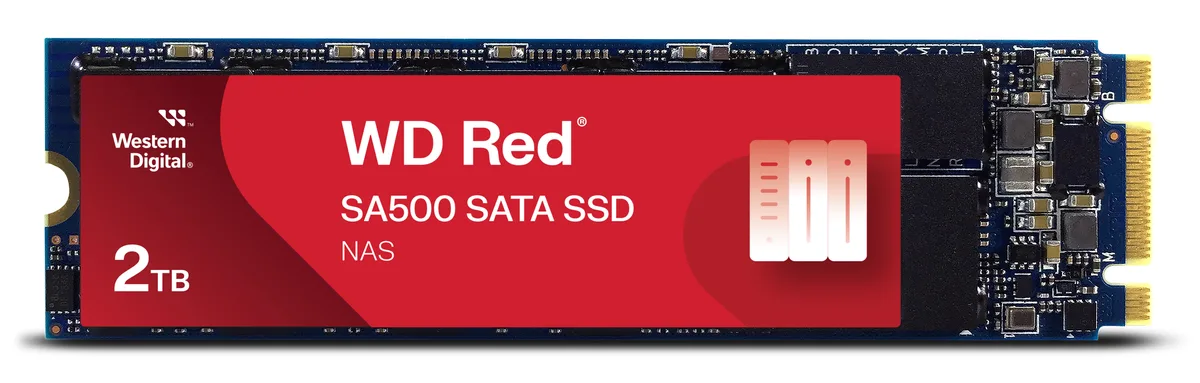

Green M.2 2280 circuit board with black controller and NAND chips

SanDisk

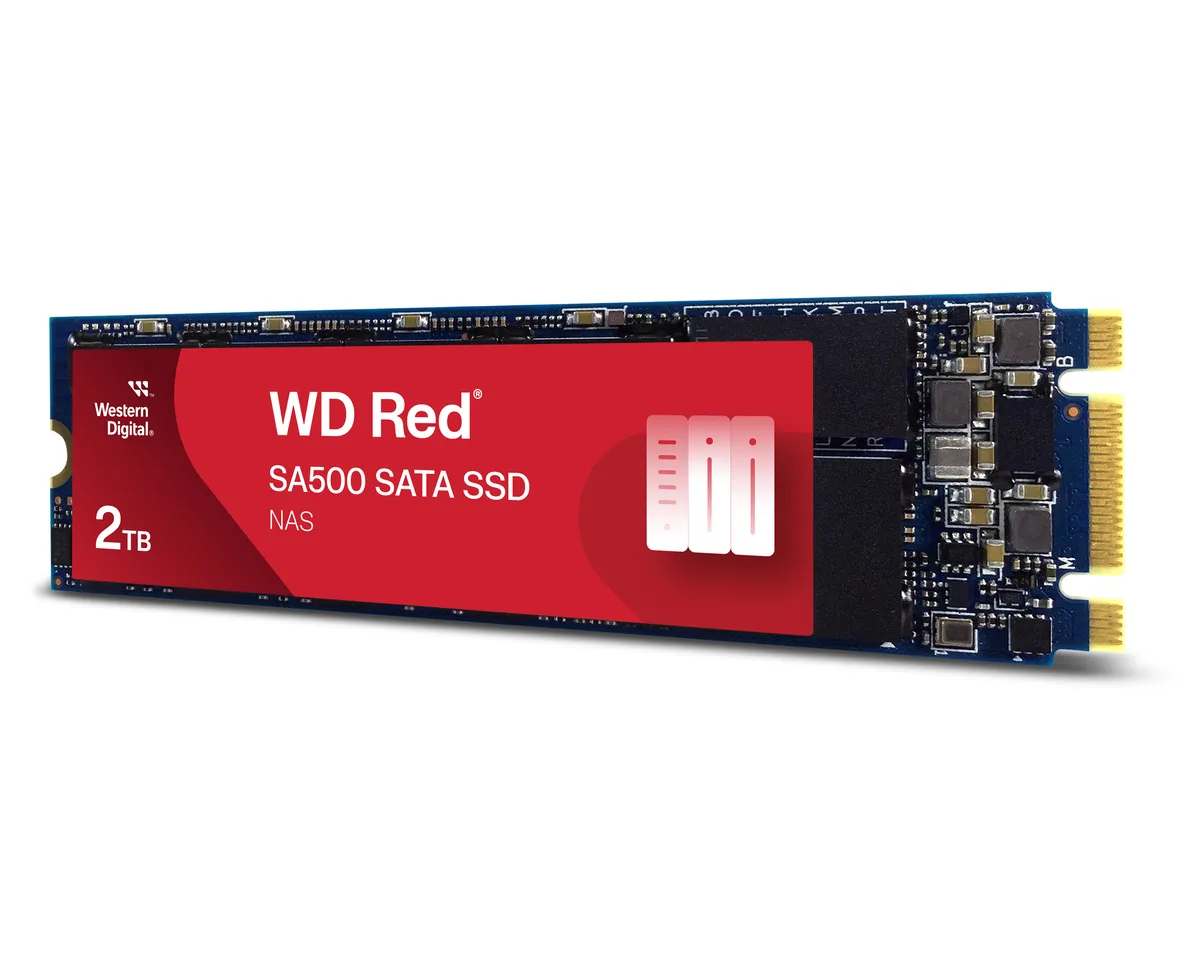

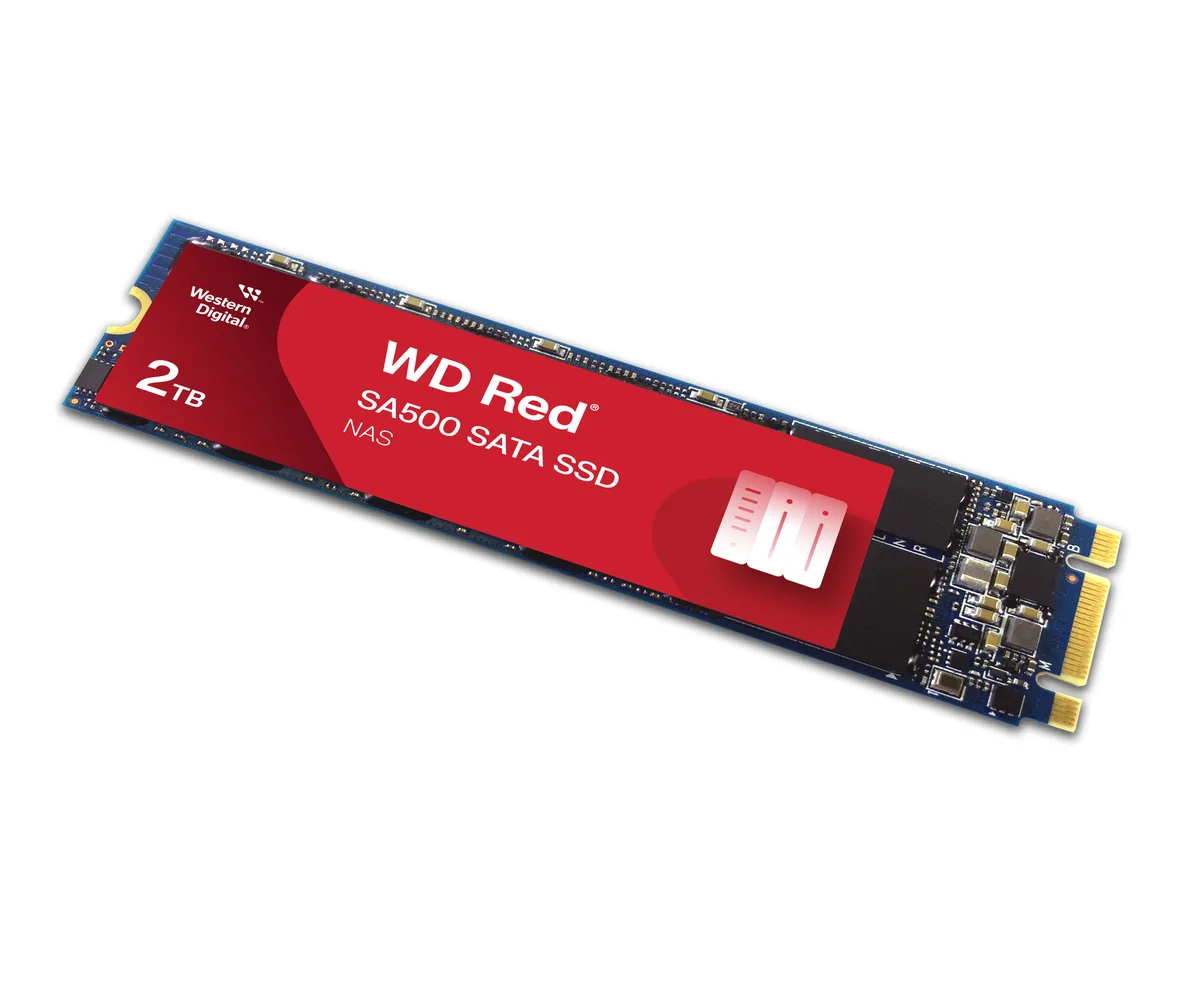

SanDisk WDS200T1R0B-68A4Z0 Red SA500 2TB M.2 2280 SATA internal SSD

SKU CH-YMRE-ZX10N MPN WDS200T1R0B-68A4Z0

2TB M.2 2280 SATA SSD with 3D NAND built for NAS caching, delivering up to 560 MBps read and 530 MBps write with 95,000 random read IOPS

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity2TB
  • Memory Components3D NAND
  • InterfaceSATA III

Options 2TB M.2

  • Optimised for NAS caching to accelerate frequent file access
  • Sustains heavy NAS workloads with 2M-hour MTTF endurance rating
  • Delivers up to 560 MBps sequential read and 530 MBps sequential write
  • Low idle power draw of 56 mW in slumber mode
  • M.2 2280 form factor fits modern NAS slots

NAS caching drive

The SanDisk Red SA500 is a 2TB M.2 2280 internal SSD built on 3D NAND with a SATA interface. It targets home and business NAS appliances that need a dedicated cache tier for frequently accessed files. The drive is rated for continuous operation in 24/7 environments. Its form factor fits the M.2 slots found in modern NAS units.

Sustained write behaviour

Sequential writes reach up to 530 MBps while random 4KB writes hit 85000 IOPS. Power draw under maximum write load is 3800 mW, well within typical NAS power budgets. The drive maintains these figures across extended workloads such as OLTP databases, multi-user file serving and 4K or 8K video editing. MTTF of up to 2M hours reflects the endurance tuning for heavy, constant I/O.

SATA throughput ceiling

The SATA III link caps sequential reads at 560 MBps and writes at 530 MBps regardless of the NAND speed. If your NAS can use a faster protocol, this drive will become the bottleneck. For SATA-only bays the drive delivers the maximum throughput the bus allows.

Highlights

  • Optimised for NAS caching to accelerate frequent file access
  • Sustains heavy NAS workloads with 2M-hour MTTF endurance rating
  • Delivers up to 560 MBps sequential read and 530 MBps sequential write
  • Low idle power draw of 56 mW in slumber mode
  • M.2 2280 form factor fits modern NAS slots

Specifications

BrandWestern Digital
SeriesRed SA500
ModelWDS200T1R0B
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity2TB
Memory Components3D NAND
InterfaceSATA III
Max Sequential ReadUp to 560 MBps
Max Sequential WriteUp to 530 MBps
4KB Random ReadUp to 95,000 IOPS
4KB Random WriteUp to 85,000 IOPS
MTTFUp to 2M hours
FeaturesStorage optimized for caching in NAS systems to rapidly access your most frequently used files.
Superior endurance can handle the heavy read and write loads demanded by NAS, giving you the reliability you need in a 24/7 environment.
Purpose-built for NAS with proven Western Digital 3D NAND to deliver maximum SATA performance to both home and business users.
Reduces latency and improves responsiveness for OLTP databases, multi-user environments, photo rendering, 4K and 8K video editing, and more.
Available in 2.5" and M.2 form factors to fit the slots in modern NAS systems.
Capacities
Power Consumption (Idle)Slumber (mW): 56
DEVSLP (mW): 5-12
Power Consumption (Active)Average Active Power (mW): 60
Max Read Operating (mW): 3,000
Max Write Operating (mW): 3,800
Operating Temperature0°C ~ +70°C
Storage Temperature-55°C ~ +85°C
Max Shock Resistance1,500G @ 0.5 msec half sine
Max Vibration ResistanceOperating: 5.0 gRMS, 10-2000 Hz
Non-operating: 4.9 gRMS, 7-800 Hz
Height2.38mm
Width22.00mm
Depth80.00mm
Weight7.00g
Shipping weight0.04 kg
Package size127 × 102 × 23 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will this M.2 drive fit my NAS slot?

The drive uses the M.2 2280 form factor, which is the standard 80 mm length used in most modern NAS units with an M.2 slot.

Can I use this as a cache drive for my NAS?

Yes, the Red SA500 is designed for NAS caching to accelerate access to frequently used files in 24/7 environments.

What power draw should I expect under heavy writes?

Maximum write power is 3,800 mW, while idle slumber power is 56 mW and DEVSLP is 5-12 mW.
