Green M.2 2280 circuit board with black controller and gold edge connector

SanDisk

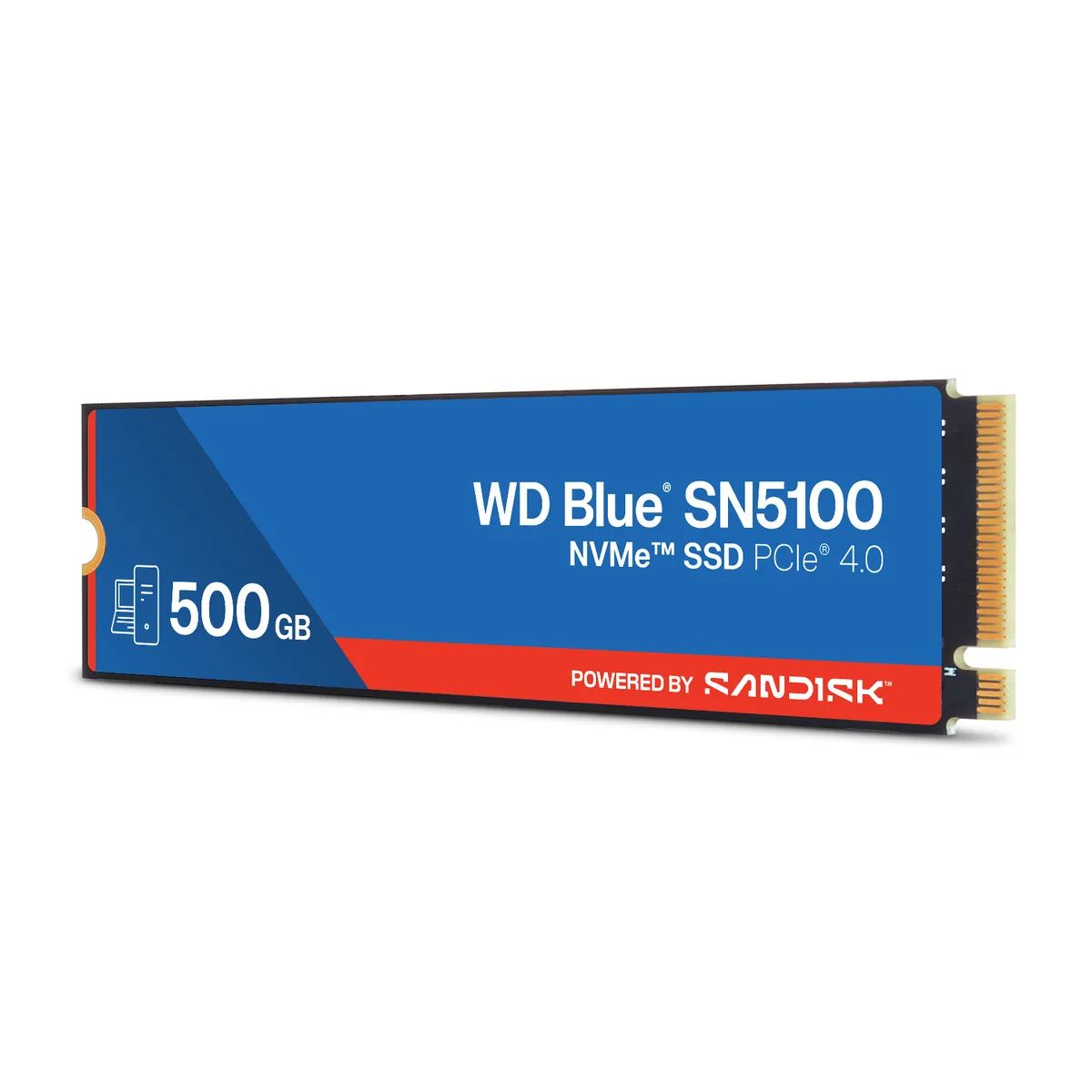

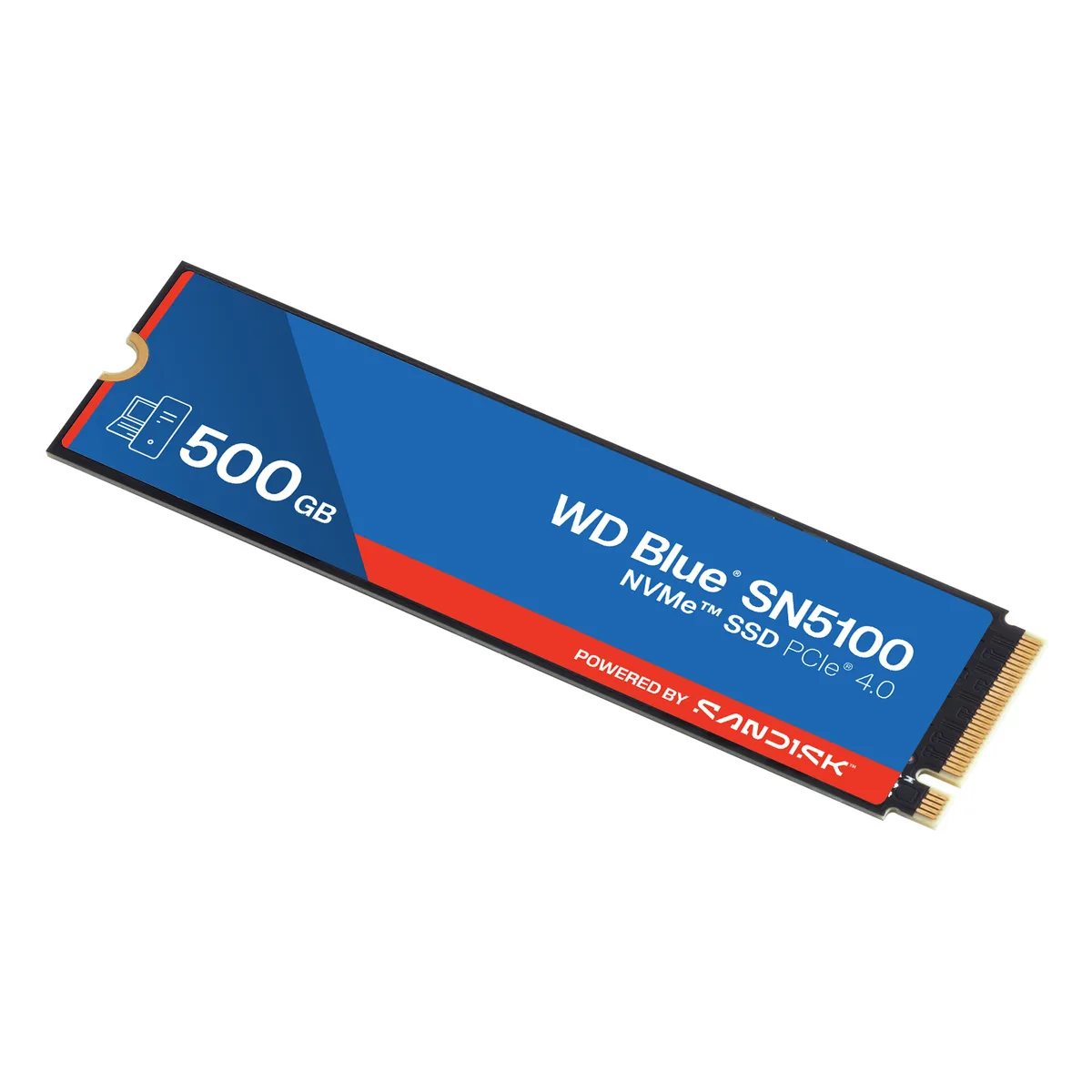

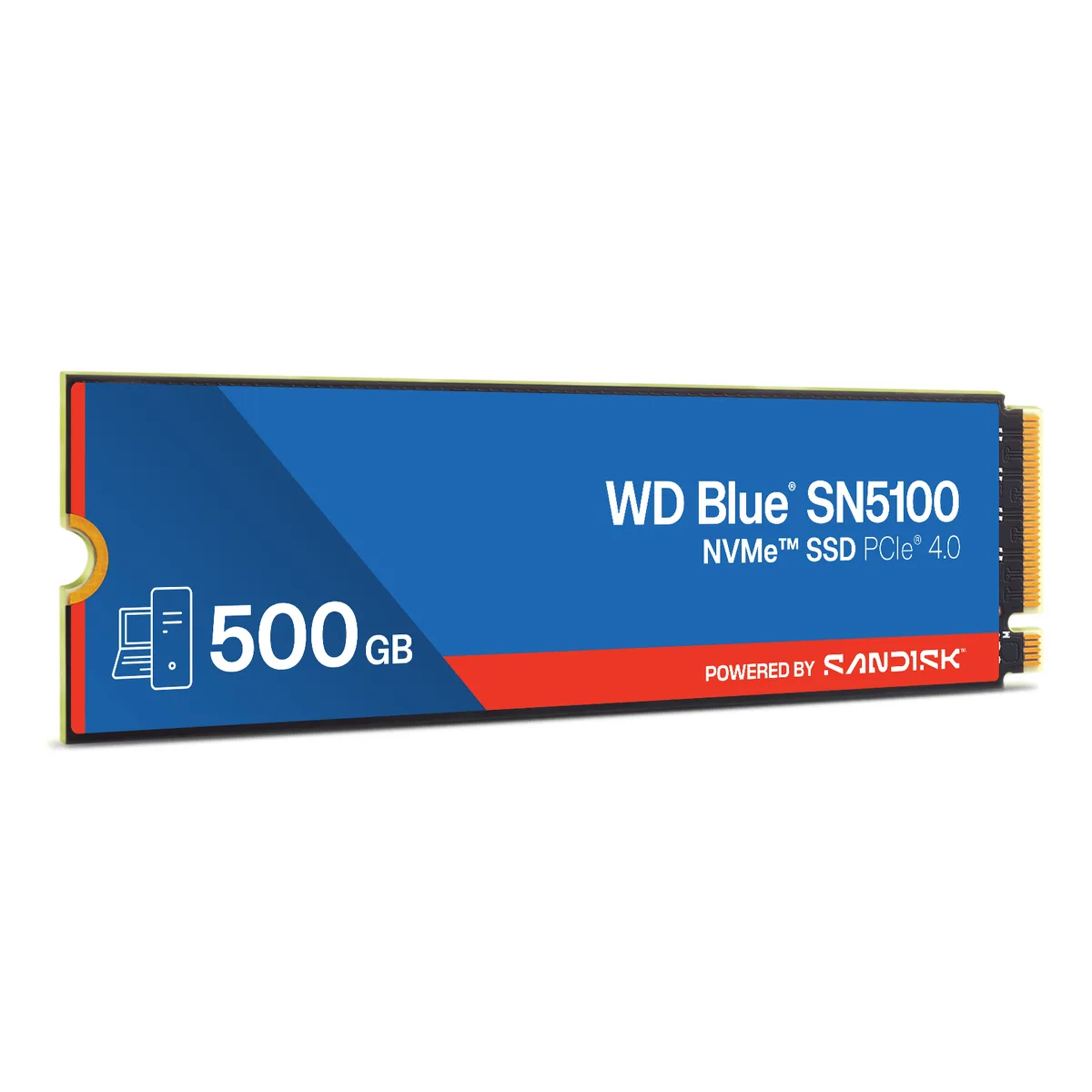

SanDisk WDS500G5B0E-00CPE0 500GB PCIe 4.0 NVMe internal SSD

SKU CH-6PVR-MX38Q MPN WDS500G5B0E-00CPE0

500 GB M.2 2280 NVMe drive delivers PCIe 4.0 x4 speeds up to 6600 MB/s read and 5600 MB/s write using 3D NAND with HMB cache

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity500GB
  • Memory Components3D NAND
  • InterfacePCI-Express 4.0 x4

Capacity 500GB

  • Accelerate AI workflows with PCIe 4.0 read speeds up to 6600 MB/s
  • Copy large project folders rapidly using nCache 4.0 technology
  • Store more data on M.2 2280 form factor with 3D CBA NAND
  • Migrate files easily with included Acronis True Image software
  • Monitor drive health and updates via SanDisk Dashboard app

500GB PCIe 4.0 NVMe SSD

The SanDisk WD Blue SN5100 is a 500GB internal solid-state drive built for consumer workloads. It uses 3D NAND flash and connects through an M.2 2280 slot with a PCI-Express 4.0 x4 interface. The drive operates without a DRAM cache and relies on host memory buffer technology.

Build integration and thermal headroom

The single-sided M.2 2280 form factor measures 2.38mm in height and fits standard motherboard slots without a heatsink. PCIe 4.0 x4 bandwidth frees up SATA ports for additional storage devices. Operating temperatures range from 0ºC to 85ºC while non-operating limits extend from -40ºC to 85ºC.

Capacity and sustained performance

Sequential reads reach up to 6600 MBps and writes up to 5600 MBps for large file transfers. The 500GB capacity suits operating systems, applications and active project folders. nCache 4.0 technology maintains write speeds during extended copies. Shock resistance is rated at 1500G and vibration tolerance at 5 gRMS during operation.

Highlights

  • Accelerate AI workflows with PCIe 4.0 read speeds up to 6600 MB/s
  • Copy large project folders rapidly using nCache 4.0 technology
  • Store more data on M.2 2280 form factor with 3D CBA NAND
  • Migrate files easily with included Acronis True Image software
  • Monitor drive health and updates via SanDisk Dashboard app

Specifications

BrandSanDisk
SeriesWD Blue
ModelSN5100
Part NumberWDS500G5B0E-00CPE0
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity500GB
Memory Components3D NAND
InterfacePCI-Express 4.0 x4
ProtocolNVMe
CacheNo DRAM (HMB)
Max Sequential ReadUp to 6600 MBps
Max Sequential WriteUp to 5600 MBps
HeatSinkwithout HeatSink
Operating Temperature32ºF to 185ºF (0ºC to 85ºC)
Storage Temperature-40ºF to 185ºF (-40ºC to 85ºC)
Max Shock Resistance1,500G @ 0.5 ms half sine
Max Vibration ResistanceOperating Vibration: 5 gRMS, 10-2000 Hz, 3 axes
Non-operating Vibration: 4.9 gRMS, 7-800 Hz, 3 axes
Height2.38mm
Width22mm
Depth80mm
Weight5.7g
Shipping weight0.05 kg
Package size127 × 104 × 22 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What limits the WD Blue SN5100 500GB under sustained write workloads?

The drive has no DRAM cache and relies on host memory buffer, so long sequential writes drop to the native NAND speed once the SLC cache fills.

How hot does the 500GB SN5100 run when it is working all day?

It is rated for 0 °C to 85 °C operating temperature and ships without a heatsink, so case airflow determines actual temperature.

Which M.2 slot key and length does the 500GB SN5100 need?

It uses an M.2 2280 form factor with a PCIe 4.0 x4 NVMe interface, so the motherboard must provide an M-key slot wired for PCIe.
