Sapphire Tech
Sapphire Tech 11296-05-20G Pulse Radeon RX 5600 XT 6GB GDDR6 graphics card
Refurbished Radeon GPU with 6GB GDDR6, 1620 MHz boost clock and 2304 stream processors, dual HDMI and dual DisplayPort 1.4 for four monitors, PCIe 4.0 x16, 150W TDP
- InterfacePCI Express 4.0 x16
- Chipset ManufacturerAMD
- GPU SeriesAMD Radeon RX 5600 Series
- GPURadeon RX 5600 XT
- Boost Clock1620 MHz
- Stream Processors2304
- Smooth 1080p gaming with 6GB GDDR6 memory
- Factory overclocked boost clock reaches 1620 MHz for extra speed
- 2304 stream processors handle modern titles efficiently
- Four display outputs support multi-monitor setups up to 5120x2880
- PCI Express 4.0 x16 interface provides high bandwidth
Pulse RX 5600 XT 6GB for 1080p gaming

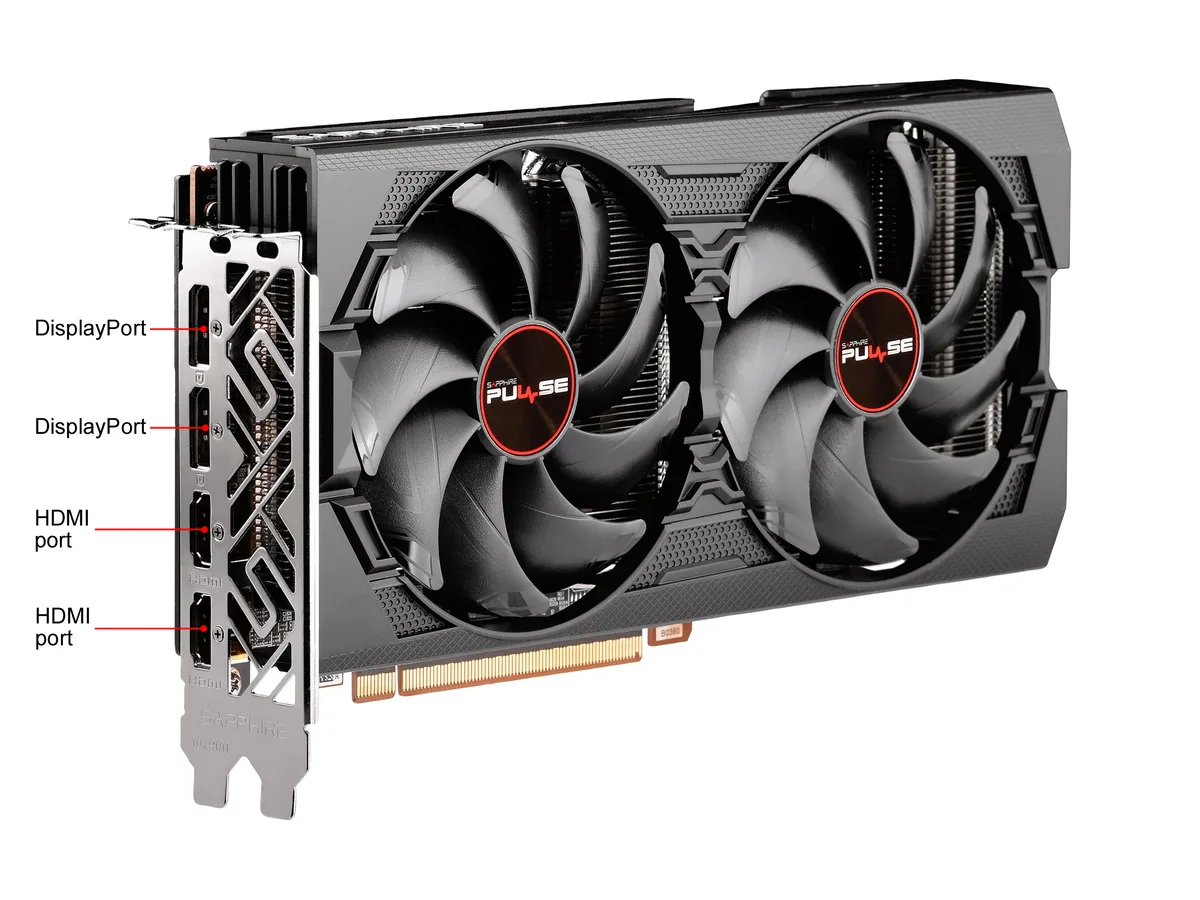

This Sapphire Pulse card targets 1080p gamers who want a factory-overclocked Radeon RX 5600 XT with 6GB of GDDR6 memory. The 192-bit bus and 14 Gbps effective clock feed the 2304 stream processors at a 1620 MHz boost frequency. Dual HDMI and dual DisplayPort 1.4 outputs drive up to four displays at 5120x2880@60Hz.
Sustained load behaviour with 150 W TDP
A 150 W thermal design power means the dual-fan cooler must move a steady stream of heat during long sessions rather than short bursts. PCI Express 4.0 x16 bandwidth keeps texture data flowing without throttling the 192-bit memory interface. A 450 W power supply is the minimum recommended to keep voltage rails stable under continuous draw.
Upgrade path from older 6GB or 4GB cards
Replacing an earlier 6GB or 4GB model with this 192-bit GDDR6 board yields higher memory bandwidth and a 1620 MHz boost clock in the same power envelope. The jump is worth it when your current GPU cannot hold 60 Hz at 1080p in modern titles or lacks DisplayPort 1.4 for high-refresh panels. DirectX 12 and OpenGL 4.6 support cover current API needs.
Highlights
- Smooth 1080p gaming with 6GB GDDR6 memory
- Factory overclocked boost clock reaches 1620 MHz for extra speed
- 2304 stream processors handle modern titles efficiently
- Four display outputs support multi-monitor setups up to 5120x2880
- PCI Express 4.0 x16 interface provides high bandwidth
Specifications
| Brand | SAPPHIRE |
|---|---|
| Series | PULSE |
| Model | 11296-05-20G |
| Interface | PCI Express 4.0 x16 |
| Chipset Manufacturer | AMD |
| GPU Series | AMD Radeon RX 5600 Series |
| GPU | Radeon RX 5600 XT |
| Boost Clock | 1620 MHz |
| Stream Processors | 2304 |
| Effective Memory Clock | 14 Gbps |
| Memory Size | 6GB |
| Memory Interface | 192-Bit |
| Memory Type | GDDR6 |
| DirectX | DirectX 12 |
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 4 |
| HDMI | 2 x HDMI |
| DisplayPort | 2 x DisplayPort 1.4 |
| Color | Black |
| Max Resolution | HDMI: 4096x2160@60Hz DisplayPort1.4: 5120x2880@60Hz |
| Virtual Reality Ready | Yes |
| Cooler | Double Fans |
| Thermal Design Power | 150W |
| System Requirements | PCI Express compliant motherboard with one x16 PCIe slot. NOTE: Minimum recommended system power supply wattage is based on the specific graphics card and the typical power requirements of other system components. Your system may require more or less power. OEM and other pre-assembled PCs may have different power requirements. Minimum 4GB of system memory. 8GB recommended. - Minimum 450W or greater power supply (RX5600XT) Installation software requires a keyboard, a mouse, and a display. A display with digital input (HDMI or DisplayPort) is required. Supported operating systems inclu |
| Recommended PSU Wattage | 450W |
| Power Connector | 8-Pin |
| Features | RDNA Architecture 2nd Gen 7nm GPU GDDR6 Memory Power Efficiency PCI Express 4.0 Support Video Streaming up to 8K Display Port 1.4 (HBR3) / DSC Radeon Software Radeon Boost Radeon Image Sharpening Radeon Anti-Lag AMD FidelityFx Async Compute Radeon Rays Audio + True Audio Next Radeon FreeSync 2 HDR Radeon VR Ready Premium Driver Optimization TriXX Boost |
| Form Factor | ATX |
| Max GPU Length | 231 mm |

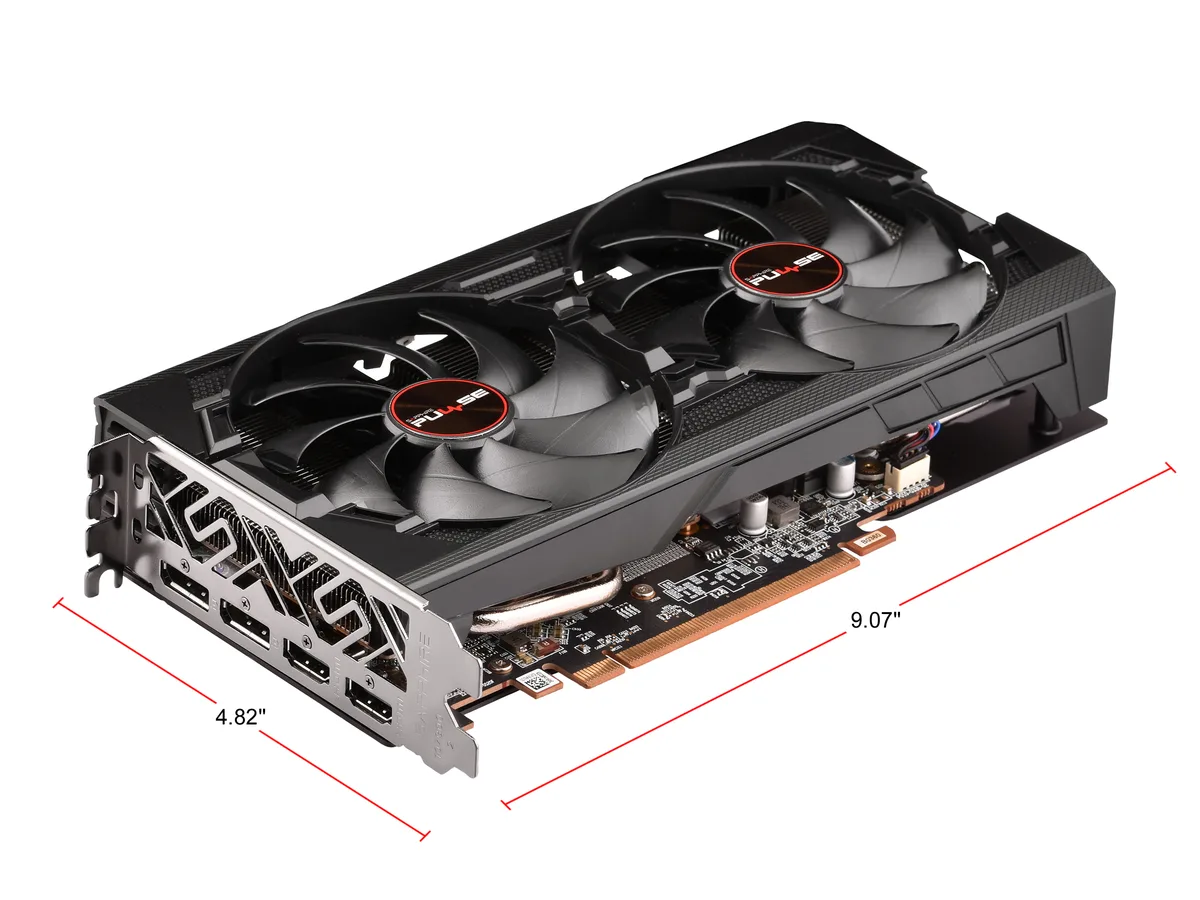

| Card Dimensions (L x H) | 9.07" x 4.82" |
| Slot Width | 2 Slots |
| Shipping weight | 0.95 kg |
| Package size | 290 × 168 × 86 mm |
Questions about this item
How much heat does the 150W thermal design power produce during long gaming sessions?
The card has a 150W thermal design power. The dual-fan cooler is built to move that heat away from the GPU while the boost clock runs at 1620 MHz.
What power supply and motherboard slot do I need before installing this card?
A 450W or greater power supply and a PCI Express 4.0 x16 slot are required. The system also needs at least 4GB of memory, with 8GB recommended.
Will my older HDMI 1.4 monitor work with the two HDMI ports on this card?
Yes. The two HDMI ports support up to 4096x2160 at 60Hz and will downscale to your monitor's native resolution automatically.
