Sapphire Tech 11309-03-20G Pulse Radeon RX 6600 XT 8GB graphics card

Pulse Radeon RX 6600 XT 8GB

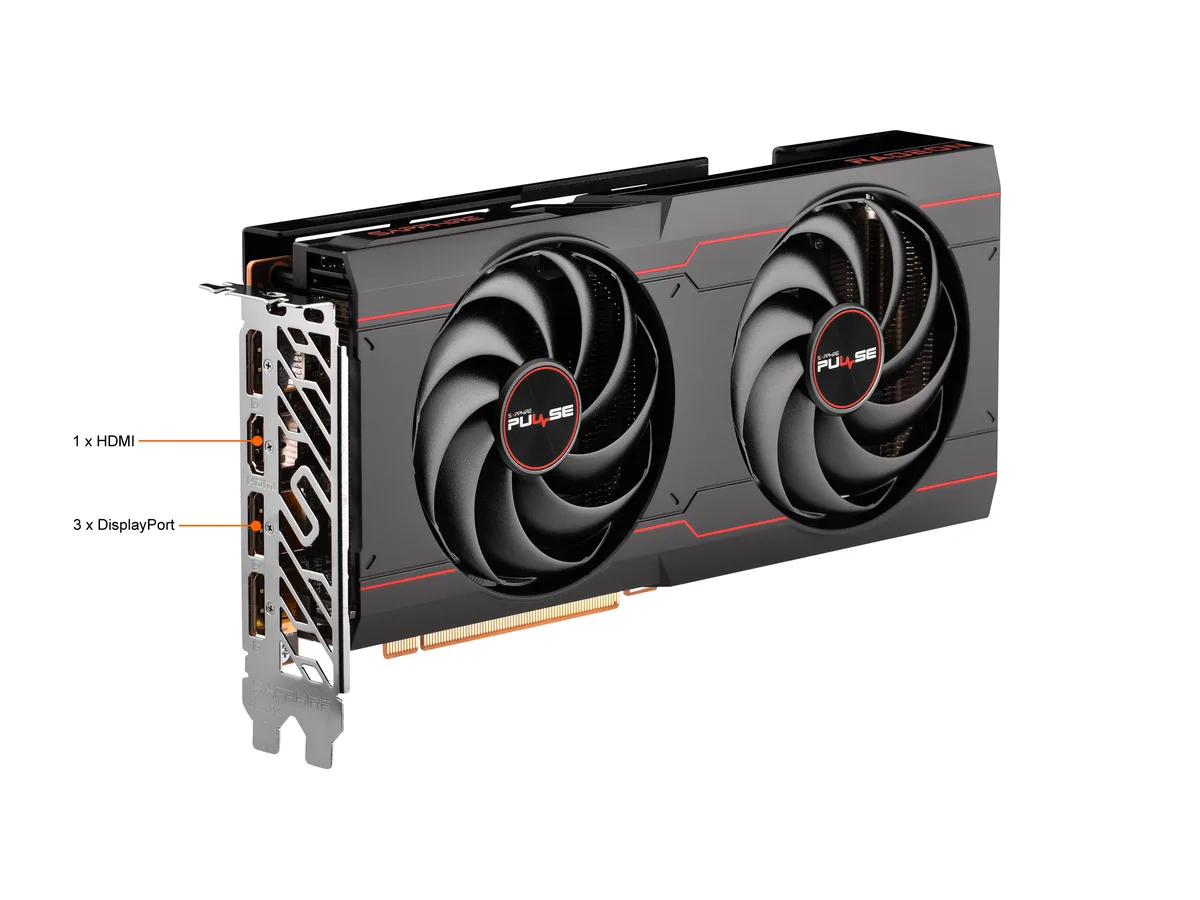

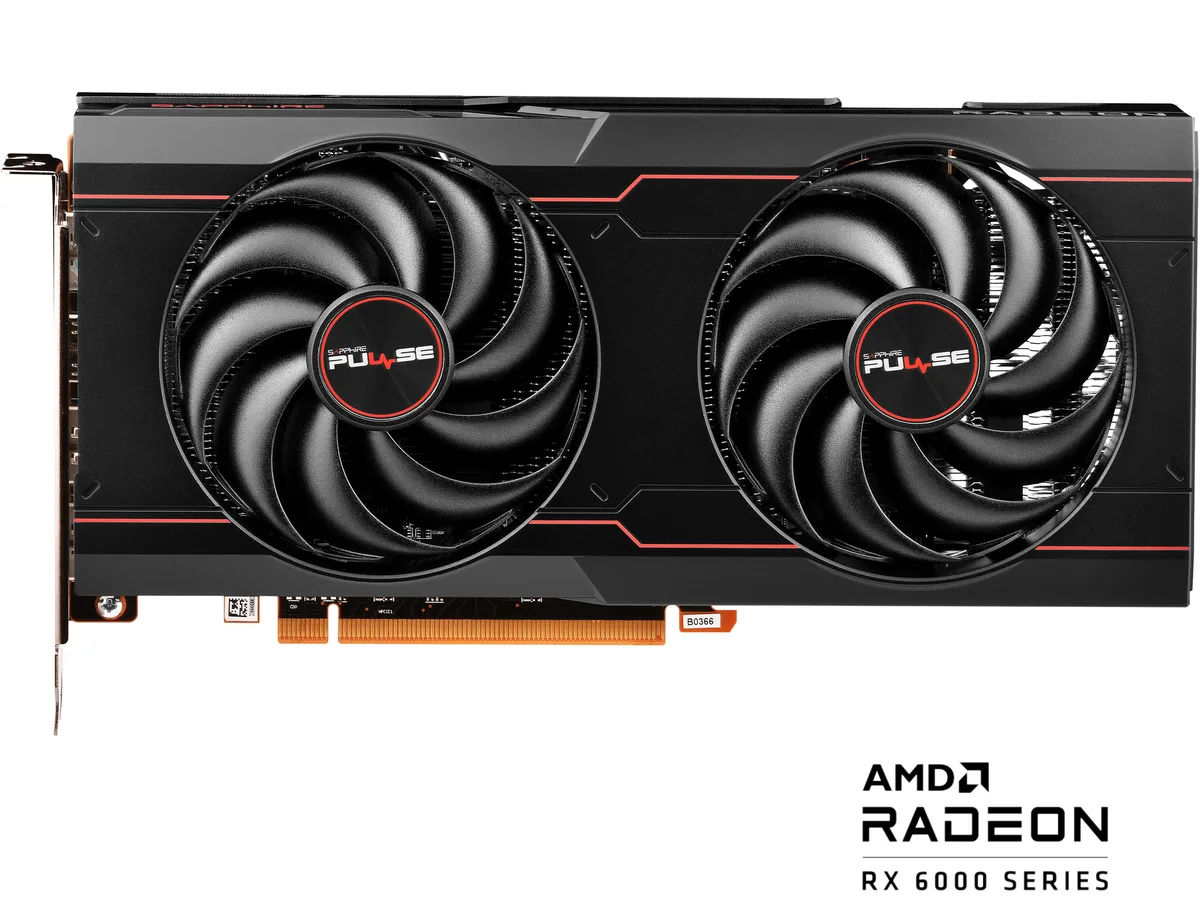

This Pulse Radeon RX 6600 XT 8GB graphics card targets 1080p gamers who want high frame rates without moving to a larger power envelope. The AMD RDNA 2 architecture delivers 2048 stream processors and a 128-bit GDDR6 interface running at 16 Gbps. A PCI Express 4.0 connection feeds data to the GPU while the dual-fan cooler handles a 170 W thermal design power. One HDMI and three DisplayPort outputs drive up to four displays at 7680 x 4320 resolution.

Upgrade from 6GB or 128-bit mid-range cards

Moving up from a 6GB model or an older 128-bit mid-range card becomes worthwhile when texture packs or modern titles exceed the previous frame buffer. The 8GB GDDR6 allocation removes that bottleneck while the 2593 MHz boost clock lifts average frame rates in demanding scenes. A single 8-pin power connector keeps cabling simple for most ATX builds and the 240 mm card length fits standard mid-tower cases. The 2.2 slot width requires an adjacent free bracket but no exotic mounting hardware.

Sustained load behaviour

Under continuous gaming load the card settles at the 2382 MHz game clock rather than the peak boost frequency. The double-fan cooler maintains stable thermals at the rated 170 W without aggressive fan curves that would raise noise. PCI Express 4.0 bandwidth prevents bus saturation during extended texture streaming. Frame pacing remains consistent across multi-monitor setups because the 128-bit memory controller sustains its 16 Gbps data rate throughout long sessions.
