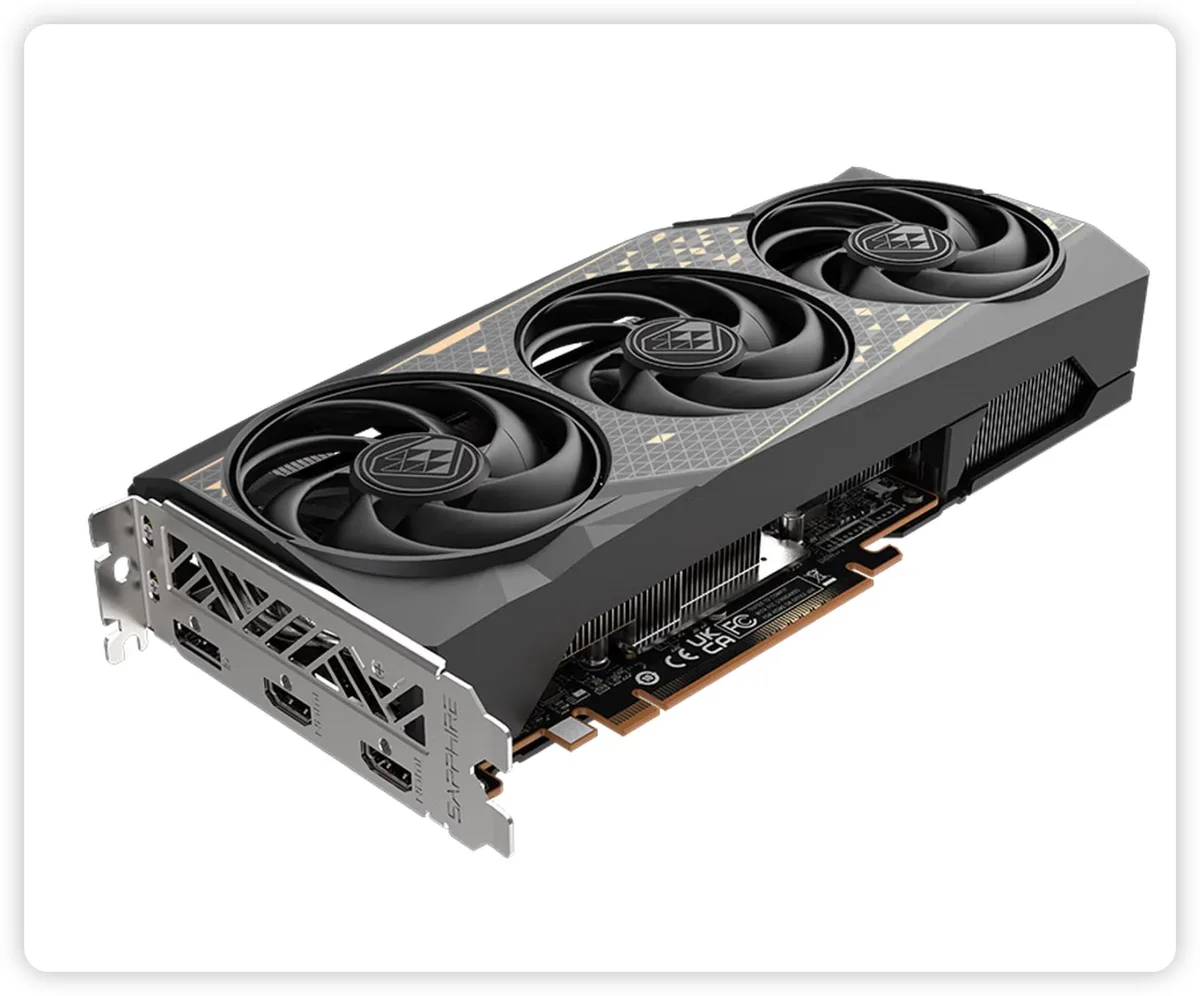

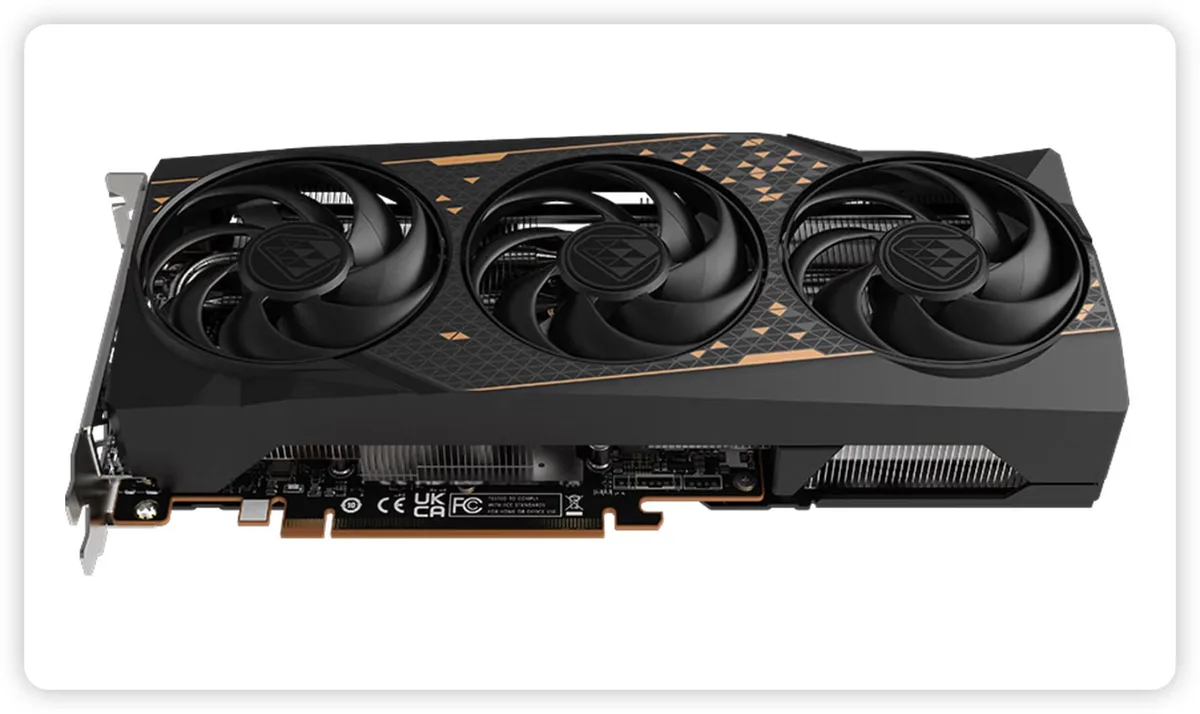

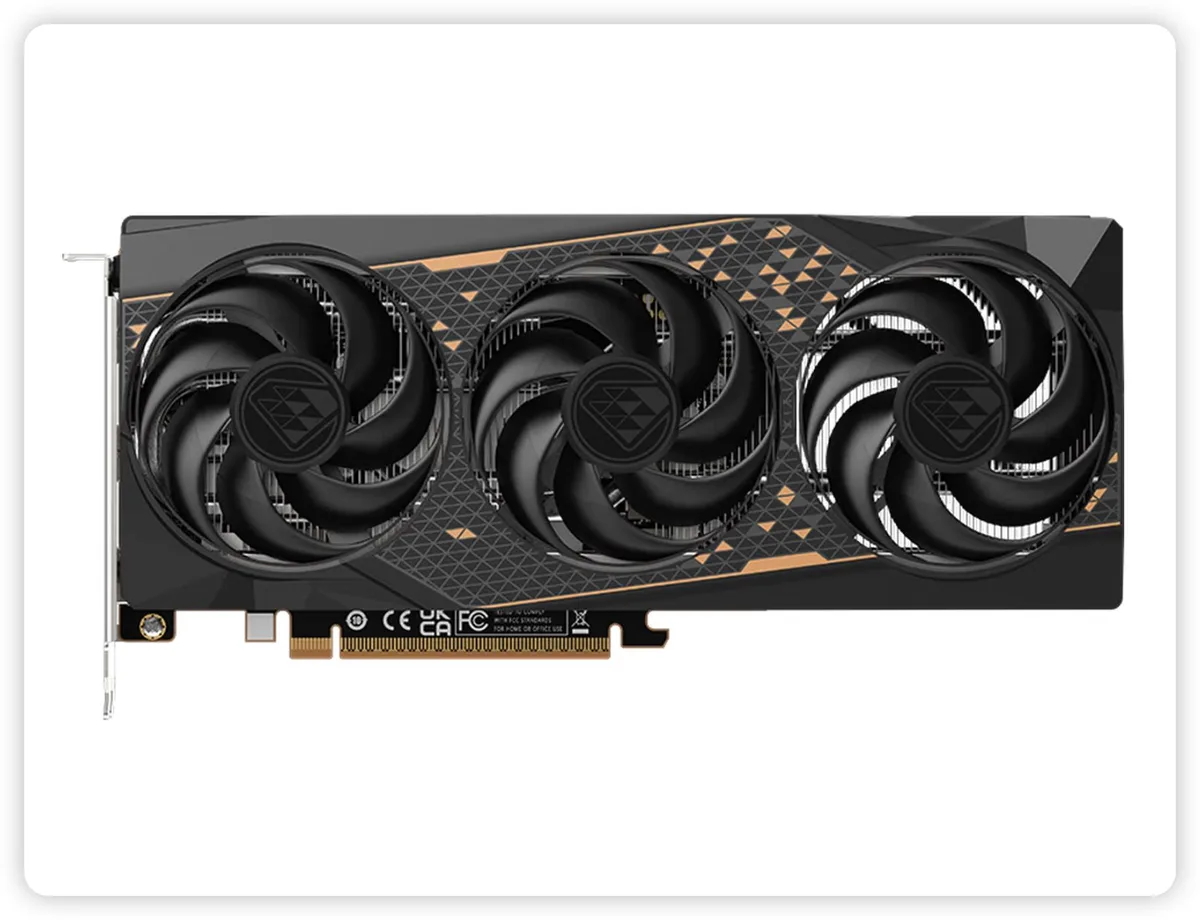

Sapphire Black Diamond Radeon RX 9060 XT 16GB graphics card, triple-fan cooler with black shroud and metal backplate

Sapphire Tech

Sapphire Tech BLACK DIAMOND Radeon RX 9060 XT 16GB graphics card

SKU CH-7GFC-8BW4D

16 GB GDDR6 graphics card with AMD RDNA 4 architecture, 2048 stream processors and a 3290 MHz boost clock

  • InterfacePCI Express 5.0 x16
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 9000 Series
  • GPURadeon RX 9060 XT
  • ArchitectureRDNA 4
  • Game Clock2700 MHz
  • RDNA 4 architecture with 32 ray accelerators for advanced lighting
  • Boost clock up to 3290 MHz for high frame rates
  • 16 GB GDDR6 at 20 Gbps effective for large textures
  • PCI Express 5.0 x16 interface doubles bandwidth headroom
  • DisplayPort 2.1a and dual HDMI drive 7680 x 4320 resolution

Sapphire BLACK DIAMOND RX 9060 XT 16GB

This graphics card targets 1440p gamers and content creators who need 16 GB of video memory. It is built on the AMD RDNA 4 architecture with 2048 stream processors and a 128-bit memory bus.

PCI Express 5.0 x16 interface and ATX form factor

The card installs in a standard full-size slot and provides two HDMI outputs plus one DisplayPort 2.1a connector for multi-monitor setups. The BLACK DIAMOND series cooler uses a dual-fan layout that exhausts heat toward the rear bracket.

16 GB GDDR6 at 20 Gbps effective

The 16 GB frame buffer running at 20000 MHz effective clock is the specification that determines whether this model fits a workload. It supports DirectX 12 Ultimate and a maximum resolution of 7680 x 4320 across three displays.

Highlights

  • RDNA 4 architecture with 32 ray accelerators for advanced lighting
  • Boost clock up to 3290 MHz for high frame rates
  • 16 GB GDDR6 at 20 Gbps effective for large textures
  • PCI Express 5.0 x16 interface doubles bandwidth headroom
  • DisplayPort 2.1a and dual HDMI drive 7680 x 4320 resolution

Specifications

BrandSAPPHIRE
SeriesBLACK DIAMOND
Model9060XT BLACK DIAMOND 16G
InterfacePCI Express 5.0 x16
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 9000 Series
GPURadeon RX 9060 XT
ArchitectureRDNA 4
Game Clock2700 MHz
Boost Clock3290 MHZ
Stream Processors2048
Effective Memory Clock20000 MHz (20 Gbps)
Memory Size16GB
Memory Interface128-Bit
Memory TypeGDDR6
DirectXDirectX 12 Ultimate
Multi-Monitor Support3
HDMI2 x HDMI
DisplayPort1x DisplayPort™ 2.1a
Max Resolution7680 x 4320
CoolerTriple Fans
Thermal Design Power182W
Recommended PSU Wattage450W
Power Connector8-Pin
HDCP ReadyYes
Form FactorATX
Max GPU Length300 mm
Card Dimensions (L x H)300 x 131 x 55 mm
Slot Width2.7 Slots

Questions about this item

Will this card fit in a standard ATX case with a PCI Express 5.0 slot?

The card uses a PCI Express 5.0 x16 interface and follows the ATX form factor, so it fits any case with a full-length x16 slot and adequate clearance.

What power connectors are required for the 3290 MHz boost clock?

The card draws power through standard PCIe power connectors; ensure your PSU provides the recommended wattage and the correct 8-pin or 12VHPWR cables for stable operation at 3290 MHz.

Can I drive three 4K displays simultaneously with the available outputs?

Yes, the card offers two HDMI ports and one DisplayPort 2.1a, supporting up to three monitors at a maximum resolution of 7680 x 4320.
