Silver triple-fan graphics card with black accents and dual HDMI ports

Sapphire Tech

Sapphire Tech NITRO+ Radeon RX 5700 XT 100416NT+8GSR graphics card

SKU CH-8Z40-CH0GN MPN 100416NT+8GSR

Refurbished Radeon RX 5700 XT with 8GB GDDR6, 2560 stream processors, boost clock 2010 MHz, triple-fan cooler and four display outputs

  • InterfacePCI Express 4.0 x16
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 5700 Series
  • GPURadeon RX 5700 XT
  • Core Clock1770 MHz
  • Boost Clock2010 MHz
  • 8GB GDDR6 memory drives smooth 14 Gbps bandwidth
  • Boost clock reaches 2010 MHz for responsive gaming
  • Triple-fan cooler keeps thermals in check
  • Four display outputs enable multi-monitor setups
  • PCI Express 4.0 x16 interface provides high throughput

NITRO+ Radeon RX 5700 XT 8GB Graphics Card

The Sapphire Tech NITRO+ Radeon RX 5700 XT is a refurbished graphics card built for 1440p gaming. It connects through a PCI Express 4.0 x16 slot and uses the AMD Radeon RX 5700 XT GPU with 2560 stream processors. The 8GB GDDR6 frame buffer runs on a 256-bit bus at 14 Gbps.

Sustained Load Behaviour

The GPU operates at a 1770 MHz core clock and can boost to 2010 MHz within a 225W thermal design power envelope. A triple-fan cooler dissipates heat across a large heatsink area to keep clocks stable during extended sessions. The card requires a 64-bit operating system such as Windows 10, Windows 11 or Linux.

Build Quality and Connectivity

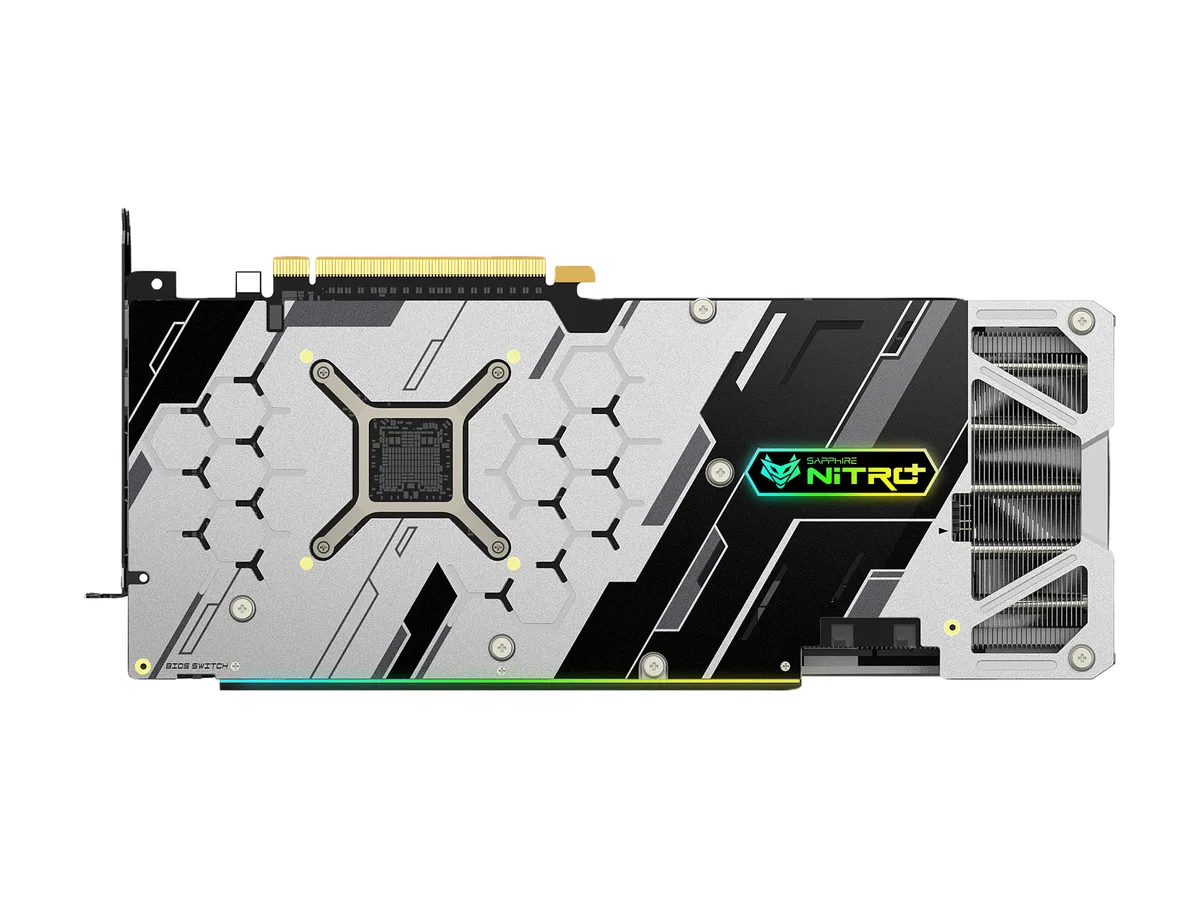

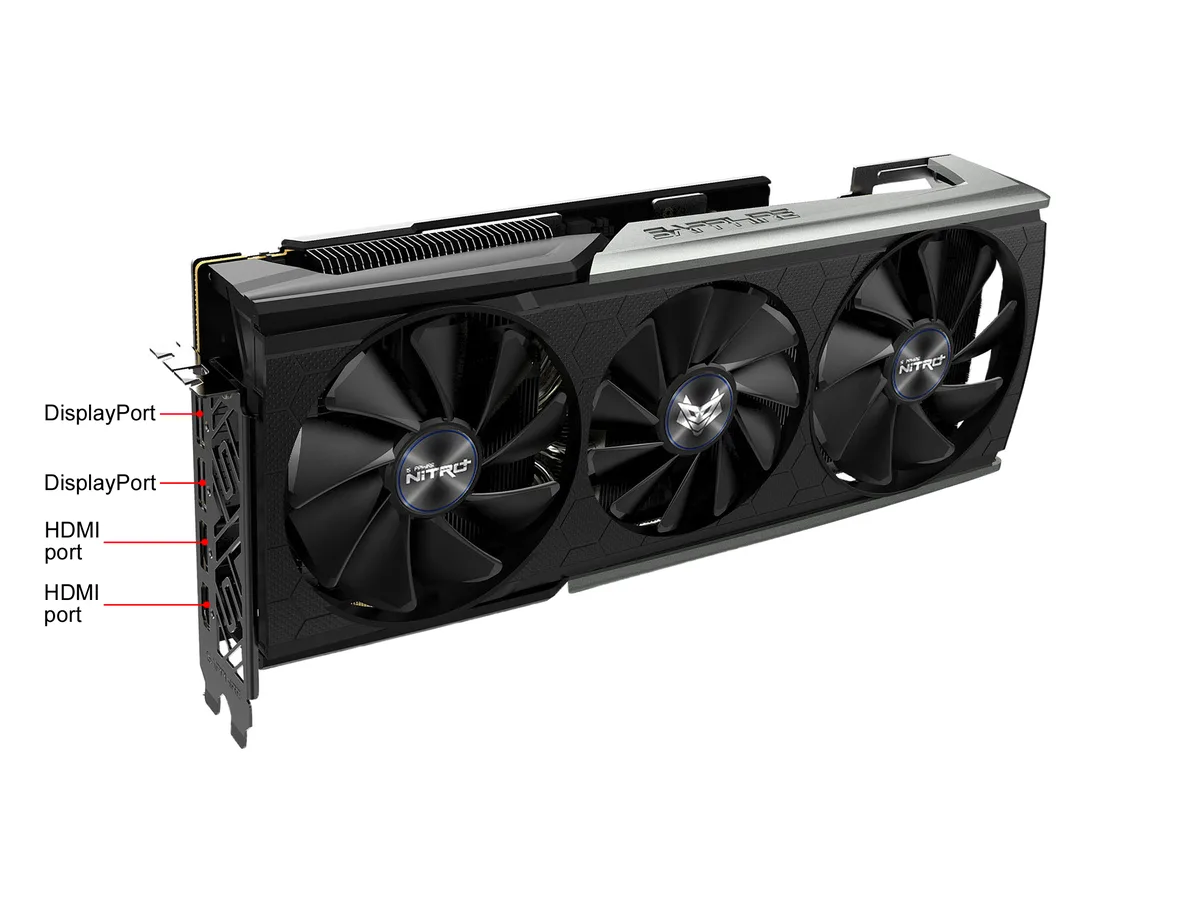

A reinforced metal backplate adds rigidity and protects the PCB from flex when installed in a vertical mount. Two HDMI and two DisplayPort 1.4 outputs drive up to four displays simultaneously. Maximum output resolution reaches 4096 x 2160 at 60 Hz over HDMI and 5120 x 2880 at 60 Hz over DisplayPort.

Highlights

  • 8GB GDDR6 memory drives smooth 14 Gbps bandwidth
  • Boost clock reaches 2010 MHz for responsive gaming
  • Triple-fan cooler keeps thermals in check
  • Four display outputs enable multi-monitor setups
  • PCI Express 4.0 x16 interface provides high throughput

Specifications

BrandSAPPHIRE
SeriesNITRO+
Model100416NT+8GSR
InterfacePCI Express 4.0 x16
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 5700 Series
GPURadeon RX 5700 XT
Core Clock1770 MHz
Boost Clock2010 MHz
Stream Processors2560
Effective Memory Clock14 Gbps
Memory Size8GB
Memory Interface256-Bit
Memory TypeGDDR6
Multi-Monitor Support4
HDMI2 x HDMI
DisplayPort2 x DisplayPort 1.4
Max ResolutionHDMI: 4096 x 2160 @ 60 Hz
DisplayPort1.4: 5120 x 2880 @ 60 Hz
Virtual Reality ReadyYes
CoolerTriple Fans
Operating Systems SupportedSupported operating systems include Linux, Windows 10, and Windows 7.
64-bit operating system required. ‍👉Check gaming pc with Windows 11 Pro
Thermal Design Power225W
System RequirementsPCI Express compliant motherboard with one x16 PCIe slot.
NOTE: Minimum recommended system power supply wattage is based on the specific graphics card and the typical power requirements of other system components. Your system may require more or less power.
OEM and other pre-assembled PCs may have different power requirements.
Minimum 8GB of system memory. 16GB recommended.
Minimum 600W or greater power supply. (RX 5700 XT)
Installation software requires a keyboard, a mouse, and a display.
A display with digital input (HDMI or DisplayPort) is required.
DirectX 12 and Vulkan support.
Recommended PSU Wattage600W
Power Connector2 x 8-Pin
FeaturesRDNA Architecture
2nd Gen 7nm GPU
PCI Express 4.0 Support
Video Streaming up to 8K
Display Port 1.4 (HBR3) / DSC
Radeon Image Sharpening
Radeon Anti-Lag
AMD FidelityFX
Async Compute
Radeon Rays Audio + True Audio Next
Radeon FreeSync 2 HDR
Radeon VR Ready Premium
TriXX Boost
Software BIOS Switch
NITRO Glow ARGB LED
Fan Check
Cool Tech
Free Flow
Form FactorATX
Max GPU Length306 mm

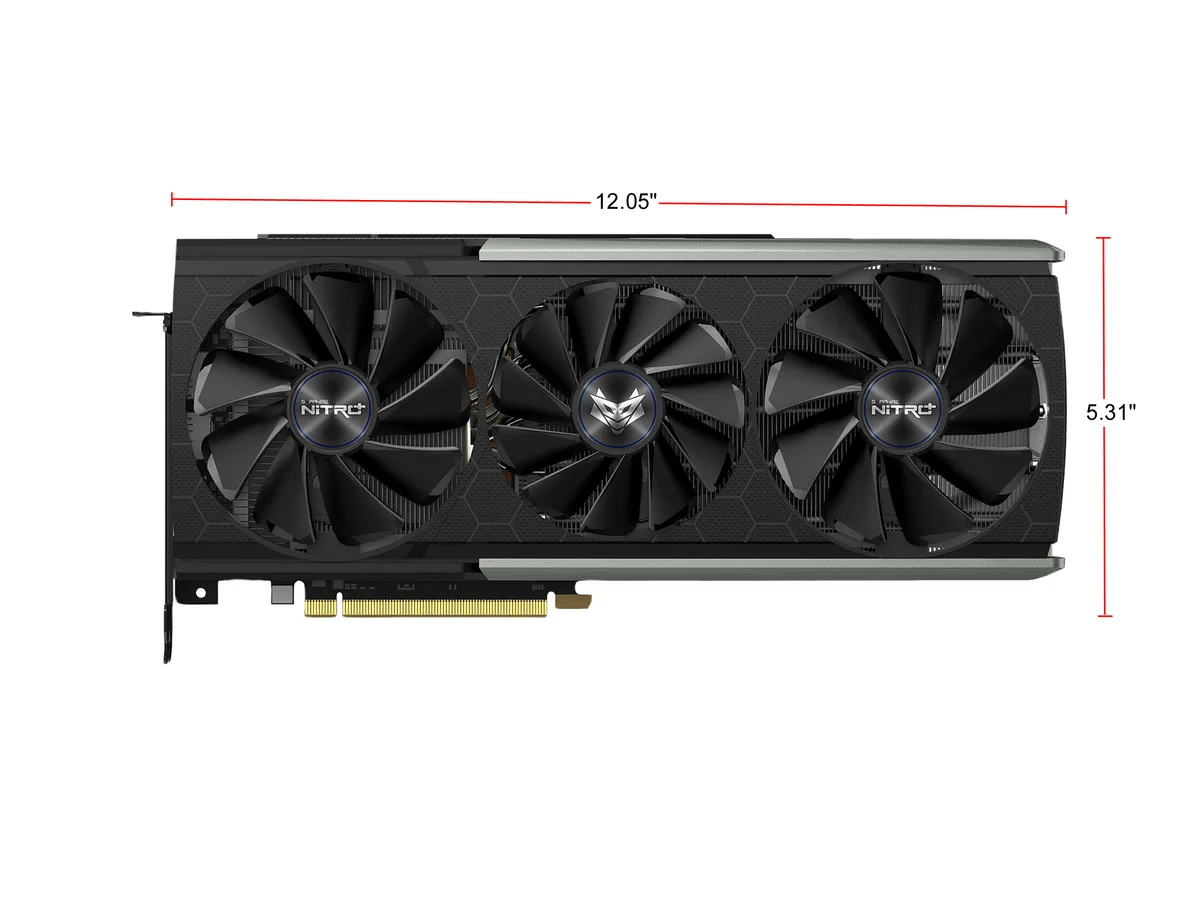

Card Dimensions (L x H)12.05" x 5.31"
Slot Width2.5 slot
Shipping weight1.68 kg
Package size434 × 251 × 91 mm

Questions about this item

How loud and hot does the triple-fan cooler run during all-day loads at the 2010 MHz boost clock?

The card draws 225 W TDP; the triple-fan cooler is designed to dissipate that heat while keeping noise moderate under sustained gaming or compute workloads.

What power supply and motherboard slot do I already need for this PCI Express 4.0 x16 card?

A PCIe 4.0 x16 slot and a system power supply rated for at least 225 W plus the rest of the build are required.

Will the two HDMI and two DisplayPort 1.4 outputs drive my existing 4K 60 Hz displays alongside older 1080p panels?

Yes, the four outputs support up to 4096 x 2160 at 60 Hz over HDMI and 5120 x 2880 at 60 Hz over DisplayPort 1.4, so mixed-resolution multi-monitor setups work.
