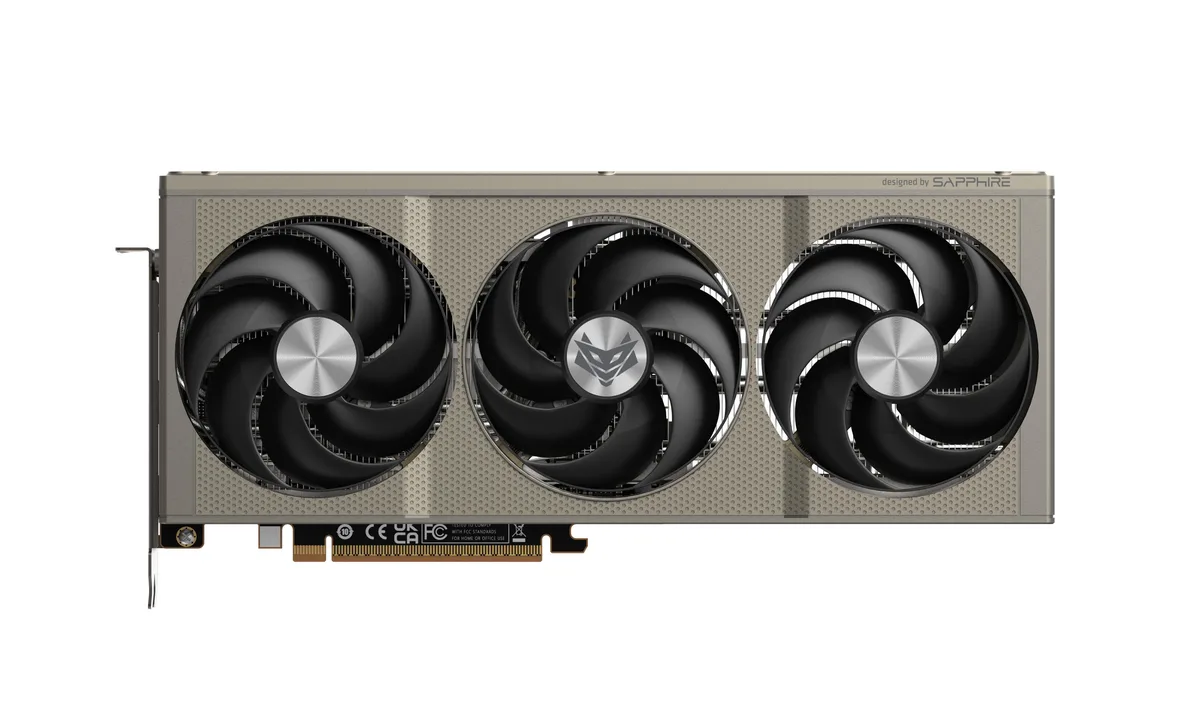

Triple-fan graphics card with silver shroud and black backplate

Sapphire Tech

Sapphire Tech NITRO+ Radeon RX 9060 XT 16GB graphics card

SKU CH-BXF0-J75BV

RDNA 4 GPU with 2048 stream processors, 16 GB GDDR6 at 20 Gbps on a 128-bit bus, boost to 3320 MHz, PCIe 5.0 x16, HDMI and DisplayPort 2.1a for 7680 x 4320 output

  • InterfacePCI Express 5.0 x16
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 9000 Series
  • GPURadeon RX 9060 XT
  • ArchitectureRDNA 4
  • Game Clock2780 MHz
  • Boost clock reaches 3320 MHz for high frame rates
  • 16 GB GDDR6 at 20 Gbps feeds demanding textures
  • RDNA 4 architecture with 32 ray accelerators enables real-time ray tracing
  • PCI Express 5.0 x16 interface doubles host bandwidth
  • Triple-monitor support up to 7680 x 4320 resolution

Sapphire NITRO+ RX 9060 XT 16GB

The Sapphire NITRO+ Radeon RX 9060 XT 16GB is a graphics card built on AMD RDNA 4 architecture. It connects via a PCI Express 5.0 x16 interface and delivers 2048 stream processors with 32 ray accelerators. The GPU runs at a 2780 MHz game clock and can boost up to 3320 MHz.

16GB GDDR6 for 1440p gaming

The 16GB GDDR6 frame buffer suits gamers targeting high-refresh 1440p or entry-level 4K. Content creators needing more than 16GB VRAM or compute users relying on wider memory buses should look at cards with larger buffers and wider interfaces.

128-bit bus at 20 Gbps effective

The 128-bit memory interface running at 20000 MHz effective provides 320 GB/s bandwidth, enough for most modern titles at 1440p ultra settings. Heavy ray-tracing workloads or 4K ultra textures can saturate the bus, limiting scaling beyond that resolution.

Highlights

  • Boost clock reaches 3320 MHz for high frame rates
  • 16 GB GDDR6 at 20 Gbps feeds demanding textures
  • RDNA 4 architecture with 32 ray accelerators enables real-time ray tracing
  • PCI Express 5.0 x16 interface doubles host bandwidth
  • Triple-monitor support up to 7680 x 4320 resolution

Specifications

BrandSAPPHIRE
SeriesNITRO+
Model9060 XT NITRO+ 16GB
InterfacePCI Express 5.0 x16
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 9000 Series
GPURadeon RX 9060 XT
ArchitectureRDNA 4
Game Clock2780 MHz
Boost Clock3320 MHz
Stream Processors2048
Effective Memory Clock20000 MHz (20 Gbps)
Memory Size16GB
Memory Interface128-Bit
Memory TypeGDDR6
DirectXDirectX 12 Ultimate
Multi-Monitor Support3
HDMI2 x HDMI
DisplayPort1x DisplayPort™ 2.1a
Max Resolution7680 x 4320
CoolerTriple Fans
Thermal Design Power182W
Recommended PSU Wattage450W
Power Connector8-Pin
HDCP ReadyYes
Form FactorATX
Max GPU Length300 mm
Card Dimensions (L x H)300 x 131 x 55 mm
Slot Width2.7 Slots

Questions about this item

What power connectors does the NITRO+ Radeon RX 9060 XT 16GB need from my PSU?

The card draws power through standard 8-pin PCIe connectors; check your power supply has enough of them for the 16 GB model.

Will the PCI Express 5.0 x16 interface run at full speed on my PCIe 4.0 motherboard?

Yes, the interface is backward compatible and will operate at PCIe 4.0 x16 speeds on older boards.

How can I confirm the GDDR6 memory is running at the rated 20 Gbps after installation?

Open GPU-Z or the AMD driver overlay and verify the memory clock reads 20000 MHz effective.
