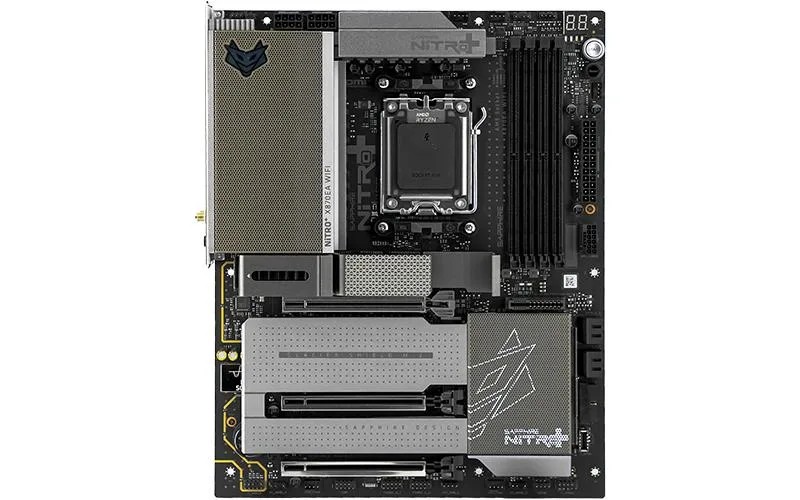

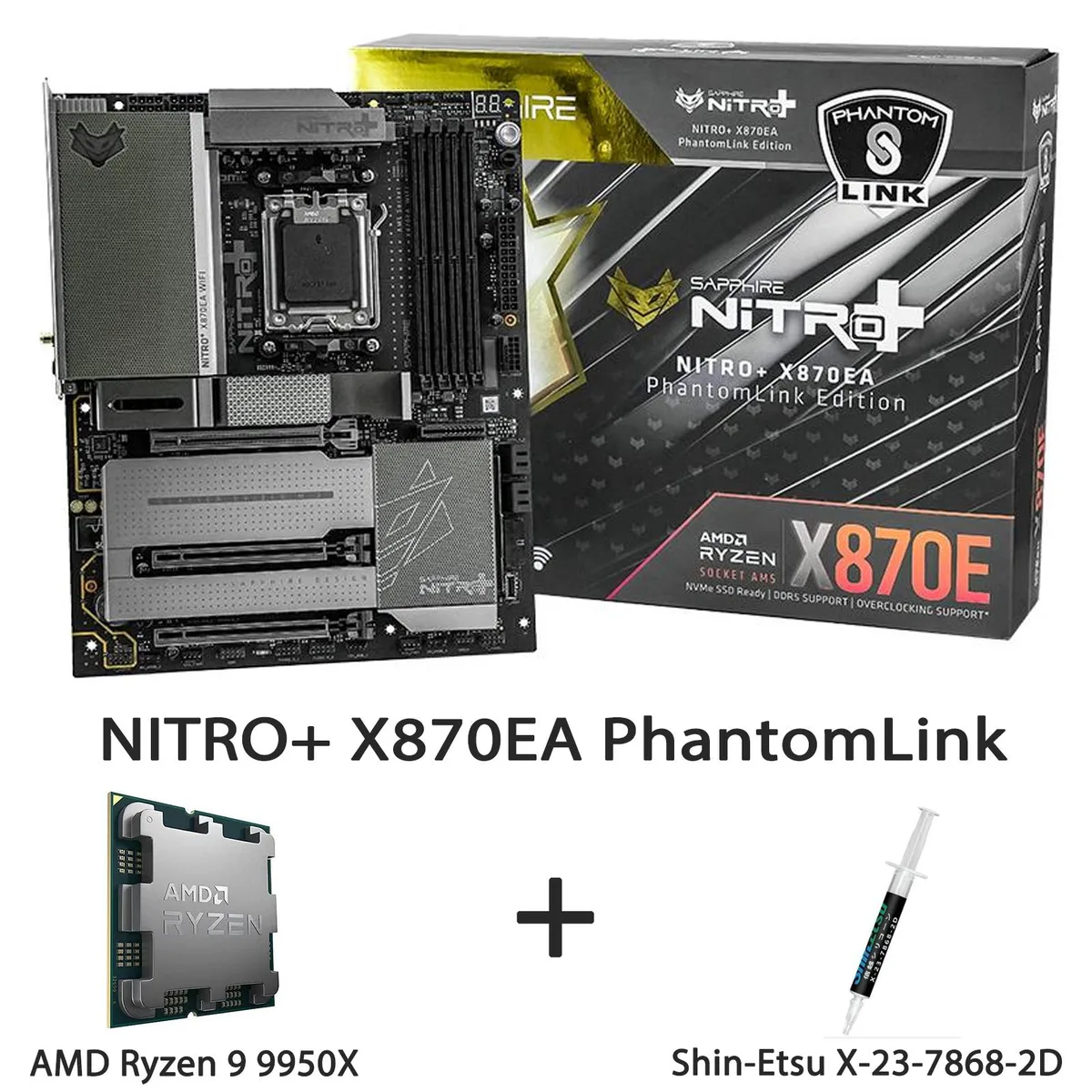

Sapphire NITRO+ X870EA PhantomLink AM5 ATX motherboard with Ryzen 9 9950X CPU combo

Sapphire Tech

Sapphire Tech NITRO+ X870EA PhantomLink AM5 ATX AMD motherboard + Ryzen 9 9950X 16-core

SKU CH-T9EW-1XWYE

ATX motherboard with 16+2+1 90A power delivery and PhantomLink back-connect paired with a 16-core 32-thread Ryzen 9 9950X reaching 5.7GHz, WiFi 7, 5G LAN, dual USB4 40G and DDR5 8400+MT/s support

  • CPU Socket TypeAM5
  • ChipsetAMD X870E

CPU + R9 9950X

  • 16-core Ryzen 9 9950X hits 5.7 GHz max boost for 4K gaming and 8K rendering
  • 16+2+1 90A power delivery keeps the flagship CPU stable under sustained full load

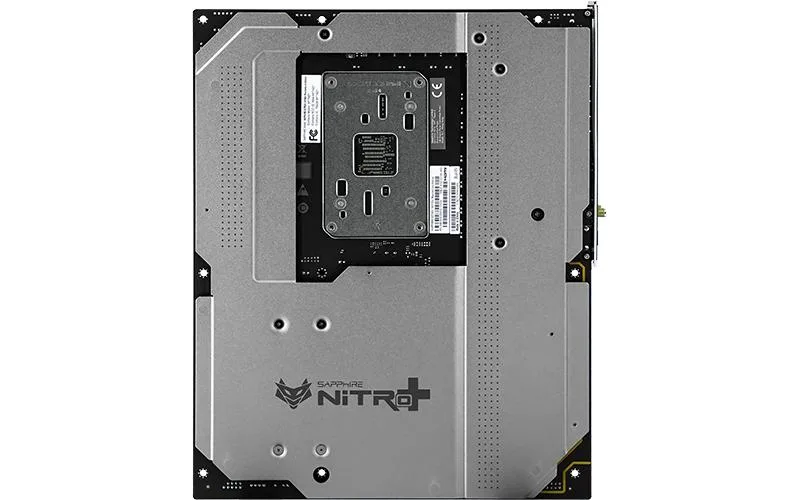

  • PhantomLink back-connect interface enables reverse-mounted graphics cards for cleaner airflow
  • WiFi 7 and 5G LAN plus dual USB4 40G ports deliver low-latency networking and fast transfers
  • DDR5 8400 MT/s overclocking support on X870E chipset provides a long-term upgrade path

Flagship AM5 Motherboard and CPU Combo

The Sapphire NITRO+ X870EA PhantomLink motherboard ships paired with the AMD Ryzen 9 9950X 16-core 32-thread Zen5 processor. This combination targets enthusiasts building high-end gaming rigs or workstations that demand maximum multi-threaded throughput. The platform supports Ryzen 7000, 8000 and 9000 series CPUs for long-term upgrade flexibility.

Sustained Load Power Delivery and Cooling

A 16+2+1 90A power delivery system feeds the 16-core CPU under continuous full-load operation. Full-coverage heatsinks with a quick-release design dissipate heat across the VRM and chipset, preventing thermal throttling during extended rendering, compilation or streaming sessions. The cooling armour includes ARGB lighting and a rear backplate for structural rigidity.

PhantomLink and Connectivity Limits

The exclusive PhantomLink interface enables reverse-mounted graphics cards, reducing cable clutter and improving chassis airflow for sustained thermal performance. Dual PCIe 5.0 M.2 slots and two USB4 40G ports provide high-bandwidth storage and peripheral connectivity. Networking uses WiFi 7 and 5G wired Ethernet, while DDR5 memory overclocking reaches 8400+ MT/s on this platform.

Highlights

  • 16-core Ryzen 9 9950X hits 5.7 GHz max boost for 4K gaming and 8K rendering
  • 16+2+1 90A power delivery keeps the flagship CPU stable under sustained full load
  • PhantomLink back-connect interface enables reverse-mounted graphics cards for cleaner airflow
  • WiFi 7 and 5G LAN plus dual USB4 40G ports deliver low-latency networking and fast transfers
  • DDR5 8400 MT/s overclocking support on X870E chipset provides a long-term upgrade path

Specifications

BrandSAPPHIRE
ModelNITRO+ X870EA PhantomLink+(R9 9950X)
CPU Socket TypeAM5
ChipsetAMD X870E

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How hot and loud does the 16+2+1 90A power delivery get when the 16-core 32-thread 5.7 GHz CPU runs all day?

The 16+2+1 90A power design with full-coverage heatsinks is built to eliminate thermal throttling during prolonged full-load operation, keeping the 16-core Zen5 CPU stable at its 5.7 GHz max boost without excessive heat or noise buildup.

What memory kit do I need to reach the 8400+ MT/s overclocking speed on this AM5 board?

You need a DDR5 kit rated for 8400 MT/s or higher; the motherboard is pre-validated for plug-and-play compatibility with such high-frequency memory, and the Ryzen 9 9950X officially supports DDR5-5600 as a baseline.

Will my existing PCIe 4.0 graphics card and M.2 drives work with the dual PCIe 5.0 slots and PhantomLink interface?

Yes, the dual PCIe 5.0 M.2 slots and the PhantomLink back-connect interface are backward compatible, so your current PCIe 4.0 GPU and SSDs will function normally while leaving headroom for future upgrades.
