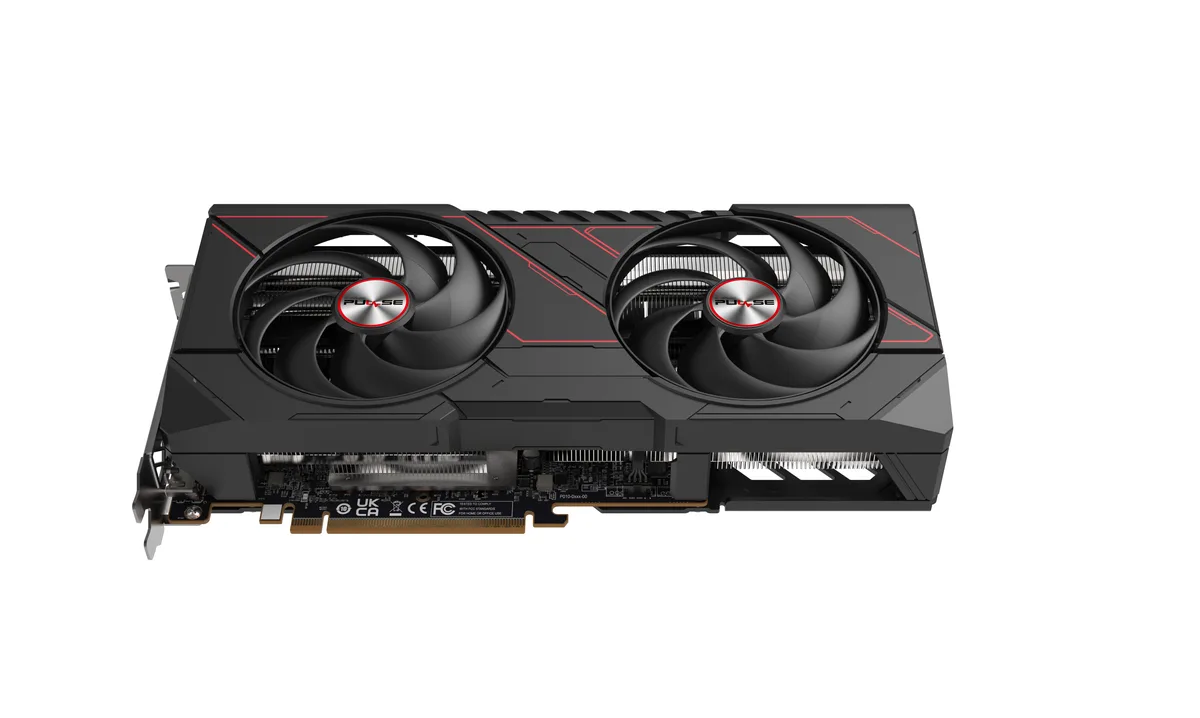

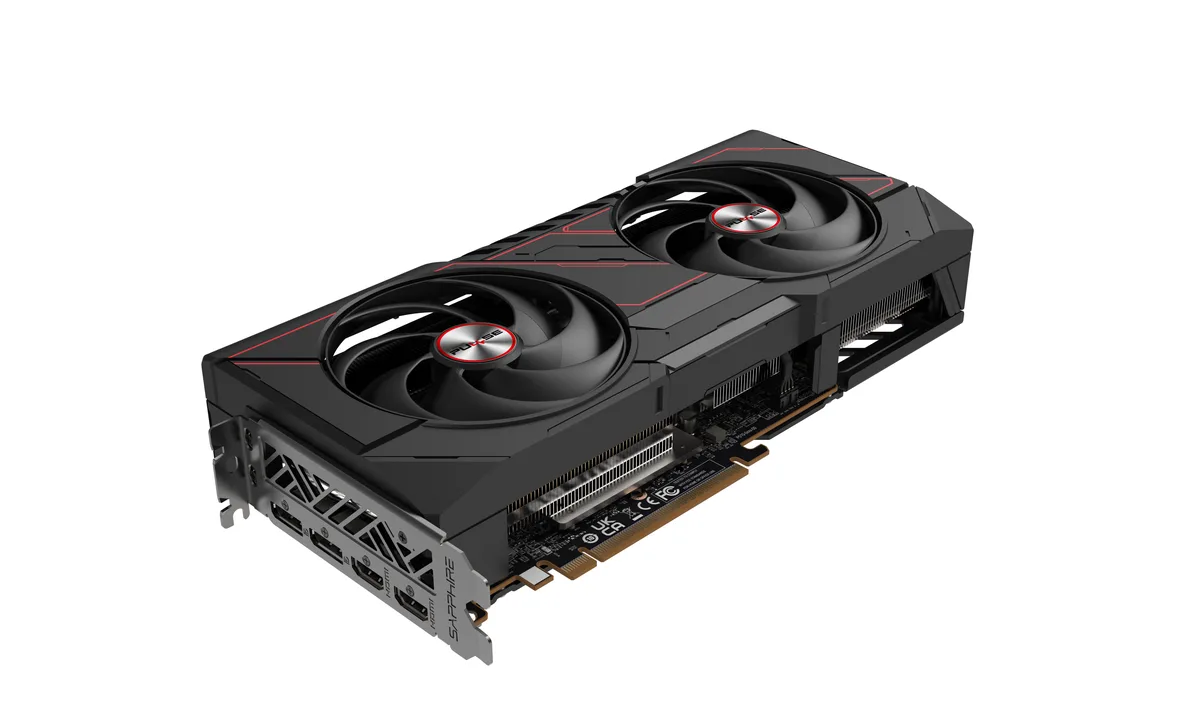

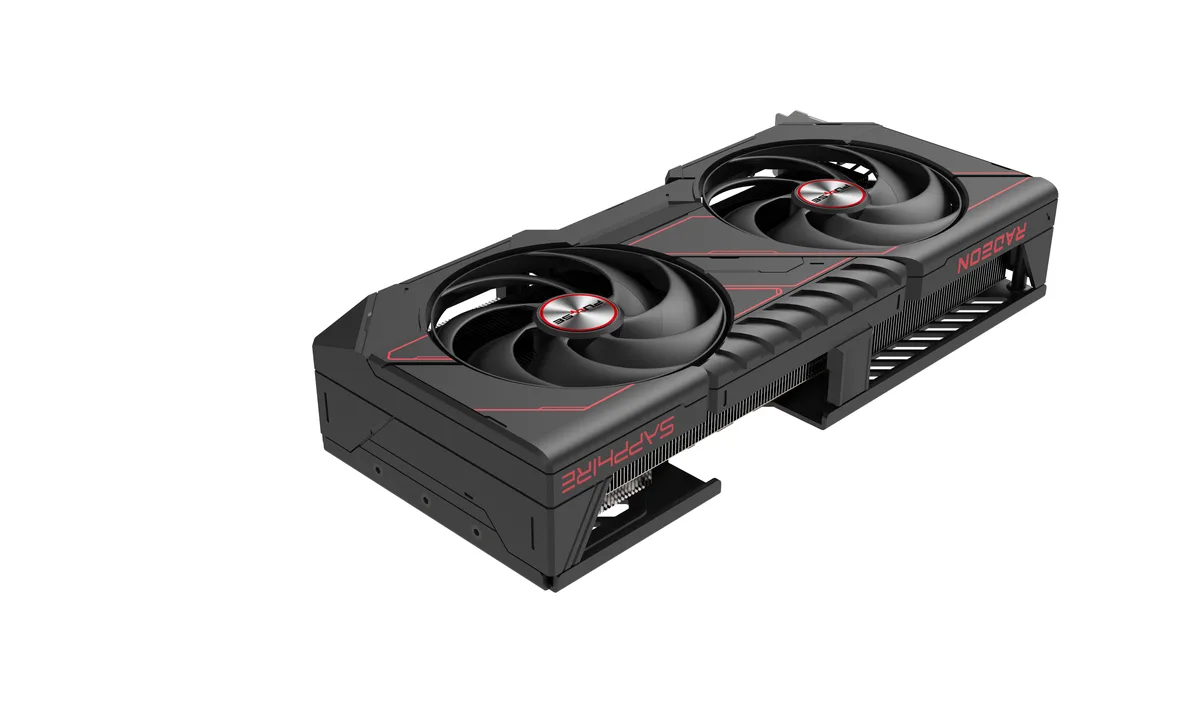

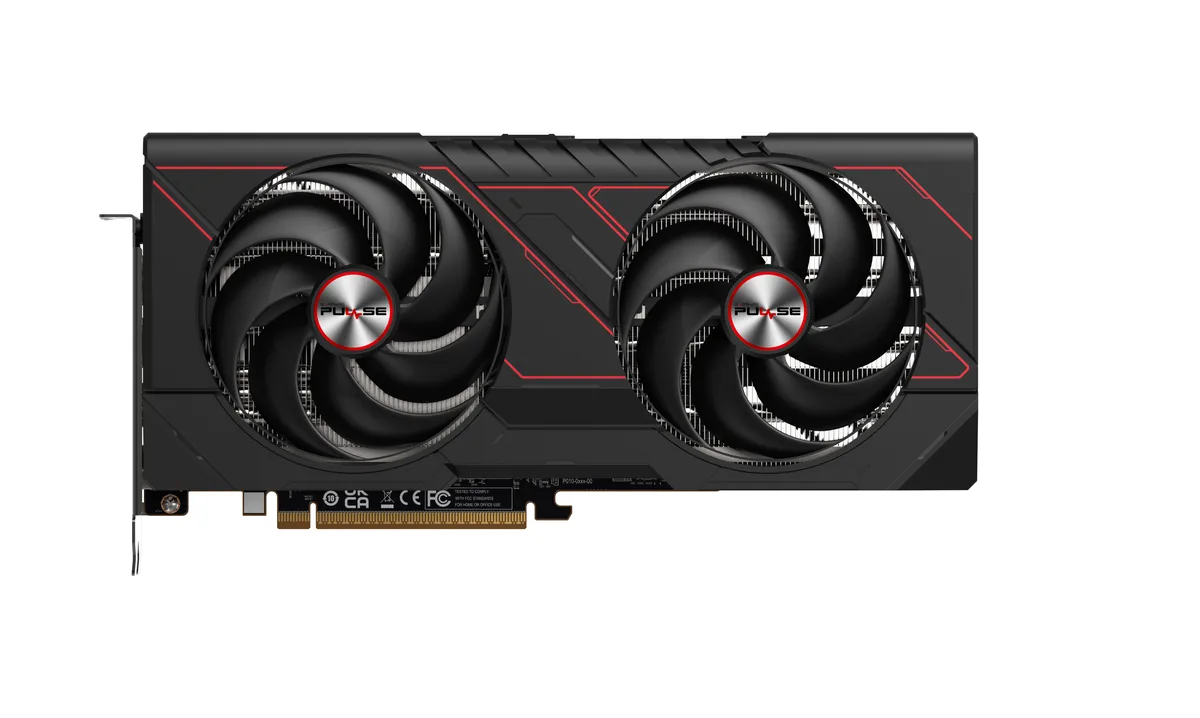

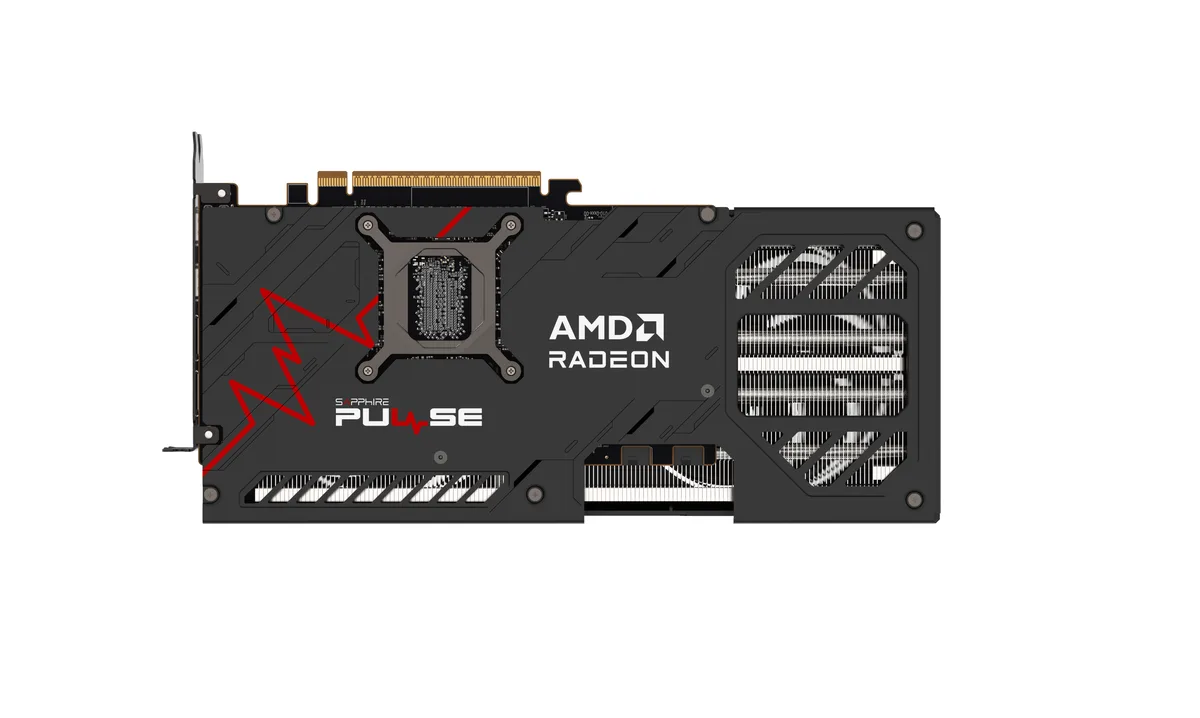

Black dual-fan graphics card, 280 mm long, 2.5-slot design

Sapphire Tech

Sapphire Tech PULSE Radeon RX 9070 16GB 11349-03-20G graphics card

SKU CH-86ZK-MNV1M MPN 11349-03-20G

A 16GB GDDR6 graphics card with a 256-bit bus, 3584 stream processors and boost clocks up to 2520 MHz, built on RDNA 4 architecture for PCIe 5.0 systems

  • InterfacePCI Express 5.0 x16
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 9000 Series
  • GPURadeon RX 9070
  • ArchitectureRDNA 4
  • Game ClockUp to 2070 MHz
  • 16GB GDDR6 memory handles large textures and high resolutions
  • Boost clock up to 2520 MHz delivers strong gaming frame rates
  • PCI Express 5.0 x16 interface provides high bandwidth to the CPU
  • Dual-fan cooler on a 280 mm card keeps temperatures in check
  • Four display outputs support multi-monitor setups up to 7680 x 4320

Built for 1440p and 4K gaming

The Sapphire PULSE Radeon RX 9070 ships with 16GB of GDDR6 memory across a 256-bit bus and 3584 stream processors. It targets enthusiasts who want high frame rates at 1440p and playable 4K performance without moving to a flagship tier. The PCI Express 5.0 x16 interface keeps data moving between the GPU and modern platforms.

Sustained load behaviour

A game clock of 2070 MHz and a boost clock up to 2520 MHz are supported by an effective memory speed of 20000 MHz. The 220W thermal design power and 650W recommended PSU indicate the card can hold elevated frequencies during extended sessions rather than throttling after a short burst. Two 8-pin connectors feed the board cleanly.

Thermals, noise and power draw

The double-fan cooler sits in a 2.5-slot, 280 mm long ATX form factor measuring 280 x 121 x 52 mm. Under typical gaming loads the fans spin up to move heat off the heatsink while staying within the 220W envelope. Idle power drops low enough for quiet desktop use and multi-monitor setups up to 7680 x 4320 resolution.

Highlights

  • 16GB GDDR6 memory handles large textures and high resolutions
  • Boost clock up to 2520 MHz delivers strong gaming frame rates
  • PCI Express 5.0 x16 interface provides high bandwidth to the CPU
  • Dual-fan cooler on a 280 mm card keeps temperatures in check
  • Four display outputs support multi-monitor setups up to 7680 x 4320

Specifications

BrandSAPPHIRE
SeriesPULSE
Model11349-03-20G
Part Number11349-03-20G
InterfacePCI Express 5.0 x16
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 9000 Series
GPURadeon RX 9070
ArchitectureRDNA 4
Game ClockUp to 2070 MHz
Boost ClockUp to 2520 MHz
Stream Processors3584
Effective Memory Clock20000 MHz (20 Gbps)
Memory Size16GB
Memory Interface256-Bit
Memory TypeGDDR6
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI2 x HDMI
DisplayPort2 x DisplayPort 2.1a
ColorBlack
Max Resolution7680 x 4320
Virtual Reality ReadyYes
CoolerDouble Fans
Thermal Design Power220W
Recommended PSU Wattage650W
Power Connector2 x 8-Pin
HDCP ReadyYes
Form FactorATX
Max GPU Length280 mm
Card Dimensions (L x H)280 x 121 x 52 mm
Slot Width2.5 Slots
Shipping weight1.36 kg
Package size381 × 203 × 76 mm

Questions about this item

How loud and hot does the PULSE Radeon RX 9070 run under full load all day?

The card has a 220 W thermal design power and a double-fan cooler in a 2.5-slot ATX form factor. A 650 W power supply is recommended.

What power connectors and PSU capacity must my system already have for this RX 9070?

Two 8-pin PCIe power connectors are required and a 650 W PSU is recommended. The board uses a PCI Express 5.0 x16 slot.

Will the RX 9070 fit and work alongside my older motherboard and monitor setup?

It needs a PCIe 5.0 x16 slot, occupies 2.5 slots, and measures 280 mm long. Outputs are two HDMI and two DisplayPort 2.1a for up to 7680 x 4320 resolution.
