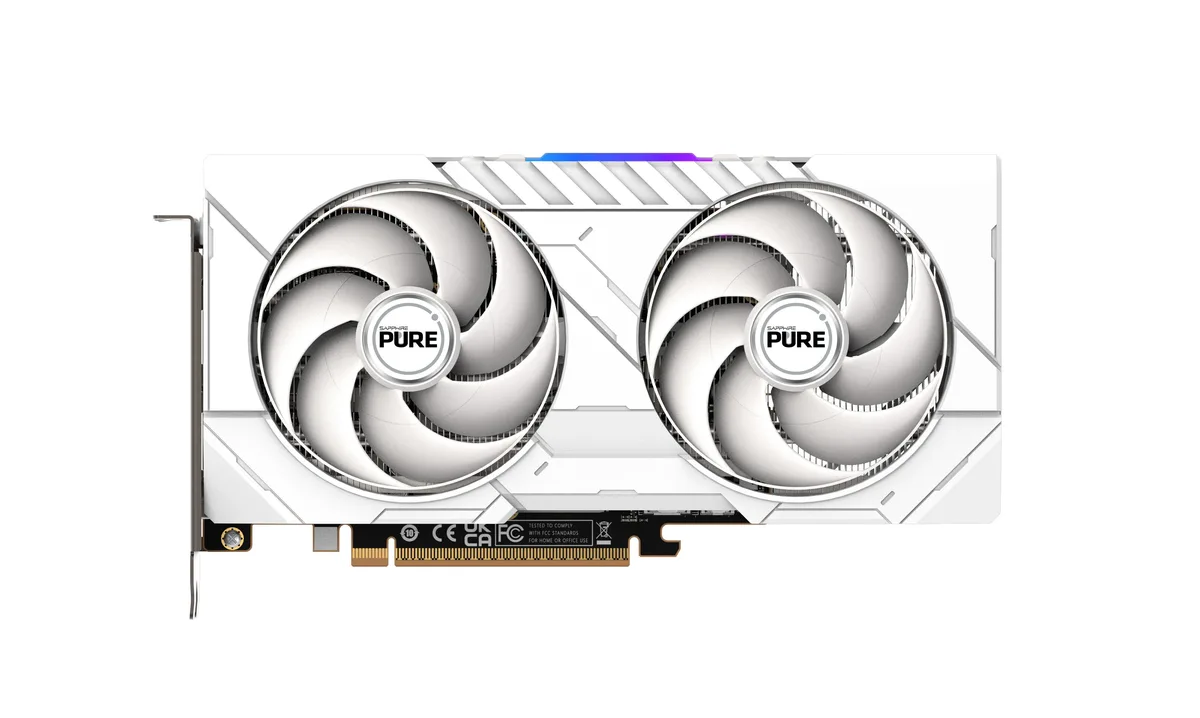

Sapphire Pure Radeon RX 9060 XT 16GB graphics card with dual-fan cooler and silver-white shroud

Sapphire Tech

Sapphire Tech Radeon RX 9060 XT PURE 16GB graphics card

SKU CH-0YX9-1YNH4

A 16 GB GDDR6 graphics card built on AMD RDNA 4 architecture with a 3290 MHz boost clock, 128-bit memory bus at 20 Gbps, PCIe 5.0 x16, and DisplayPort 2.1a for 7680 x 4320 output

  • InterfacePCI Express 5.0 x16
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 9000 Series
  • GPURadeon RX 9060 XT
  • ArchitectureRDNA 4
  • Game Clock2700 MHz
  • Boost clock reaches 3290 MHz for high frame rates
  • 16 GB GDDR6 at 20 Gbps feeds 4K textures
  • RDNA 4 architecture with 32 ray accelerators enables real-time ray tracing
  • PCI Express 5.0 x16 interface doubles bandwidth headroom
  • DisplayPort 2.1a plus dual HDMI drives 7680×4320 multi-monitor setups

Radeon RX 9060 XT for 1440p gaming

The Sapphire Tech PURE card targets players who want smooth 1440p performance with 16 GB of GDDR6 memory. It uses the AMD RDNA 4 architecture and delivers 2048 stream processors alongside 32 ray accelerators. The 128-bit memory interface runs at an effective 20000 MHz for high bandwidth in modern titles.

PCI Express 5.0 x16 bandwidth ceiling

The card plugs into a PCI Express 5.0 x16 slot, so its peak throughput depends on the platform supporting that standard. On a PCIe 4.0 motherboard the link will negotiate down to 4.0 speeds, which can limit maximum data rates in heavy compute or texture streaming workloads. Full 5.0 bandwidth is only available with a compatible CPU and chipset.

16 GB GDDR6 frame buffer capacity

The 16 GB frame buffer is the single spec that determines whether this model fits a build. It allows larger texture pools and higher resolution assets than 12 GB alternatives, which matters for 1440p ultra settings and some 4K entry scenarios. If a workload needs more than 16 GB, a higher-capacity GPU is required.

Highlights

  • Boost clock reaches 3290 MHz for high frame rates
  • 16 GB GDDR6 at 20 Gbps feeds 4K textures
  • RDNA 4 architecture with 32 ray accelerators enables real-time ray tracing
  • PCI Express 5.0 x16 interface doubles bandwidth headroom
  • DisplayPort 2.1a plus dual HDMI drives 7680×4320 multi-monitor setups

Specifications

BrandSAPPHIRE
SeriesPURE
Model9060XT PURE 16G
InterfacePCI Express 5.0 x16
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 9000 Series
GPURadeon RX 9060 XT
ArchitectureRDNA 4
Game Clock2700 MHz
Boost Clock3290 MHz
Stream Processors2048
Effective Memory Clock20000 MHz (20 Gbps)
Memory Size16GB
Memory Interface128-Bit
Memory TypeGDDR6
DirectXDirectX 12 Ultimate
Multi-Monitor Support3
HDMI2 x HDMI
DisplayPort1x DisplayPort™ 2.1a
Max Resolution7680 x 4320
CoolerDouble Fans
Thermal Design Power170W
Recommended PSU Wattage450W
Power Connector8-Pin
HDCP ReadyYes
Form FactorATX
Max GPU Length240 mm
Card Dimensions (L x H)240 x 124 x 46.1 mm
Slot Width2.3 Slots

Questions about this item

Should I choose the 16GB version or is there another capacity available?

This model is offered only with 16GB of GDDR6 memory on a 128-bit interface, so there is no alternative capacity to select.

What does the 3290 MHz boost clock mean when the card is inside my PC?

The 3290 MHz boost clock is the peak frequency the GPU can reach under load, while the 2700 MHz game clock represents the typical speed during sustained gaming.

How does the PCI Express 5.0 x16 interface affect real-world bandwidth?

PCI Express 5.0 x16 provides up to 128 GB/s of theoretical bandwidth, doubling the throughput of the previous 4.0 standard for compatible motherboards.
