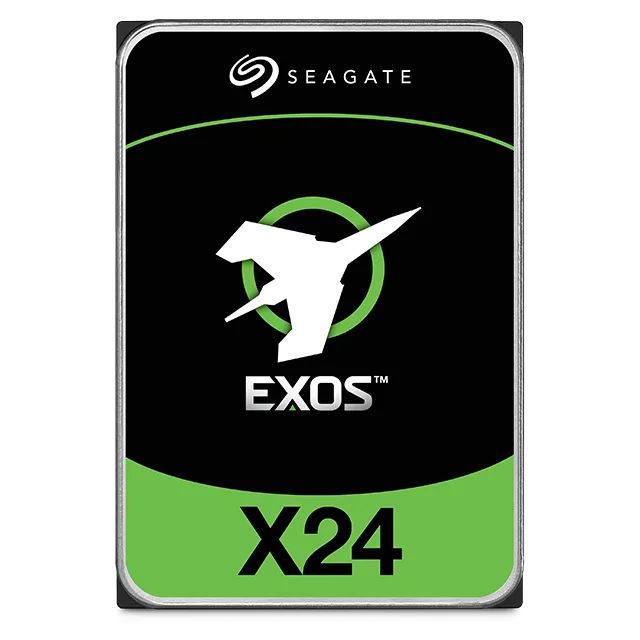

Silver 3.5-inch hard drive with label showing 24TB capacity

Seagate

Seagate Exos X24 24TB 7200 RPM SATA 512MB 3.5" internal hard drive ST24000NM002H

SKU CH-0PT1-2GGSE MPN ST24000NM002H

A 24 TB enterprise hard drive spinning at 7200 RPM with a 512 MB cache and SATA 6.0 Gb/s interface for high-capacity rack storage

  • InterfaceSATA 6.0Gb/s
  • Capacity24TB
  • RPM7200 RPM
  • Cache512MB
  • Average Latency4.16ms
  • FeaturesBest-Fit Applications • Scalable hyperscale applications/clo

Options 24TB Exos X24

Struck-through versions exist but are not stocked here.

  • Market-leading 24TB capacity maximises rack density
  • 7200 RPM and 512MB cache accelerate large data transfers
  • Helium-sealed design lowers watts per TB
  • 5M-hour MTBF and 550TB/year rating ensure enterprise reliability
  • Instant Secure Erase simplifies safe drive retirement

Capacity and Purpose

The Seagate Exos X24 ST24000NM002H is a 24TB 3.5-inch internal hard drive built for enterprise NAS and hyperscale cloud storage. It targets operators who need maximum capacity per drive bay for massive scale-out data centers and high-density RAID arrays.

Interface Limits

The SATA 6.0Gb/s interface caps sustained throughput below what the 7200 RPM platters can deliver during large sequential transfers. Average latency sits at 4.16ms and the 512MB cache helps smooth burst workloads but cannot overcome the bus bottleneck.

Installation Checks

Verify your chassis accepts a 26.1mm tall 3.5-inch drive and that your backplane or HBA supports SATA 6.0Gb/s. The helium-sealed design requires no special mounting orientation but the 550TB annual workload rating assumes enterprise-grade cooling and vibration damping.

Highlights

  • Market-leading 24TB capacity maximises rack density
  • 7200 RPM and 512MB cache accelerate large data transfers
  • Helium-sealed design lowers watts per TB
  • 5M-hour MTBF and 550TB/year rating ensure enterprise reliability
  • Instant Secure Erase simplifies safe drive retirement

Specifications

BrandSeagate
SeriesExos X24
ModelST24000NM002H
InterfaceSATA 6.0Gb/s
Capacity24TB
RPM7200 RPM
Cache512MB
Average Latency4.16ms
FeaturesBest-Fit Applications
• Scalable hyperscale applications/cloud data centers
• Massive scale-out data centers
• Big data applications
• High-capacity density RAID storage
• Mainstream enterprise external storage arrays
• Distributed file systems, including Hadoop and Ceph
• Enterprise backup and restore— D2D, virtual tape
• Centralized surveillance
UsageEnterprise NAS Hard Drives
Form Factor3.5"
Height (maximum)26.1mm
Width (maximum)101.85mm
Length (maximum)147mm
Shipping weight0.68 kg
Package size152 × 127 × 26 mm
