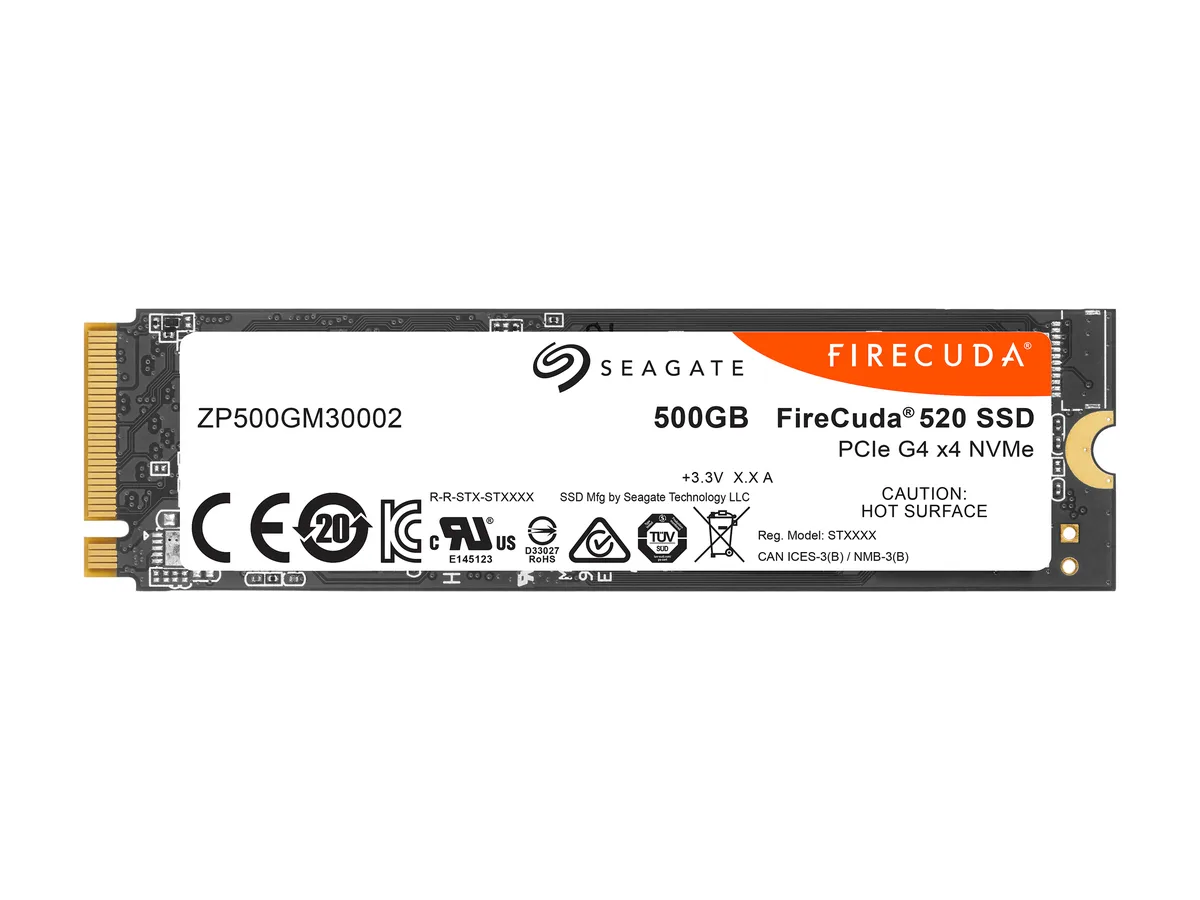

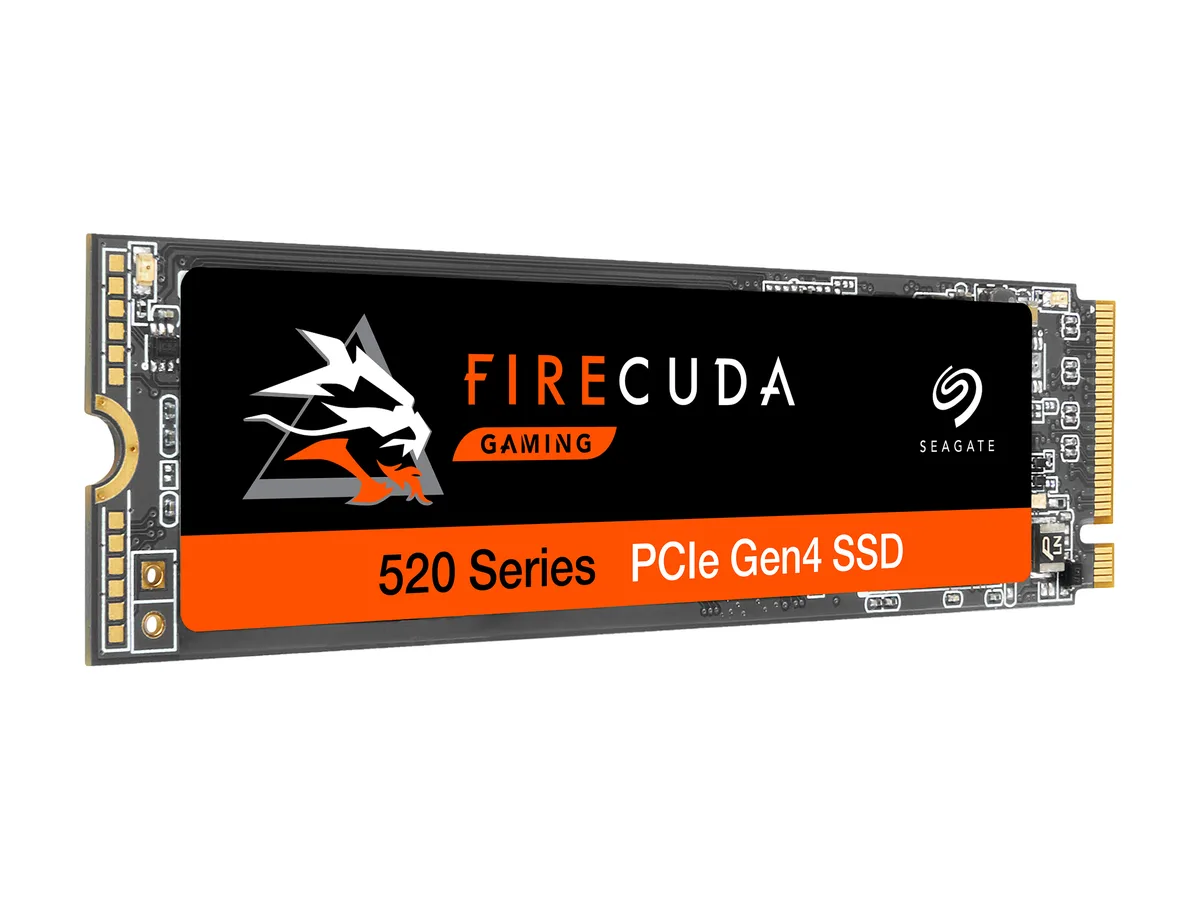

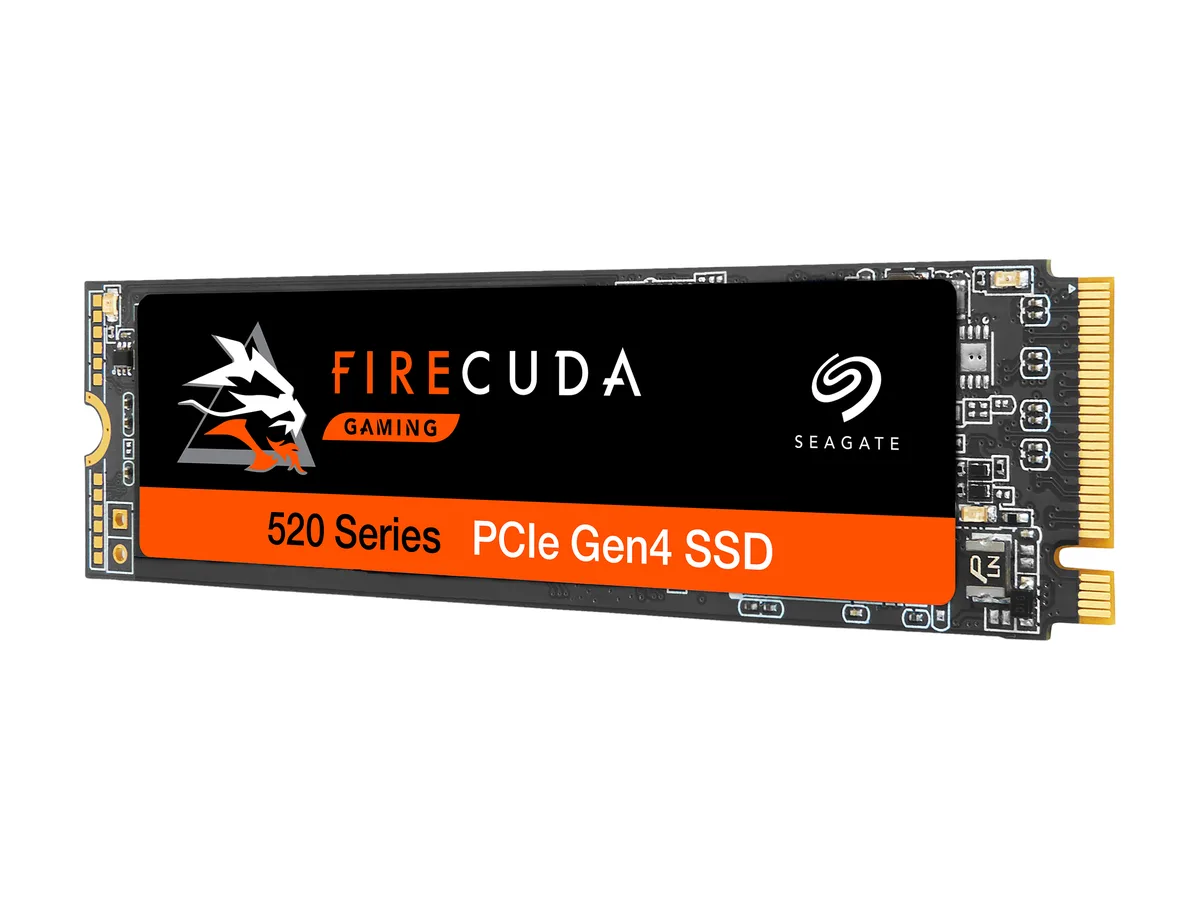

Green rectangular M.2 2280 circuit board with black controller and gold edge connector

Seagate

Seagate FireCuda 520 500GB internal SSD ZP500GM3A002

SKU CH-0FZB-EQMCV MPN ZP500GM3A002

M.2 2280 500 GB drive delivers 5000 MB/s reads and 2500 MB/s writes for fast game loads

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity500GB
  • Memory Components3D TLC
  • InterfacePCIe Gen4 x4, NVMe 1.3

Options 500GB

  • Sequential reads hit 5000 MBps for snappy game loads
  • Sequential writes reach 2500 MBps to speed large-file saves
  • Random reads up to 430000 IOPS for responsive multitasking
  • Random writes up to 630000 IOPS for smooth content creation
  • MTBF of 1800000 hours signals long-term reliability

Capacity and Form Factor

The Seagate FireCuda 520 ZP500GM3A002 is a 500GB internal solid state drive built in the M.2 2280 form factor. It uses 3D TLC NAND and targets consumer desktops and laptops that need fast primary storage for games and creative workloads.

Build Integration

The drive connects through a PCIe Gen4 x4 interface with NVMe 1.3 protocol and is fully backwards compatible with PCIe 3.0 platforms. Its E16 controller is validated for AMD X570 chipset motherboards, and the low 12 mW idle power draw helps preserve laptop battery life while the 4.6W active rating fits standard thermal envelopes.

Ideal Use Cases

This model suits builders who want up to 5000 MBps sequential read and 2500 MBps sequential write speeds for a responsive OS drive or game library. Users needing higher endurance than the 850 TBW rating or capacities beyond 500GB should consider the 1TB or 2TB variants in the same series.

Highlights

  • Sequential reads hit 5000 MBps for snappy game loads
  • Sequential writes reach 2500 MBps to speed large-file saves
  • Random reads up to 430000 IOPS for responsive multitasking
  • Random writes up to 630000 IOPS for smooth content creation
  • MTBF of 1800000 hours signals long-term reliability

Specifications

BrandSeagate
SeriesFireCuda 520
ModelZP500GM3A002
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity500GB
Memory Components3D TLC
InterfacePCIe Gen4 x4, NVMe 1.3
Max Sequential ReadUp to 5000 MBps
Max Sequential WriteUp to 2500 MBps
4KB Random ReadUp to 430,000 IOPS
4KB Random WriteUp to 630,000 IOPS
MTBF1,800,000 hours
FeaturesLeverage sequential read/write performance up to 5000/2500 MB/s, and random read/write up to 430K/630K IOPS.
Take advantage of up to 45% more speed than Gen3 M.2 NVMe and up to 9x faster sequential reads than SATA SSDs.
Utilize an E16 controller that is fully aligned with AMD X570 chipset motherboards.
Easily upgrade to a drive that's compatible with Gen4 motherboards and fully backwards compatible with all PCIe 3.0 platforms.
Enjoy the latest NAND technology, which provides the most advanced speed and durability for your dollar.
Choose from multiple capacities (up to 2TB), and store
Power Consumption (Idle)12 mW
Power Consumption (Active)4.6W
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Max Shock Resistance1500G
Height3.58mm
Width22.15mm
Depth80.15mm
Weight8.00g
Shipping weight0.06 kg
Package size140 × 109 × 28 mm

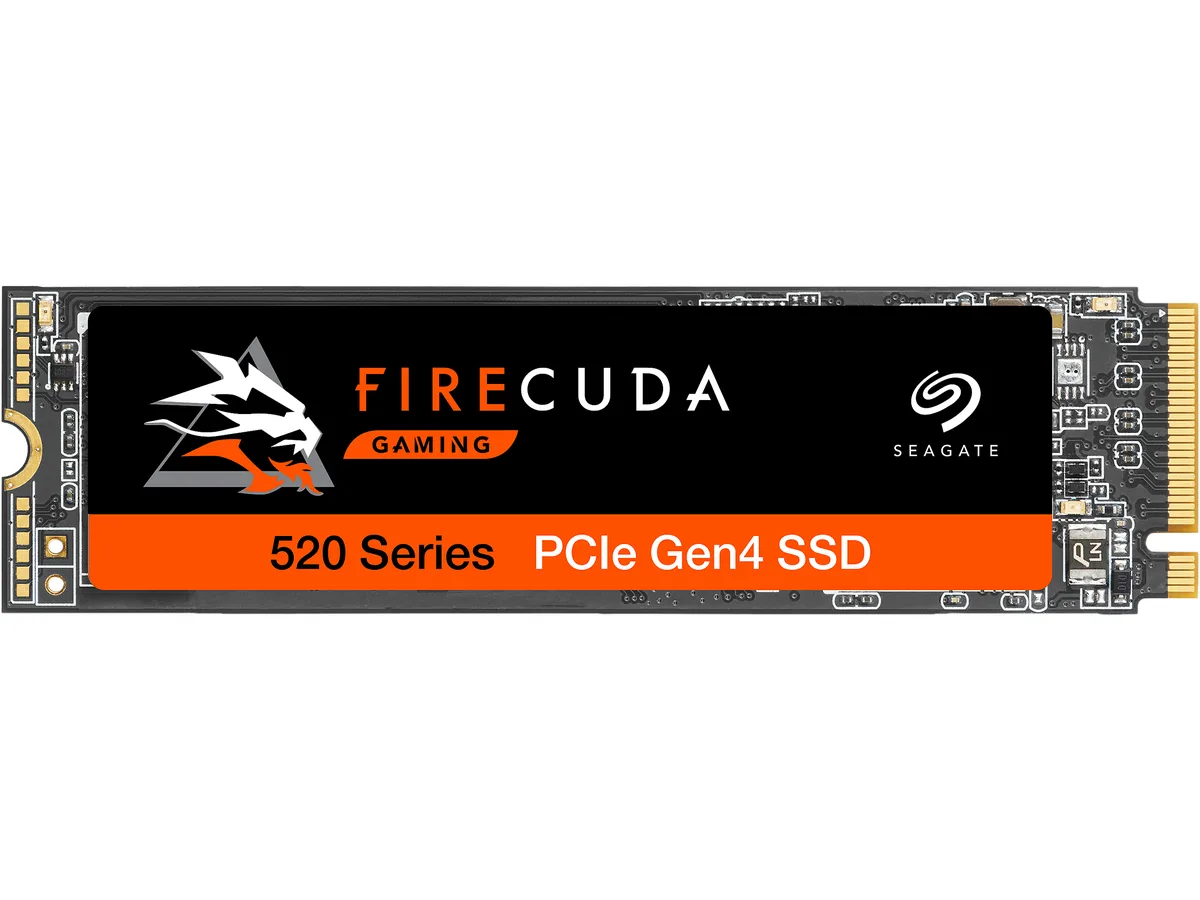

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

At what temperature does the drive throttle under sustained heavy workloads?

The controller operates within a 0 °C to 70 °C range; sustained loads that push the drive toward the upper end will trigger thermal throttling to protect the NAND and controller.

How much power does the SSD draw and how hot does it get during all-day operation?

Active power is rated at 4.6 W and idle at 12 mW; the drive is specified to run continuously up to 70 °C, so case airflow should keep it below that ceiling.

Which motherboard slot and chipset are required for this M.2 2280 drive to function?

It needs an M.2 2280 slot wired for PCIe 3.0 x4 or 4.0 x4; the E16 controller is validated for AMD X570 chipsets and works on any PCIe 3.0 platform.
