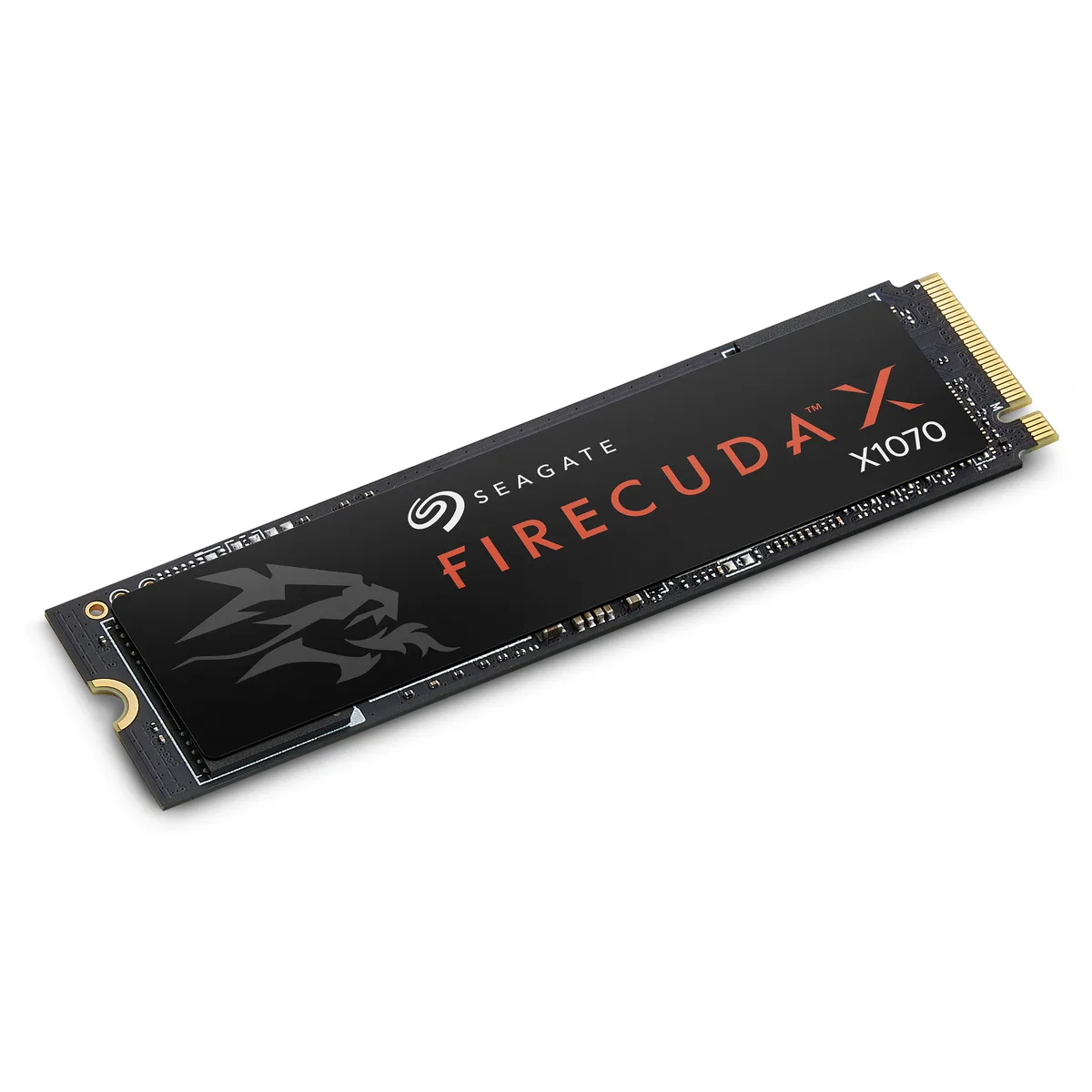

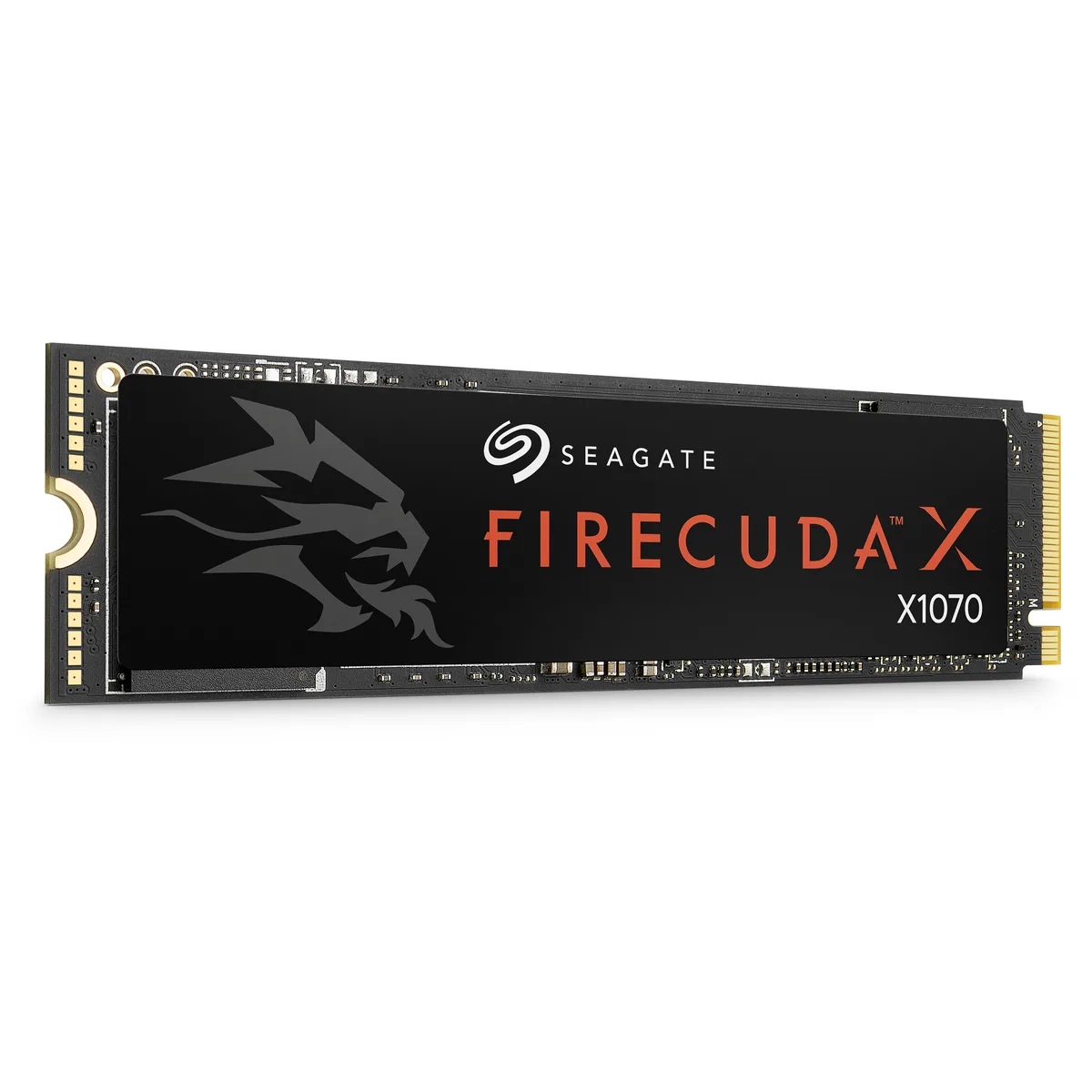

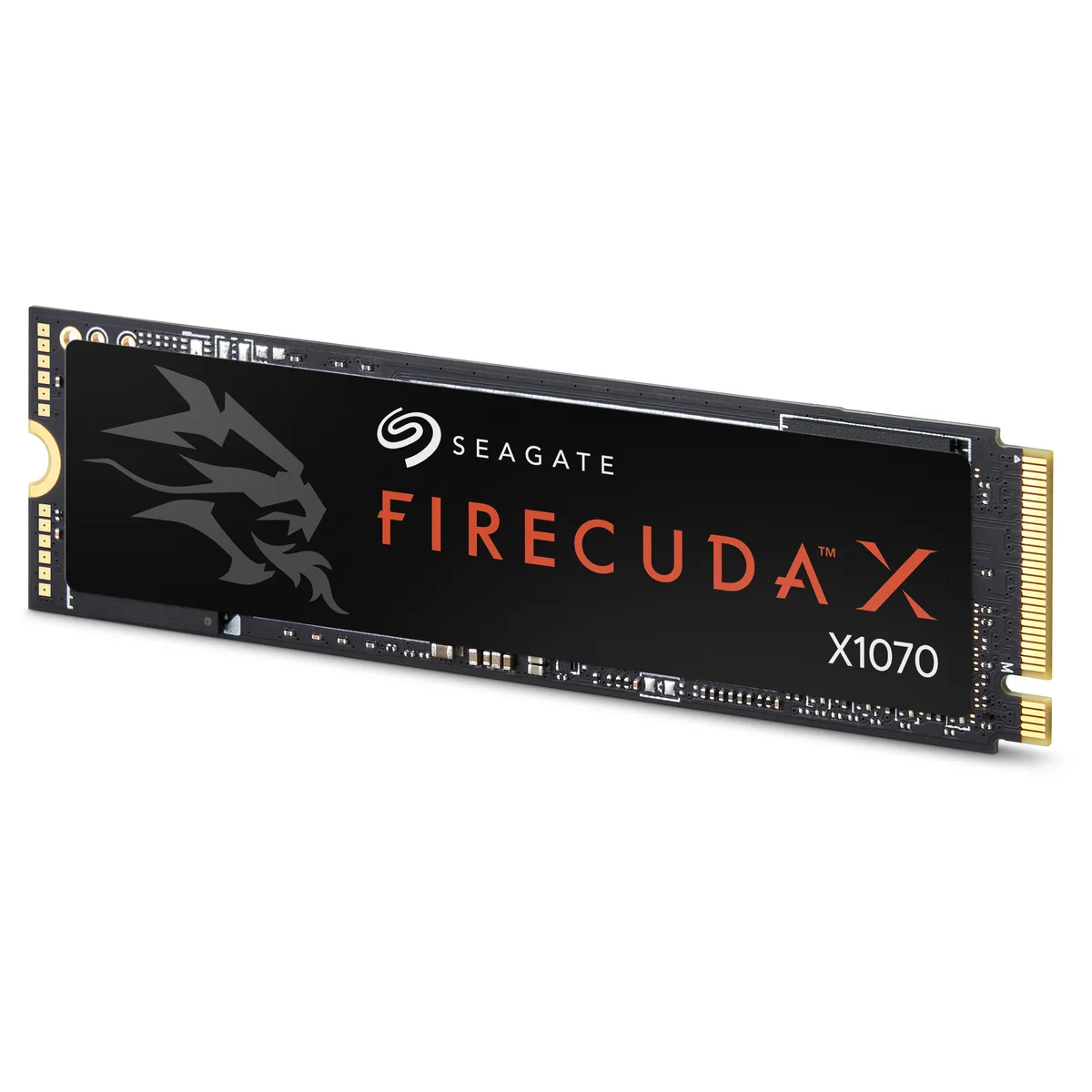

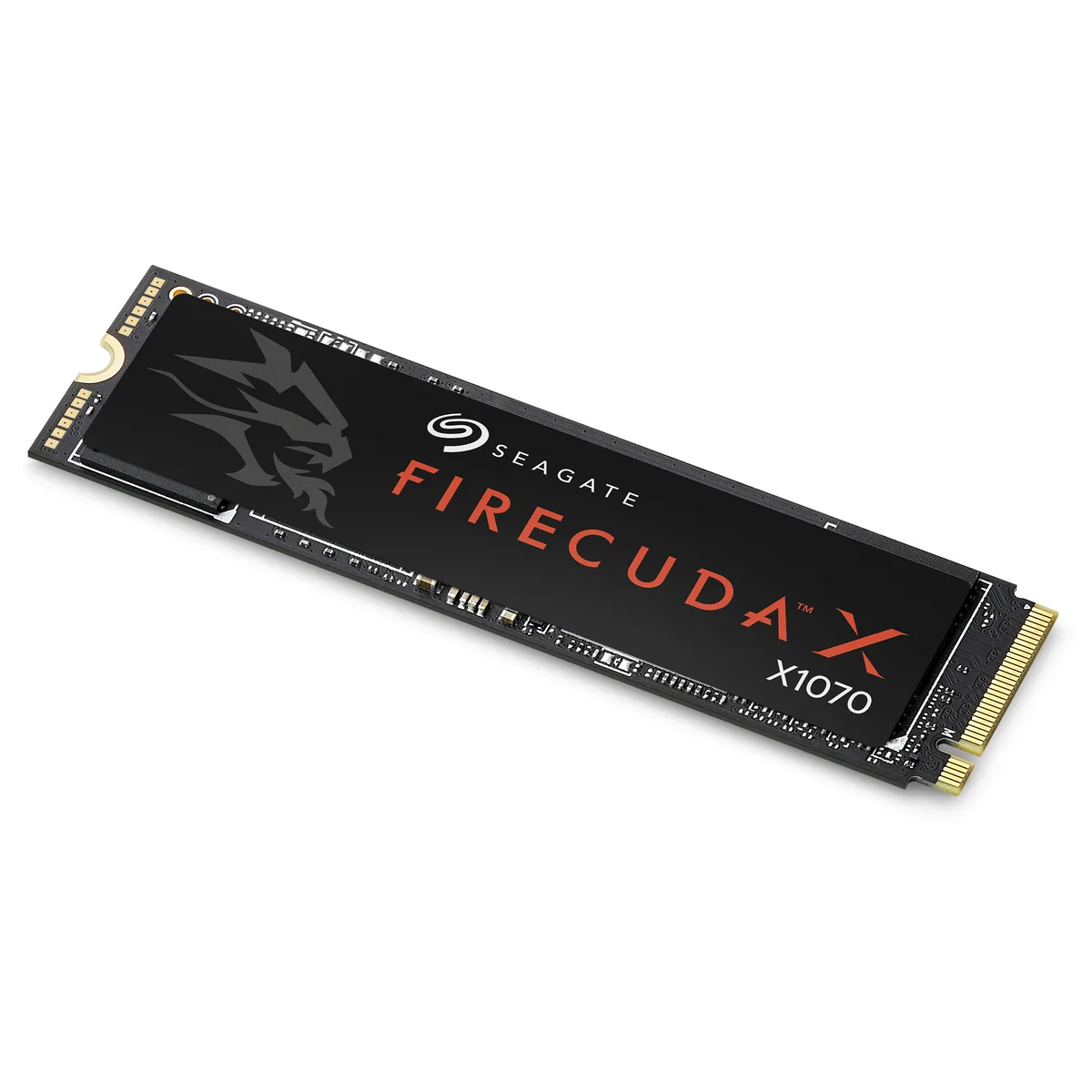

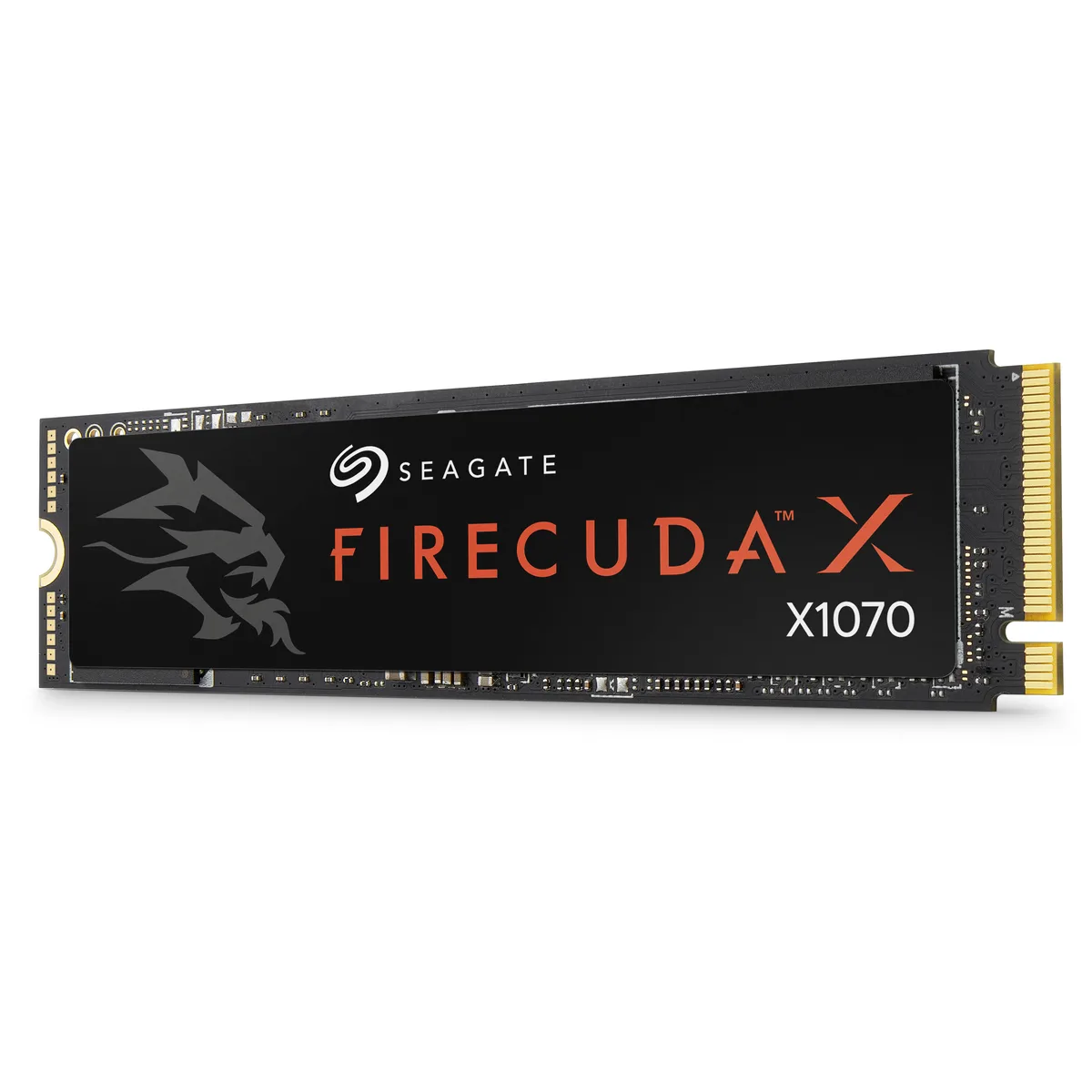

Seagate FireCuda X1070 4TB M.2 2280 PCI-Express 4.0 x4 QLC internal SSD ZP4000GS3A001

FireCuda X1070 4TB PCIe 4.0 x4 SSD

The Seagate FireCuda X1070 is a 4TB internal solid state drive built for consumer PCs and handheld gaming devices. It uses a PCI-Express 4.0 x4 interface and QLC memory with host memory buffer caching. Sequential reads reach up to 7200 MBps and writes up to 6500 MBps, while random 4KB performance hits 900000 IOPS for both read and write workloads.

Check motherboard slot and thermal plan

Verify that your motherboard has an M.2 2280 slot wired for PCIe 4.0 x4 to obtain the rated throughput. The drive ships without a heatsink, so confirm whether your board includes an integrated M.2 shield or if you need to add a third-party pad or sink. Power draw is 20mW idle and 5.7W active, which is typical for a Gen4 controller and should fit standard motherboard power delivery.

DRAM-less QLC design with high endurance

The controller operates without a dedicated DRAM cache, relying on system memory via HMB to manage the flash translation layer. QLC media provides the 4TB capacity at a lower cost per gigabyte while the 2400 TBW rating and 1800000-hour MTBF indicate durability for heavy game libraries and streaming writes. The single-sided M.2 2280 form factor fits thin laptops and handhelds where double-sided modules would not clear the chassis.
