Seagate
Seagate ST3000VX000 3TB 7200 RPM 64MB SATA 6.0Gb/s 3.5" internal hard drive
- Bare Drive
- SATA 6.0Gb/s
$141.99$157.99−10%
0.00180385BTC
In stock
Seagate
Seagate ST1000VX000 1TB 7200 RPM 64MB SATA 6.0Gb/s 3.5" internal hard drive
A 1 TB, 7200 RPM SATA surveillance drive with 64 MB cache built for 24x7 video recording
- PackagingBare Drive
- InterfaceSATA 6.0Gb/s
- Capacity1TB
- NAND Flash Memory TypeHard Drive
- RPM7200 RPM
- Cache64MB
Options 1TB
- 3TB
- 1TB
- Optimised for 24x7 video surveillance workloads
- 1 TB capacity with 1TB-per-disk technology
- 7200 RPM and 64 MB cache for responsive recording
- SATA 6.0 Gb/s interface for broad compatibility
- MTBF over 1M hours and AFR below 1%
Purpose-built surveillance storage

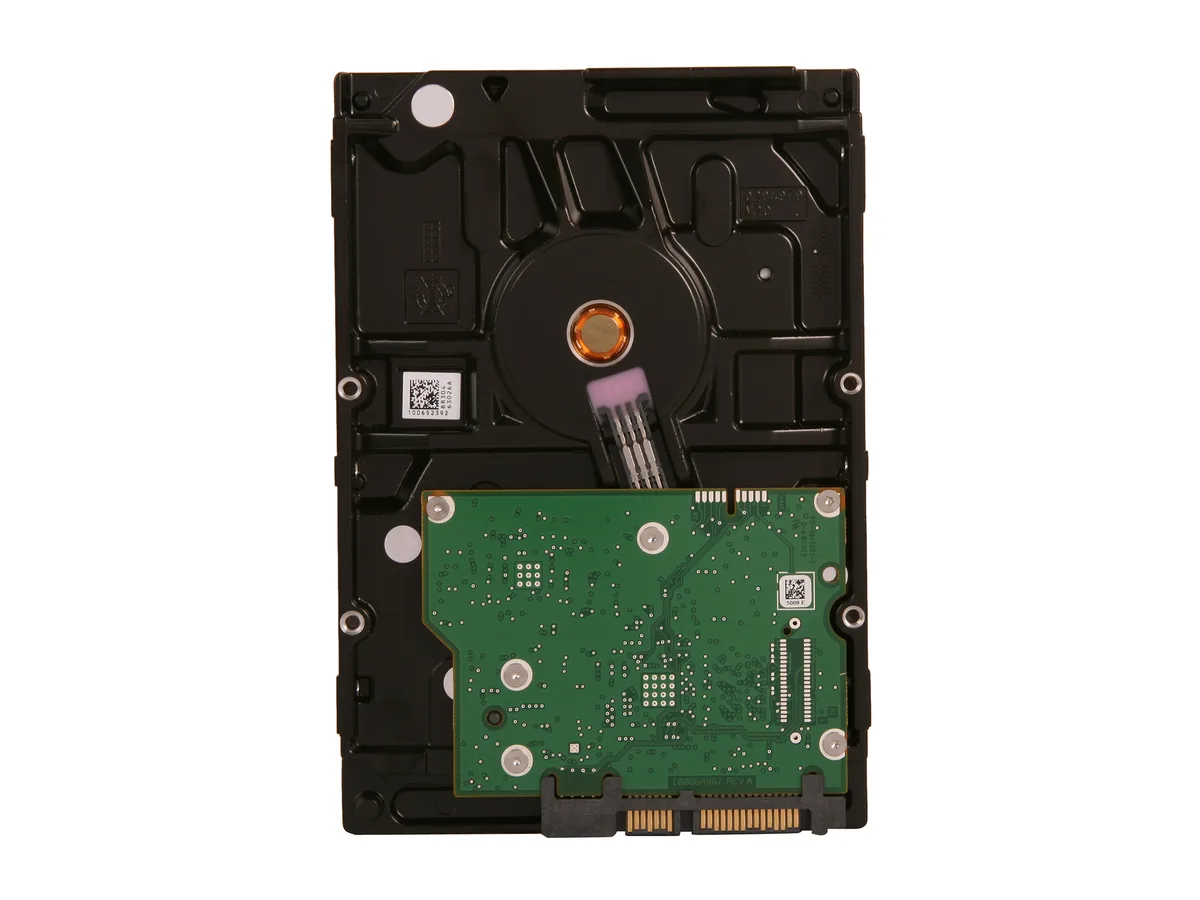

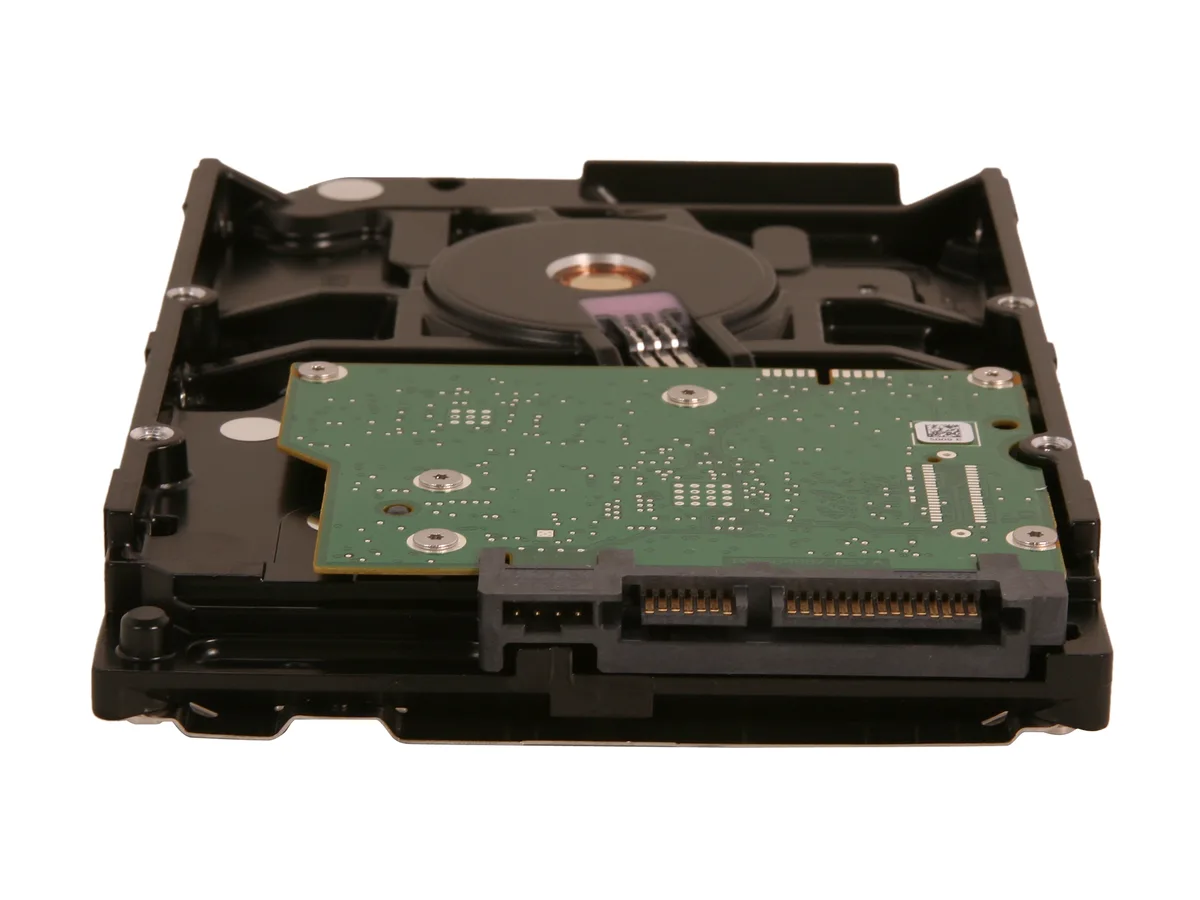

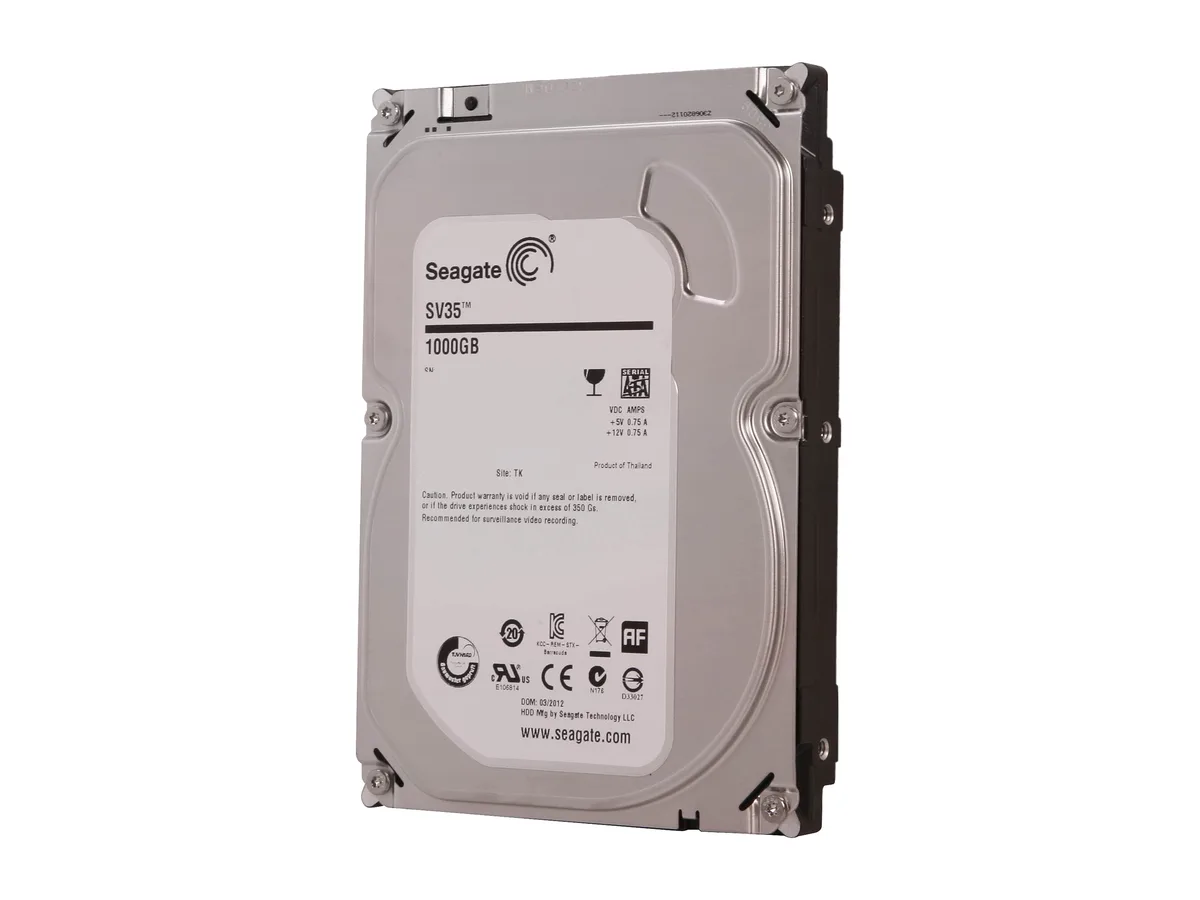

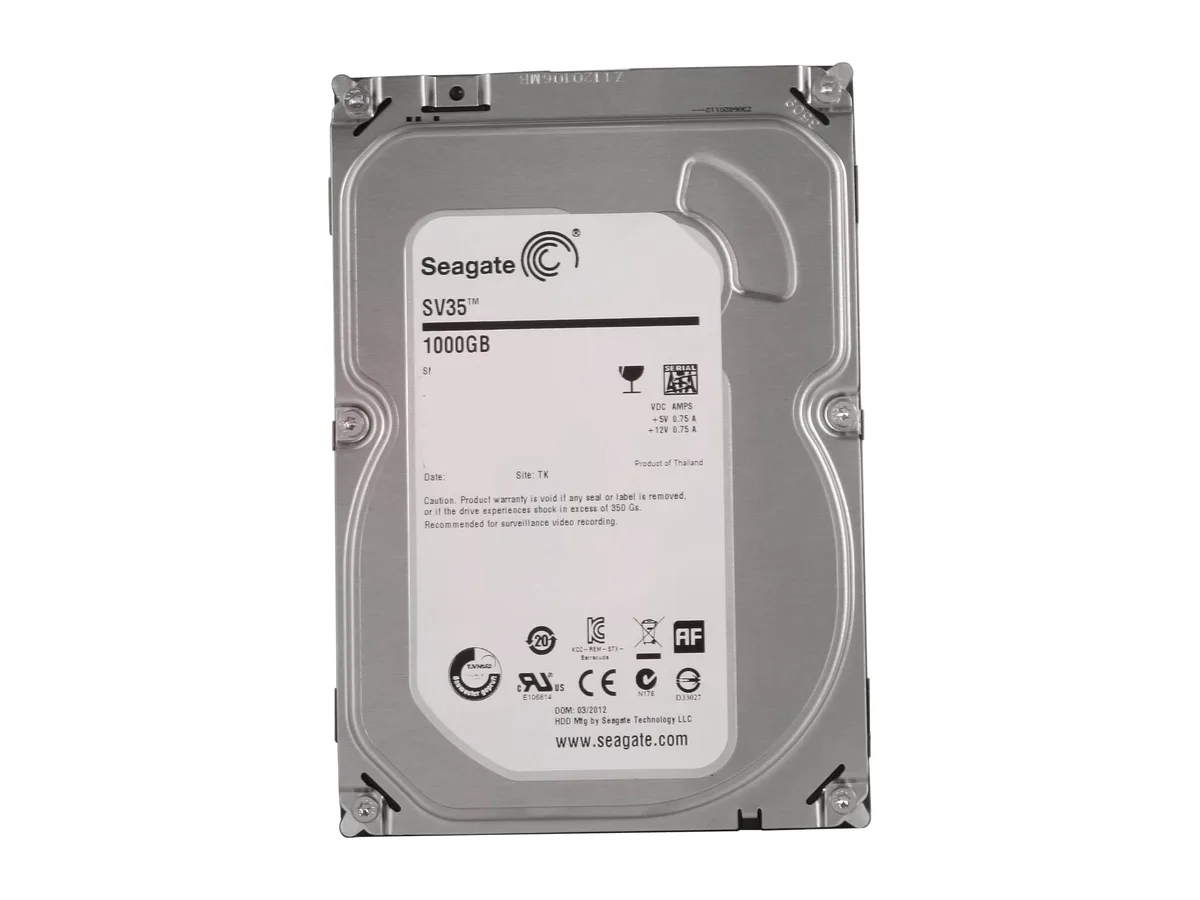

The Seagate SV35.6 ST1000VX000 is a 1TB 3.5-inch internal hard drive engineered for continuous video recording. It targets installers and system integrators who need cost-effective capacity for 24x7 security arrays. Buyers wanting a general-purpose desktop drive or an SSD for boot applications should look elsewhere.
SATA 6.0Gb/s interface and 7200 RPM spindle
The drive connects through a standard SATA 6.0Gb/s port and spins at 7200 RPM with 64MB cache. Average seek time is <8.5ms and average write time is <9.5ms. These figures determine whether the drive can sustain the write throughput your recorder demands.
Straightforward 3.5-inch bay installation
Mount the unit in any 3.5-inch bay using the 19.99mm height, 101.60mm width and 146.99mm length envelope. Connect SATA data and power cables; no special drivers are required. Note that units may show up to 25 bad sectors and have been erased to DoD 5220.22 M standard, so they arrive unformatted and unpartitioned.
Highlights
- Optimised for 24x7 video surveillance workloads
- 1 TB capacity with 1TB-per-disk technology
- 7200 RPM and 64 MB cache for responsive recording
- SATA 6.0 Gb/s interface for broad compatibility
- MTBF over 1M hours and AFR below 1%
Specifications
| Brand | Seagate |
|---|---|
| Series | SV35.6 |
| Model | ST1000VX000 |
| Packaging | Bare Drive |
| Interface | SATA 6.0Gb/s |
| Capacity | 1TB |
| NAND Flash Memory Type | Hard Drive |
| RPM | 7200 RPM |
| Cache | 64MB |
| Average Seek Time | <8.5ms |
| Average Write Time | <9.5ms |
| Features | Enhances data storage reliability in video security systems. Cost-effective, massive capacity - designed for video storage applications. Build better surveillance systems. High-performance surveillance storage solutions. Surveillance hard drives with enterprise-class reliability. |
| Usage | For Video Surveillance |
| Form Factor | 3.5" |
| Height (maximum) | 19.99mm |
| Width (maximum) | 101.60mm |
| Length (maximum) | 146.99mm |
| Shipping weight | 0.40 kg |
| Package size | 157 × 127 × 39 mm |
Other versions of this model
1 more in the same range
Same family, different memory, cooler or clock — compare before you commit.
Questions about this item
How does the 7200 RPM spindle speed translate to real-world performance in a surveillance system?
The 7200 RPM rotation combined with a 64MB cache delivers sustained throughput for multiple simultaneous high-definition video streams, while the <8.5ms average seek time and <9.5ms average write time keep frame drops to a minimum during continuous 24x7 recording.
What does the SATA 6.0Gb/s interface actually limit in practice?
The SATA 6.0Gb/s link caps the maximum burst transfer rate at 6.0Gb/s, but sustained read and write speeds are governed by the 7200 RPM platters and 64MB cache, so real-world throughput stays well below the interface ceiling.
Will this 3.5-inch drive fit my standard desktop drive bay or surveillance enclosure?
Yes — the drive measures 146.99mm long, 101.60mm wide and 19.99mm high, matching the standard 3.5-inch form factor used in desktop bays, DVRs and NVRs.
