Seasonic
Seasonic FOCUS GX-1000 power supply
A 1000W fully modular ATX power supply with 80 PLUS Gold efficiency, a 120 mm fluid dynamic bearing fan offering selectable silent and cooling modes, and a compact 140 mm depth that fits all ATX cases
- ColorBlack
- TypeATX12V
- Maximum Power1000W
- Fans120 mm Fluid Dynamic Bearing fan
- Main Connector20+4Pin
- +12V RailsSingle
- Full modular cabling reduces clutter for better airflow
- 80 Plus Gold certification cuts wasted energy during conversion
- Hybrid fan control offers silent fanless mode at low load
- Single +12V rail delivers 83 A for stable GPU power
- Compact 140 mm depth fits every ATX case
1000W 80+ Gold ATX Power Supply
This 1000W ATX12V unit delivers 80 PLUS GOLD efficiency with a single +12V rail rated at 83A. The 140 mm depth fits standard ATX cases, and full modular cabling lets you install only the connectors required. A 120 mm fluid dynamic bearing fan runs under hybrid control for quiet operation.
Ideal for High-End Gaming and Workstation Builds
The six 6+2-pin PCIe connectors and ten SATA power plugs support multi-GPU configurations and dense storage arrays. Builders who need a compact footprint and cable flexibility will benefit. Systems limited to shorter PSU bays or lower-wattage requirements should verify clearance and power needs first.
Check Case Depth and Connector Requirements
Confirm the chassis accommodates a 140 mm deep power supply and that the motherboard uses a standard 20+4-pin main connector. Ensure the GPU power demand matches the available 6+2-pin leads and that the 100-240 V input range suits the local mains supply.
Highlights
- Full modular cabling reduces clutter for better airflow
- 80 Plus Gold certification cuts wasted energy during conversion
- Hybrid fan control offers silent fanless mode at low load
- Single +12V rail delivers 83 A for stable GPU power
- Compact 140 mm depth fits every ATX case
Specifications
| Series | FOCUS GX |
|---|---|
| Part Number | FOCUS GX-1000 (SSR-1000FX) |
| Color | Black |
| Type | ATX12V |
| Maximum Power | 1000W |
| Fans | 120 mm Fluid Dynamic Bearing fan |
| Main Connector | 20+4Pin |
| +12V Rails | Single |
| PCI-Express Connector | 6 x 6+2-Pin |
| SATA Power Connector | 10 |
| Max PSU Length | 140 mm |
| Modular | Full Modular |
| Energy-Efficient | 80 PLUS GOLD Certified |
| Over Voltage Protection | Yes |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 13 - 6.5 A |
| Output | +3.3V@25A, +5V@25A, +12V@83A, [email protected] , +5VSB@3A |
| MTBF | 100,000 hours |
| Approvals | cTUVus, TUV, CB, CCC, BSMI, EAC, CE |

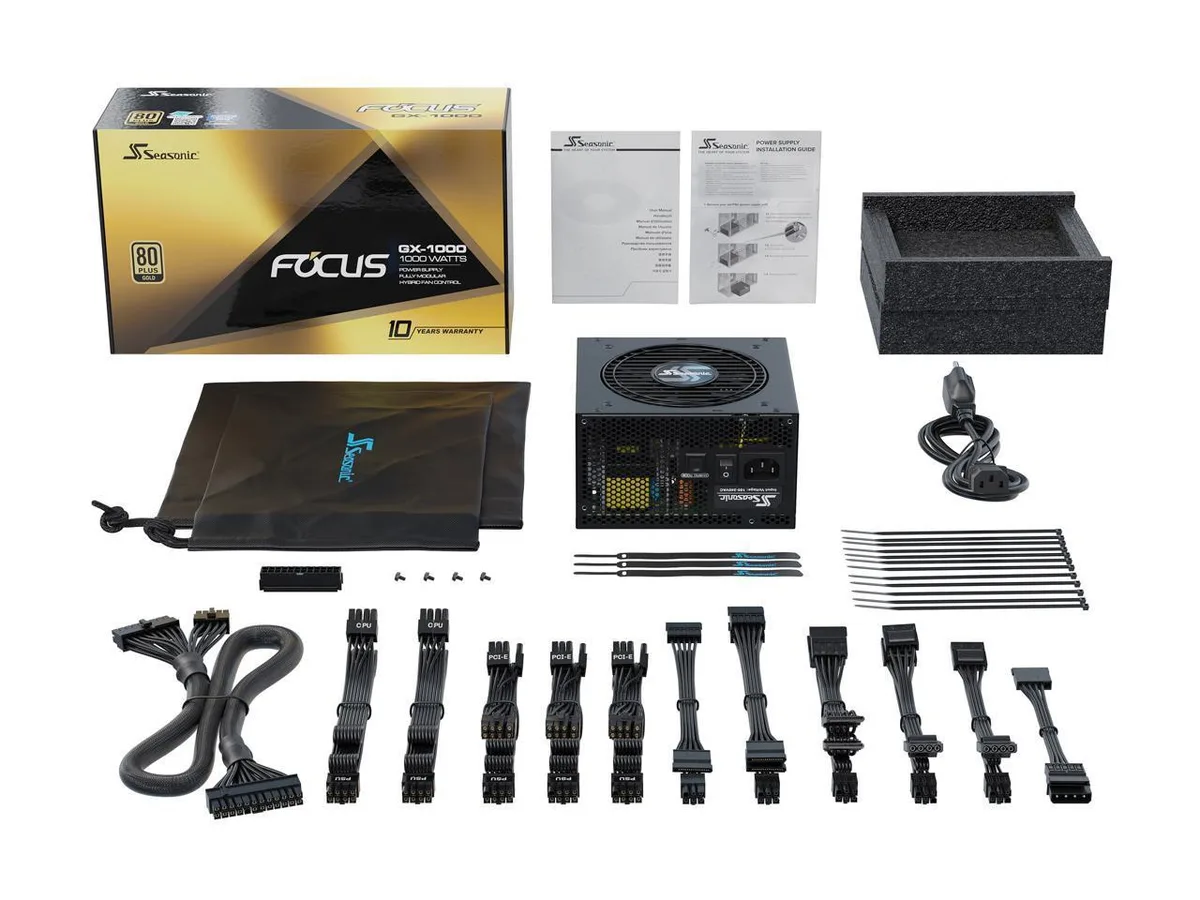

| Connectors | 1 x Main Power (24/20 pins) 2 x CPU (8/4 pins) 6 x PCIe (8/6 pins) 10 x SATA 5 x Peripheral 1 x Floppy |
| Features | 80 PLUS Gold certified Compact Size - 140 mm deep Tight Voltage Regulation Cable-free Connection Design S3FC - Fanless until 30 % load Multi-GPU setup Gold plated connectors |
| Dimensions | 5.51" x 5.91" x 3.39" |
| Weight | 6.80 lbs. |
Questions about this item
What motherboard power connector does the FOCUS GX-1000 need to work?
The unit uses a 20+4Pin main connector that plugs directly into any standard ATX12V motherboard socket.
Can I keep my existing SATA drives when installing this 1000W unit?
Yes, the power supply includes ten SATA power connectors so current SATA SSDs or hard drives can stay connected.
How do I confirm the fan control mode is active after building the system?
Press the rear fan control button to toggle between S2FC and S3FC; the 120 mm fluid dynamic bearing fan will spin or stay off according to the selected mode.
