segotep
segotep GM850 White 850W ATX 3.1 PCIe 5.1 80 Plus Gold Full Modular power supply
White 850 W ATX 3.1 power supply with PCIe 5.1 12+4PIN connector, dual 6+2PIN ports, full modular flat cables, 80 Plus Gold efficiency and a 120 mm silent fan
- ColorWhite
- TypeATX 12V / EPS 12V
- Maximum Power850 W
- Fans1 x 120 mm
- PFCActive
- PCI-Express Connector12+4PIN, 2X6+2PIN
Options ATX 80+ Gold (850W) White
- 850W
- ATX 80+ Gold (850W) White
Struck-through versions exist but are not stocked here.

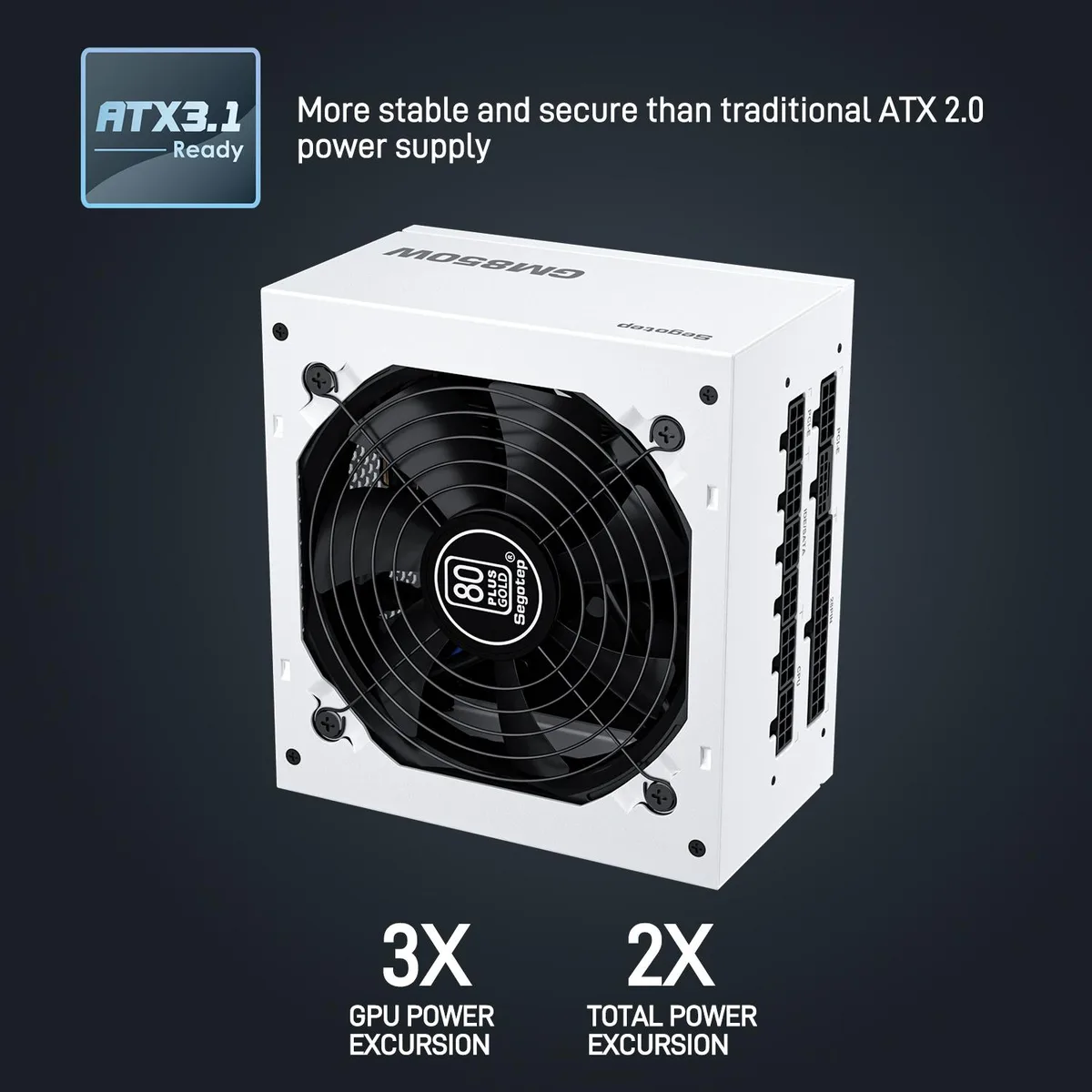

- ATX 3.1 and PCIe 5.1 ready for 200% total and 300% GPU power excursions
- 80 Plus Gold certified efficiency above 90% reduces energy consumption
- Full modular design with flat white cables improves airflow and cable management
- Native 12VHPWR cable delivers up to 600W to PCIe 5.1 graphics cards
- DC-DC structure with LLC resonance and 12V synchronous rectification ensures stable output

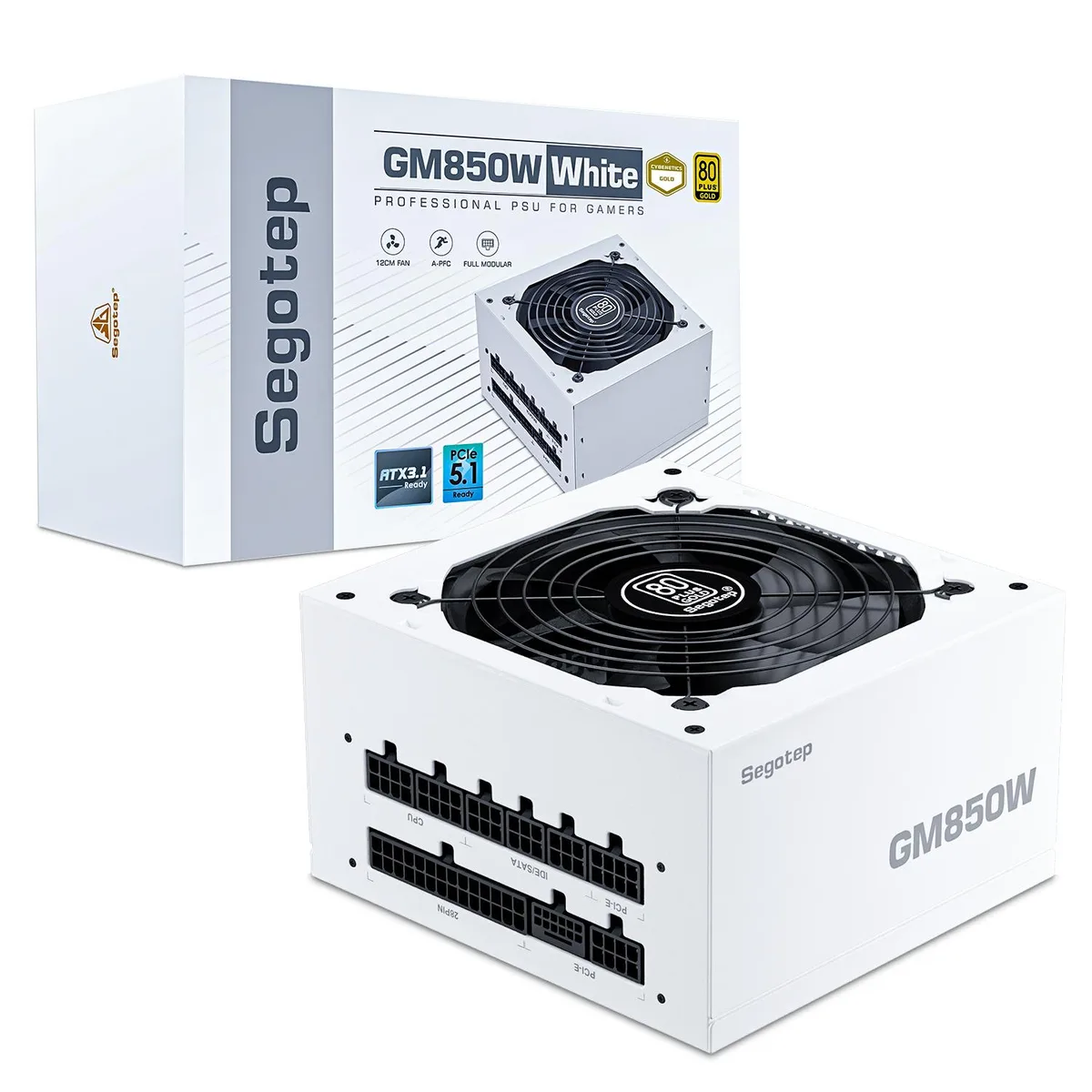

White ATX 3.1 power supply for modern builds
The segotep GM850 White delivers 850 W of continuous power through an ATX 3.1 compliant design. It targets system builders who need a clean white aesthetic and native support for current-generation graphics cards. Full modular cabling keeps the interior tidy and airflow unrestricted.
Native 12VHPWR cable and dual 6+2 PIN connectors
A single 12+4 PIN cable supplies up to 600 W directly to PCIe 5.1 graphics cards without adapters. Two additional 6+2 PIN ports cover older or secondary GPUs. Flat white cables simplify routing and improve case airflow compared to traditional sleeved looms.

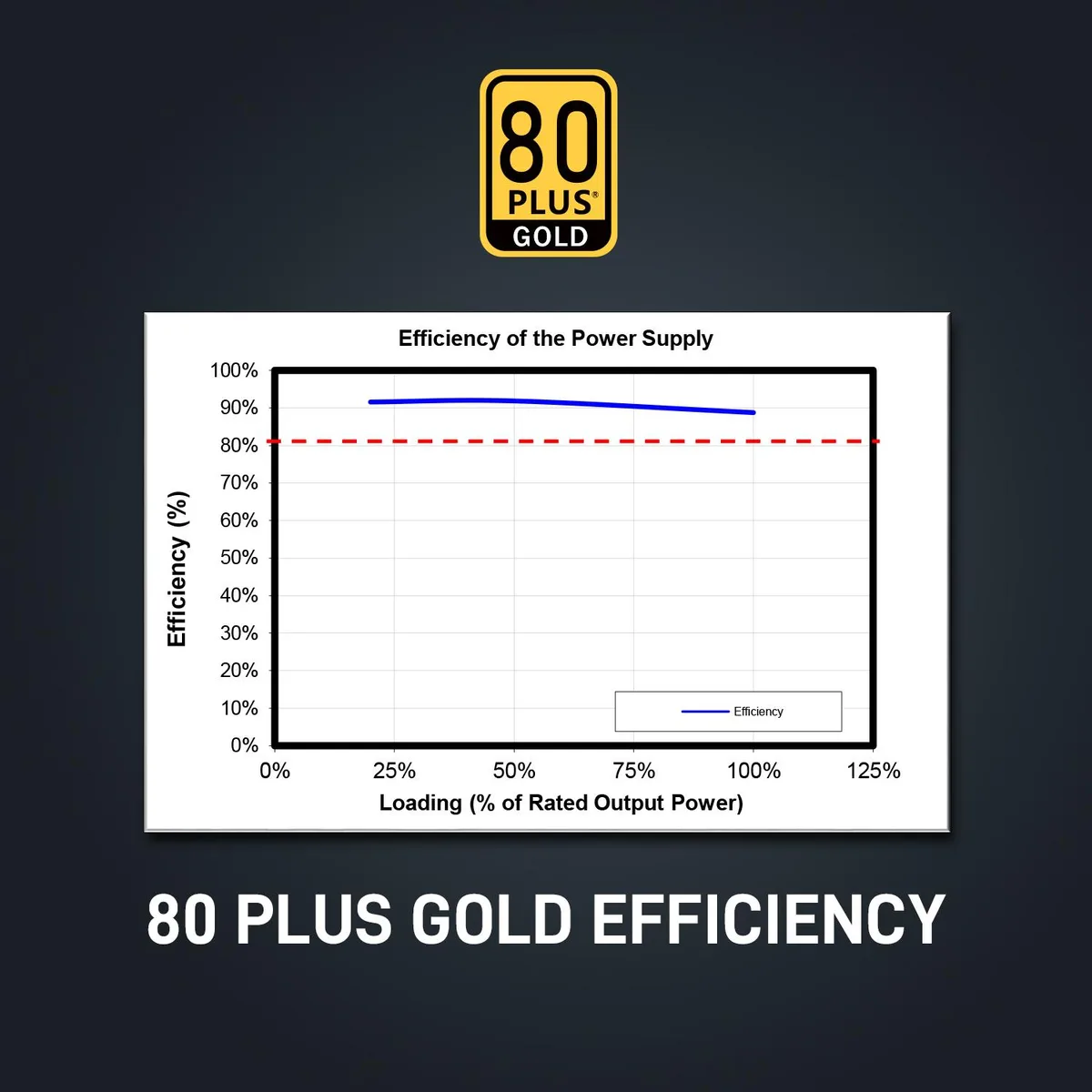

80 Plus Gold efficiency at 850 W
The unit maintains greater than 90 percent typical efficiency across the load range, reducing waste heat and electricity cost. Active PFC and a 100 to 240 V input range ensure stable operation worldwide. DC-DC topology with LLC resonance provides tight +12 V regulation under heavy transient loads.
Highlights
- ATX 3.1 and PCIe 5.1 ready for 200% total and 300% GPU power excursions
- 80 Plus Gold certified efficiency above 90% reduces energy consumption
- Full modular design with flat white cables improves airflow and cable management
- Native 12VHPWR cable delivers up to 600W to PCIe 5.1 graphics cards
- DC-DC structure with LLC resonance and 12V synchronous rectification ensures stable output
Specifications
| Brand | Segotep |
|---|---|
| Model | GM850 White |
| Color | White |
| Type | ATX 12V / EPS 12V |
| Maximum Power | 850 W |
| Fans | 1 x 120 mm |
| PFC | Active |
| PCI-Express Connector | 12+4PIN, 2X6+2PIN |
| Max PSU Length | 150 mm |
| Modular | Full Modular |
| Efficiency | > 90% |
| Energy-Efficient | 80 PLUS GOLD Certified |
| Over Voltage Protection | Yes |
| Overload Protection | Yes |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 47 - 63 Hz |
| Connectors | 1 x 24 pin (20+4) ATX |
| Power Rating | 850W |
| Features | ATX 3.1 PCIE 5.1 Ready |
| Frequency Range | 47 - 63 Hz |
| +3.3V Max. Current | 16A |
| +5V Max. Current | 15A |
| +12V1 Max. Current | 70A |
| -12V Max. Current | 0.3A |
| +5VSB Max. Current | 2.5A |
| Main Connector | 20+4 Pin |
| Fans Total Quantity | 1 |
| Over Load Protection | Yes |
| Short Circuit Protection | Yes |
| Under Voltage Protection | Yes |
| Over Current Protection | Yes |
| Over Power Protection | Yes |
| Over Temperature Protection | Yes |
Questions about this item
Will the 120 mm fan need replacement after long-term use?
The 120 mm fan is the only moving part; under normal conditions it runs for many years, and a full-modular design lets you swap the unit without rewiring the case.
What protection activates first if the 850 W load is sustained?
Overload Protection triggers when total draw exceeds 850 W, while Over Voltage Protection guards the 12 V rail against spikes.
How loud and hot does the unit get when it runs all day at high load?
The 80 Plus Gold rating keeps waste heat low, and the Silent Fan mode keeps the 120 mm fan at low RPM until internal temperature rises.
