Silicon Power
Silicon Power SP008GBLTU160N02 8GB DDR3 1600 desktop RAM
8GB DDR3 1600 UDIMM with CL11 timing and 1.5V operation for desktop upgrades
- Capacity8GB
- SpeedDDR3 1600 (PC3 12800)
- CAS LatencyCL11
- Timing11-11-11-28
- Voltage1.50V
- ECCNo
- 8GB capacity supports demanding multitasking workloads
- DDR3 1600 speed delivers PC3-12800 bandwidth
- CL11 latency with 11-11-11-28 timing optimises responsiveness
- 5V operation matches standard desktop DDR3 voltage
- 240-pin UDIMM form factor fits mainstream desktop slots
8 GB DDR3 1600 UDIMM

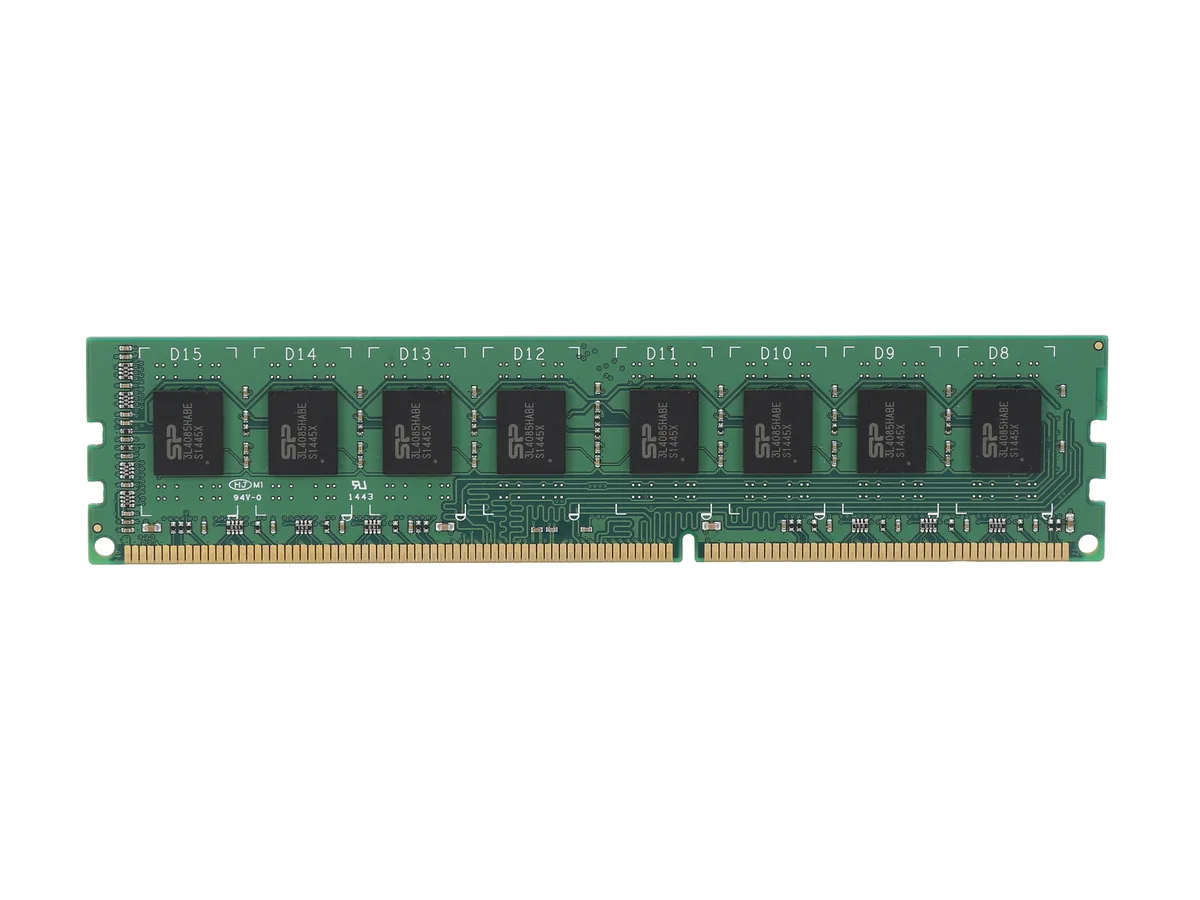

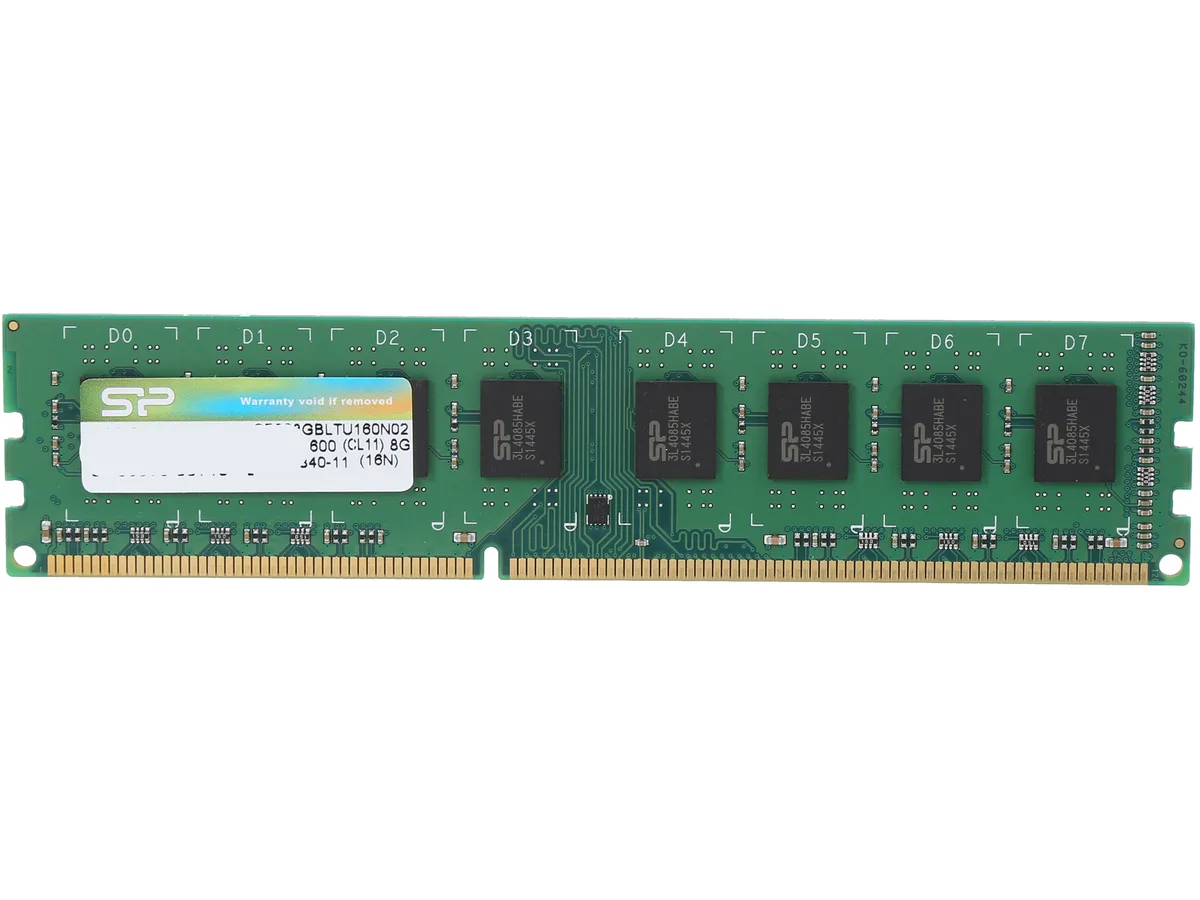

The Silicon Power SP008GBLTU160N02 is an 8 GB desktop memory module that runs at DDR3 1600 (PC3 12800). It uses a 240 pin unbuffered DIMM format with CL11 11-11-11-28 timings and operates at 1.50 V. This single stick suits owners of older DDR3 platforms who need a straightforward capacity increase.
Who this suits and who should look elsewhere
Builders restoring or upgrading a DDR3 system that accepts unbuffered non ECC UDIMMs at 1.5 V will find this module a direct fit. Buyers who need error correcting code memory or registered modules for a workstation or server board cannot use this product. Anyone whose motherboard requires a different DDR generation or a lower voltage specification must select a different part.
Deciding specification: DDR3 1600 unbuffered non ECC
The single specification that decides compatibility is the DDR3 1600 unbuffered non ECC UDIMM standard with 1.50 V operation. A motherboard must support this exact memory type and voltage for the module to function. No other memory generation or form factor will work in its place.
Highlights
- 8GB capacity supports demanding multitasking workloads
- DDR3 1600 speed delivers PC3-12800 bandwidth
- CL11 latency with 11-11-11-28 timing optimises responsiveness
- 5V operation matches standard desktop DDR3 voltage
- 240-pin UDIMM form factor fits mainstream desktop slots
Specifications
| Brand | Silicon Power |
|---|---|
| Model | SP008GBLTU160N02 |
| Capacity | 8GB |
| Speed | DDR3 1600 (PC3 12800) |
| CAS Latency | CL11 |
| Timing | 11-11-11-28 |
| Voltage | 1.50V |
| ECC | No |
| Buffered/Registered | Unbuffered |
| Features | DDR3 functionality and operations supported as defined in the component data sheet 240pin, unbuffered dual in-line memory module (UDIMM) Fast data transfer rates: PC3-8500, PC3-10600, PC3-12800 Single or Dual rank 4GB (512Meg x 64), 8GB (1Giga x 64) VDD = VDDQ = 1.5V ±0.075V VDDSPD = 3.0V to 3.6V Reset pin for improved system stability Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS) Fly-by topology Terminated control, command, and address bus Adjustable data-output dr |
| Shipping weight | 0.05 kg |
| Package size | 150 × 61 × 13 mm |
Questions about this item
My motherboard has four 240-pin DDR3 slots — will this 8 GB UDIMM install in any of them?
Yes — the module is a 240-pin unbuffered DIMM built to the DDR3 standard, so it fits any desktop DDR3 slot.
I already have DDR3 1600 CL11 memory installed — will this stick run at the same 11-11-11-28 timings?
The module is rated for 11-11-11-28 at 1.50 V; the memory controller will match the slowest kit, so both sets will operate at those timings.
After seating the module, how do I confirm it is running at DDR3 1600 with CL11?
Check the BIOS memory tab or a tool such as CPU-Z — it should show 800 MHz DRAM frequency (1600 MT/s) and 11-11-11-28 timings at 1.50 V.
