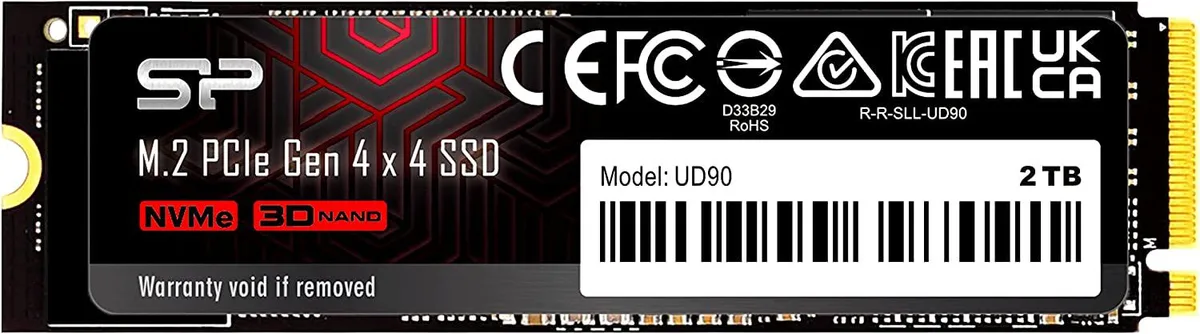

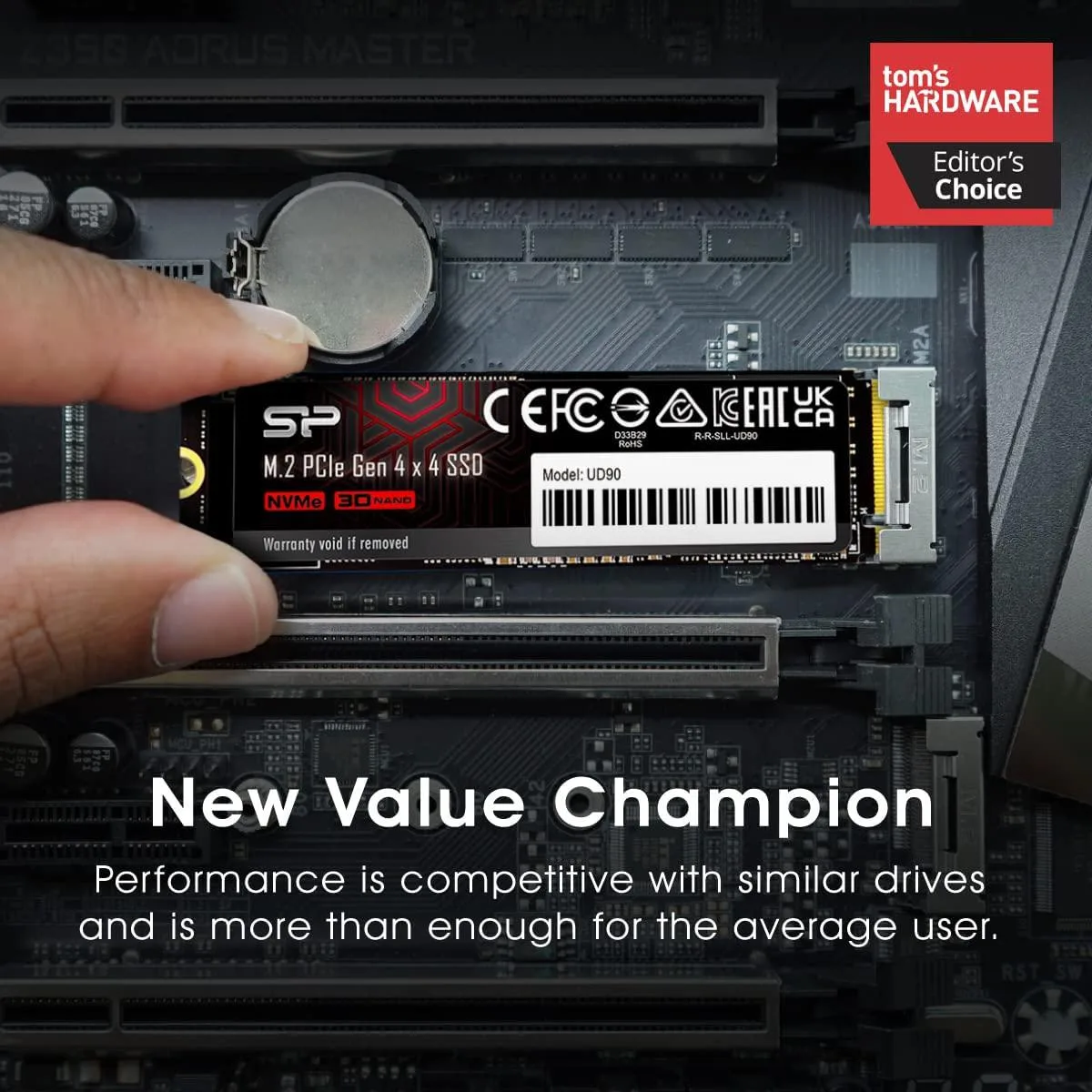

Silicon Power UD90 2TB M.2 2280 SSD bare circuit board

Silicon Power

Silicon Power SU02KGBP44UD9005SN 2TB internal SSD

SKU CH-RJAE-H9BDH MPN SU02KGBP44UD9005SN

2 TB PCIe 4.0 x4 M.2 2280 internal SSD with up to 5000 MB/s read and 4800 MB/s write speeds

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity2TB
  • Memory Components3D NAND
  • InterfacePCI-Express 4.0 x4

Options 2TB

Struck-through versions exist but are not stocked here.

  • Faster boot and load times with PCIe 4.0 read speeds up to 5000 MBps
  • Quicker file saves and transfers via PCIe 4.0 write speeds up to 4800 MBps
  • Reliable long-term storage backed by 1500000 hours MTBF
  • Efficient multitasking through NVMe 1.4 and Host Memory Buffer support
  • Data integrity protected by LDPC error correction and end-to-end data protection

2 TB PCIe 4.0 Internal SSD

The Silicon Power UD90 is a 2 TB M.2 2280 drive built for consumers who need fast storage in a standard desktop or laptop slot. It uses 3D NAND flash and connects through a PCI-Express 4.0 x4 link. The drive targets creators and multitaskers who want shorter load times without paying a premium for flagship hardware.

NVMe 1.4 and HMB support

Firmware enables NVMe 1.4 and Host Memory Buffer technology, which lets the controller borrow a slice of system RAM for mapping tables. This lowers latency and keeps random performance steady during mixed workloads. SLC caching absorbs write bursts, while LDPC error correction guards data integrity across the NAND array.

PCIe 4.0 x4 bandwidth ceiling

Sequential reads top out at 5000 MBps and writes at 4800 MBps, but only when the host platform supplies a full PCIe 4.0 x4 connection. On a PCIe 3.0 slot the link halves to 3.0 speeds, cutting throughput roughly in half. The controller cannot exceed the electrical limits of the bus it sits on.

Highlights

  • Faster boot and load times with PCIe 4.0 read speeds up to 5000 MBps
  • Quicker file saves and transfers via PCIe 4.0 write speeds up to 4800 MBps
  • Reliable long-term storage backed by 1500000 hours MTBF
  • Efficient multitasking through NVMe 1.4 and Host Memory Buffer support
  • Data integrity protected by LDPC error correction and end-to-end data protection

Specifications

BrandSilicon Power
ModelUD90
Part NumberSP02KGBP44UD9005
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity2TB
Memory Components3D NAND
InterfacePCI-Express 4.0 x4

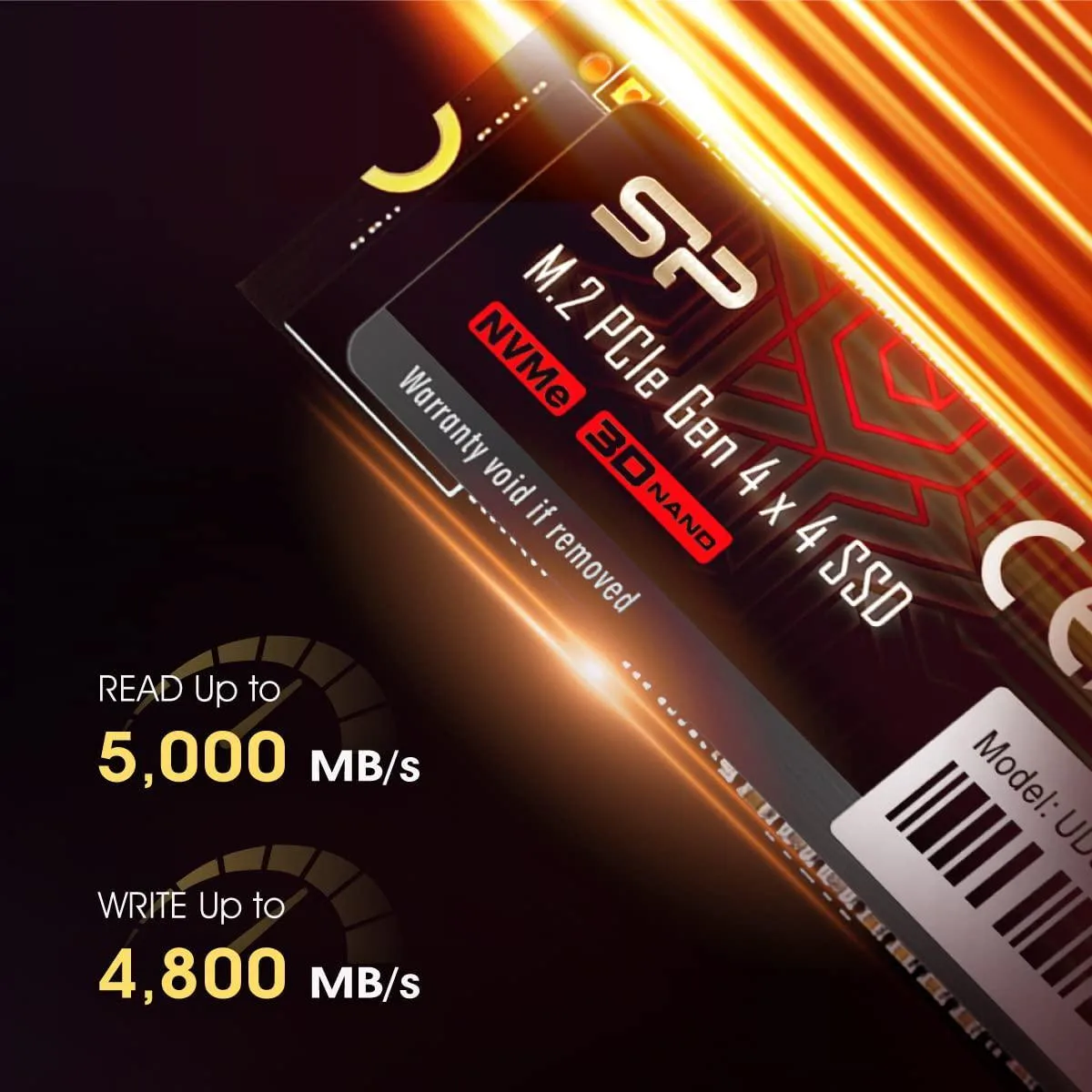

Max Sequential ReadUp to 5000 MBps
Max Sequential WriteUp to 4800 MBps
MTBF1,500,000 hours
HeatSinkwithout HeatSink
FeaturesTo bolster its multi-tasking factor even further, the UD90 takes advantage of increased bandwidth when used in conjunction with motherboards equipped with PCIe 4.0 slots. In fact, it has nearly double the bandwidth of PCIe 3.0 for shorter download times and the ability to download more files within the same amount of time.
An SSD's speed is meaningless without the ability to handle that speed reliably. The UD90 achieves improved sequential read/write and random read/write performance with support for SLC Caching. At the same time, it supports low density parity check (LDPC) coding to
Operating Temperature0°C - 70°C
Max Shock Resistance1500g/0.5ms
Shipping weight0.02 kg
Package size104 × 84 × 6 mm

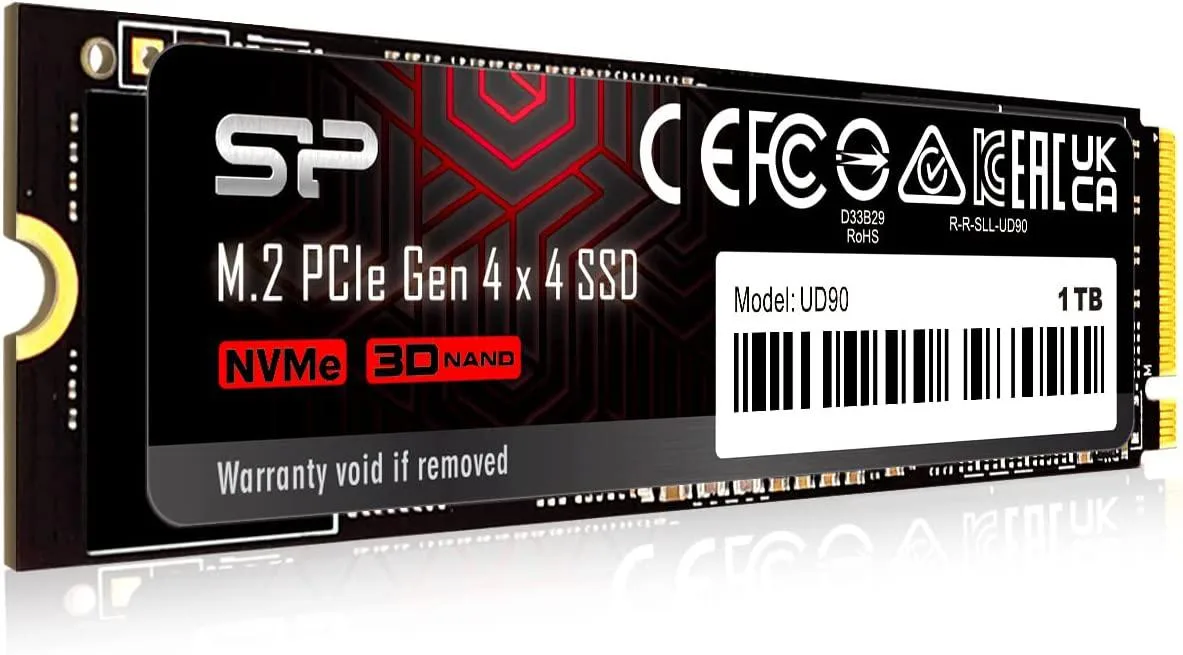

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What is the MTBF rating for the Silicon Power UD90 2TB SSD?

The drive has an MTBF of 1,500,000 hours, indicating its expected reliability over long-term use.

Does the UD90 2TB include a heatsink for sustained PCIe 4.0 speeds?

No, this model ships without a heatsink, so thermal throttling may occur under heavy sustained workloads.

What is the operating temperature range for the UD90 2TB during all-day use?

The drive is rated for 0°C to 70°C, ensuring stable operation within standard system temperatures.
