Silverstone EX1200R-PL 1200 W SFX-L 80 PLUS PLATINUM power supply
SFX-L 1200 W fully modular PSU with 80 PLUS Platinum efficiency and a single 120 mm FDB fan
- ColorBlack
- TypeSFX-L
- Maximum Power1200 W
- FansSingle 120mm FDB bearing fan
- PFCActive PFC(PF>0.9 at full load)
- Main Connector20+4Pin
- Delivers 1200 W for demanding builds
- 80 PLUS PLATINUM efficiency saves energy
- SFX-L design fits compact cases
- Full modular cables reduce clutter
- 100 000 hour MTBF ensures longevity
SFX-L 1200 W Platinum power supply
This SFX-L unit delivers 1200 W of continuous power for compact systems that demand high output. It fits builds limited to 130 mm depth while providing a fully modular cable set. The single 120 mm FDB fan handles thermal loads at this wattage tier. It targets small-form-factor workstations and high-end gaming rigs.
80 PLUS Platinum efficiency limits
The 80 PLUS Platinum certification guarantees 89% to 91% overall efficiency across typical loads. Active PFC maintains a power factor above .9 at full load, reducing strain on the mains supply. Input range spans 90 to 264 V at 47 to 63 Hz for worldwide compatibility. These figures define the practical ceiling for wall-socket draw and heat output.
Single +12 V rail rated at 100 A
The +12 V rail supplies up to 100 A, which is the decisive spec for modern GPU and CPU power delivery. Minor rails provide 20 A at 3.3 V, 20 A at 5 V, 3.0 A at 5 VSB and .3 A at -12 V. Protection includes OCP, OPP, OVP, SCP and OTP. MTBF is rated at 100000 hours.
Highlights
- Delivers 1200 W for demanding builds
- 80 PLUS PLATINUM efficiency saves energy
- SFX-L design fits compact cases
- Full modular cables reduce clutter
- 100 000 hour MTBF ensures longevity
Specifications
| Brand | SilverStone |
|---|---|
| Model | EX1200R-PL |
| Color | Black |
| Type | SFX-L |
| Maximum Power | 1200 W |
| Fans | Single 120mm FDB bearing fan |
| PFC | Active PFC(PF>0.9 at full load) |
| Main Connector | 20+4Pin |
| +12V Rails | Single |
| Max PSU Length | 130 mm |
| Modular | Full Modular |
| Efficiency | 89% ~ 91% overall efficiency |
| Energy-Efficient | 80 PLUS PLATINUM Certified |
| Protection | Over Current Protection Over Power Protection Over Voltage Protection Short Circuit Protection Over Temperature Protection |
| Input Voltage | 90 - 264 V |
| Input Frequency Range | 47 - 63 Hz |
| Output | 20A@+3.3V, 20A@+5V, 100A@+12V, 3.0A@+5VSB, 0.3A@-12V |
| MTBF | 100,000 hours |

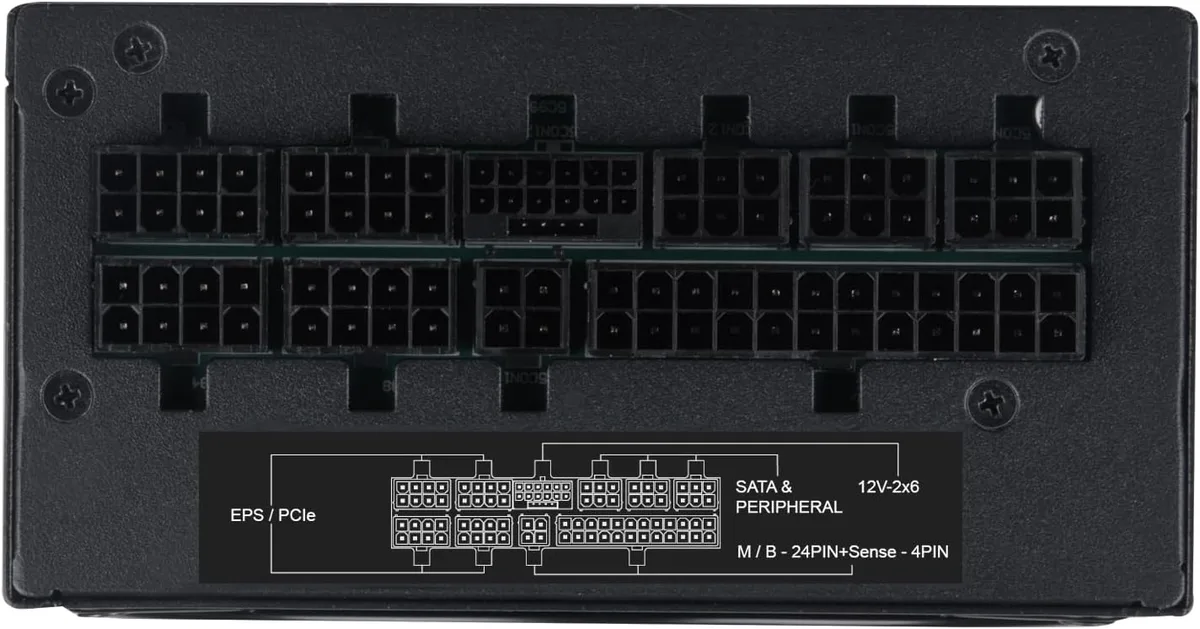

| Connectors | 1 x 24 / 20-Pin motherboard connector 2 x 8 / 4-Pin EPS / ATX 12V connector 4 x 8 / 6-Pin PCIe connectors 1 x 12+4-Pin 12V-2x6 connector 8 x SATA connector 3 x 4-Pin Peripheral connector 1 x 4-Pin Floppy adapter connector |
| Cable Spec | 1 x 24/20pin Motherboard cable 2 x 4+4pin CPU cable 1 x 12V-2x6 cable 2 x 6+2pin PCIe cable (2 connectors per cable) 2 x SATA cable (4 connectors per cable) 1 x 4pin Peripheral cable (1 x 4pin Floppy connectors + 3 x 4pin Peripheral) |
| Dimensions | 125 x 63.5 x 130 mm |
| Weight | 4.61 lbs. |
Questions about this item
Is this 1200 W SFX-L unit the only capacity available in the EX1200R-PL series?
Yes, the EX1200R-PL is offered only as a 1200 W model in the SFX-L form factor.
What does the 80 PLUS PLATINUM rating mean for actual efficiency inside my PC?
The certification guarantees 89 % to 91 % overall efficiency across typical loads, so less power is wasted as heat.
What does the 12V-2x6 connector support in practice?
The single 12V-2x6 cable provides a native 12+4-pin connection for modern graphics cards without adapters.
