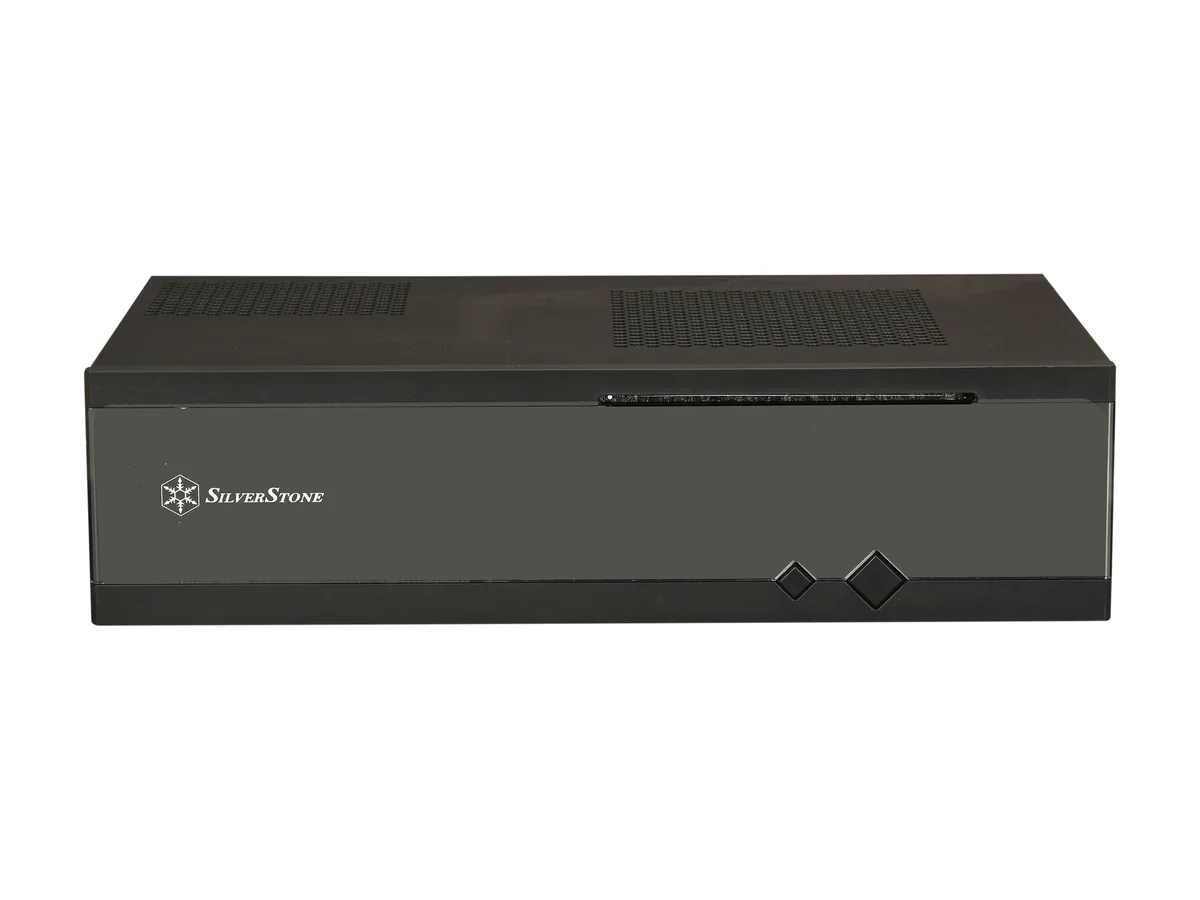

Black Mini ITX HTPC case with acrylic front panel, steel body, 350mm wide, 99mm high, 204mm deep

Silverstone

Silverstone ML05B Mini ITX HTPC PC case

SKU CH-5TYD-G1T6Z MPN ML05B

A 7-litre Mini-ITX HTPC case with an acrylic front panel, four 2.5" drive bays, a flexible 4-in-1 bracket for slim optical, 3.5" or 2.5" drives or a 120 mm fan, two front USB 3.0 ports.

  • TypeMini ITX Media Center / HTPC Case
  • ColorBlack
  • Case MaterialAcrylic and plastic front panel, 0.8mm steel body
  • Power SupplyNo
  • Motherboard CompatibilityMini ITX
  • Internal 2.5" Drive Bays4
  • Seven-litre footprint fits tight living-room spaces
  • Holds four 2.5-inch drives for ample local storage
  • Accepts Mini-ITX board and SFX supply for full desktop power
  • 4-in-1 bracket swaps slim optical, 3.5-inch drive, twin 2.5-inch drives or 120 mm fan
  • Two 80 mm side fans, 120 mm top slot and large CPU vents keep thermals low

Compact HTPC Chassis

The Silverstone ML05B is a 7-litre Mini ITX case designed for living-room PCs. Its black acrylic front panel blends with home-theatre equipment while the steel body keeps the footprint small. Builders who need a discreet media centre will find the dimensions suit tight AV cabinets.

Single Low-Profile Expansion Slot

Only one half-height card fits, limited to 2.95 inches in width. The slot accepts a low-profile GPU, capture card or additional I/O, but full-height or dual-slot cards cannot be installed. Plan the build around this single slot constraint.

SFX Power Supply and Flexible Drive Bay

An SFX power supply is required because no ATX unit fits. The 4-in-1 bracket swaps between a slim optical drive, one 3.5 inch drive, two 2.5 inch drives or a 120 mm fan. Four internal 2.5 inch bays remain available regardless of the bracket choice.

Highlights

  • Seven-litre footprint fits tight living-room spaces
  • Holds four 2.5-inch drives for ample local storage
  • Accepts Mini-ITX board and SFX supply for full desktop power
  • 4-in-1 bracket swaps slim optical, 3.5-inch drive, twin 2.5-inch drives or 120 mm fan
  • Two 80 mm side fans, 120 mm top slot and large CPU vents keep thermals low

Specifications

BrandSILVERSTONE
SeriesMilo series
ModelML05B
TypeMini ITX Media Center / HTPC Case
ColorBlack
Case MaterialAcrylic and plastic front panel, 0.8mm steel body
Power SupplyNo
Motherboard CompatibilityMini ITX
Internal 2.5" Drive Bays4
Expansion Slots1

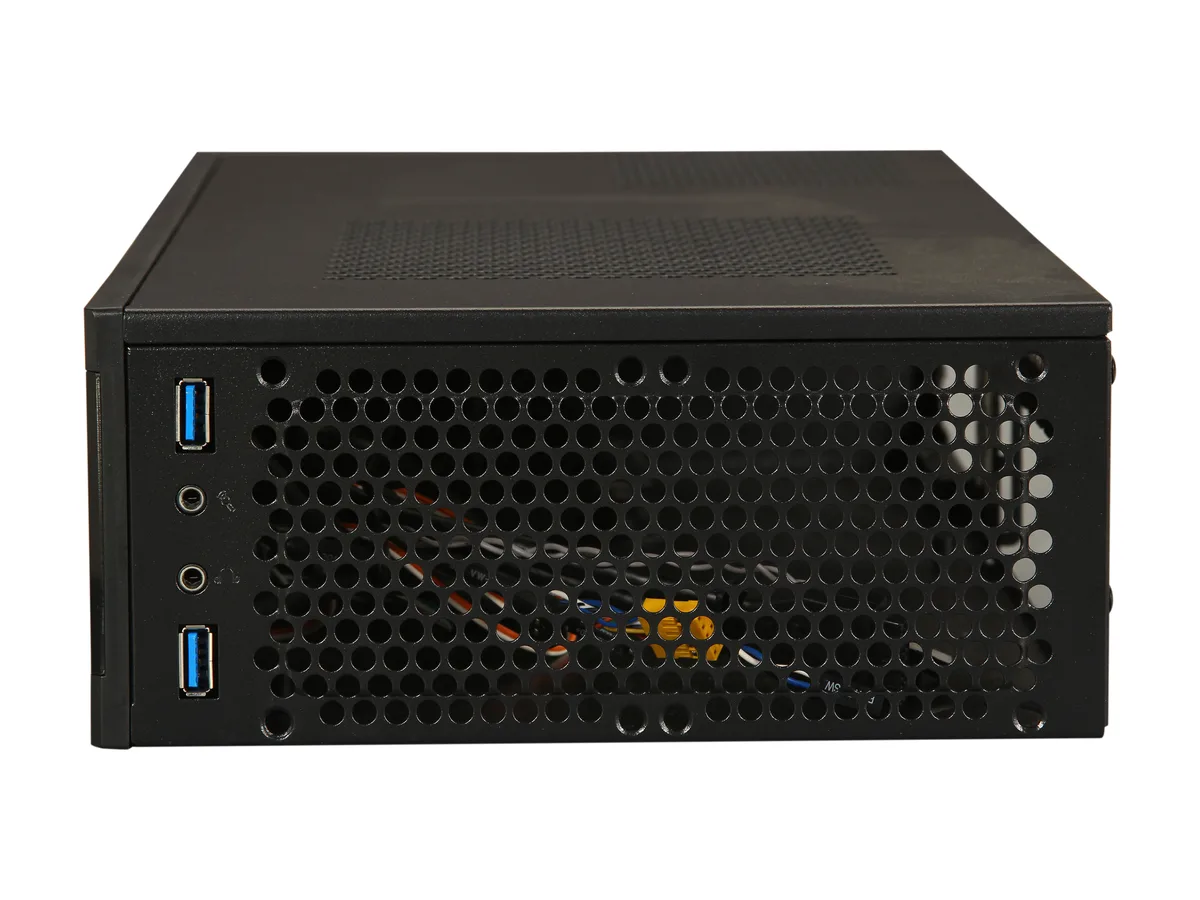

Front USB PortsUSB 3.0 x 2
Front Audio PortsAudio x 1, MIC x 1
FeaturesExternal Drive Bay: 9.5mm/12.7mm slim slot-loading optical drive x 1 (replaceable with 3.5" HDD x 1 or 2.5" HDD x 2 or 120mm fan x 1)
Expansion Card: 1x low profile, width restriction-2.95"
Cooling System:
Side: Right: 2 x 80mm fan slot
Top: 120mm fan slot / oversized PSU vents
Super small at only 7 liters
Support up to two 80mm fans
Multipurpose 4-in-1 bracket
Support Mini-ITX motherboard and SFX power supply
Support four 2.5" HDD/SSD
Limitation of CPU cooler: 37~70mm
Limitation of PSU: 140mm
*Power Supply: 1 x Optional standard SFX
Height99 mm (H)
Width350mm (W)
Depth204 mm (D)
Weight2.1kg
Shipping weight2.61 kg
Package size409 × 269 × 152 mm

Questions about this item

What does the 7-liter volume mean for component clearance inside the case?

The 7-liter chassis fits a Mini-ITX motherboard, an SFX power supply and up to four 2.5-inch drives while leaving room for a low-profile expansion card up to 2.95 inches wide.

What does the USB 3.0 front panel actually deliver in daily use?

Two front USB 3.0 ports provide up to 5 Gbps bandwidth for external storage or peripherals, limited only by the motherboard header you connect them to.

How much space do I need on the shelf for the ML05B?

The case measures 350 mm wide, 204 mm deep and 99 mm high, weighing 2.1 kg, so it fits most AV cabinets with a few centimetres of clearance.
