Square low-profile copper-centre cooler with black 80mm fan, 23mm tall

Silverstone

Silverstone NT07-115X low-profile CPU cooler 23mm 80mm PWM fan Intel LGA 1150 1151 1155 1156 1200 65W TDP

SKU CH-6SV0-XC4QZ MPN NT07-115X

A 23 mm tall air cooler with an 80 mm PWM fan handles up to 65 W TDP on Intel LGA 1150, 1151, 1155, 1156 and 1200 sockets

  • TypeFan & Heatsinks
  • Fan Size80mm
  • CPU Socket CompatibilityIntel LGA 1150 / Intel LGA 1151 / Intel LGA 1155 / Intel LGA
  • RPM1200-3400 RPM
  • Air Flow48 CFM
  • Noise Level18-26dBA
  • Fits slim 23mm cases with 90mm footprint
  • Cools 65W CPUs via copper core and aluminium fins
  • PWM fan adjusts 1500-3600 RPM for 15.6-28.1 CFM airflow
  • Quiet operation at 21.9-34.7 dBA across speed range
  • Mounts on Intel LGA 1150 1151 1155 1156 1200 sockets

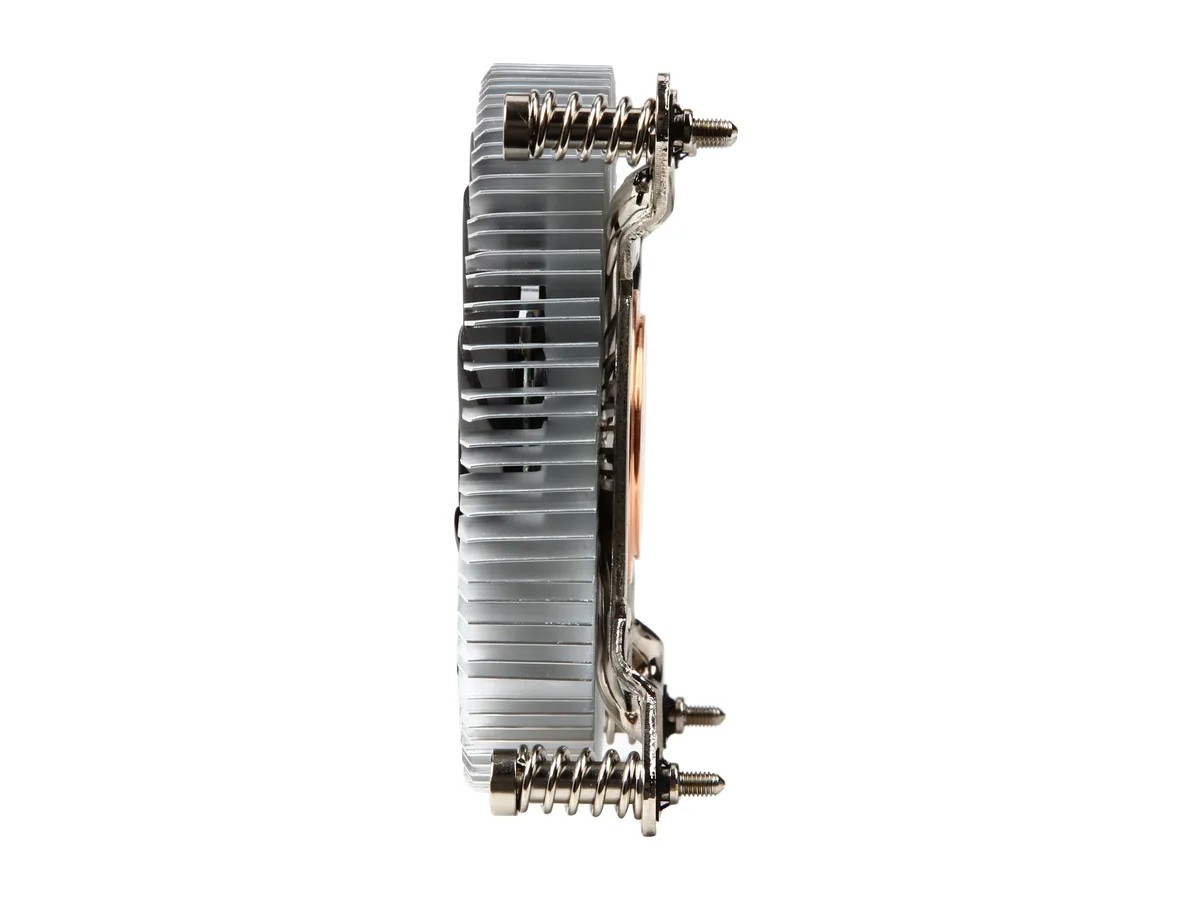

Ultra-low 23 mm profile

The Silverstone NT07-115X is an air cooler built for Intel LGA 1150, 1151, 1155, 1156 and 1200 sockets with a 65 W TDP limit. Its 23 mm height lets it fit inside slim chassis where standard tower coolers cannot be installed. Buyers needing higher thermal headroom or AMD socket support should look elsewhere.

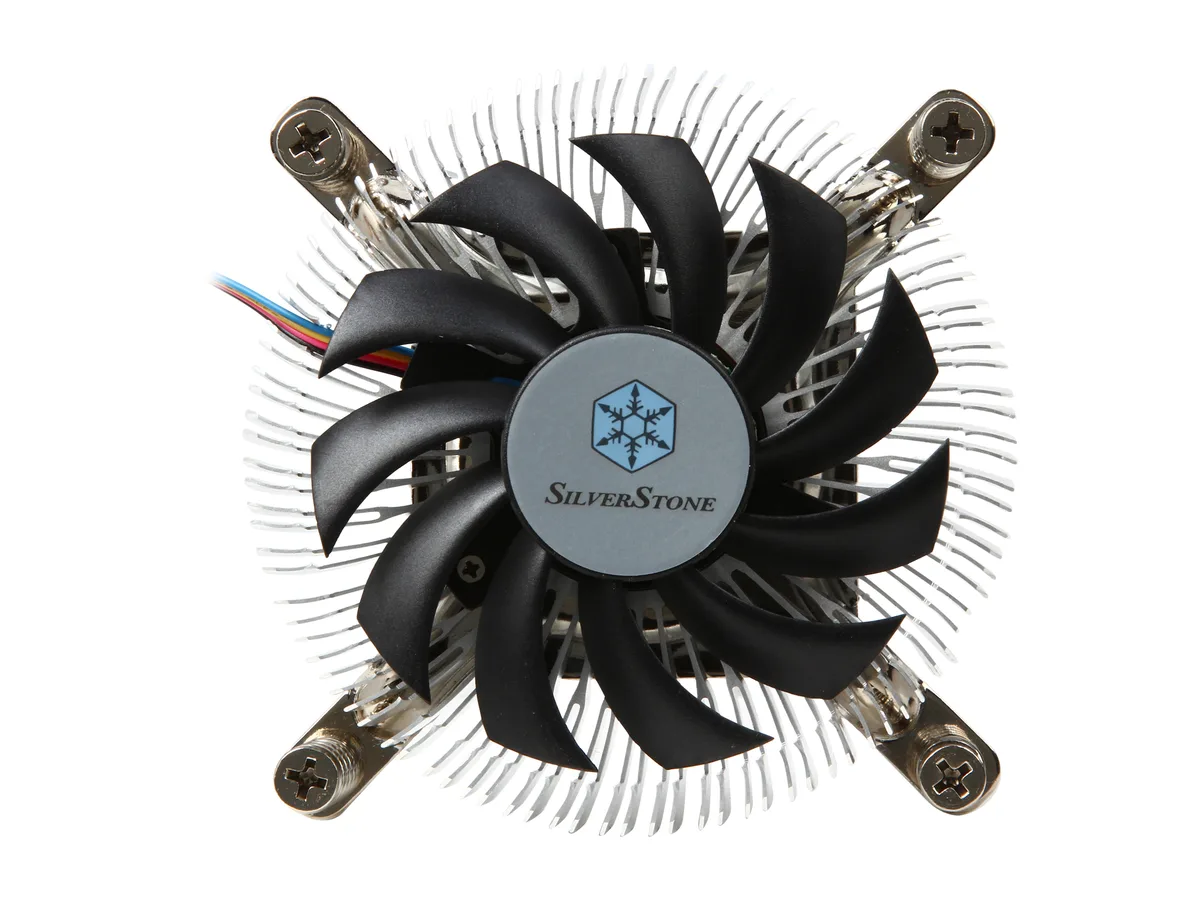

Copper core with horizontal 80 mm PWM fan

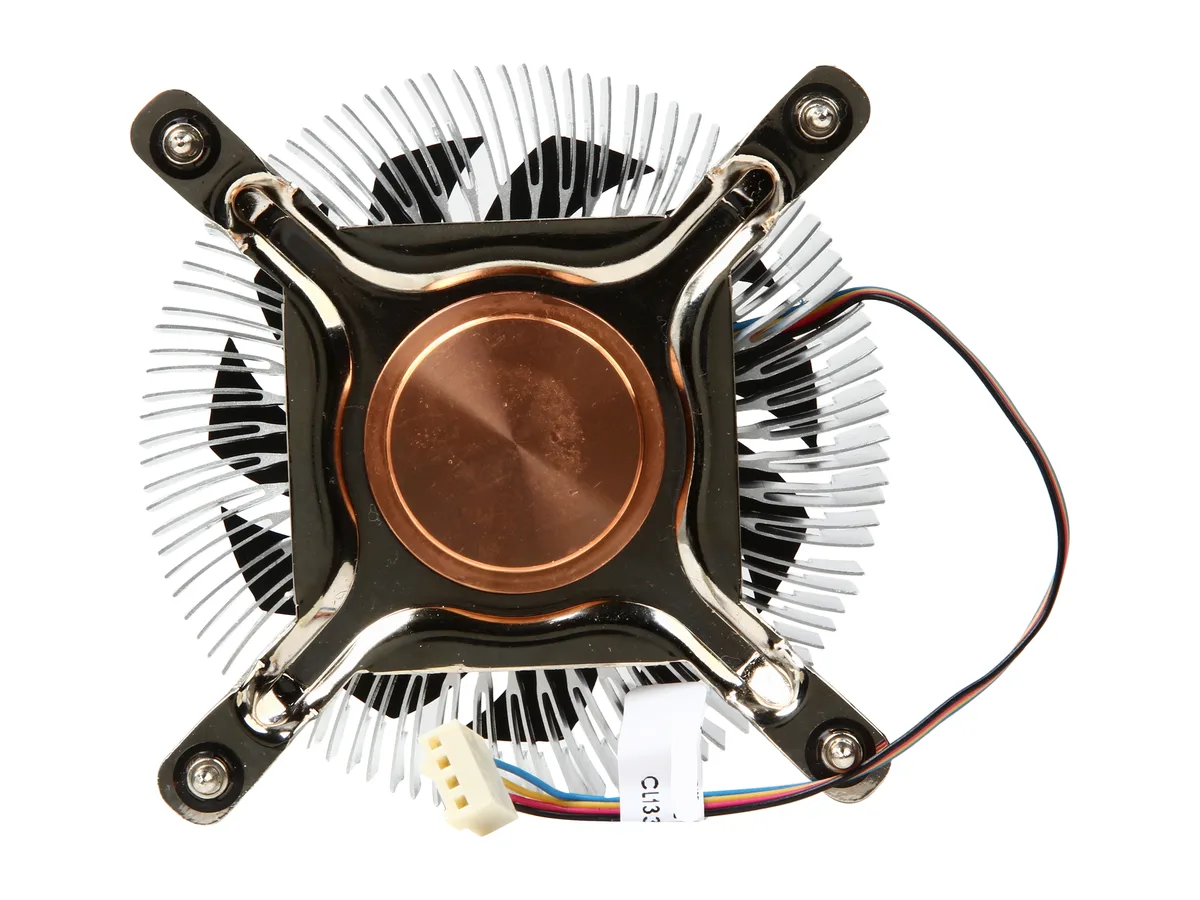

A copper centre and base draw heat into extruded aluminium fins while a custom 80 mm PWM fan pushes 15.6 to 28.1 CFM at 1500 to 3600 RPM. Noise ranges from 21.9 to 34.7 dBA across the speed curve. The horizontal mounting keeps the entire assembly within the 90 mm square footprint.

Clip mounting and 30 000-hour fan life

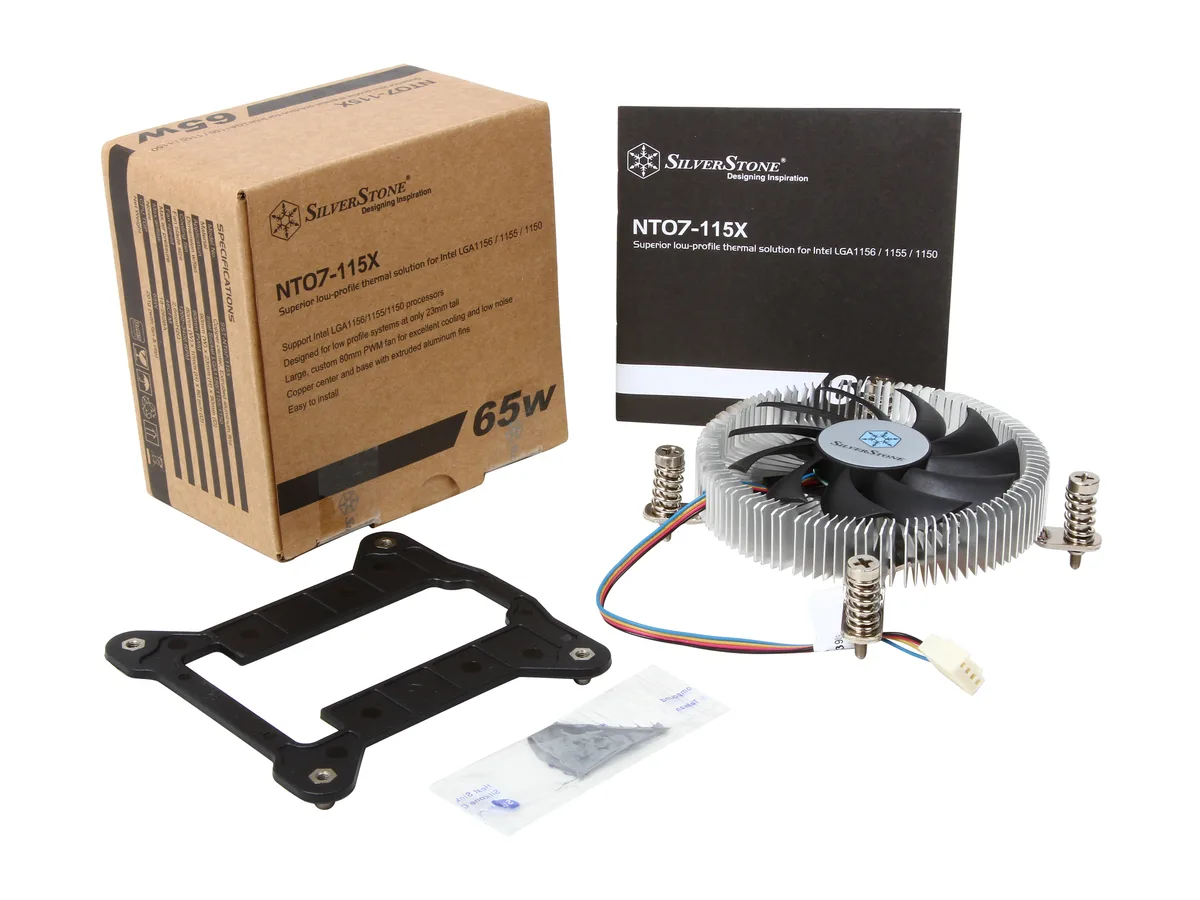

The package includes a clip bracket for tool-free installation on the listed Intel sockets. The fan is rated for 30 000 hours MTTF at a 9 V start voltage. No additional brackets, thermal compound tubes or software utilities are mentioned in the specifications.

Highlights

  • Fits slim 23mm cases with 90mm footprint
  • Cools 65W CPUs via copper core and aluminium fins
  • PWM fan adjusts 1500-3600 RPM for 15.6-28.1 CFM airflow
  • Quiet operation at 21.9-34.7 dBA across speed range
  • Mounts on Intel LGA 1150 1151 1155 1156 1200 sockets

Specifications

BrandSILVERSTONE
ModelNT07-115X
TypeFan & Heatsinks
Fan Size80mm
CPU Socket CompatibilityIntel LGA 1150 / Intel LGA 1151 / Intel LGA 1155 / Intel LGA 1156
RPM1200-3400 RPM
Air Flow48 CFM
Noise Level18-26dBA
Heatsink MaterialCopper center, Extruded aluminum fins
Fan Mounting Types to HeatsinkHorizontal
Max CPU Cooler Height23 mm
Weight0.44lbs
FeaturesSupport Intel LGA1156/1155/1150 processors
Designed for low profile systems at only 23mm tall
Large, custom 80mm PWM fan for excellent cooling and low noise
Copper center and base with extruded aluminum fins
Easy to install
Shipping weight0.25 kg
Package size122 × 119 × 61 mm

Questions about this item

What socket standard does the NT07-115X use, and what TDP does that limit it to?

It mounts on Intel LGA 1150, 1151, 1155, 1156 and 1200 sockets and is rated for CPUs up to 65W TDP.

What clearance and footprint does the cooler need inside the case?

The assembled unit is 23mm tall with a 90mm square footprint, and the 80mm fan adds 10mm thickness.

How is the NT07-115X installed, and which step is often missed?

The clip fastens directly onto the stock Intel retention bracket; the PWM fan cable must be plugged into the CPU_FAN header so speed control works.
