Silverstone

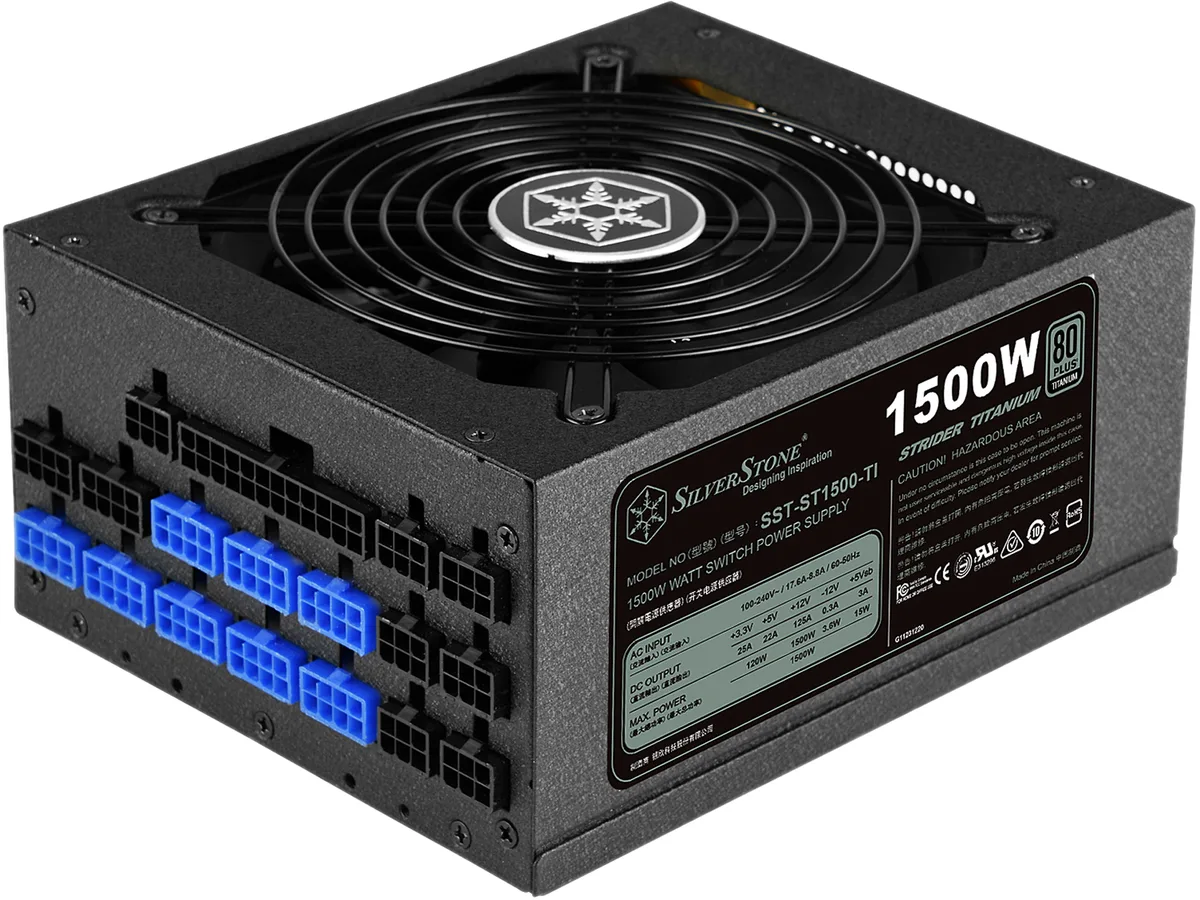

Silverstone PS-ST1500-TI 1500W ATX power supply
A 1500W ATX power supply with 80 PLUS Titanium efficiency, a single +12V rail, fully modular cables and a 135mm semi-fanless fan for silent 24/7 operation
- TypeATX12V
- Maximum Power1500 W
- Fans1 x 135mm silent fan
- PFCActive
- Main Connector20+4Pin
- +12V RailsSingle
- 80 PLUS Titanium efficiency cuts waste heat across the 10 to 100 per cent load range
- Single 125 A +12 V rail feeds every GPU and CPU without rail balancing
- 100 per cent modular cables keep the build tidy and airflow clear

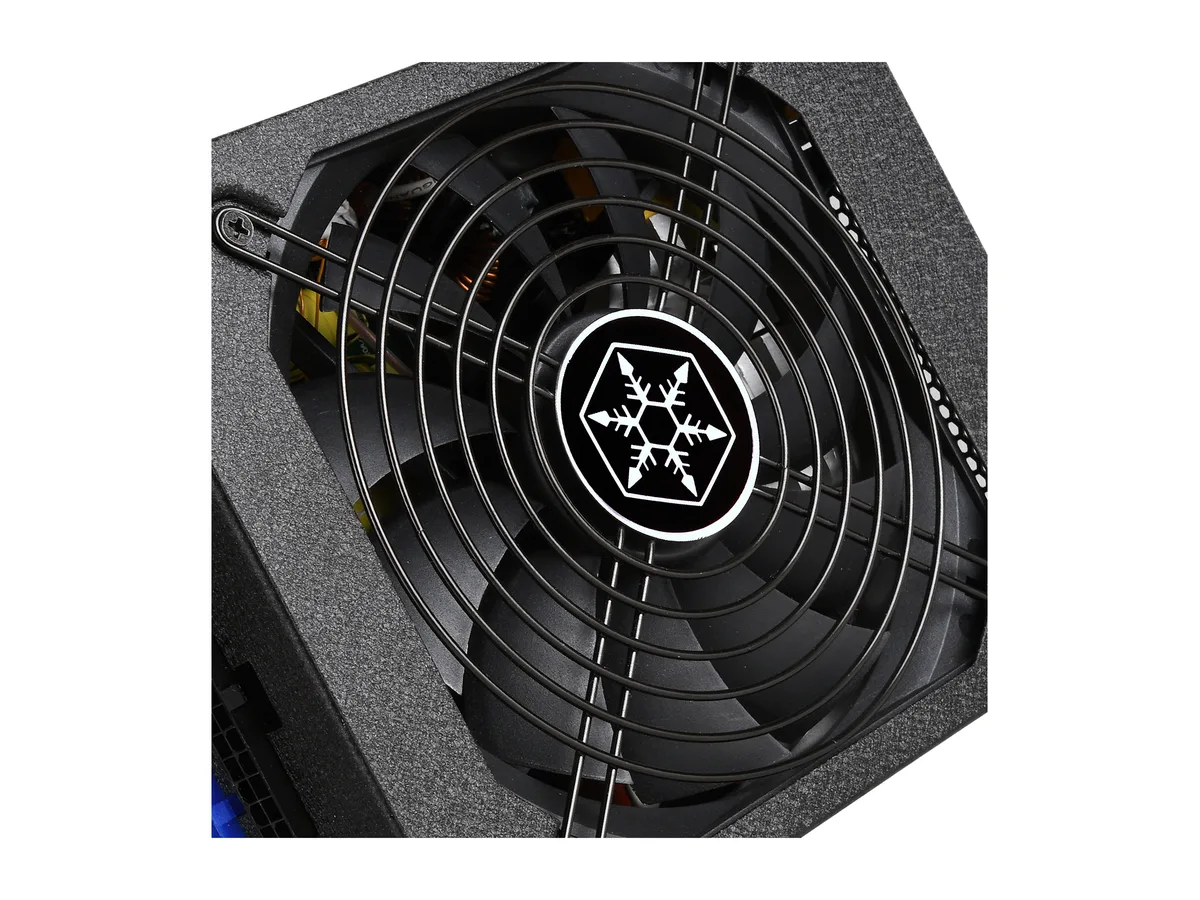

- 135 mm fan runs semi-fanless at low load for silent operation
- Japanese capacitors rated for 100000 hour MTBF deliver 24/7 reliability at 50 °C
Built for high-output systems
The Silverstone PS-ST1500-TI delivers 1500 W through a single +12 V rail rated at 125 A. It meets 80 PLUS Titanium efficiency between 90% and 94% from 10% to 100% load. A 135 mm fan runs semi-fanless at low load and the unit is rated for continuous operation at 50 °C. Japanese capacitors and tight voltage regulation support 24/7 reliability.

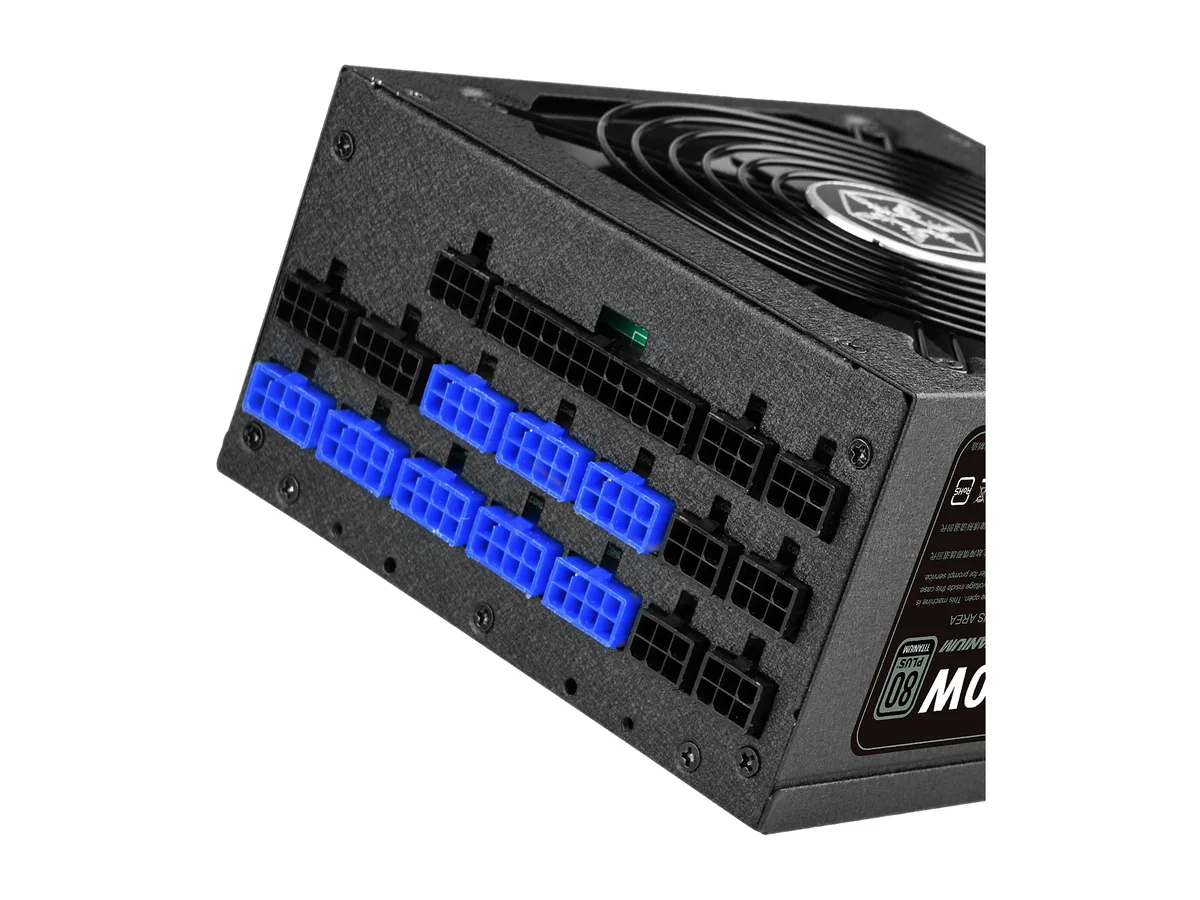

Fully modular cable set

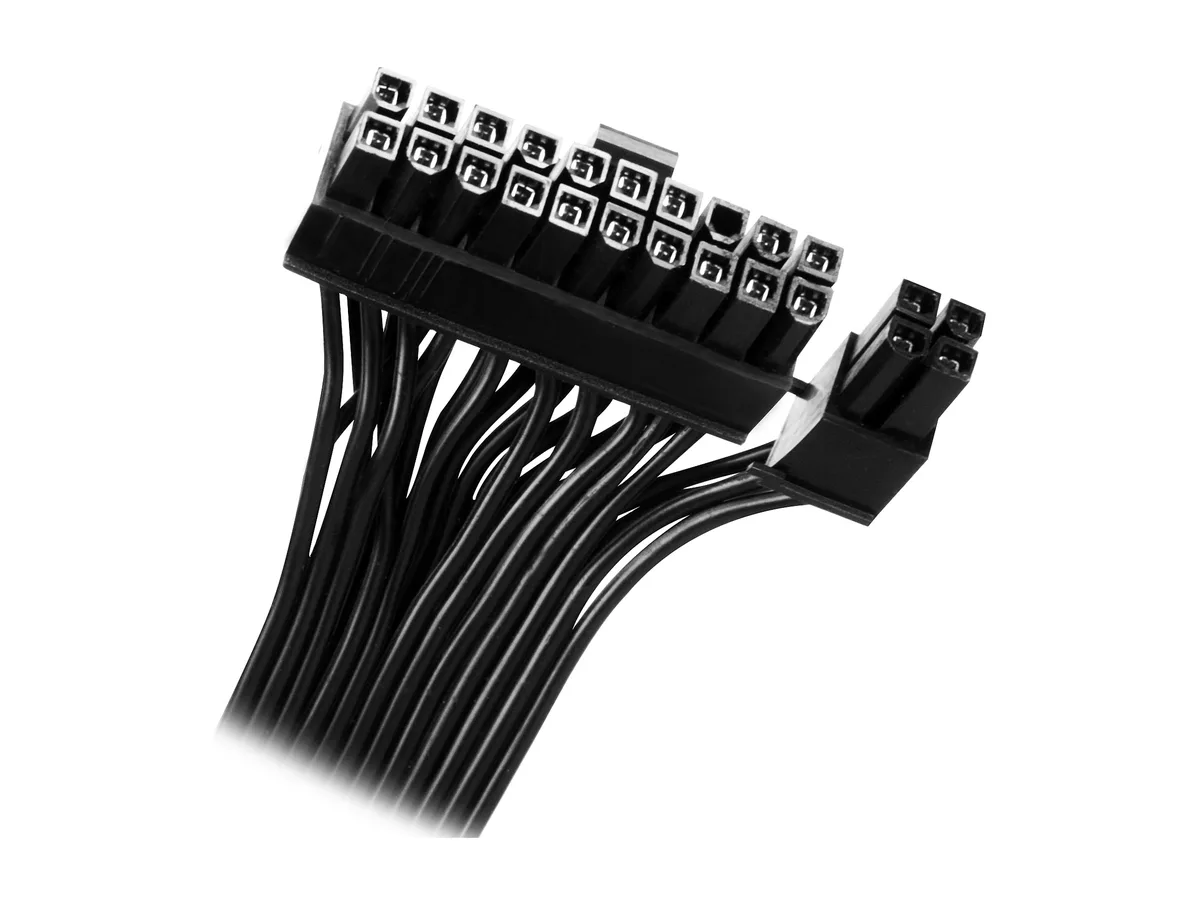

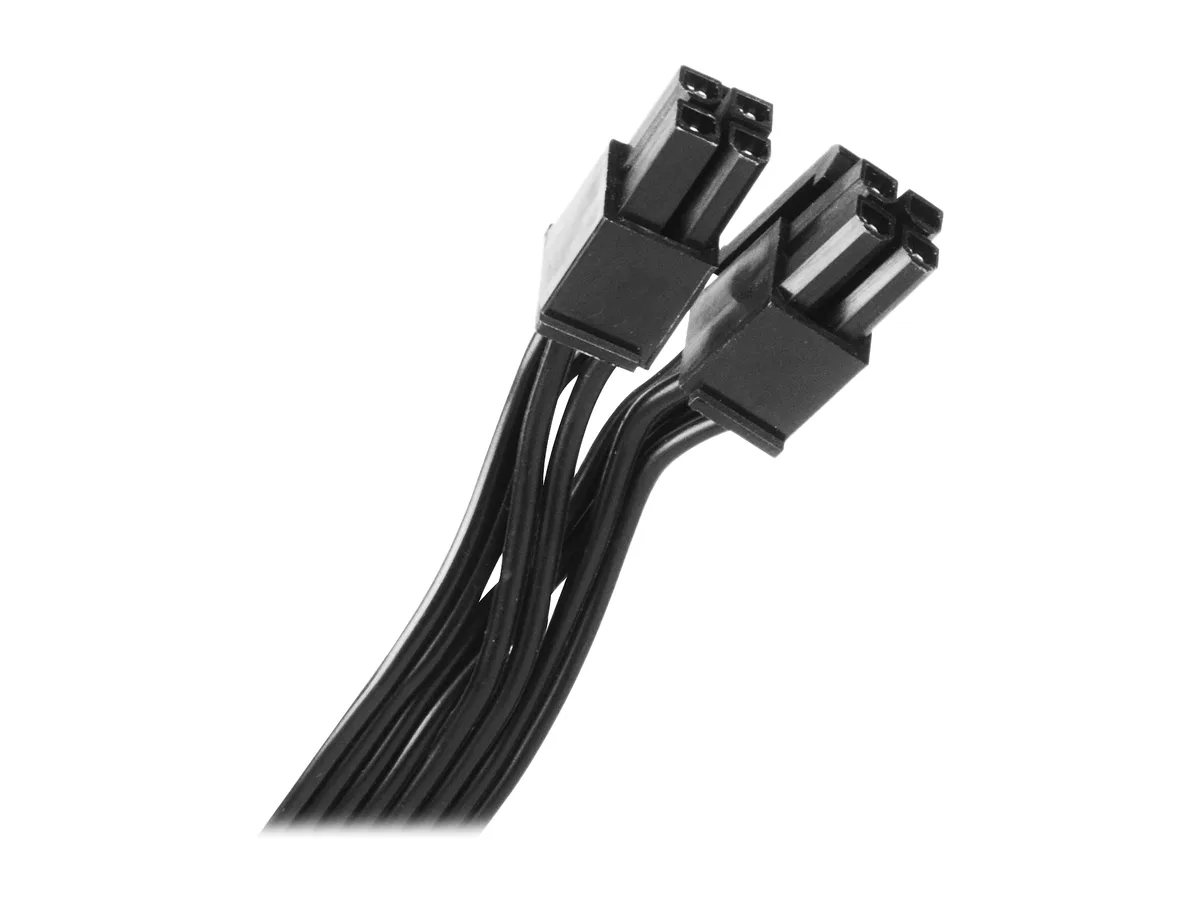

All cables detach so only the eight 6+2-pin PCIe, sixteen SATA, six peripheral and two EPS connectors needed are installed. Cable lengths include 550 mm for the 24-pin and PCIe leads, 750 mm and 550 mm for the EPS leads, and up to 600 mm for SATA chains. The floppy adapter is also supplied. Removing unused cables improves airflow and simplifies routing in dense builds.
Check clearance and connectors
The power supply is 180 mm long; verify the case allows that depth with cables bent. Confirm the motherboard needs both an 8-pin and a 4-pin EPS socket if dual CPU power is required. Ensure the graphics cards use 6+2-pin PCIe plugs and that the mains supply sits within the 90–264 V, 47–63 Hz input range.
Highlights
- 80 PLUS Titanium efficiency cuts waste heat across the 10 to 100 per cent load range
- Single 125 A +12 V rail feeds every GPU and CPU without rail balancing
- 100 per cent modular cables keep the build tidy and airflow clear
- 135 mm fan runs semi-fanless at low load for silent operation
- Japanese capacitors rated for 100000 hour MTBF deliver 24/7 reliability at 50 °C
Specifications
| Brand | SilverStone |
|---|---|
| Model | PS-ST1500-TI |
| Type | ATX12V |
| Maximum Power | 1500 W |
| Fans | 1 x 135mm silent fan |
| PFC | Active |
| Main Connector | 20+4Pin |
| +12V Rails | Single |
| PCI-Express Connector | 8 x 6+2-Pin |
| SATA Power Connector | 16 |
| Max PSU Length | 180 mm |
| Efficiency | 90% ~ 94% at 10% ~ 100% loading |
| Energy-Efficient | 80 PLUS TITANIUM Certified |
| Over Voltage Protection | Yes |
| Overload Protection | Yes |
| Input Voltage | 90 - 264 V |
| Input Frequency Range | 47 - 63 Hz |

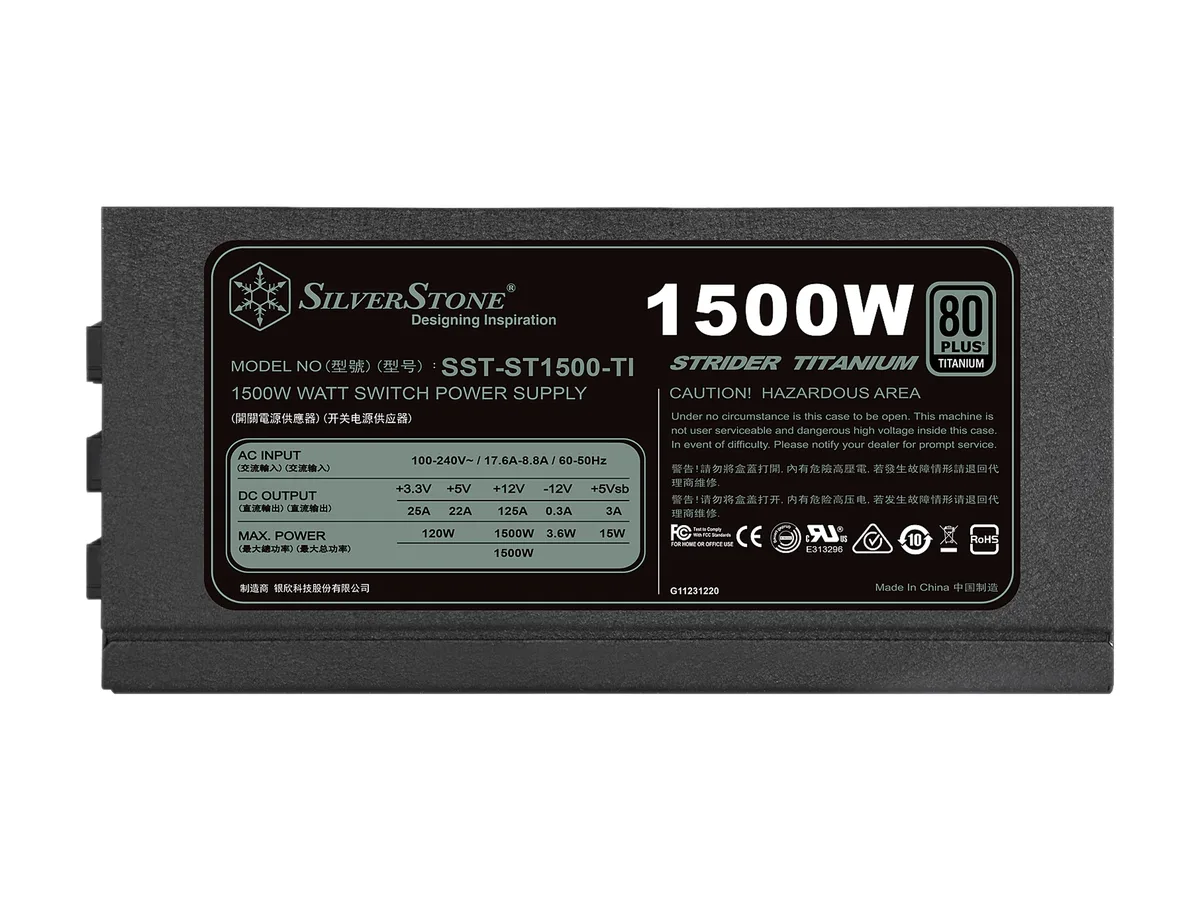

| Output | +3.3V@25A, +5V@22A, +12V1@125A, [email protected] , [email protected] |
| MTBF | >100,000 Hours |
| Connectors | 1 x 24 / 20-Pin motherboard connector (550mm) 1 x 8 / 4-Pin EPS / ATX 12V connector (750mm) 1 x 8 / 4-Pin EPS / ATX 12V connector (550mm) 8 x 8 / 6-Pin PCIE connector (550mm x 8) 16 x SATA connector ("600mm / 150mm / 150mm / 150mm" x 4) 6 x 4-Pin Peripheral connector ("600mm / 150mm / 150mm" x 2) 1 x 4-Pin Floppy adapter connector (100mm) |
| Features | Top-level efficiency with 80 PLUS Titanium certification All Japanese capacitors 100% modular cables 24/7 continuous power output with 50 degree C operating temperature Class-leading single +12V rail Strict +/- 3% voltage regulation and low ripple & noise Dual EPS 8pin with multiple PCI-E 8 / 6pin connectors support Ultra silent 135mm fan with intelligent semi-fanless operation Operating temperature: 0 ~ 50 degree C |
| Dimensions | 5.91" x 3.39" x 7.09" |
| Weight | 8.73 lbs. |
| Shipping weight | 4.91 kg |
| Package size | 366 × 239 × 132 mm |
Questions about this item
How often will the 135 mm fan need cleaning or replacement?
The unit uses a single 135 mm fan rated for continuous operation at 50 °C; with an MTBF above 100,000 hours the fan should last many years, and only occasional dust removal is required.
What limits sustained output before the protection circuits engage?
The single +12 V rail delivers up to 125 A; overload protection activates if that current or the 1500 W total is exceeded.
How loud and hot does the 135 mm fan get during all-day 1500 W loads?
The semi-fanless design keeps the fan off at low load; under full load it runs at 50 °C ambient while maintaining 90 to 94 percent efficiency, so waste heat and noise stay low.
