Black low-profile CPU cooler with 60mm fan and copper heat pipes on aluminum fins

Silverstone

Silverstone SST-AR09-115XS 60mm 2 Ball CPU cooler

SKU CH-DB07-NJYM7 MPN SST-AR09-115XS

Compact 60mm dual ball-bearing PWM cooler with three 6mm copper heat-pipes and aluminium fins, fits Intel LGA 1150/1151/1155/1156 sockets in a 66mm height

  • ColorBlack
  • TypeFan & Heatsinks
  • Fan Size60mm
  • CPU Socket CompatibilityIntel LGA 1150 / Intel LGA 1151 / Intel LGA 1155 / Intel LGA
  • Bearing Type2 Ball
  • RPM1200 - 5000 RPM

Model AR09-115XS

  • Low-profile 66 mm height fits compact Intel LGA 1150/1151/1155/1156 builds
  • 60 mm dual ball-bearing PWM fan spins 1200–5000 RPM for scalable airflow
  • Airflow range of 6.7–27.9 CFM matches cooling to load
  • Acoustic range of 18.02–42.5 dBA keeps noise proportional to speed

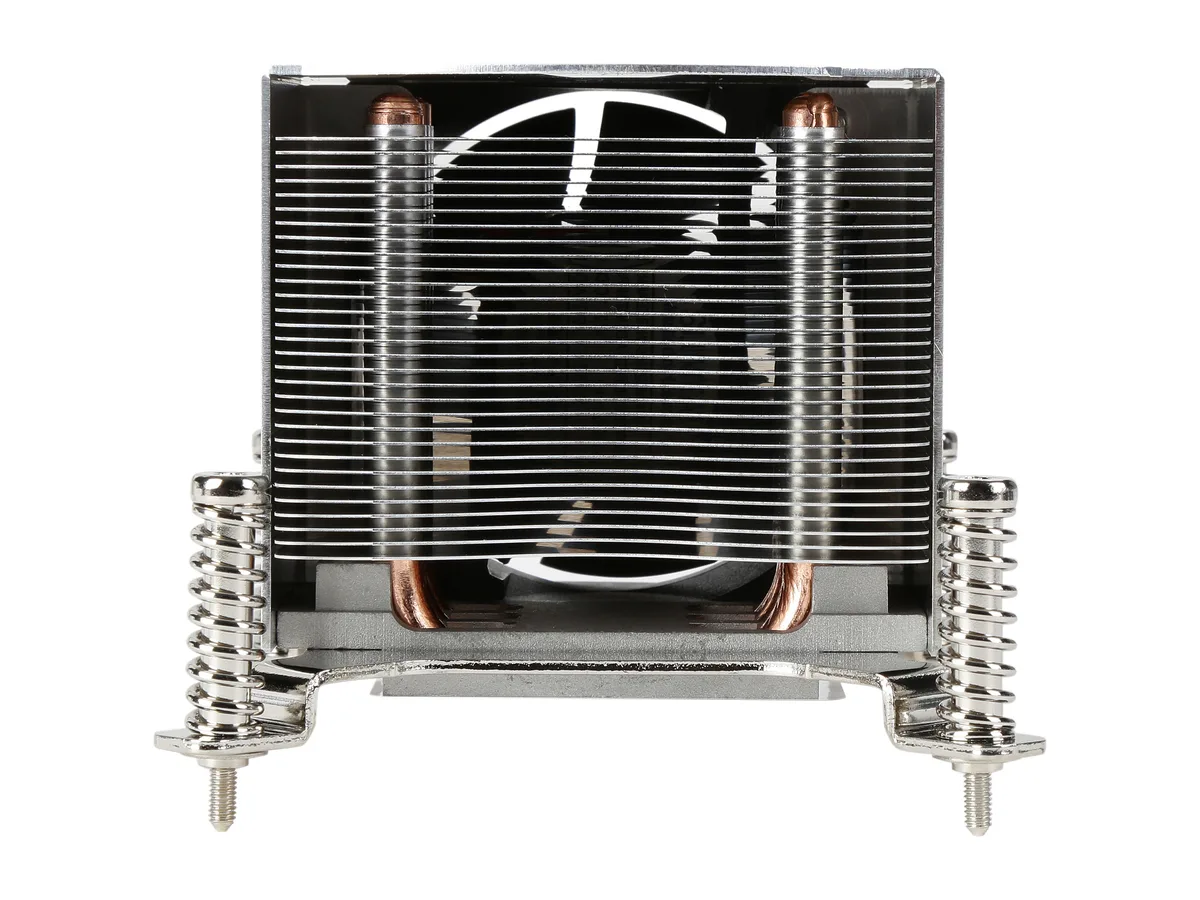

  • Copper heat pipes with aluminium fins transfer heat directly from the CPU

Compact Intel LGA Cooler

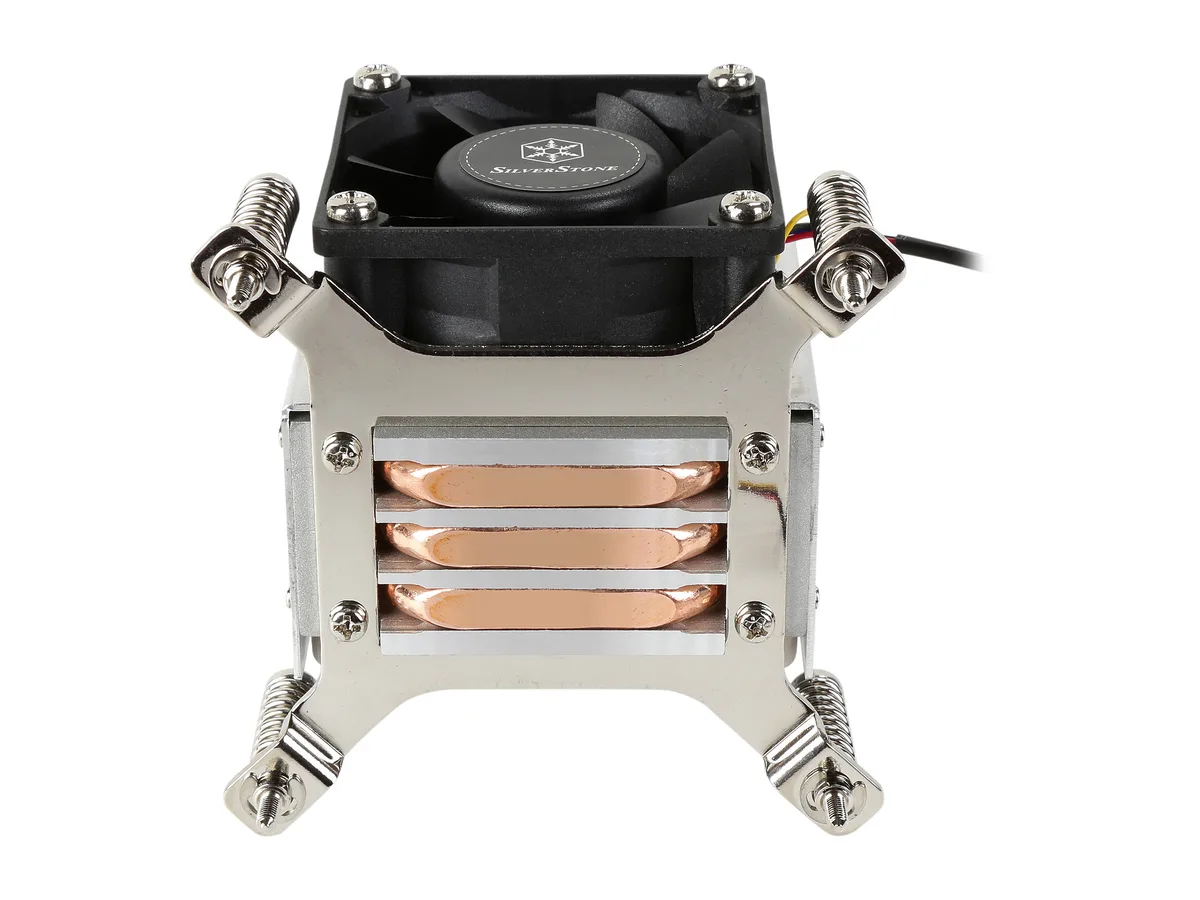

The Silverstone Argon SST-AR09-115XS is a low-profile air cooler built for Intel LGA 1150, 1151, 1155 and 1156 sockets. Three 6 mm copper heat-pipes make direct contact with the CPU lid, moving heat into a dense aluminium fin stack. A 60 mm dual ball-bearing PWM fan spins between 1200 and 5000 RPM to match thermal load.

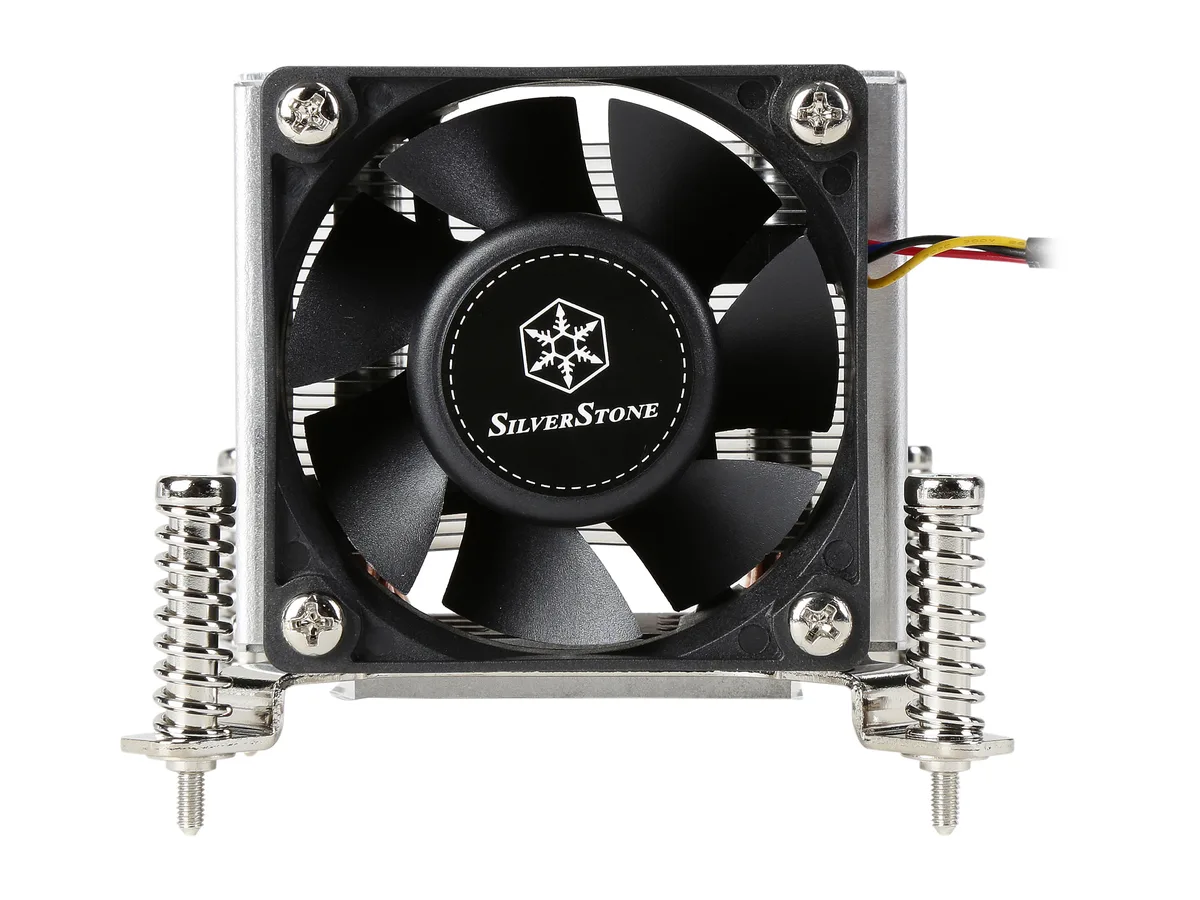

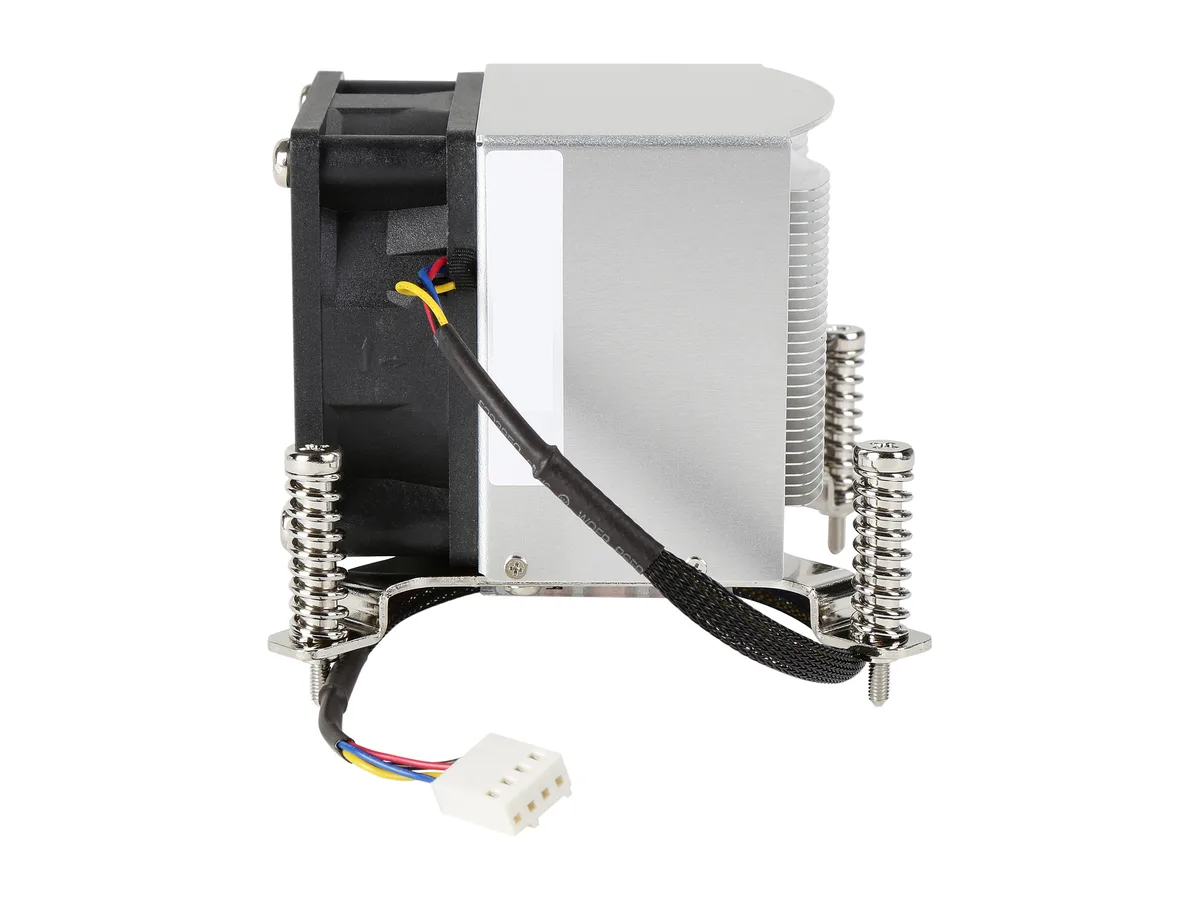

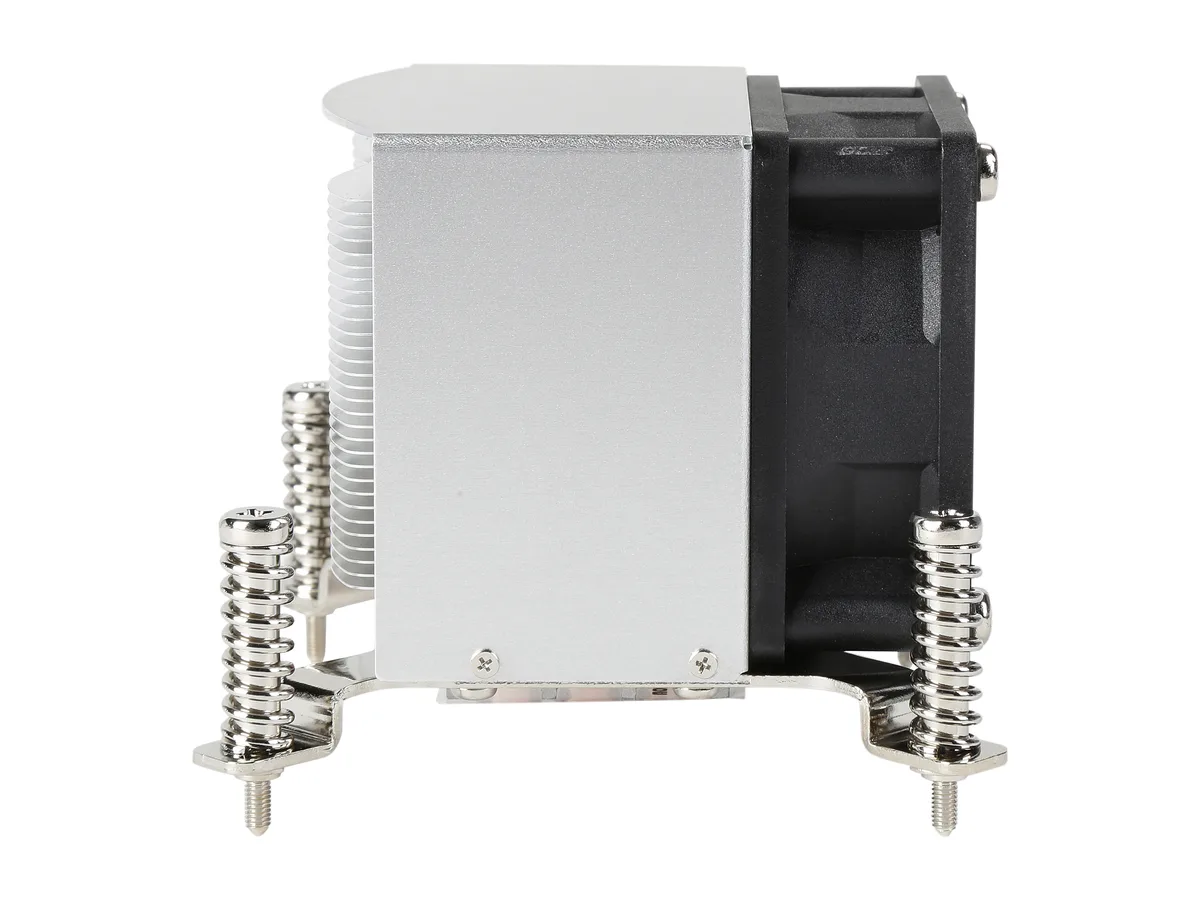

Vertical 60 mm Fan Layout

The fan mounts vertically above the heatsink, drawing air down through the fins and exhausting it toward the motherboard. This orientation keeps the overall height at 66 mm, leaving clearance for slim cases or tight component spacing. Spring-screw brackets with a backplate secure the unit without needing access to the rear of the board.

Spring-Screw Mounting Kit

The bundled spring-screw bracket and backplane apply even pressure across the heat-pipes, improving contact consistency on the supported LGA 115x platforms. Dual ball bearings in the fan motor extend service life compared with sleeve alternatives. No additional brackets or adapters are included for other socket families.

Highlights

  • Low-profile 66 mm height fits compact Intel LGA 1150/1151/1155/1156 builds
  • 60 mm dual ball-bearing PWM fan spins 1200–5000 RPM for scalable airflow
  • Airflow range of 6.7–27.9 CFM matches cooling to load
  • Acoustic range of 18.02–42.5 dBA keeps noise proportional to speed
  • Copper heat pipes with aluminium fins transfer heat directly from the CPU

Specifications

BrandSILVERSTONE
SeriesArgon Series
ModelSST-AR09-115XS
ColorBlack
TypeFan & Heatsinks
Fan Size60mm
CPU Socket CompatibilityIntel LGA 1150 / Intel LGA 1151 / Intel LGA 1155 / Intel LGA 1156
Bearing Type2 Ball
RPM1200 - 5000 RPM
Air Flow6.7 - 27.9 CFM
Noise Level18.02 - 42.5 dBA
Heatsink MaterialCopper heat pipes with aluminum fins
Fan Mounting Types to HeatsinkVertical
Max CPU Cooler Height66 mm
Fan Dimensions60.00mm x 60.00mm x 25.00mm
Heatsink Dimensions88.00m x 66.00mm x 88.00mm (w/ Fan)
Weight0.65 lbs. w/o fan
FeaturesThree 6mm heat-pipes and aluminum fins for excellent heat conducting efficiency
Heat-pipe direct contact (HDC) technology
60mm dual ball bearing PWM fan
Includes spring screw bracket with backplane
Intel LGA1150/1151/1155/1156 compatible
Shipping weight0.42 kg
Package size119 × 109 × 107 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much clearance above the motherboard does the 66 mm cooler height leave for RAM or VRM heatsinks?

The cooler stands 66 mm tall, so any component taller than that will interfere; measure your tallest module before installing.

What noise level should I expect from the 60 mm dual ball bearing PWM fan when it runs at 5000 RPM under sustained load?

At maximum speed the fan reaches 42.5 dBA, which is audible in a quiet room but typical for a compact 60 mm cooler.

Which Intel sockets does the included spring-screw bracket with backplane support out of the box?

The mounting kit covers LGA 1150, 1151, 1155 and 1156; no additional hardware is needed for those platforms.
