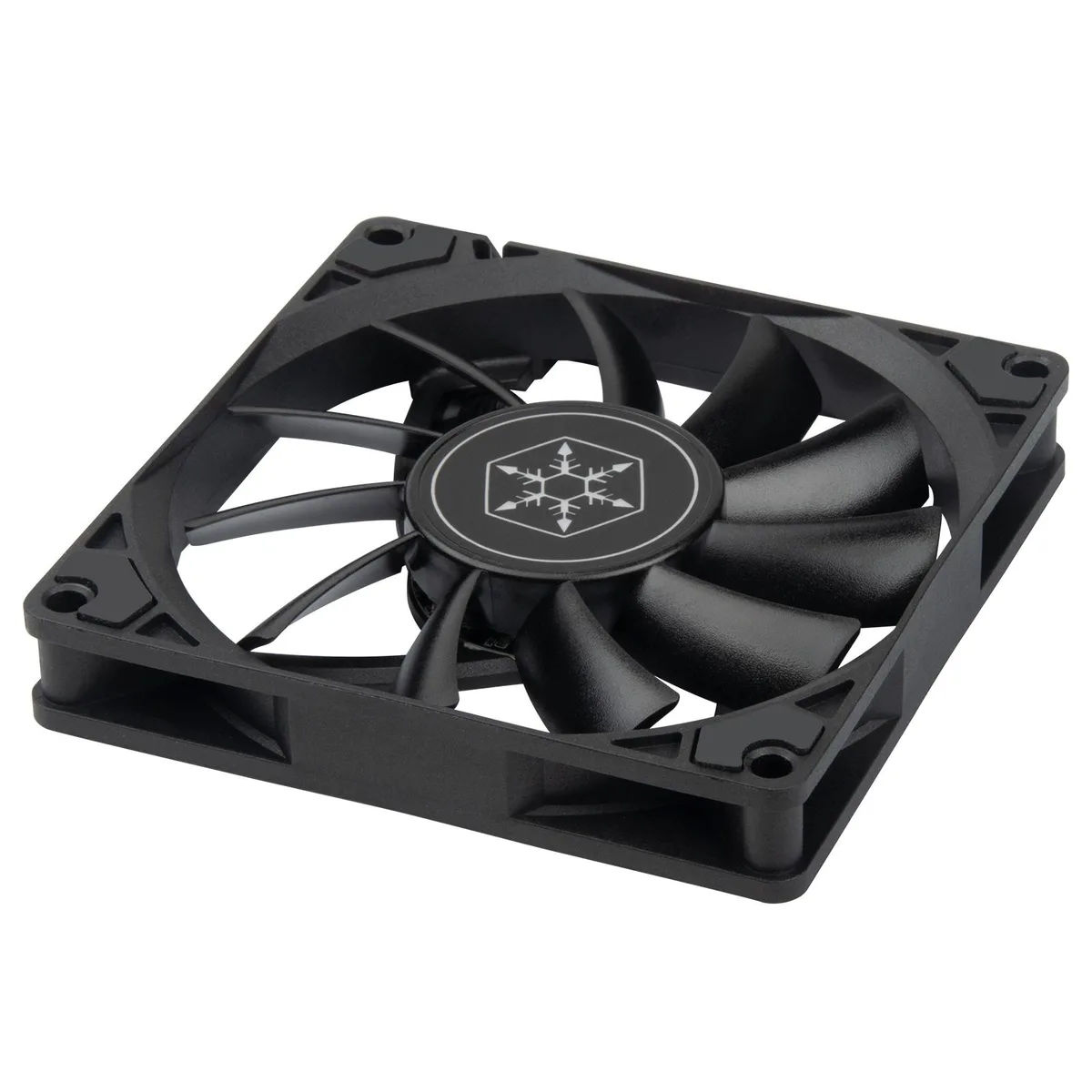

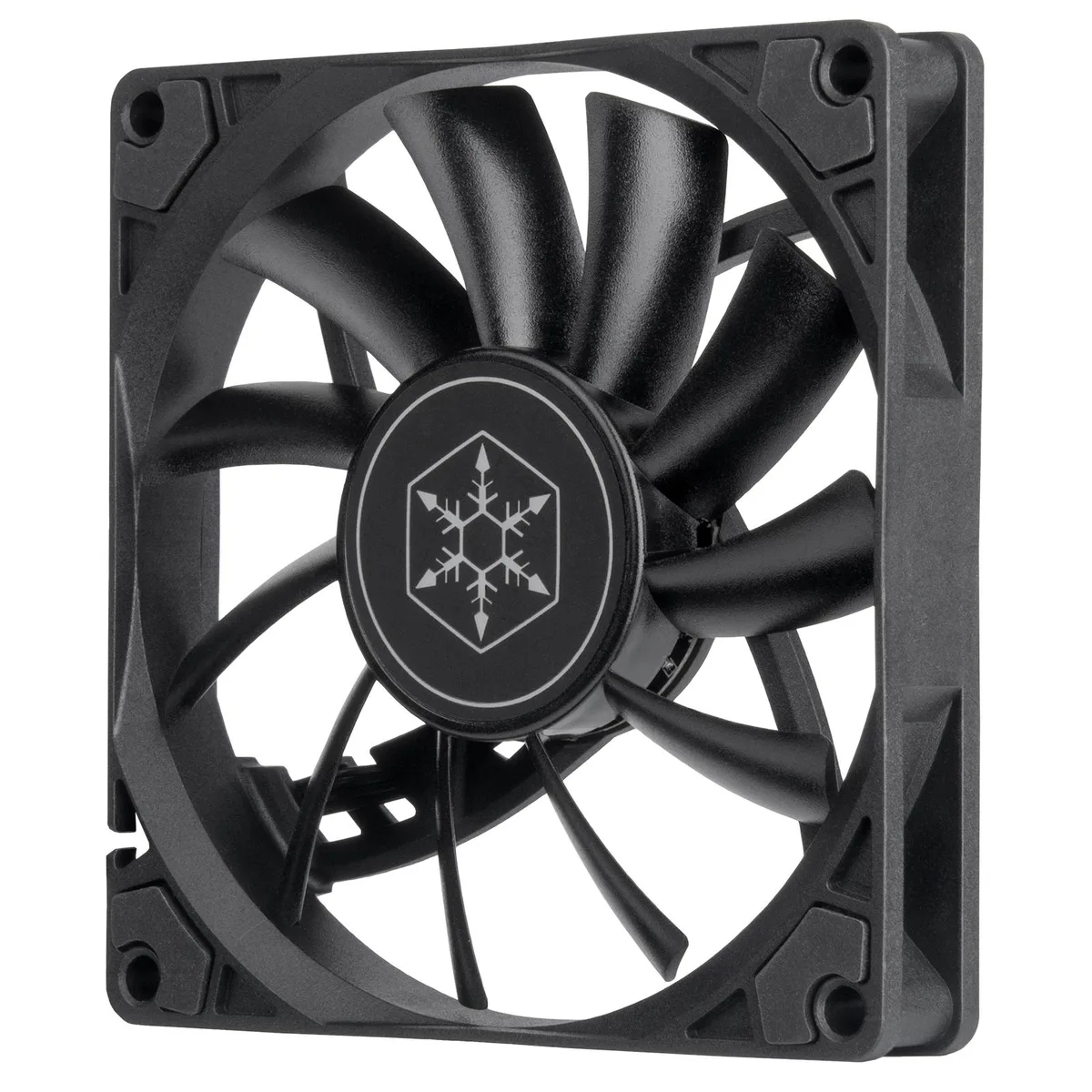

Black 92mm slim case fan, 15.2mm thick, non-LED, four-pin PWM, rubber corner pads

Silverstone Technology

Silverstone Technology AS90B 92mm 15.2mm case fan

SKU CH-9FZ4-WV7F2 MPN AS90B

A 92 mm slim case fan 15.2 mm thick with 11 blades, hydraulic bearing, PWM speed control from 500 to 2,500 RPM, airflow of 5.38 to 45.73 CFM and noise of 11.3 to 32 dBA

  • Fan Counts1 Fan
  • TypeCase Fan
  • Fan Size90mm
  • Fan Thickness15mm
  • Bearing TypeHydraulic
  • RPM500~2,500 RPM
  • Slim 15.2 mm profile fits space-limited builds
  • 92 mm fan delivers up to 45.73 CFM airflow
  • PWM speed range 500 to 2500 RPM for flexible control
  • Hydraulic bearing runs as quiet as 11.3 dBA
  • Integrated rubber pads reduce vibrational noise

Slim 92 mm fan for tight builds

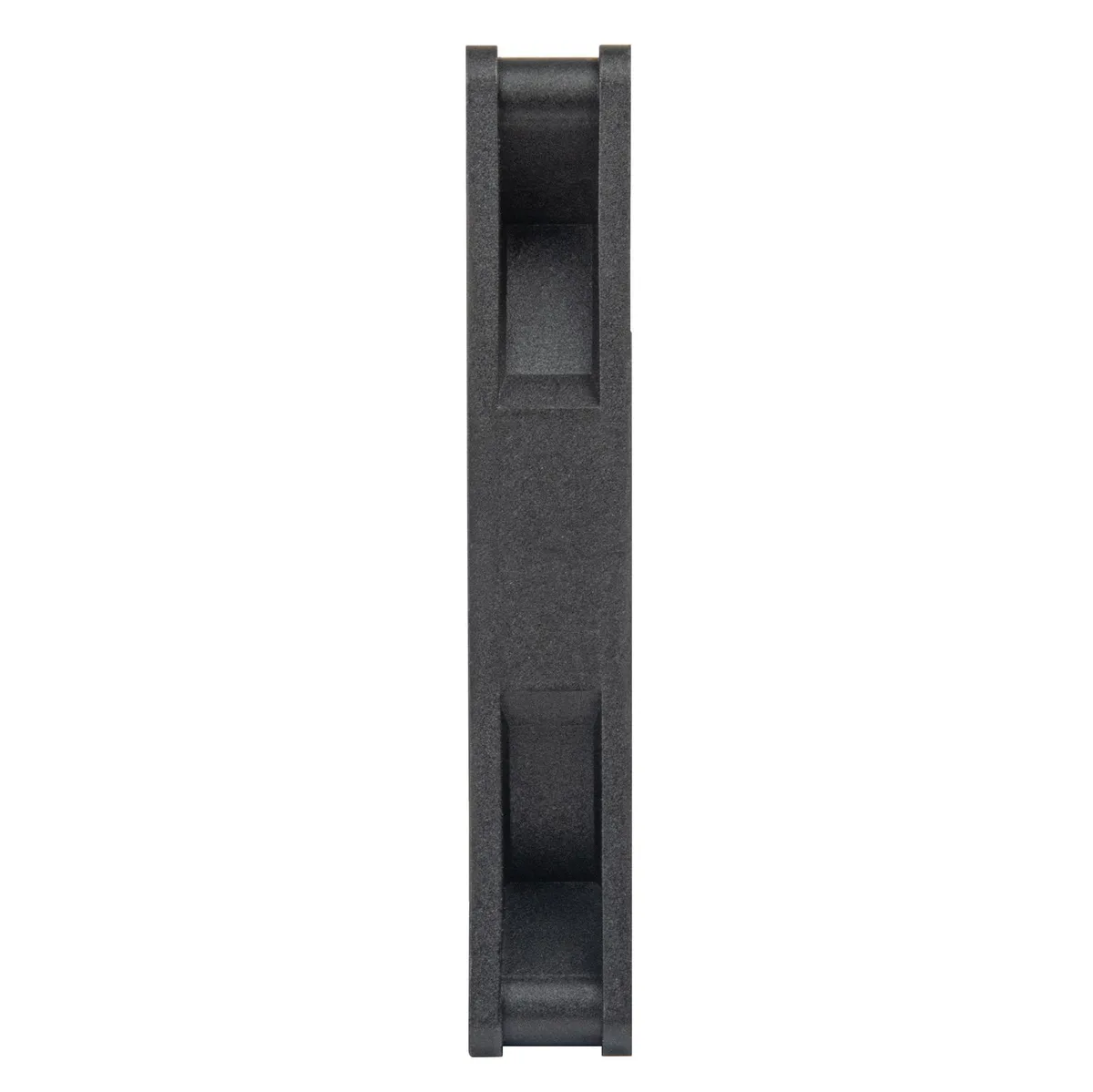

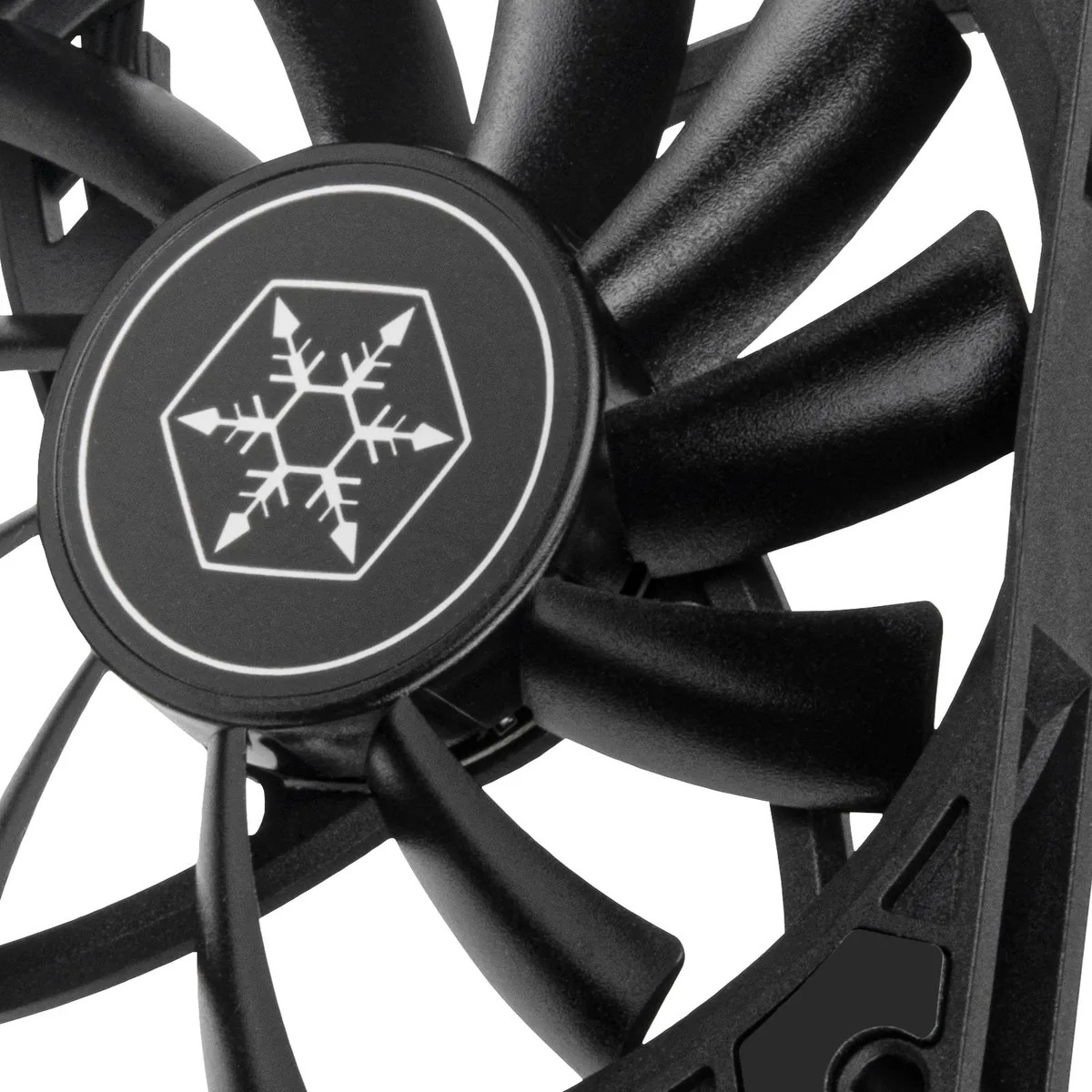

The Silverstone Air Slimmer AS90B is a 92 mm case fan only 15.2 mm thick, designed for compact chassis or heatsink clearance where standard 25 mm fans will not fit. Its hydraulic bearing and eleven blades target both airflow and static pressure for restricted spaces.

PWM range limits low-end airflow

Speed is controlled via a 4-pin PWM connector across a 500 to 2,500 RPM range, delivering 5.38 to 45.73 CFM with noise from 11.3 to 32 dBA. At the minimum RPM the airflow may be insufficient for components that need constant pressure, so the curve must be tuned for the thermal load.

Rubber pads and non-LED black frame

Integrated rubber padding on the mounting corners dampens vibration transmitted to the case or heatsink. The all-black, non-LED frame keeps the appearance neutral for windowed or stealth builds, while the slim profile eases cable routing in dense layouts.

Highlights

  • Slim 15.2 mm profile fits space-limited builds
  • 92 mm fan delivers up to 45.73 CFM airflow
  • PWM speed range 500 to 2500 RPM for flexible control
  • Hydraulic bearing runs as quiet as 11.3 dBA
  • Integrated rubber pads reduce vibrational noise

Specifications

BrandSilverStone
SeriesAir Slimmer
Fan Counts1 Fan
TypeCase Fan
Fan Size90mm
Fan Thickness15mm
Bearing TypeHydraulic
RPM500~2,500 RPM
Air Flow5.38 ~ 45.73 CFM
Noise Level11.3 ~ 32 dBA
Power Connector4 Pin
ColorBlack
LEDNon-LED
Shipping weight2.27 kg
Package size127 × 127 × 127 mm

Questions about this item

Should I pick the 92 mm slim version or a standard 25 mm fan?

The AS90B is 15.2 mm thick, so it fits tight heatsink clearances where a 25 mm fan cannot.

What does the 45.73 CFM peak mean for my CPU temps?

At 2500 RPM the fan moves 45.73 CFM, giving strong airflow through dense fins while staying at 32 dBA.

Does the 4-pin PWM header let the motherboard control the full 500 to 2500 RPM range?

Yes, the 4-pin connector enables PWM control across the entire 500~2500 RPM span.
