Silverstone Technology
Silverstone Technology DA650-G 650W ATX power supply
A fully modular 650 W ATX unit with a single +12 V rail rated at 54 A, 80 PLUS Gold efficiency, a 120 mm FDB fan running at 18 dBA and Japanese capacitors in a 140 mm deep chassis
- ColorBlack
- TypeATX
- Maximum Power650 W
- Fans1 x 120 mm
- PFCActive
- +12V RailsSingle
- 80 PLUS Gold certification ensures high energy efficiency
- Single +12V rail delivers 54A for stable power
- 120mm FDB fan runs at 18 dBA minimum for quiet operation
- All Japanese capacitors provide reliable 24/7 performance at 40°C
- Compact 140mm depth fits easily into small cases

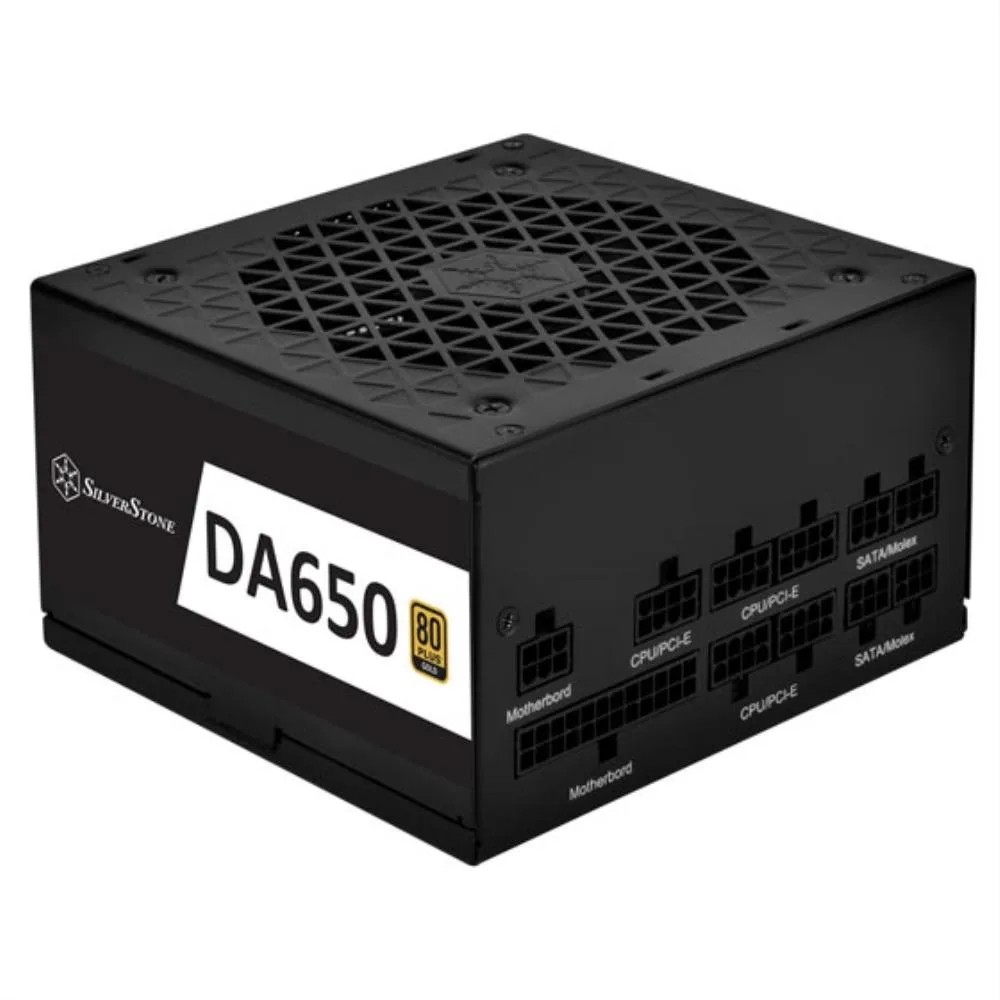

650 W fully modular ATX supply
The Silverstone Technology DA650-G delivers 650 W through a single +12 V rail rated at 54 A. It carries 80 PLUS Gold certification and uses all Japanese capacitors for stable output. A 120 mm FDB fan runs at a minimum of 18 dBA for quiet operation. The unit measures 150 mm deep for broad case compatibility.
Suits builds needing Gold efficiency
This unit fits mid-range systems that value low noise and clean cable routing. The 140 mm depth helps in compact chassis where longer units cannot fit. Builds requiring multiple high-power graphics cards should consider a higher-wattage model. The 24-pin motherboard cable includes a 4-pin sense wire that must be connected for optimal regulation.
Single 54 A +12 V rail decides fit

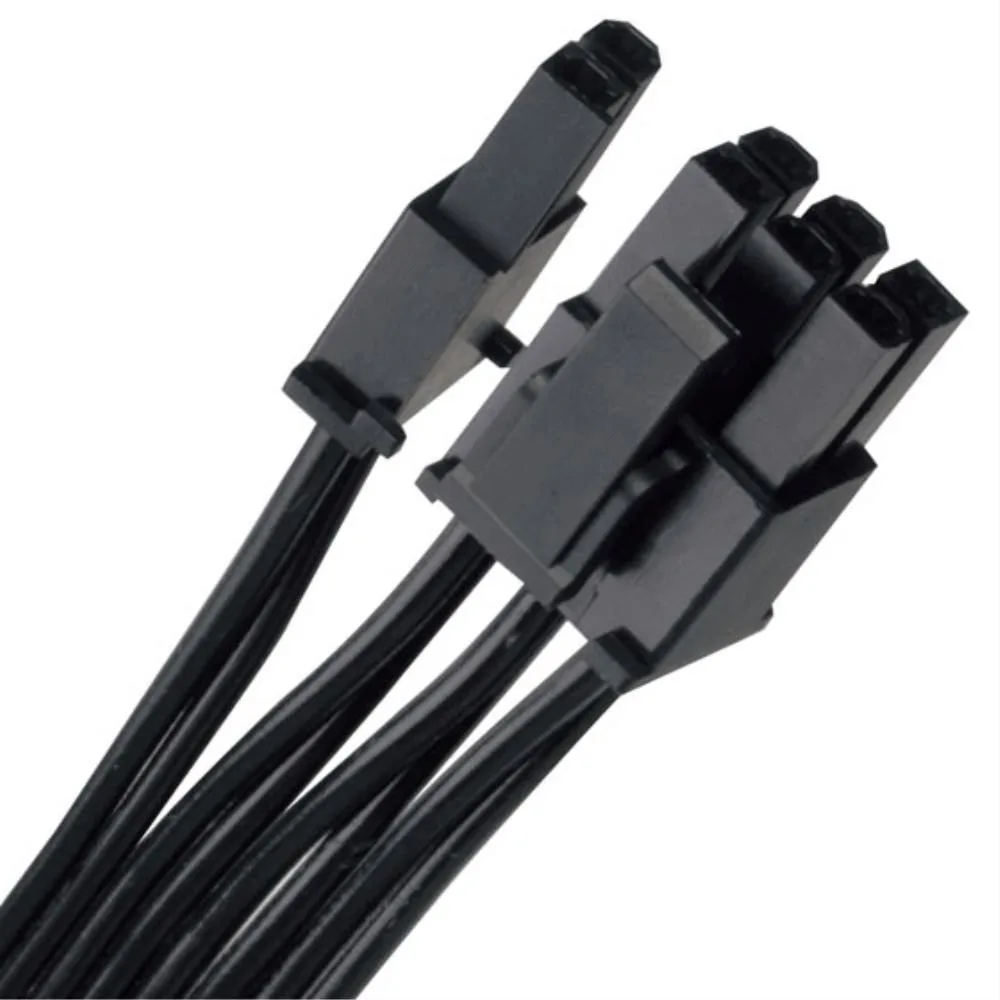

The single +12 V rail provides 54 A of continuous current, which determines how many power-hungry components the supply can support. PCIe cabling includes two 6+2 pin connectors on separate cables and one cable with two 6+2 pin connectors. Two CPU 4+4 pin cables are also supplied. Match this rail capacity to your component draw before purchasing.
Highlights
- 80 PLUS Gold certification ensures high energy efficiency
- Single +12V rail delivers 54A for stable power
- 120mm FDB fan runs at 18 dBA minimum for quiet operation
- All Japanese capacitors provide reliable 24/7 performance at 40°C
- Compact 140mm depth fits easily into small cases
Specifications
| Brand | SilverStone |
|---|---|
| Model | DA650 Gold |
| Part Number | DA650-G |
| Color | Black |
| Type | ATX |
| Maximum Power | 650 W |
| Fans | 1 x 120 mm |
| PFC | Active |
| +12V Rails | Single |
| Max PSU Length | 150 mm |
| Modular | Full Modular |
| Energy-Efficient | 80 PLUS GOLD Certified |
| PSU Noise Level | 18 dBA minimum |
| MTBF | 100,000 hours |

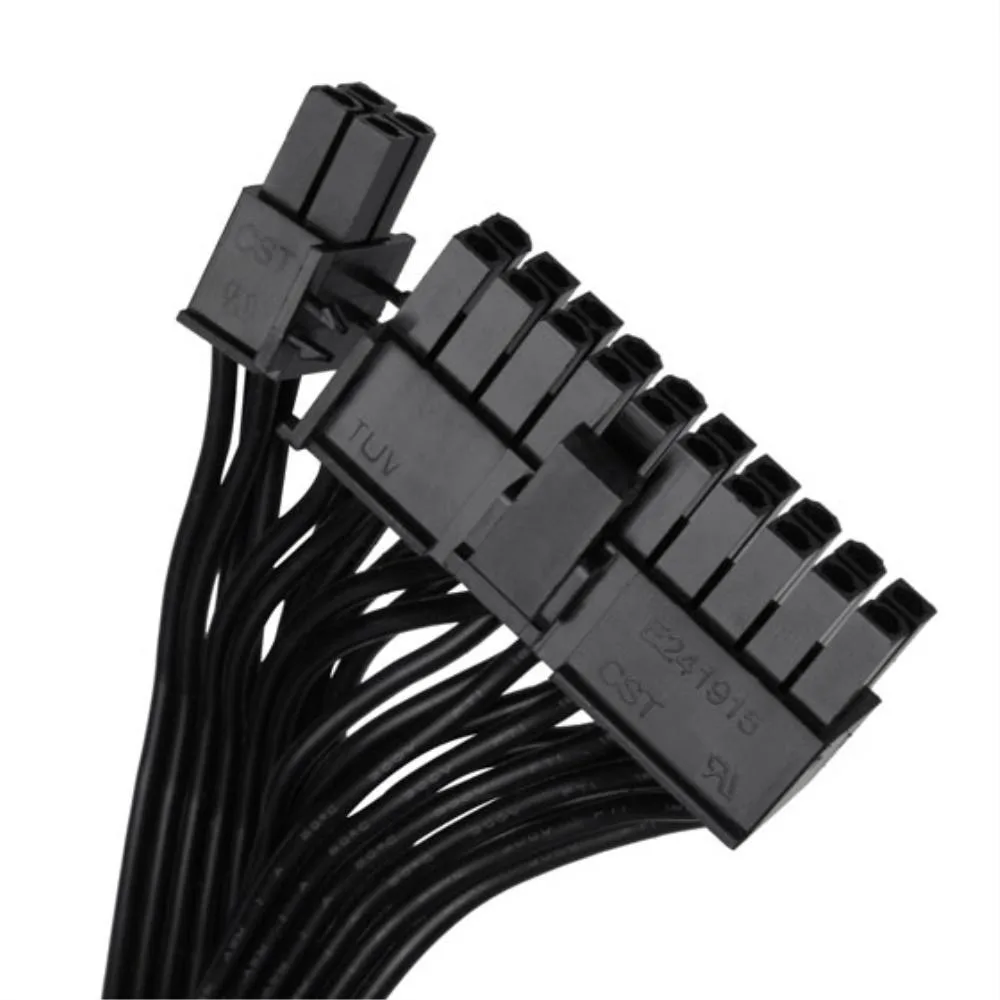

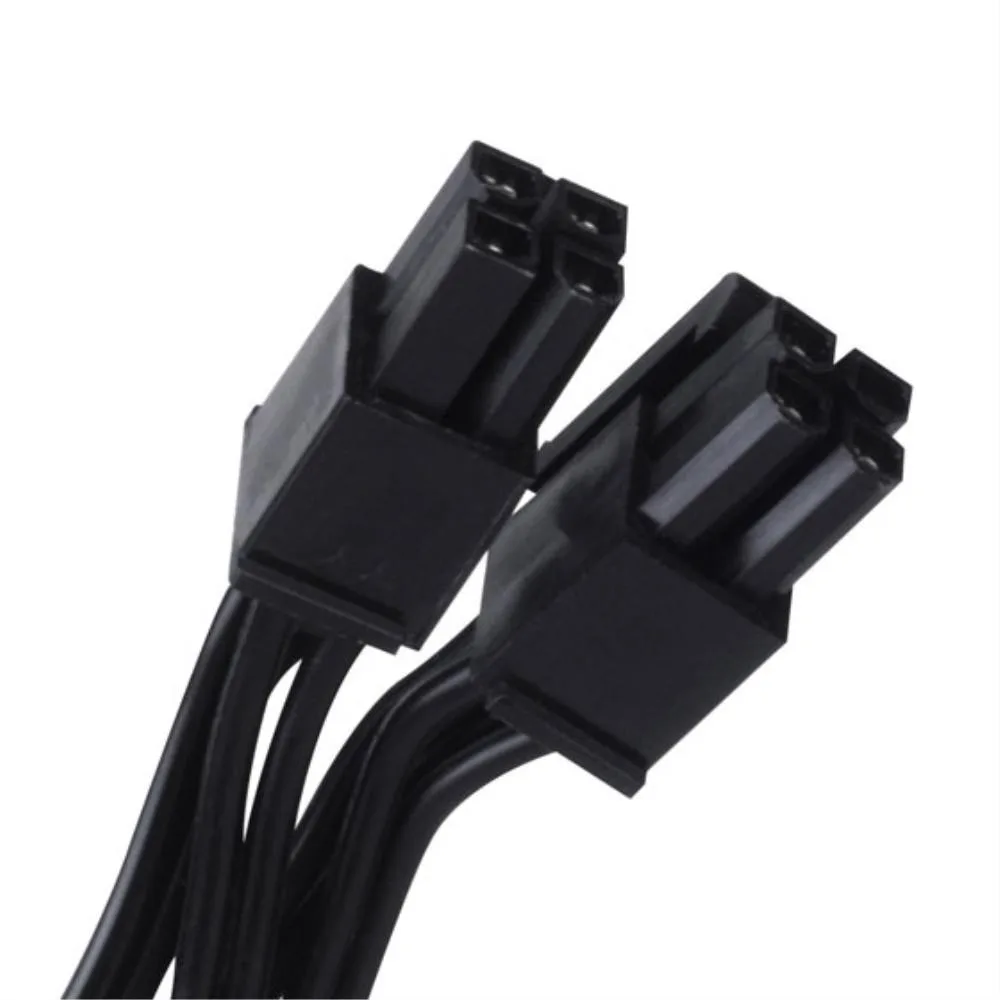

| Cable Spec | 1 x MB 24/20P connector, 600mm (1 connector per cable) 2 x CPU 4+4 connector, 750mm (1 connector per cable) 2 x PCI-E 6+2P connector, 650mm (1 connector per cable) 1 x PCI-E 6+2P connector, 650+150mm (2 connector per cable) 2 x SATA connector, 600+150+150+150mm (4 connector per cable) 1 x Peripheral 4P + 4P Floppy connector, 600+150+150+150mm (3+1 connector per cable) |
| Dimensions | 5.91" x 3.39" x 5.5" |
| Shipping weight | 2.72 kg |
| Package size | 25 × 25 × 25 mm |
Questions about this item
Does my case need to accept a 150 mm deep ATX power supply for the DA650-G to fit?
Yes, the unit is 150 mm long, so the case must support at least that depth for the PSU to install cleanly.
Can the single +12 V rail delivering 54 A power an older graphics card that still uses a 6-pin PCIe connector?
The two included 6+2 pin PCIe cables cover both 6-pin and 8-pin sockets, and the 54 A rail supplies ample current for legacy cards.
How do I confirm the 4-pin sense wire on the 24-pin motherboard cable is doing its job after installation?
Connect the sense wire to the modular socket as shown in the manual; it tightens voltage regulation by roughly 1-2 percent, which you can verify with a multimeter or software monitoring under load.
