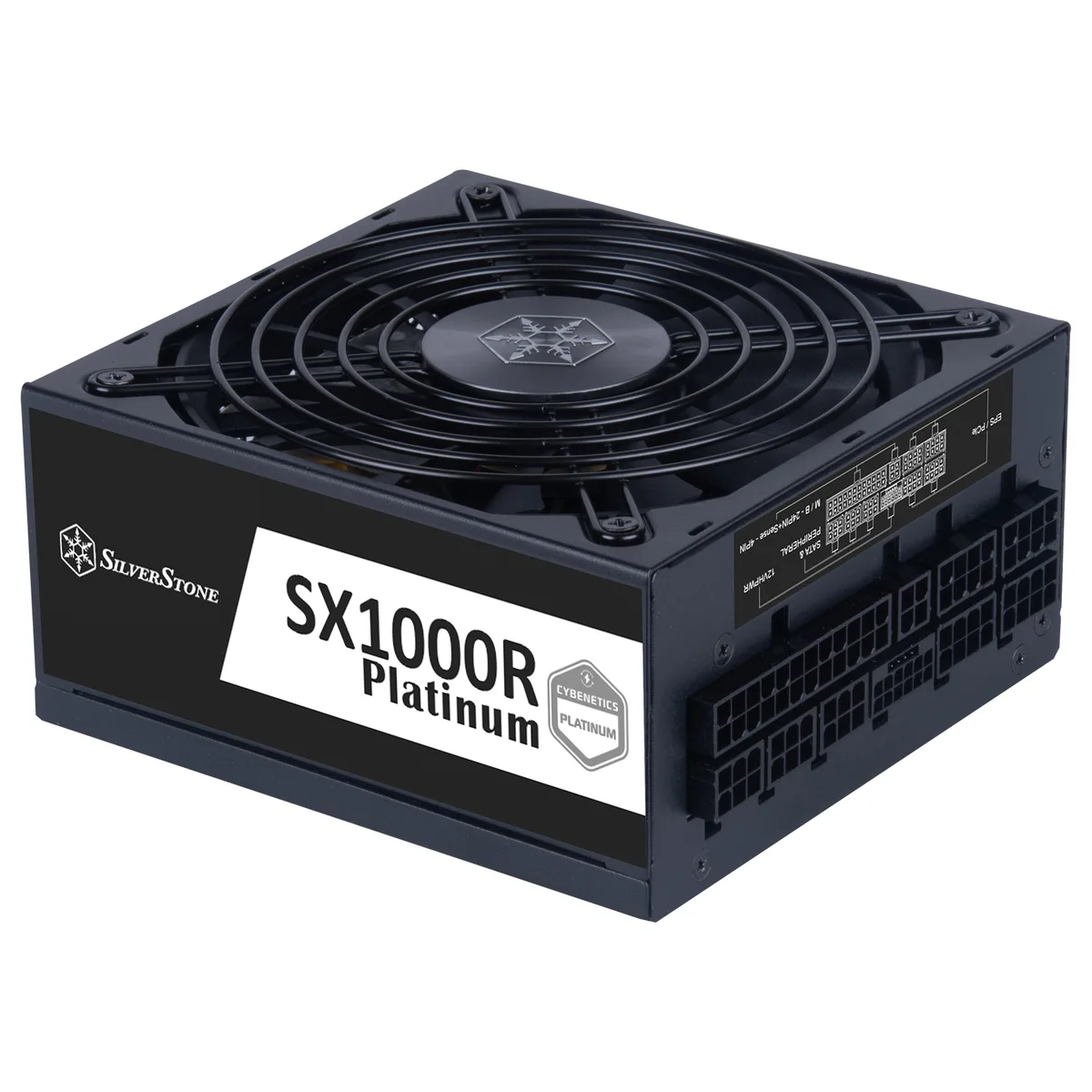

Black SFX-L power supply unit with 120 mm fan and modular cable sockets

Silverstone Technology

Silverstone Technology SX1000R-PL 1000W SFX-L power supply

SKU CH-1A08-SWBRZ MPN SX1000R-PL

A 1000W fully modular SFX-L power supply with Cybenetics Platinum efficiency and a 12VHPWR connector for small-form-factor builds

  • ColorBlack
  • TypeSFX-L
  • Maximum Power1000 W
  • Fans1 x 120 mm
  • PFCActive
  • SATA Power Connector8
  • SFX-L form factor fits compact small form factor builds
  • 1000W continuous output rated for 24/7 operation at 50°C
  • Cybenetics Platinum certification delivers 89%~91% overall efficiency
  • 12VHPWR connector supports SFX12V 4.0 and PCIe 5.0 standard
  • All Japanese capacitors and dual ball bearing 120mm fan with semi-fanless operation

SFX-L 1000W power supply

This SFX-L unit delivers 1000W of continuous power for small form factor computers. It carries Cybenetics Platinum certification and meets SFX12V 4.0 and PCIe 5.0 standards. A single +12V rail provides 83.3A for stable 24/7 operation.

Check case clearance and cable needs

Verify your chassis can accept a 130mm long SFX-L power supply. Confirm the motherboard requires a 24 pin ATX connector and whether the CPU needs one or two 8 pin EPS connectors. Ensure the graphics card uses a 12VHPWR or 8 pin PCIe connector.

Fully modular cables and semi-fanless cooling

All cables detach so you install only the 24 pin ATX, EPS, PCIe, 12VHPWR, SATA, peripheral and floppy leads required. The 120mm dual ball bearing fan runs silently and stops at low load. All Japanese capacitors support long term reliability.

Highlights

  • SFX-L form factor fits compact small form factor builds
  • 1000W continuous output rated for 24/7 operation at 50°C
  • Cybenetics Platinum certification delivers 89%~91% overall efficiency
  • 12VHPWR connector supports SFX12V 4.0 and PCIe 5.0 standard
  • All Japanese capacitors and dual ball bearing 120mm fan with semi-fanless operation

Specifications

BrandSilverStone
ModelSX1000R Platinum
Part NumberSX1000R-PL
ColorBlack
TypeSFX-L
Maximum Power1000 W
Fans1 x 120 mm
PFCActive
SATA Power Connector8
Max PSU Length130 mm
ModularFull Modular
Efficiency89%~91% overall efficiency
Energy-EfficientCybenetics Platinum
ProtectionOver Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Under Voltage Protection
Over Temperature Protection
Input Voltage90 - 264 V
Input Frequency Range47 - 63 Hz
MTBF100,000 Hours
Connectors1 x 12VHPWR (12+4) PCIe / 1 x 24 pin (20+4) ATX / 1 x Floppy / 2 x 8 pin (4+4) EPS (CPU) / 3 x 4 pin Peripheral / 4 x 8 pin (6+2) PCIe / 8 x SATA
Dimensions4.92" x 2.5" x 5.12"
Weight3.06 lbs.
Shipping weight2.72 kg
Package size25 × 25 × 25 mm

Questions about this item

Will this SFX-L unit fit in a case that only accepts standard SFX supplies?

The SFX-L form factor is 130 mm long, which exceeds the 100 mm length of standard SFX. Check your case specifications for SFX-L clearance before ordering.

Can I power a modern graphics card that requires the 12VHPWR connector?

Yes. One native 12VHPWR (12+4) cable is included, compliant with the SFX12V 4.0 and PCIe 5.0 standards.

Is the fan always spinning or does it stop under light loads?

The 120 mm dual ball-bearing fan features a semi-fanless mode that stops the fan at low load and temperature for silent operation.
