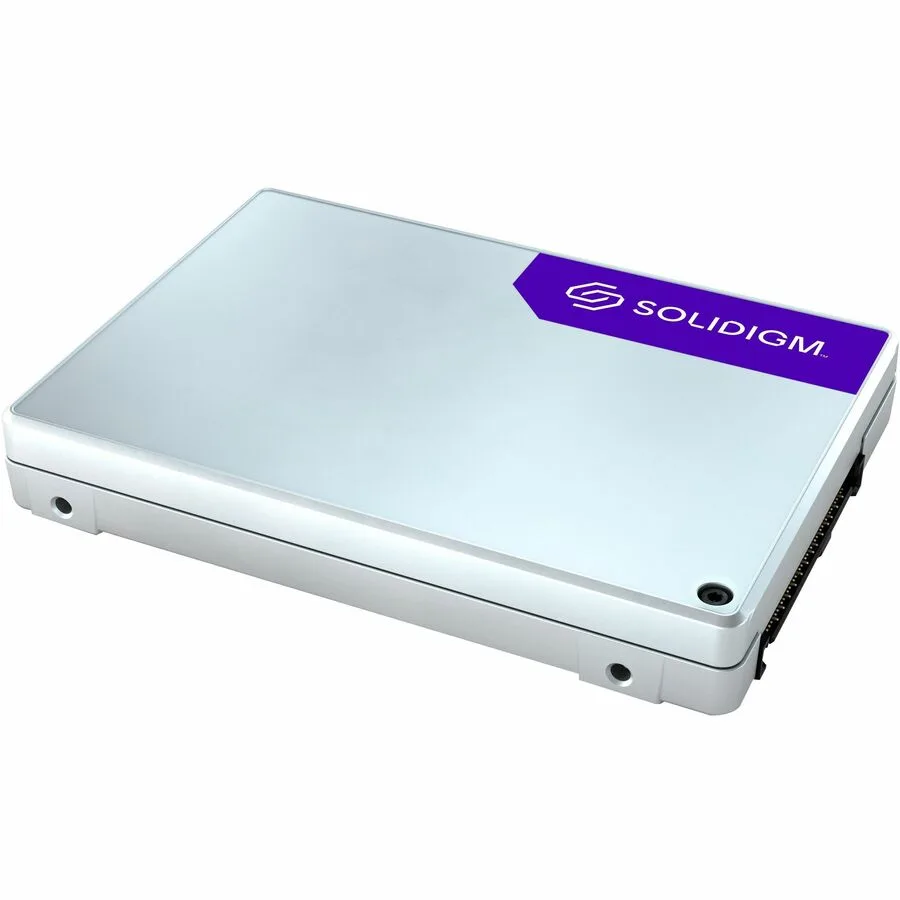

Rectangular U.2 15mm enterprise SSD with silver metal casing and gold edge connector

Solidigm

Solidigm D7-P5520 3.84TB U.2 15mm enterprise SSD SSDPF2KX038T1OS

SKU CH-274V-AXYM7 MPN SSDPF2KX038T1OS

3.84TB U.2 15mm enterprise SSD with PCIe 4.0 x4, 144L TLC 3D NAND and Opal security for data centres

  • Form FactorU.2 15mm
  • Capacity3.84TB
  • Memory Components144L TLC 3D NAND
  • InterfacePCI-Express 4.0
  • MTBF2,000,000 hours
  • SecurityOpal

Options 3.84TB, U.2 15mm, OPAL

Show 2 more configurations
  • 84TB capacity stores massive enterprise datasets
  • 144L TLC 3D NAND delivers high-density endurance
  • PCIe 4.0 x4 interface enables fast data throughput
  • 2,000,000 hours MTBF supports continuous server operation
  • 1,000 G shock resistance protects data in harsh environments

Solidigm D7-P5520 3.84TB U.2 enterprise SSD

This Solidigm D7-P5520 is a 3.84TB enterprise solid-state drive built for data-centre servers. It uses a U.2 15mm form factor and connects through a PCI-Express 4.0 interface with 144L TLC 3D NAND. The drive carries a 2,000,000-hour MTBF rating and supports Opal security encryption.

Suits high-capacity server storage.

This drive suits administrators who need high-capacity, reliable storage for server arrays and heavy read workloads. Builders working in standard desktop chassis or laptops should look elsewhere because the U.2 15mm form factor requires specific backplane support and physical clearance not found in consumer systems.

Deciding spec: U.2 15mm form factor with PCIe 4.0 x4

The single specification that decides fitment is the U.2 15mm form factor combined with the PCI-Express 4.0 interface. Your server backplane must accept a 15mm-thick 2.5-inch U.2 drive and provide a PCIe 4.0 x4 link; without that exact mechanical and electrical match the drive cannot be installed or will run at reduced capability.

Highlights

  • 84TB capacity stores massive enterprise datasets
  • 144L TLC 3D NAND delivers high-density endurance
  • PCIe 4.0 x4 interface enables fast data throughput
  • 2,000,000 hours MTBF supports continuous server operation
  • 1,000 G shock resistance protects data in harsh environments

Specifications

BrandSolidigm
SeriesD7-P5520
ModelD7-P5520
Form FactorU.2 15mm
Capacity3.84TB
Memory Components144L TLC 3D NAND
InterfacePCI-Express 4.0
MTBF2,000,000 hours
SecurityOpal
Max Shock Resistance1,000 G (Max) at 0.5 msec
Max Vibration ResistanceOperating: 2.17 GRMS (5 - 700 Hz) Max
Non-Operating: 3.13 GRMS (5 - 800 Hz) Max
Shipping weight0.17 kg
Package size432 × 313 × 140 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What sustained write workload hits the drive endurance limit first?

The 3.84TB drive uses 144L TLC 3D NAND rated for 2000000 hours MTBF under enterprise workloads.

How much heat does the U.2 15mm drive add to a server running all day?

The PCIe 4.0 x4 interface and 144L TLC NAND operate within standard enterprise thermal envelopes for 2.5 inch 15mm bays.

Which server backplane connector must my chassis provide for this drive to work?

The drive requires a U.2 backplane that accepts a 15mm 2.5 inch form factor and supplies PCIe 4.0 x4 signalling.
