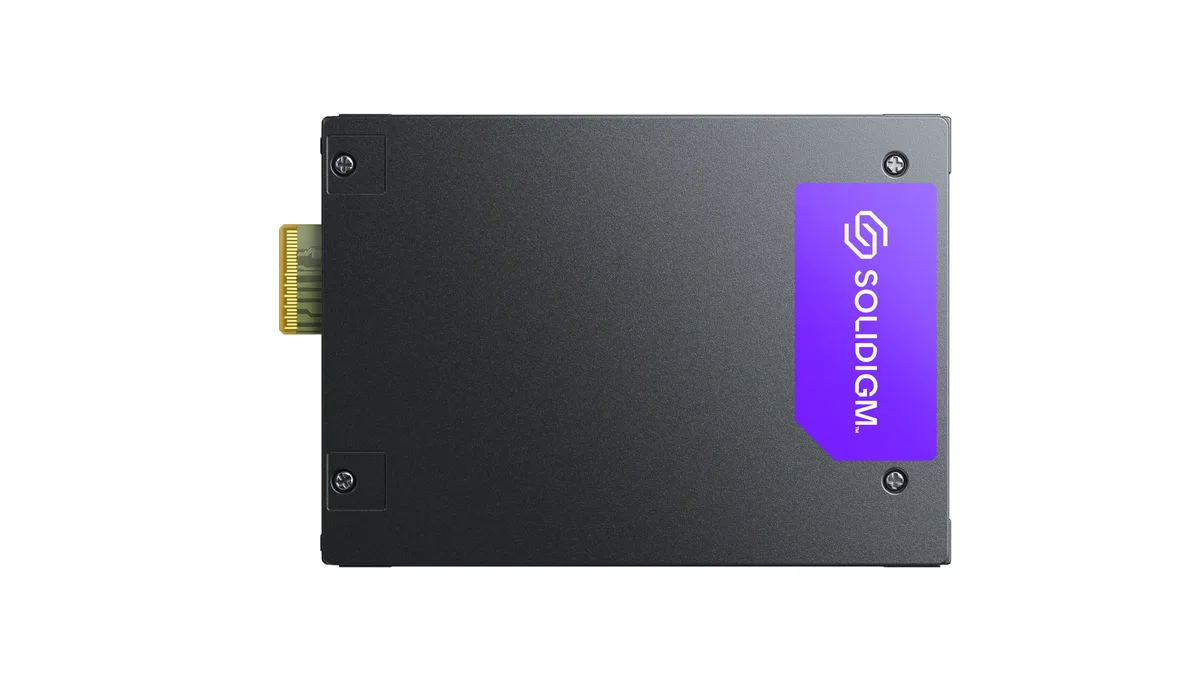

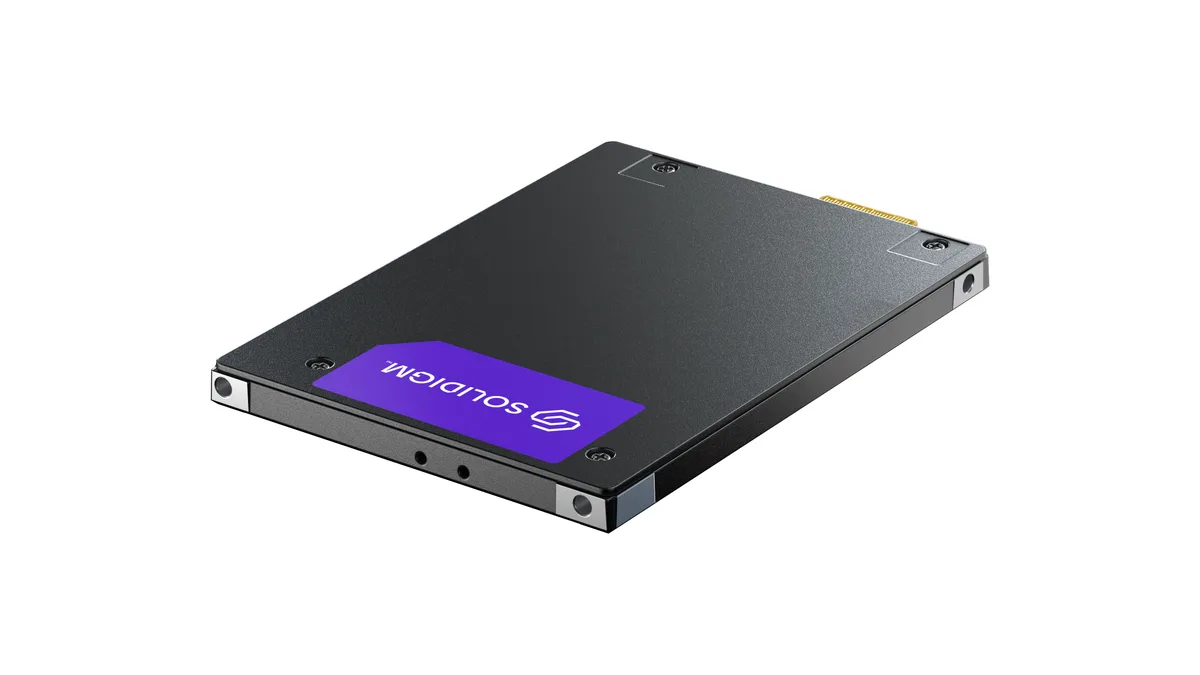

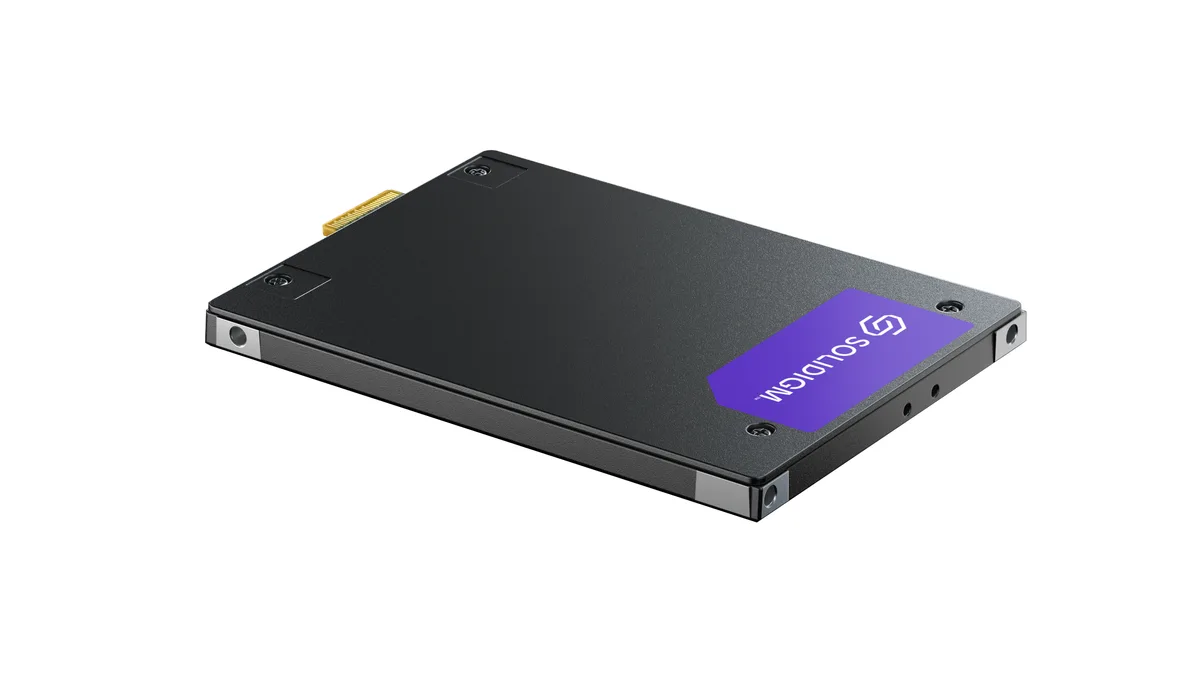

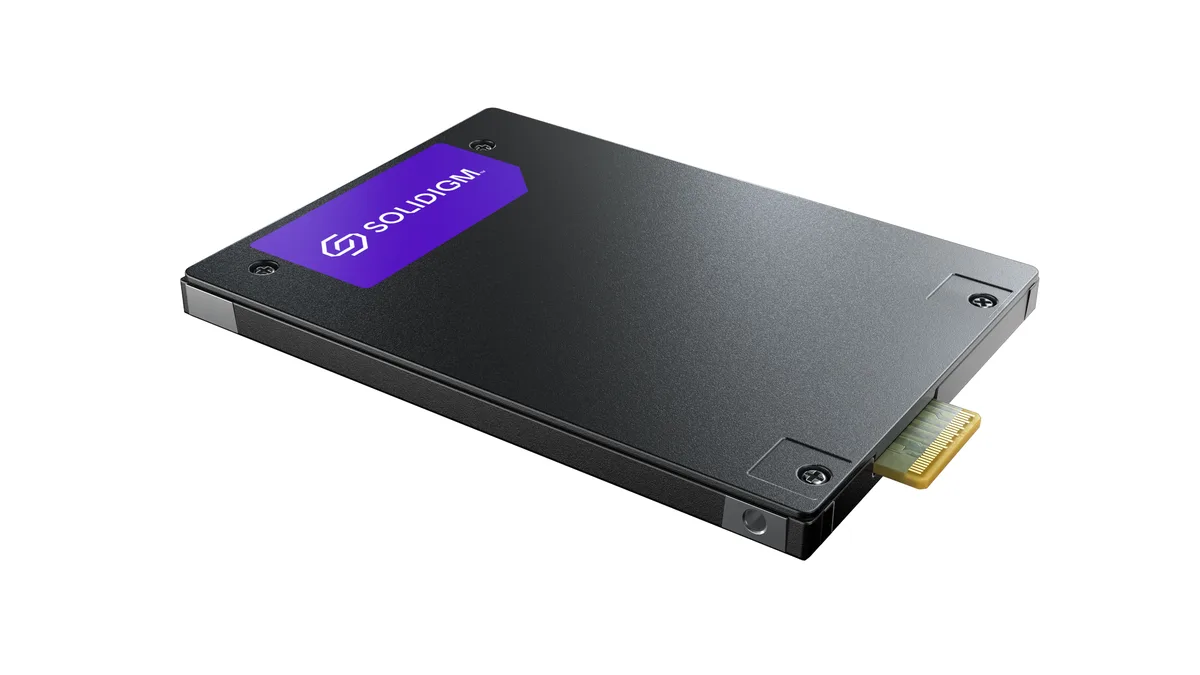

Thin rectangular E3.S 7.5mm SSD with silver metal casing and gold edge connector

Solidigm

Solidigm SB5PHA7E016T001 enterprise SSD 1.6TB E3.S 7.5mm PCIe 5.0 x4

SKU CH-KYM5-VAQFC MPN SB5PHA7E016T001

E3.S 7.5mm enterprise SSD delivering 1.6TB of 176L TLC storage with PCIe 5.0 speeds up to 14500 MBps read and 4100 MBps write

  • Form FactorE3.S 7.5mm
  • Capacity1.6TB
  • Memory Components176L TLC 3D NAND
  • InterfacePCI-Express 5.0
  • Max Sequential ReadUp to 14500 MBps
  • Max Sequential WriteUp to 4100 MBps

Option 1.6TB E3.S

  • 1.6TB E3.S
  • 1.6TB E3.S FIPS
  • 1.6TB E3.S Opal
  • 1.6TB U.2
  • 1.6TB U.2 FIPS
  • 1.6TB U.2 Opal
  • 12.8TB E3.S
  • 12.8TB E3.S FIPS
  • 12.8TB E3.S Opal
  • 12.8TB U.2
  • 12.8TB U.2 FIPS
  • 12.8TB U.2 Opal
  • 3.2TB E3.S
  • 3.2TB E3.S FIPS
  • 3.2TB E3.S Opal
  • 3.2TB U.2
  • 3.2TB U.2 FIPS
  • 3.2TB U.2 Opal
  • 6.4TB E3.S
  • 6.4TB E3.S FIPS
  • 6.4TB E3.S Opal
  • 6.4TB U.2
  • 6.4TB U.2 FIPS
  • 6.4TB U.2 Opal

Struck-through versions exist but are not stocked here.

  • 6TB capacity supports dense server storage
  • PCIe 5.0 x4 interface delivers up to 14500 MBps sequential read
  • 176L TLC 3D NAND enables 2350000 IOPS random read performance
  • 3 DWPD endurance rating provides 8.7 PBW total writes
  • 5W idle and 17W active power draw reduces thermal load

E3.S 7.5mm enterprise SSD for dense servers

The Solidigm D7-PS1030 delivers 1.6TB of storage in the E3.S 7.5mm form factor using PCI-Express 5.0. It targets data-centre operators who need high-capacity flash in a slim, hot-pluggable module. The drive employs 176L TLC 3D NAND rated for three drive writes per day.

Thermals noise and power in normal use

Idle power sits at 5W while active power reaches 17W under load. The operating temperature range spans 0°C to 77°C without a specified acoustic rating. Shock tolerance is rated at 1,000 G for 0.5 msec and vibration tolerance at 2.17 GRMS across 5 to 700 Hz during operation.

No bundled accessories or software included

The single-pack shipment contains only the drive itself; no mounting hardware, cables or management utilities are supplied. Buyers who need brackets, thermal pads or proprietary firmware tools must source them separately. The drive carries a 2,500,000-hour MTBF and 8.7 PBW endurance rating.

Highlights

  • 6TB capacity supports dense server storage
  • PCIe 5.0 x4 interface delivers up to 14500 MBps sequential read
  • 176L TLC 3D NAND enables 2350000 IOPS random read performance
  • 3 DWPD endurance rating provides 8.7 PBW total writes
  • 5W idle and 17W active power draw reduces thermal load

Specifications

BrandSolidigm
ModelD7-PS1030
Part NumberSB5PHA7E016T001
Form FactorE3.S 7.5mm
Capacity1.6TB
Memory Components176L TLC 3D NAND
InterfacePCI-Express 5.0
Max Sequential ReadUp to 14500 MBps
Max Sequential WriteUp to 4100 MBps
4KB Random Read2350000 IOPS (4K Blocks)
4KB Random Write350000 IOPS (4K Blocks)
Endurance3 DWPD / 8.7 PBW
MTBF2,500,000 hours
Power Consumption (Idle)5W
Power Consumption (Active)17W
Operating Temperature0°C to 77°C
Max Shock Resistance1,000 G (Max) at 0.5 msec
Max Vibration ResistanceOperating: 2.17 GRMS (5 - 700 Hz) Max
Non-Operating: 3.13 GRMS (5 - 800 Hz) Max
Weight110g +/- 10g
Shipping weight0.17 kg
Package size140 × 110 × 17 mm

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install the E3.S 7.5mm drive and what step is often missed?

Slide the drive into the E3.S bay until the connector seats fully, then secure it with the single retention screw; the step most often missed is tightening that screw, which keeps the PCIe 5.0 x4 link stable under vibration.

What maintenance or replacement will the 176L TLC NAND need later?

The drive is rated for 3 DWPD and 8.7 PBW total writes; once that endurance budget is consumed the NAND can no longer guarantee data retention and the drive must be replaced.

What limit appears first during sustained heavy writes?

The sequential write ceiling of 4100 MBps is reached before the 17 W active power envelope or the 77 °C temperature limit, so sustained write throughput tops out at that figure.
