SongryVGA

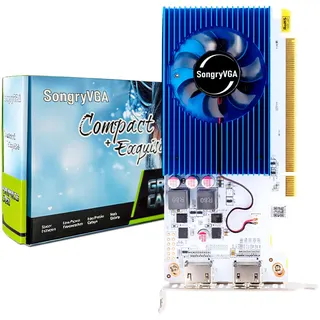

SongryVGA R5 230 2GB GDDR3 Low Profile Graphics Card
Low-profile Radeon R5 230 card with 2 GB GDDR3, dual HDMI 1.4 for two 1080p displays, 64-bit PCIe 2.0 x16, 20 W TDP and no external power needed
- InterfacePCI Express 2.0 x16
- Chipset ManufacturerAMD
- GPURadeon R5 230
- Core Clock650 MHz
- Effective Memory Clock533 MHz
- Memory Size2GB
- Low-profile bracket fits SFF and Thin-ITX builds
- Dual HDMI 1.4 ports drive two 1080p displays
- 2 GB GDDR3 on 64-bit bus for office workloads
- 20 W TDP runs on 200 W PSU without extra power
- Plug-and-play on Windows 10 and Linux systems
Low Profile R5 230 for Compact Builds
The SongryVGA R5 230 is a low profile graphics card built for small form factor PCs, thin ITX systems and HTPC cases. It fits into tight chassis where full height cards cannot be installed. The Radeon chipset delivers basic display output for office work, media playback and dual monitor setups. No external power connector is required for operation.
PCIe 2.0 x16 Interface and Dual HDMI 1.4
The card connects through a PCI Express 2.0 x16 slot and draws up to 20W from the motherboard. A 200W power supply is sufficient for the entire system. Two HDMI 1.4 ports drive two 1080p displays simultaneously without adapters. A full height bracket is included in the box for standard ATX cases. Driver support covers Windows 10 and Linux; Windows 11 is not supported.
2GB GDDR3 Memory on a 64 Bit Bus
The 2GB GDDR3 frame buffer runs on a 64 bit interface with an effective clock of 533 MHz. This capacity handles desktop composition, video decode and light multitasking at 1920 x 1080 resolution. The 650 MHz core clock and DirectX 12 feature level cover legacy titles and older applications. Modern 3D workloads and higher resolutions will exceed the available memory bandwidth and shader performance.
Highlights
- Low-profile bracket fits SFF and Thin-ITX builds
- Dual HDMI 1.4 ports drive two 1080p displays
- 2 GB GDDR3 on 64-bit bus for office workloads
- 20 W TDP runs on 200 W PSU without extra power
- Plug-and-play on Windows 10 and Linux systems

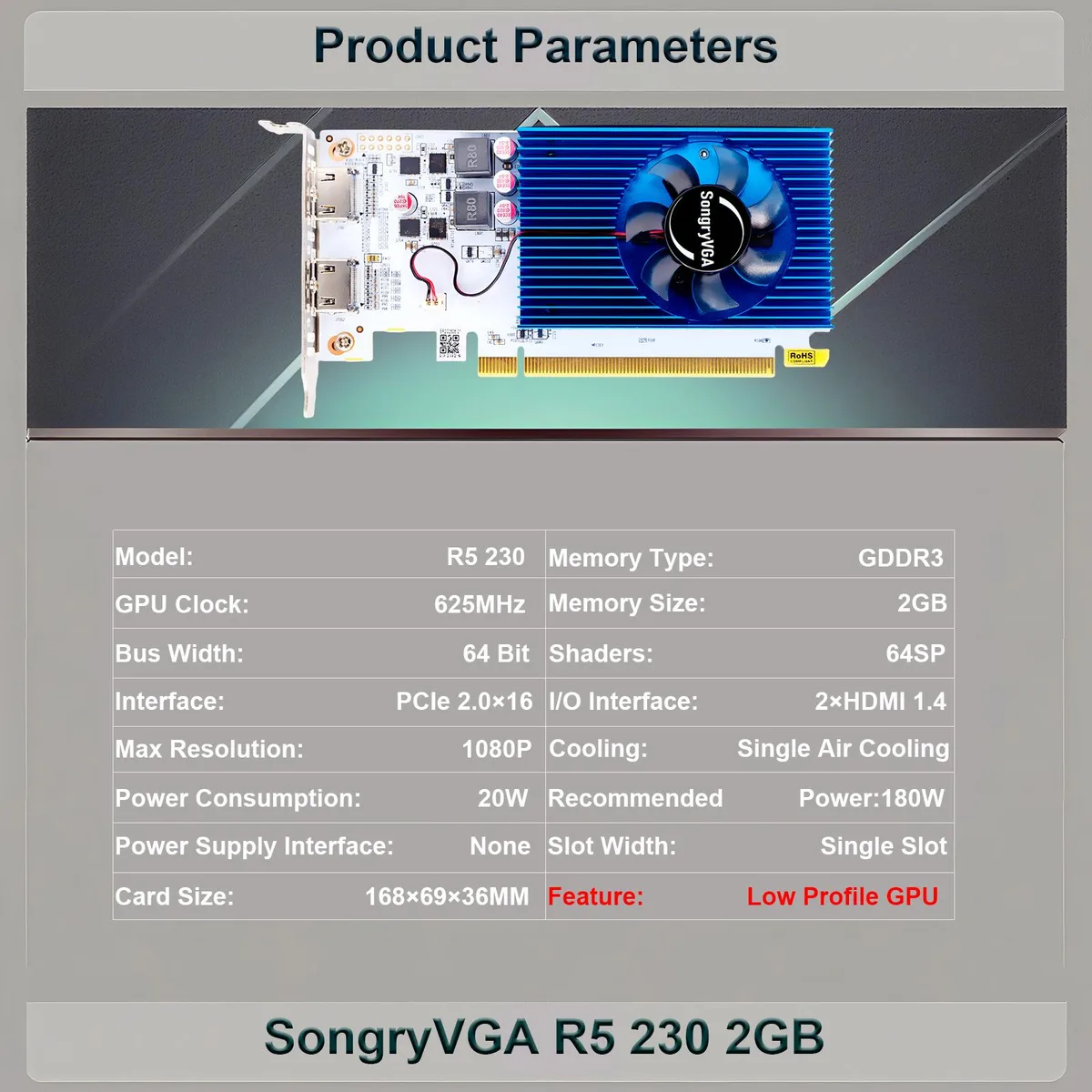

Specifications
| Brand | SongryVGA |
|---|---|
| Interface | PCI Express 2.0 x16 |
| Chipset Manufacturer | AMD |
| GPU | Radeon R5 230 |
| Core Clock | 650 MHz |
| Effective Memory Clock | 533 MHz |
| Memory Size | 2GB |
| Memory Interface | 64-Bit |
| Memory Type | GDDR3 |
| DirectX | DirectX 12 |
| OpenGL | OpenGL 4.6 |
| HDMI | 2 x HDMI |
| Max Resolution | 1920 x 1080 (HDMI) |
| Cooler | Single Fan |
| Thermal Design Power | 20W |
| Recommended PSU Wattage | 200W |
| Features | Small Form Factor Ready |
| Form Factor | Low Profile Ready |
| Max GPU Length | 145 mm |
| Low Profile Bracket Included | Yes |
| Card Dimensions (L x H) | 145mm*69mm |
| Slot Width | Single Slot |
Questions about this item
How much power does the Radeon R5 230 draw at full load?
The card has a thermal design power of 20W and needs no external power connector. A 200W power supply is recommended for the whole system.
How loud does the single fan get when the card runs all day?
The 20W TDP keeps heat low, so the single fan typically spins slowly and stays quiet during extended office or media use.
Which bracket do I need on my case for this low-profile card?
The card ships with both a low-profile bracket and a full-height bracket, so it fits either slim or standard chassis without extra parts.
