Low-profile RTX 3060 graphics card with single fan, matte black shroud, silver backplate, one HDMI and one DisplayPort bracket

SongryVGA

SongryVGA RTX 3060 12GB Low Profile graphics card

SKU CH-KRYR-AF27E

Low-profile GeForce RTX 3060 with 12 GB GDDR6 on a 192-bit bus, 1320 MHz base and 1777 MHz boost clocks, single-fan cooler, PCIe 4.0 x16 interface, 75 W TDP, HDMI 2.0 and DisplayPort 1.4 outputs

  • InterfacePCI Express 4.0 x16
  • Chipset ManufacturerNVIDIA
  • GPUGeForce RTX 3060
  • Core Clock1320 MHz
  • Boost Clock1777 MHz
  • Effective Memory Clock1875
  • Fits Mini-ITX and SFF builds with a low-profile bracket
  • 12GB GDDR6 on a 192-bit bus for high-resolution workloads
  • HDMI 2.0 and DP 1.4 drive two 8K displays
  • PCIe 4.0 x16 interface delivers full bandwidth without extra power cables
  • 75W TDP runs from the slot alone, no external connector needed

Compact RTX 3060 for small-form-factor builds

The SongryVGA RTX 3060 12GB Low Profile card fits Mini-ITX and SFF chassis while delivering a GeForce RTX 3060 GPU with 12GB GDDR6 on a 192-bit bus. It targets users who need modern graphics performance in space-constrained desktops or HTPCs. A single-slot cooler keeps the profile slim for tight layouts.

Verify slot power and bracket clearance

Your motherboard must provide a PCIe 4.0 x16 slot capable of supplying 75W without auxiliary connectors. Confirm the case accepts a low-profile bracket; a full-height bracket is included for standard slots. The 180W recommended PSU rating ensures headroom for the rest of the system. Driver support spans Windows 7 through 11 and common Linux kernels.

Sustained load stays at the 75W slot limit

Under continuous work the onboard power management chip caps draw at 75W, so clocks settle at sustainable levels rather than peaking briefly. Monitoring tools may erroneously report 150W to 170W due to sampling artefacts, but real consumption remains bounded. The single fan maintains thermal equilibrium during extended compute or 8K media playback.

Highlights

  • Fits Mini-ITX and SFF builds with a low-profile bracket
  • 12GB GDDR6 on a 192-bit bus for high-resolution workloads
  • HDMI 2.0 and DP 1.4 drive two 8K displays
  • PCIe 4.0 x16 interface delivers full bandwidth without extra power cables
  • 75W TDP runs from the slot alone, no external connector needed

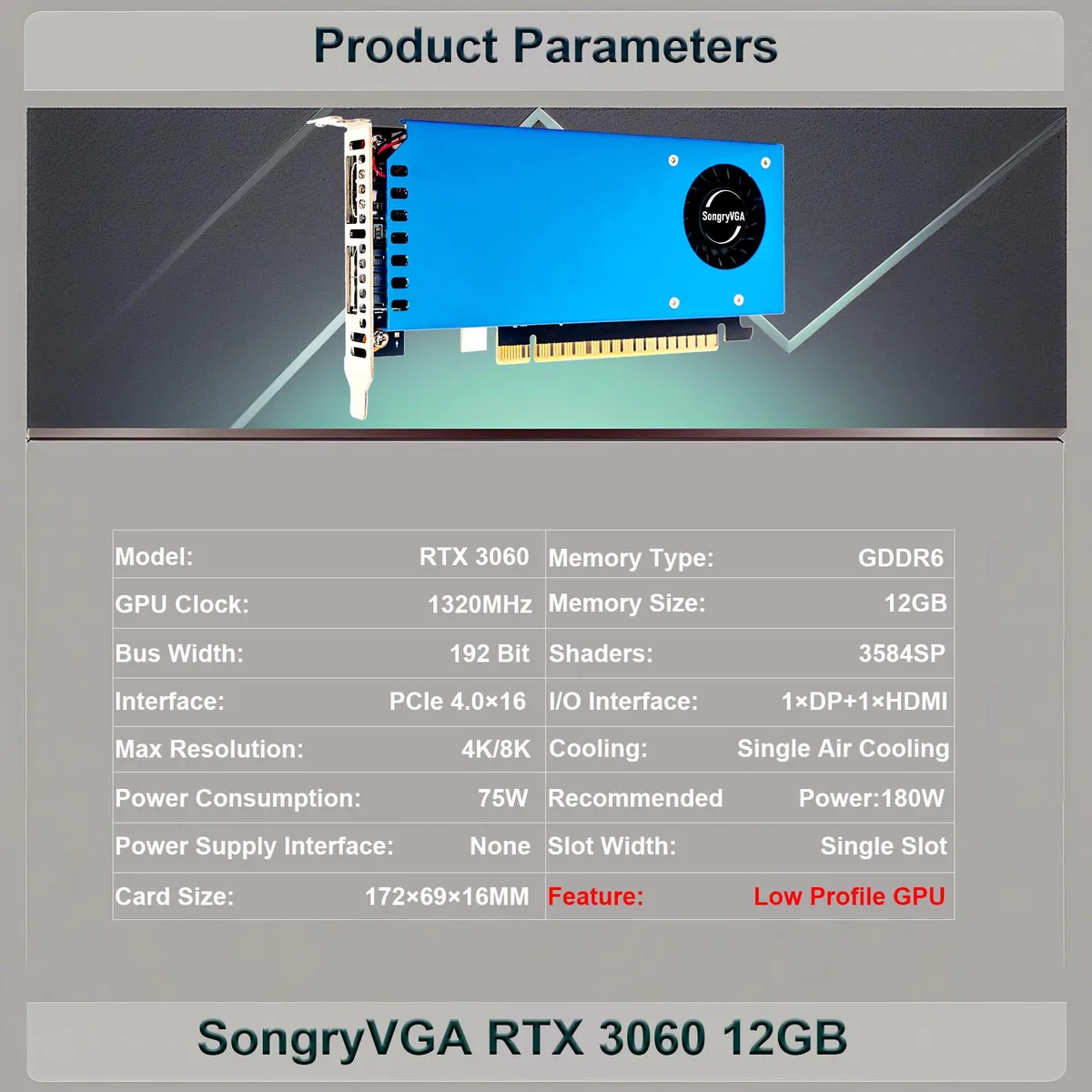

Specifications

BrandSongryVGA
ModelSY306D6LP12G1
InterfacePCI Express 4.0 x16
Chipset ManufacturerNVIDIA
GPUGeForce RTX 3060
Core Clock1320 MHz
Boost Clock1777 MHz
Effective Memory Clock1875
Memory Size12GB
Memory Interface192-Bit
Memory TypeGDDR6
DirectXDirectX 12.2
OpenGLOpenGL 4.6
Multi-Monitor Support2
HDMI1 x HDMI 2.0
DisplayPort1 x DisplayPort 1.4
Max Resolution7680 x 4320
CoolerSingle Fan
Thermal Design Power75W
Recommended PSU Wattage180W
FeaturesSmall Form Factor Ready
Form FactorLow Profile Ready
Max GPU Length172 mm
Low Profile Bracket IncludedYes
Card Dimensions (L x H)172mm*69mm
Slot WidthSingle Slot

Questions about this item

Does the box include a full-height bracket for standard cases?

Yes, the package contains the low-profile card, a full-height bracket and a user manual. No extra power cables or adapters are required because the board draws up to 75W from the PCIe slot.

Should I choose the 12GB GDDR6 version or a smaller memory option?

This model is only offered with 12GB of GDDR6 on a 192-bit bus, so there is no lower-capacity variant to select.

What does the 75W TDP mean for my power supply and case cooling?

The card is rated at 75W and powered entirely through the PCIe slot; a 180W PSU is recommended. Monitoring tools may show 150W to 170W spikes, but those are sampling errors, not sustained draw.
