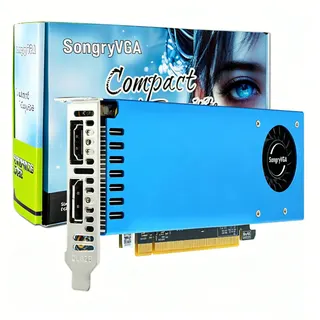

Low-profile GTX 1650 card with single fan and metal bracket

SongryVGA

SongryVGA SY165D5LP4G1 GTX 1650 4GB Low Profile graphics card

SKU CH-KYAB-923FM

Low-profile GTX 1650 with 4GB GDDR5, single-fan cooling and HDMI 2.0 plus DisplayPort 1.4 for dual monitors up to 7680 x 4320

  • InterfacePCI Express 3.0 x16
  • Chipset ManufacturerNVIDIA
  • GPUGeForce GTX 1650
  • Core Clock1485 MHz
  • Boost Clock1665 MHz
  • Effective Memory Clock2001 MHz

Output Ports HDMI + DisplayPort Ports

  • Low profile bracket fits slim SFF and HTPC cases
  • 4GB GDDR5 memory and 128-bit bus speed up games and creative apps
  • PCIe 3.0 x16 interface draws only 60W with no extra power connector

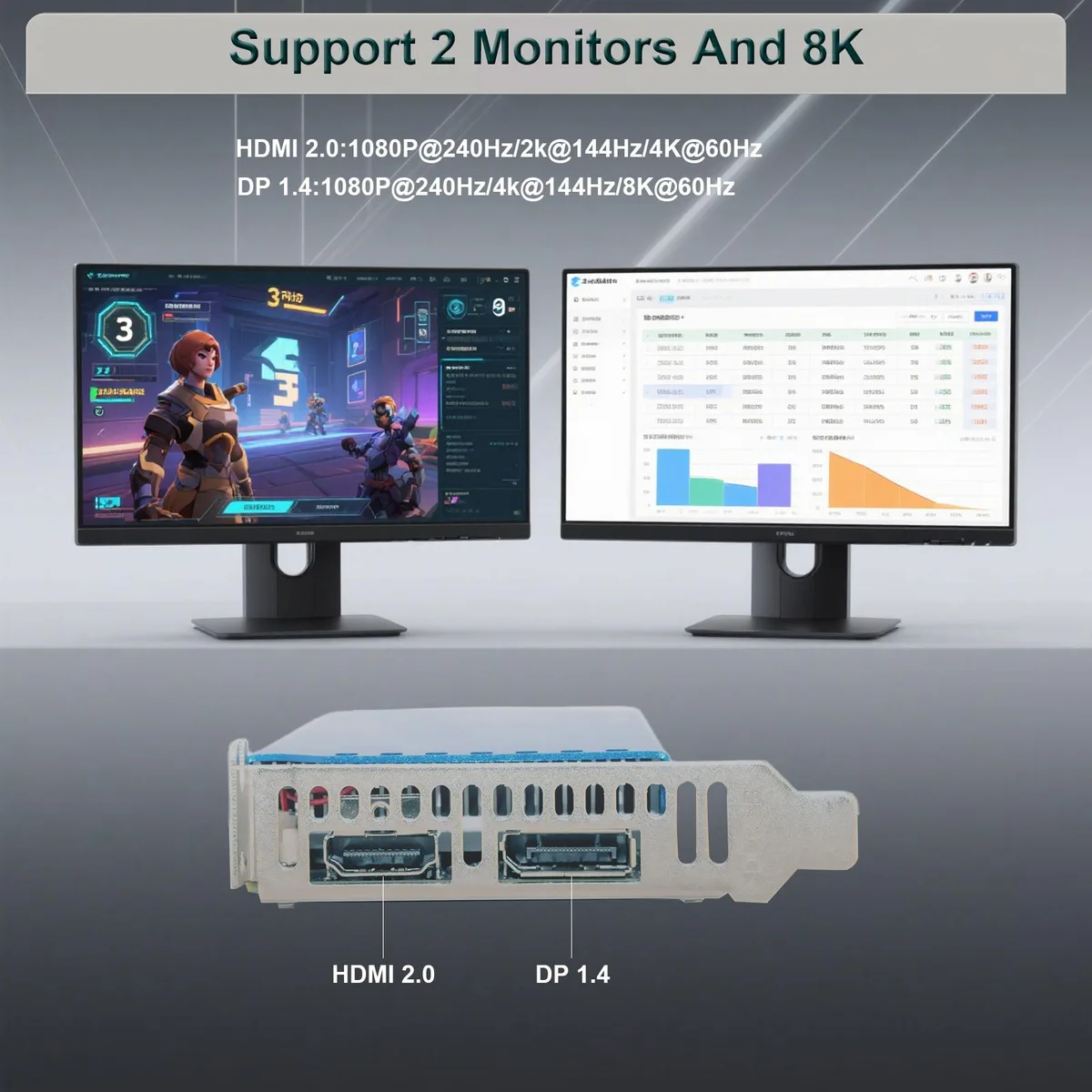

  • HDMI 2.0 plus DisplayPort 1.4 drive two monitors up to 7680 x 4320
  • Single-fan aluminum cooler runs semi-passive for quiet operation

Low-profile GTX 1650 for SFF builds

The SongryVGA SY165D5LP4G1 is a GeForce GTX 1650 card built for small-form-factor and thin ITX or HTPC cases. It fits a single slot and includes a full-height bracket for standard chassis. The board draws up to 60 W entirely from the PCIe 3.0 x16 slot, so no extra power connectors are needed. A 200 W power supply is sufficient for the whole system.

Semi-passive cooling at 60 W TDP

A custom aluminium heatsink and a single fan handle the thermal design power of 60 W. The fan stays off during light desktop work and media playback, keeping the system silent. Under typical gaming or creative loads the fan spins at low speed, maintaining acceptable temperatures without becoming audible in a quiet room. Power draw remains well within the slot limit.

Sustained clocks with 4 GB GDDR5

The GPU runs at a 1485 MHz base clock and boosts to 1665 MHz during extended sessions. Memory operates at an effective 2001 MHz across a 128-bit bus, feeding the core steadily for prolonged compute or 1080p gaming. Thermals stabilise quickly, so clock speeds hold without throttling. Outputs are one HDMI 2.0 and one DisplayPort 1.4, driving two displays up to 7680 x 4320.

Highlights

  • Low profile bracket fits slim SFF and HTPC cases
  • 4GB GDDR5 memory and 128-bit bus speed up games and creative apps
  • PCIe 3.0 x16 interface draws only 60W with no extra power connector
  • HDMI 2.0 plus DisplayPort 1.4 drive two monitors up to 7680 x 4320
  • Single-fan aluminum cooler runs semi-passive for quiet operation

Specifications

BrandSongryVGA
ModelSY165D5LP4G1
InterfacePCI Express 3.0 x16
Chipset ManufacturerNVIDIA
GPUGeForce GTX 1650
Core Clock1485 MHz
Boost Clock1665 MHz
Effective Memory Clock2001 MHz
Memory Size4GB
Memory Interface128-Bit
Memory TypeGDDR5
DirectXDirectX 12.1
OpenGLOpenGL 4.6
Multi-Monitor Support2
HDMI1 x HDMI 2.0
DisplayPort1 x DisplayPort 1.4
AI FeaturesAI Ready
Max Resolution7680 x 4320
Thermal Design Power60W
Recommended PSU Wattage200W
FeaturesSmall Form Factor Ready
Form FactorLow Profile Ready
Max GPU Length145 mm
Low Profile Bracket IncludedYes
Card Dimensions (L x H)145mm*69mm
Slot WidthSingle Slot

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install the SY165D5LP4G1 in a slim case and which bracket step causes the most trouble?

Insert the card into a PCIe 3.0 x16 slot, then swap the pre-fitted low-profile bracket for the included full-height bracket if your chassis needs it; the screw alignment on the bracket swap is the step most builders get wrong.

What maintenance or replacement will the SY165D5LP4G1 need later?

The single-fan cooler only needs occasional dust removal with compressed air; no PSU connectors or thermal-pad replacement are required because the 60W design draws all power from the slot.

What limit appears first when the SY165D5LP4G1 runs sustained loads?

The 60W thermal design power and 128-bit GDDR5 memory interface cap performance before the 1665 MHz boost clock can be held continuously.
