Sonnet DuoModo xMac mini Module expansion card with front Thunderbolt and USB ports

Sonnet Technologies

Sonnet DuoModo xMac mini Module expansion card

SKU CH-8FN6-4VS7C

Module mounts a Mac mini while adding two M.2 NVMe slots, front Thunderbolt and USB ports, plus an internal USB port

  • Supports 2018 and 2021 Mac mini models for broad compatibility
  • Two M.2 NVMe sockets at PCIe x2 boost storage speed
  • Front 40Gbps Thunderbolt passthrough plus three 10Gbps USB ports expand connectivity
  • Internal USB Type-A port secures dongles or thumb drives inside the chassis
  • Quiet temperature-controlled fans cool the module without adding noise

Mac mini expansion module

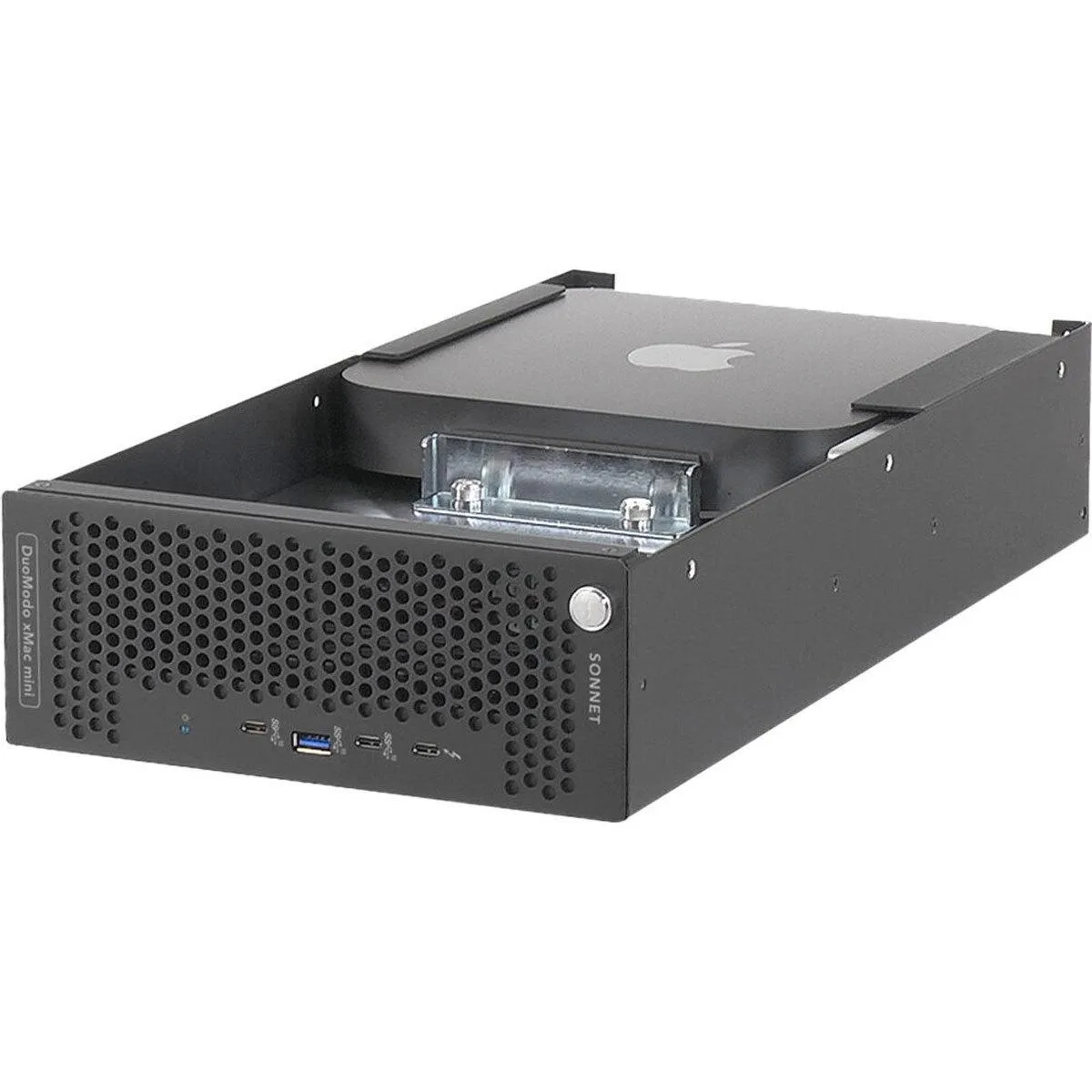

The Sonnet DuoModo xMac mini Module adds storage and connectivity to Mac mini models from 2018 and 2021 M1, plus earlier versions with adapters. It mounts the computer inside a DuoModo desktop or rackmount enclosure while providing a built-in 40Gbps Thunderbolt 3 dock. Two M.2 2280 NVMe sockets and front-panel ports expand the system for professional workflows.

Replaces limited internal storage

The module adds two NVMe sockets running at PCIe x2, allowing up to 16TB of additional capacity for users who have outgrown the Mac mini's factory SSD. Front-panel Thunderbolt 3 passthrough and three 10Gbps USB ports replace the need for separate hubs or docks. The upgrade is worthwhile when local storage speed and peripheral count become bottlenecks.

Limited to PCIe x2 per NVMe socket

Each M.2 slot operates at PCIe x2, so peak NVMe throughput is capped below what a PCIe x4 interface would deliver. Thunderbolt 3 bandwidth of 40Gbps is shared across the dock's storage and downstream ports. Builders needing maximum SSD lane allocation or Thunderbolt 4 speeds should verify these constraints before purchase.

Highlights

  • Supports 2018 and 2021 Mac mini models for broad compatibility
  • Two M.2 NVMe sockets at PCIe x2 boost storage speed
  • Front 40Gbps Thunderbolt passthrough plus three 10Gbps USB ports expand connectivity
  • Internal USB Type-A port secures dongles or thumb drives inside the chassis
  • Quiet temperature-controlled fans cool the module without adding noise

Specifications

No published specifications for this item yet.

Questions about this item

What physical space and mounting does the DuoModo xMac mini Module require?

It mounts a Mac mini securely inside a DuoModo desktop or rackmount enclosure and occupies the module bay designed for that chassis.

How is the module installed, and what step is often missed?

Slide the Mac mini into the module, connect the internal Thunderbolt 3 dock cable to the Mac mini, then secure the assembly in the DuoModo enclosure; the internal cable connection is the step most often overlooked.

What maintenance or replacement will the DuoModo xMac mini Module need later?

The two temperature-controlled variable-speed fans are the only moving parts and may require cleaning or replacement after extended use; M.2 2280 NVMe SSDs can be swapped or upgraded at any time.
