Sparkle Intel Arc B580 Titan OC graphics card with dual axial fans and metal backplate

Sparkle Computer Co., Ltd.

Sparkle Computer Co., Ltd. SB580T-12GOC Intel Arc B580 TITAN OC 12GB graphics card

SKU CH-S1E0-1QYCB MPN SB580T-12GOC

Refurbished Intel Arc B580 GPU with 12GB GDDR6, 20 Xe-cores, 2740MHz boost, PCIe 4.0, and TORN Cooling 2.0

  • InterfacePCI Express 4.0
  • Chipset ManufacturerIntel
  • GPU SeriesIntel Arc B-Series
  • GPUArc B580
  • Boost Clock2740 Mhz
  • Xe-cores20
  • Factory-overclocked 2740 MHz boost for higher frame rates
  • 20 Xe-cores with 160 XMX engines accelerate AI workloads
  • 12 GB GDDR6 on a 192-bit bus delivers 456 GB/s bandwidth

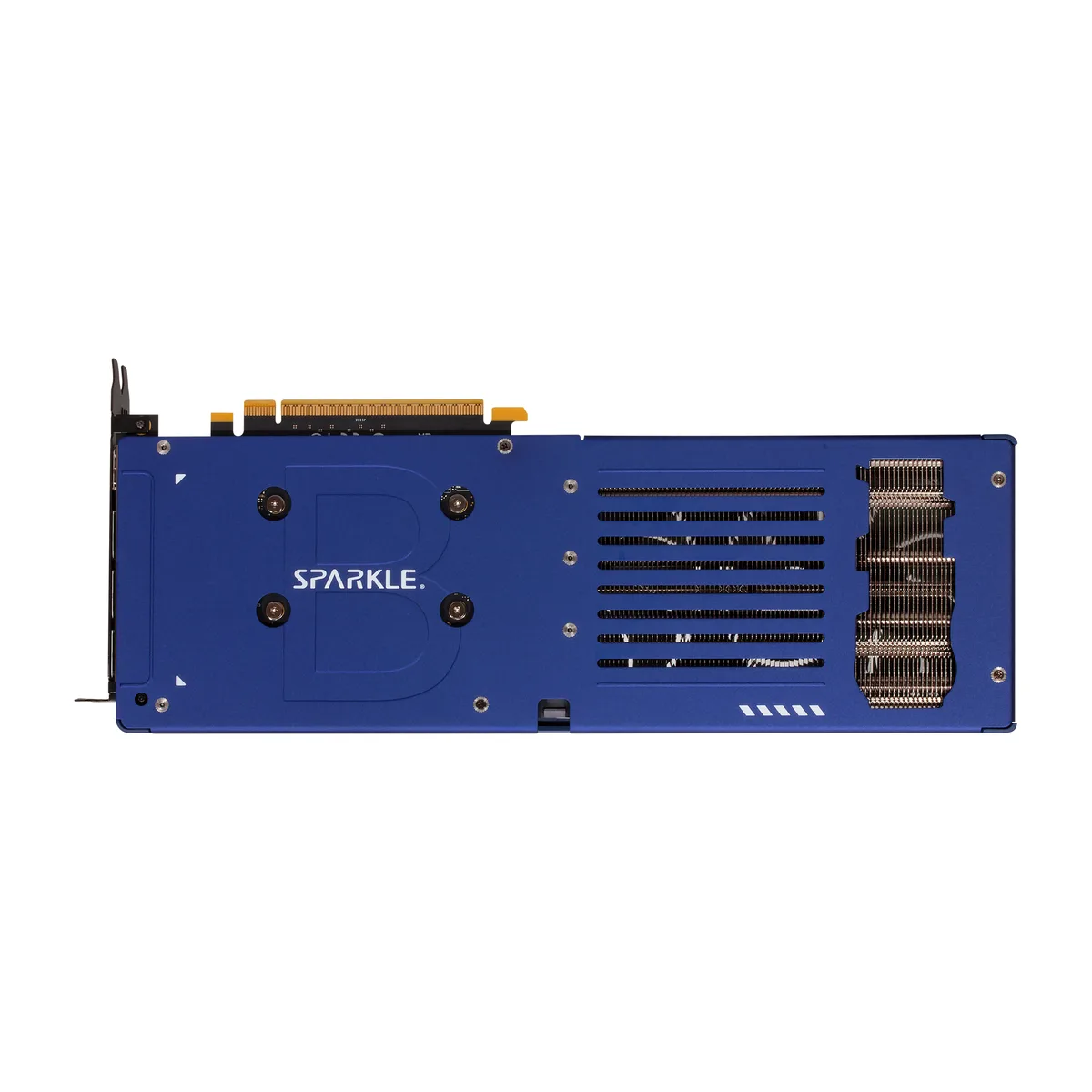

  • TORN Cooling 2.0 and metal backplate keep thermals in check
  • Three DisplayPort 2.1 and one HDMI 2.0b drive four 8K displays

Arc B580 TITAN OC 12GB graphics card

The Sparkle SB580T-12GOC is a refurbished Intel Arc B580 graphics card with 12GB of GDDR6 memory on a 192-bit interface. It targets builders who need 20 Xe-cores and a 2740 MHz boost clock for 1440p gaming and content creation. The card requires a 600W power supply and an 8-pin connector.

TORN Cooling 2.0 under sustained load

The dual-fan TORN Cooling 2.0 solution and metal backplate manage heat during extended sessions rather than brief spikes. Steady airflow across the heatsink keeps the GPU near its 2740 MHz boost clock when Resizable BAR is enabled on a 10th Gen Intel Core or Ryzen 3000 system. Sixteen gigabytes of system memory is recommended for consistent frame pacing.

PCI Express 4.0 and DisplayPort 2.1 limits

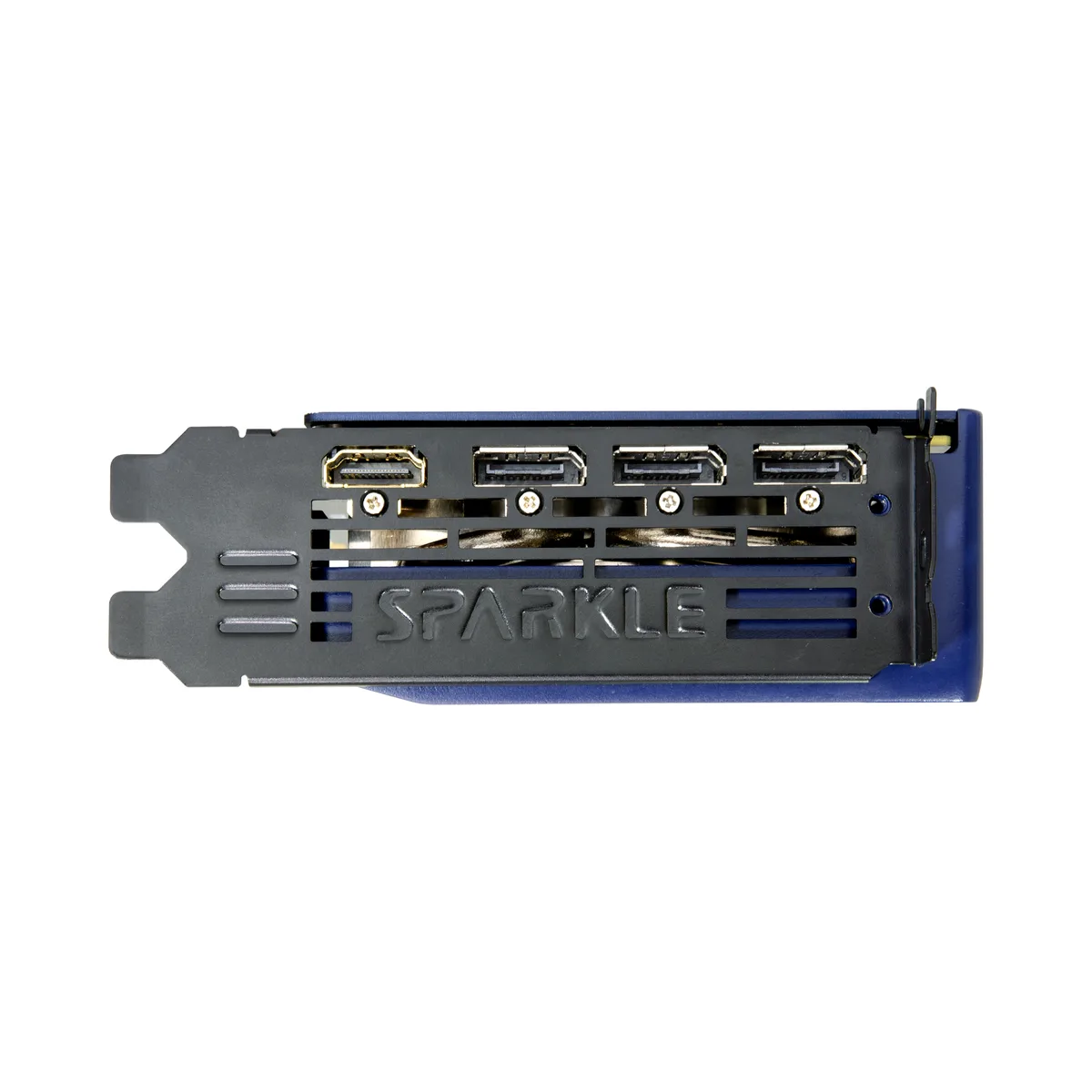

The x16 PCIe 4.0 link delivers full bandwidth only when the motherboard and CPU both support the standard. Three DisplayPort 2.1 ports and one HDMI 2.0b output drive up to 7680 x 4320 resolution across four monitors. Memory bandwidth peaks at 456 GB/s, capping texture throughput in memory-heavy workloads.

Highlights

  • Factory-overclocked 2740 MHz boost for higher frame rates
  • 20 Xe-cores with 160 XMX engines accelerate AI workloads
  • 12 GB GDDR6 on a 192-bit bus delivers 456 GB/s bandwidth
  • TORN Cooling 2.0 and metal backplate keep thermals in check
  • Three DisplayPort 2.1 and one HDMI 2.0b drive four 8K displays

Specifications

BrandSPARKLE
SeriesTITAN OC
ModelIntel Arc B580 TITAN OC
Part NumberSB580T-12GOC
InterfacePCI Express 4.0
Chipset ManufacturerIntel
GPU SeriesIntel Arc B-Series
GPUArc B580
Boost Clock2740 Mhz
Xe-cores20
Memory Size12GB
Memory Interface192-Bit
Memory TypeGDDR6
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.0b
DisplayPort3 x DisplayPort 2.1
Max Resolution7680 x 4320
CoolerAir Cooler
System RequirementsREQUIREMENTS
? 10th Gen Intel® Core™ / AMD Ryzen™ 3000 Series
Processors or newer with compatible motherboards
supporting Resizable BAR / Smart Access Memory
? PCI-Express® compliant MB with one x16 PCIe slot
? 600W or greater PSU with 1x 8-pin PCIe power connector
? 8GB of system memory minimum, 16GB recommended
? Windows® 11 64-bit or Windows® 10 64-bit
Recommended PSU Wattage600W
Power Connector8-Pin
Features? TORN Cooling 2.0
? Metal Backplate, Pre-Installed
? Ray Tracing
? Variable Rate Shading (VSR)
? DirectX 12 Ultimate
? Vulkan 1.3
? OpenGL 4.6
? OpenCL 3.0
? Adaptive Sync
? AV1 Encode / Decode
? VP9 Bitstream & Decoding
? Intel Deep Link Hyper Compute
? Intel Deep Link Hyper Encode
? Intel Deep Link Stream Assist.
Form FactorATX
Max GPU Length315 mm
Card Dimensions (L x H)315 x 117 x 44mm
Shipping weight1.63 kg
Package size387 × 197 × 74 mm

Questions about this item

How loud or hot does the TORN Cooling 2.0 get when the card runs at its 2740 MHz boost clock all day?

The TORN Cooling 2.0 uses an axial fan design and a metal backplate to move heat away from the GPU during sustained loads at 2740 MHz.

What CPU and motherboard must I already have so the Arc B580 can enable Resizable BAR?

You need a 10th Gen Intel Core or AMD Ryzen 3000 Series processor on a PCI Express 4.0 motherboard with an x16 slot that supports Resizable BAR.

Will my older HDMI 2.0 monitor work alongside the three DisplayPort 2.1 outputs for a four-screen setup?

Yes, the card provides 1 HDMI 2.0b and 3 DisplayPort 2.1 connectors, supporting up to four monitors at a maximum resolution of 7680 x 4320.
