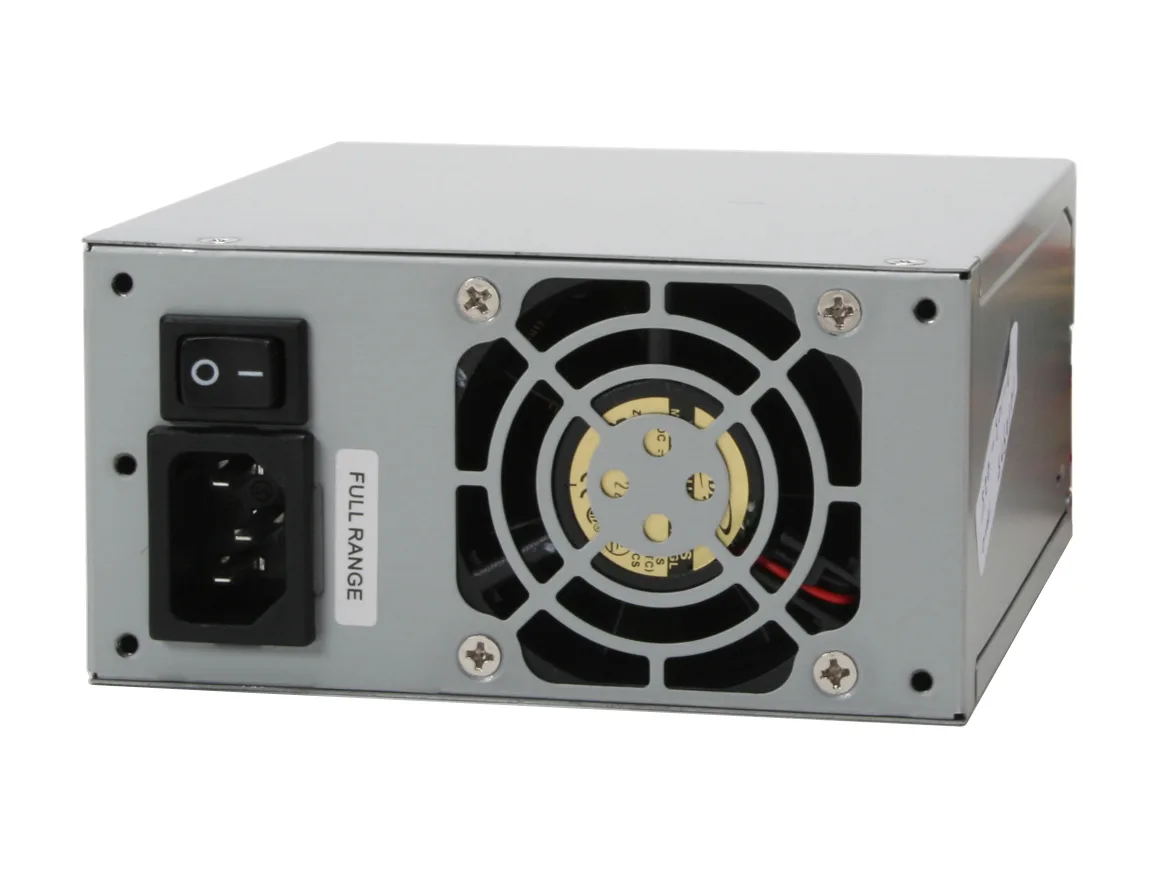

Silver SFX power supply unit with side fan grille and fixed cables

Sparkle Power Inc.

Sparkle Power Inc. FSP350-60GNV 350 W SFX power supply

SKU CH-PR3B-K6SXK MPN FSP350-60GNV

A 350 W SFX power supply with active PFC, two +12 V rails, two SATA connectors and a quiet 12 V fan

  • TypeSFX12V
  • Maximum Power350 W
  • FansInternal 12V DC fan included
  • PFCActive
  • Main Connector20+4Pin
  • +12V Rails2
  • Delivers 350 W maximum power for stable compact builds
  • Active PFC and 75 % efficiency reduce wasted energy
  • Two +12 V rails supply consistent current to multi-core CPUs
  • Over-voltage, over-current and short-circuit protections safeguard components
  • Low-noise 12 V DC fan maintains airflow under load

Compact SFX12V 350 W power supply

The Sparkle Power Inc. FSP350-60GNV is an SFX12V unit rated at 350 W maximum power. It uses active PFC and accepts 110 to 240 Vac input at 50 or 60 Hz. Two +12 V rails feed the system and a fixed cable set includes a 20+4 pin main connector plus two SATA power connectors. A 12 V internal fan provides cooling.

Suited for small-form-factor builds without

This supply fits compact cases that require the SFX form factor and need only the included connectors. Over-voltage, over-current and short-circuit protections guard connected hardware. Builders who need a PCI-Express power connector for a dedicated graphics card or who prefer fully modular cabling should look at a different unit.

350 W ceiling with dual +12 V rails

The two +12 V rails deliver the rated 350 W for multi-core processors and typical platform components. Hold-up time is at least 17 ms at nominal input and the power-good signal arrives within 100 to 500 ms. Efficiency exceeds 75 percent. Loads that demand more than 350 W or require additional PCI-Express connectors exceed this unit's capacity.

Highlights

  • Delivers 350 W maximum power for stable compact builds
  • Active PFC and 75 % efficiency reduce wasted energy
  • Two +12 V rails supply consistent current to multi-core CPUs
  • Over-voltage, over-current and short-circuit protections safeguard components
  • Low-noise 12 V DC fan maintains airflow under load

Specifications

BrandSPARKLE
ModelFSP350-60GNV
TypeSFX12V
Maximum Power350 W
FansInternal 12V DC fan included
PFCActive
Main Connector20+4Pin
+12V Rails2
PCI-Express ConnectorNo
SATA Power Connector2
SLINo
CrossFireNo
ModularNo
Power Good Signal100-500ms
Hold-up Time17ms minimum at nominal input voltage
Efficiency> 75%
Over Voltage ProtectionYes
Input Voltage110 - 240Vac
Input Frequency Range50/60 Hz
Input Current4.5A (RMS) @115Vac, 2A (RMS) @230Vac

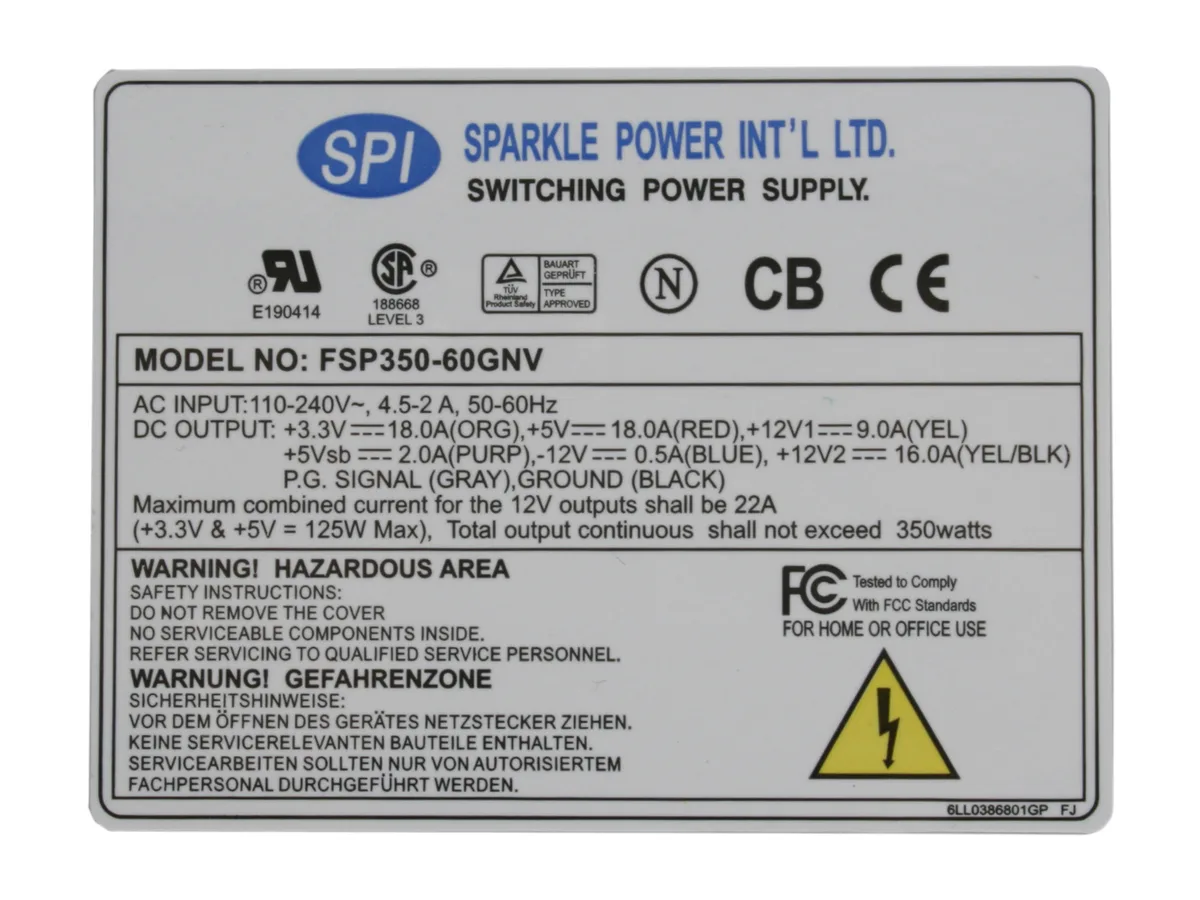

Output+3.3V@18A,+5V@18A,+12V1@9A,+12V2@16A, [email protected] , [email protected]
MTBF100,000 hours on maximum load at +25 degrees C
ApprovalsUL, CSA, TUV, CB

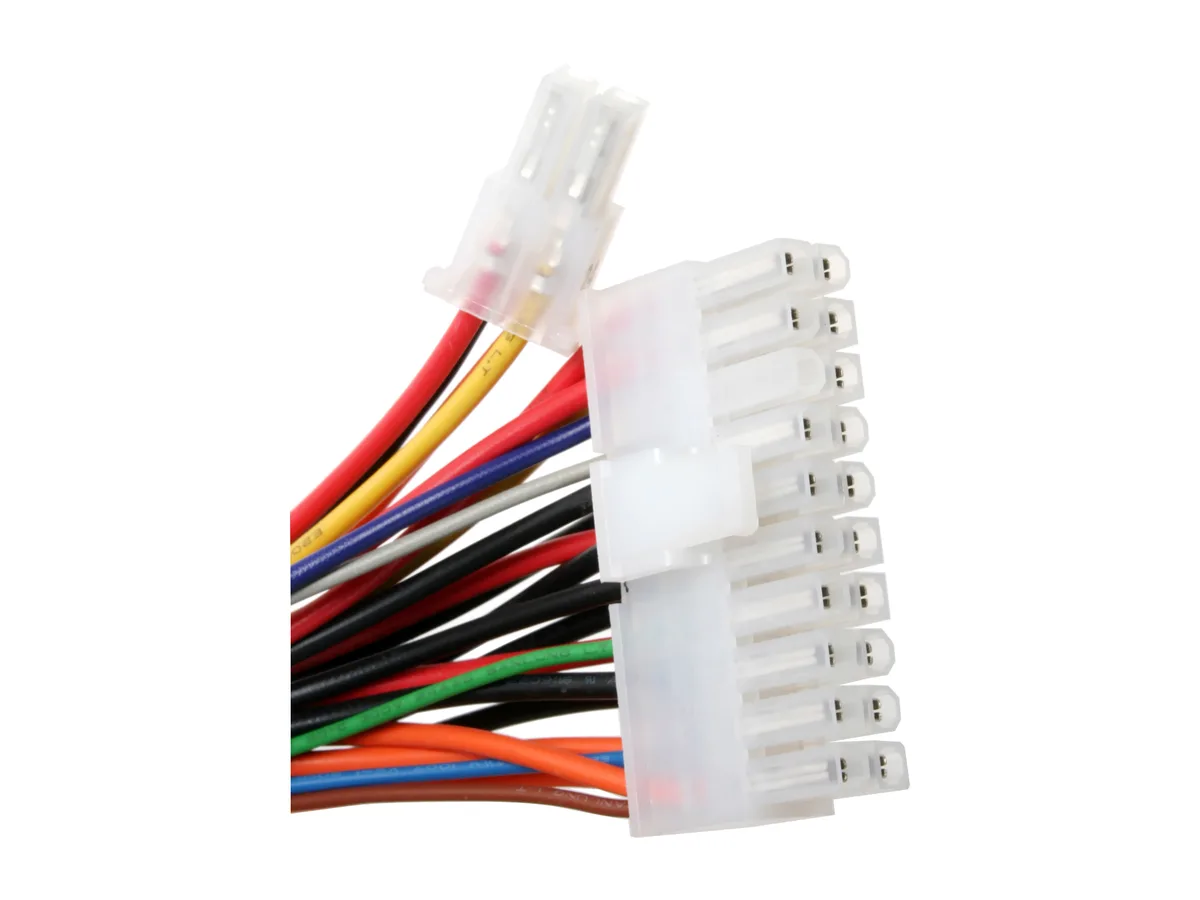

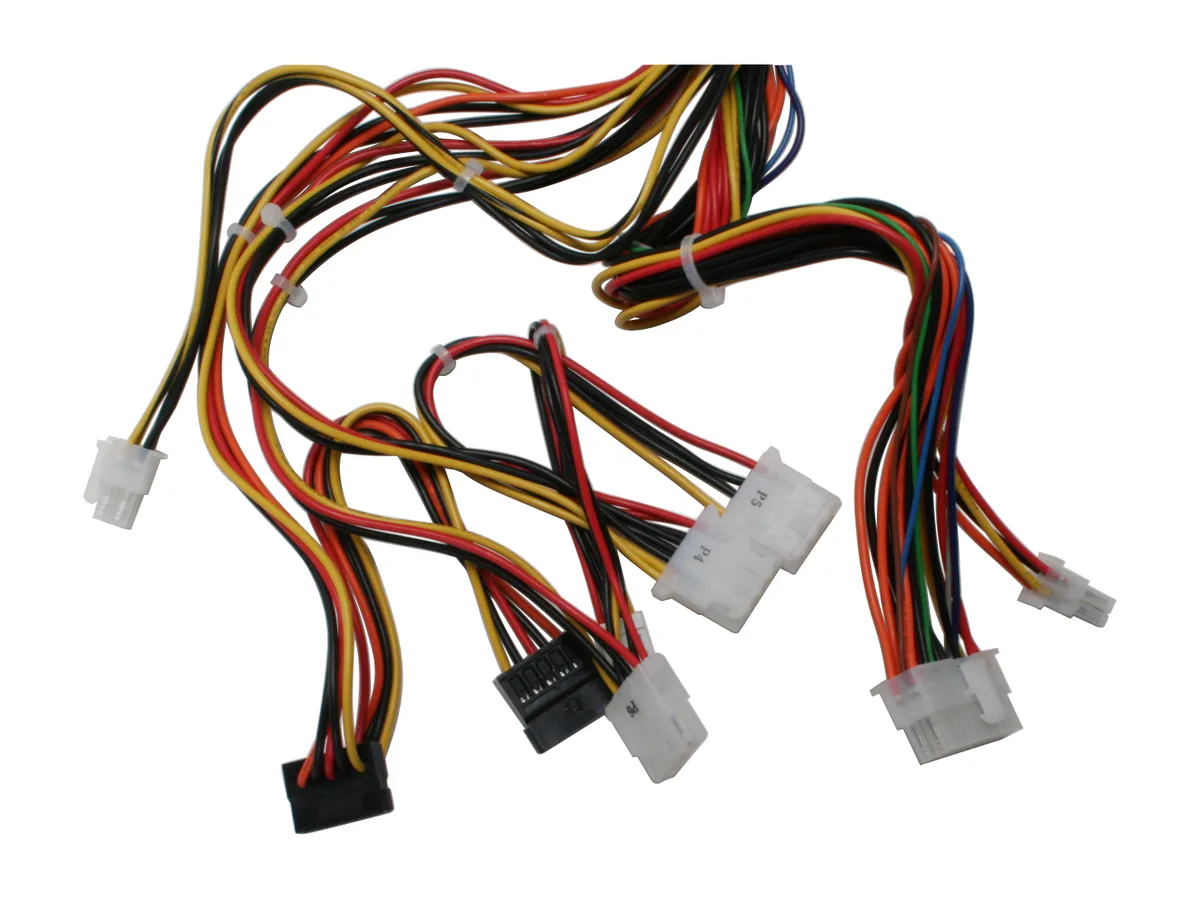

Connectors1 x Main connector (20+4Pin)
1 x 12V(4Pin)
3 x peripheral
2 x SATA
1 x Floppy
Energy-EfficientNo
FeaturesComplied with SFX and SFX12V standard
High efficiency and reliability
Remote ON/OFF function
Noise Killer (thermal fan speed control function)
Low noise and ripple
Output over voltage, short circuit, and over current protection
100% Hi-pot, ATE, and burn-in tested
Re-settable power shut down
Dimensions5.1" x 5" x 2.5"
Shipping weight1.81 kg
Package size343 × 178 × 85 mm

Questions about this item

Will this SFX unit fit my small-form-factor case?

The supply follows the SFX12V form factor, so it fits any chassis designed for SFX power supplies.

Can I run a modern graphics card that needs a PCIe power plug?

This model has no PCI-Express connector, so a card requiring external power cannot be used.

What drive power cables are included?

Two SATA power connectors are provided for SSDs or hard drives.
